Product Overview

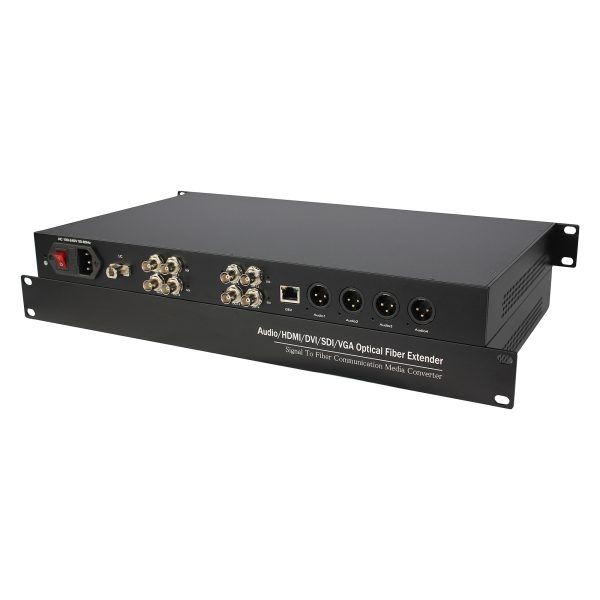

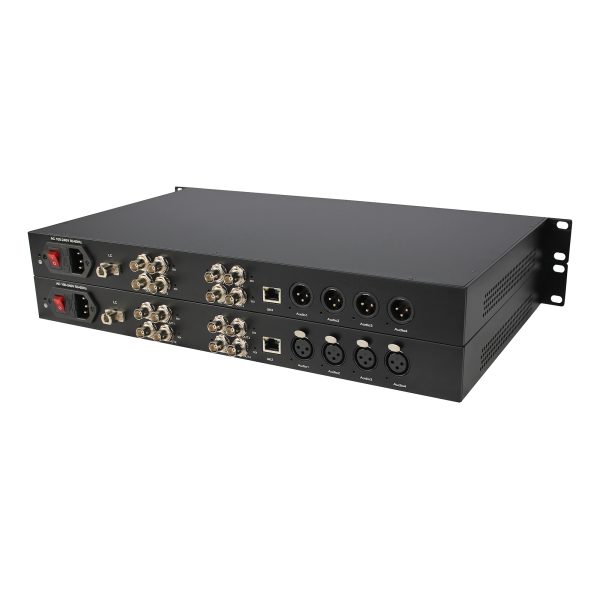

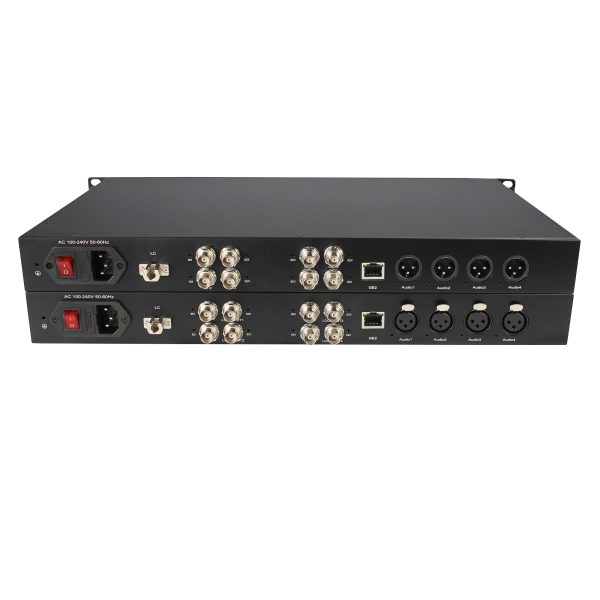

The 4-Channel 12G-SDI Fiber Optic Extender is a professional 19-inch 1U rackmount transmission system designed to simultaneously transmit 4 channels of unidirectional 12G-SDI video, 4 channels of unidirectional balanced XLR audio, and 1 Gigabit Ethernet connection over a single optical fiber.
Supporting SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI, the system supports video resolutions up to 3840×2160@60Hz and SDI data rates up to 11.88Gbps.
Using single-mode single-fiber transmission up to 20km through an LC optical interface, the system combines high-bandwidth 4K SDI video, professional balanced audio, and Gigabit Ethernet connectivity into a single fiber link.
The four XLR audio channels use 24-bit/192kHz digital sampling for clean and reliable audio transmission with low background noise and interference.

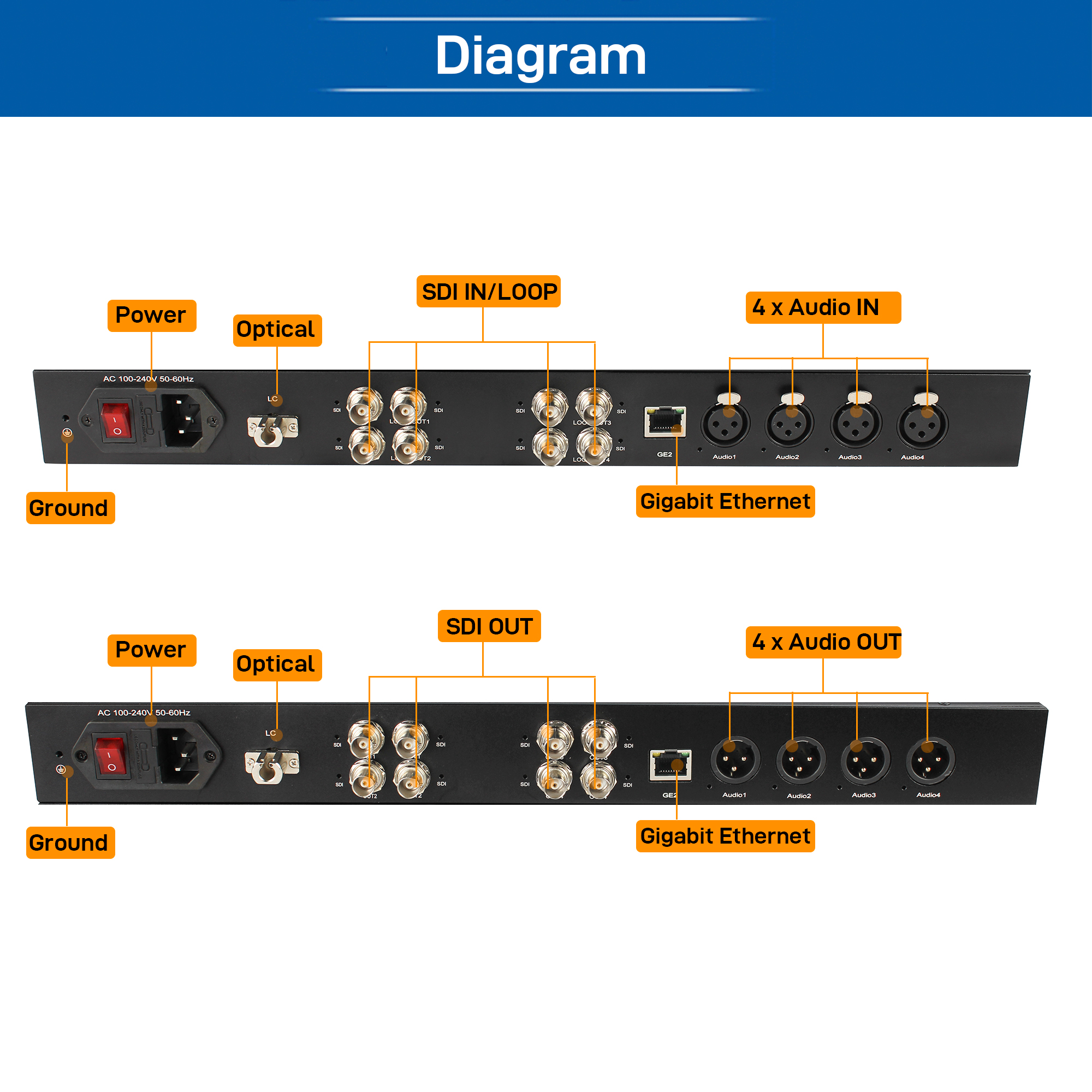

The integrated Gigabit Ethernet port supports standard 10/100/1000Mbps Ethernet protocols and full- or half-duplex operation. The professional 19-inch 1U rackmount design and built-in 220V AC power supply make the system suitable for centralized equipment rack installations.
Key Features
- 4-channel unidirectional 12G-SDI fiber transmission
- 4-channel unidirectional balanced XLR audio transmission
- 1 × Gigabit Ethernet port
- Supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
- Supports resolutions up to 3840×2160@60Hz
- Supports SDI rates up to 88Gbps
- 24-bit/192kHz digital audio sampling
- Low-noise and low-interference audio transmission
- Up to 20kmover single-mode single-fiber
- LC optical interface with 12Gb/s bandwidth
- 1 × Gigabit RJ45 network port
- Full-duplex and half-duplex Ethernet operation

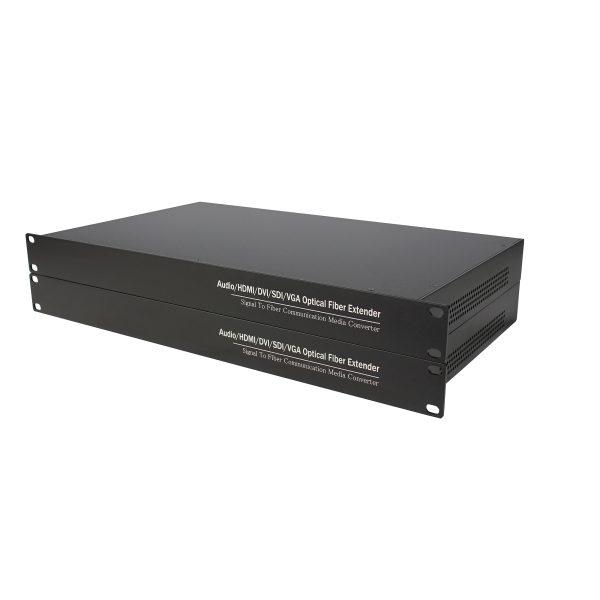

- 19-inch 1U rackmount design
- Built-in 220V AC power supply
Applications
- 4K broadcast systems
- Professional TV and studio production
- Live event and stage production
- Outside broadcasting
- Concert and professional AV systems
- Broadcast equipment rooms
- 4K video, audio and network transmission
- Long-distance SDI distribution
- Centralized rackmount AV systems
