Product Overview
The FQ-1401H-T/R HDMI 1.4 Fiber Optic Extender is a compact high-performance solution for long-distance transmission of HDMI video and audio signals over a single multimode fiber.
Using Wavelength Division Multiplexing (WDM) and a patented micro-diffraction optical system, the extender transmits high-definition HDMI signals through a single OM3/OM4 multimode LC fiber with stable performance and strong immunity to electromagnetic interference.
It supports resolutions up to 4096×2160@30Hz (4K@30Hz) and is backward compatible with 1080p, 1080i, 720p and other HDMI formats. With a maximum transmission rate of 10Gbps, it provides reliable signal extension for professional AV and display applications.

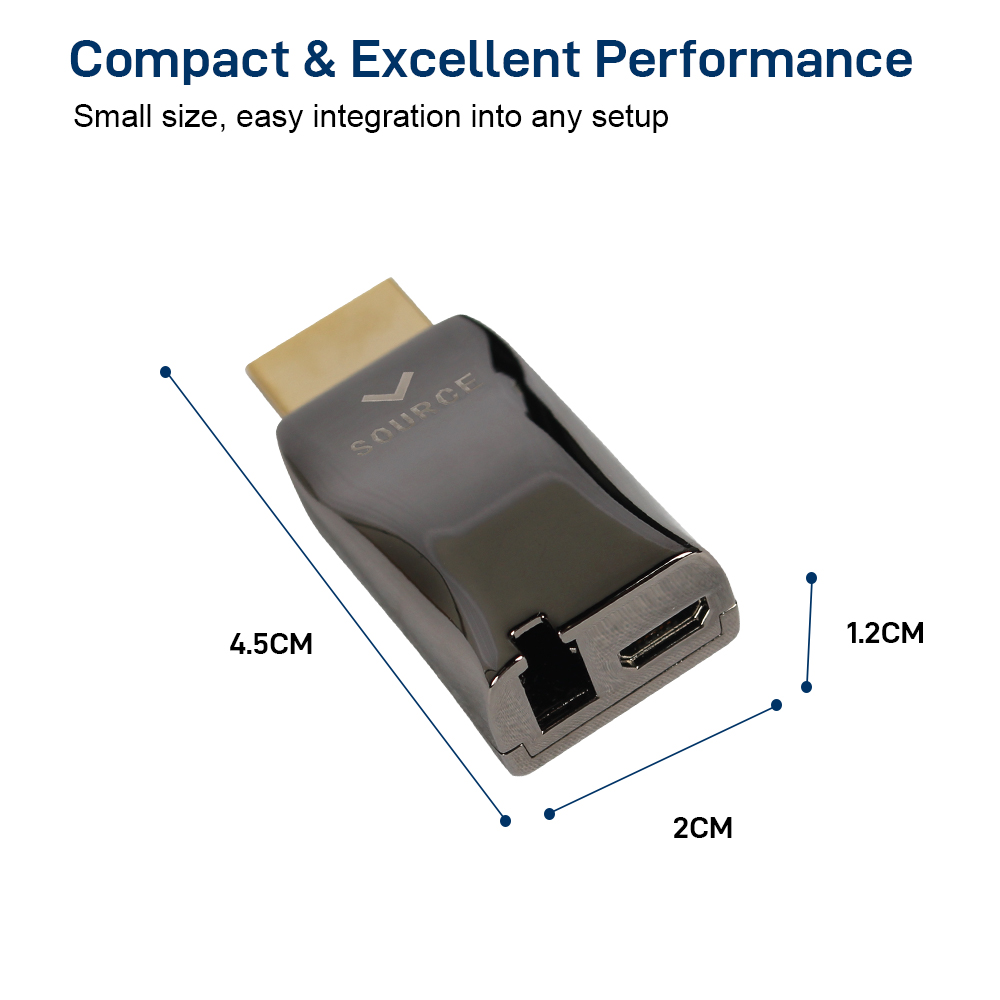

The compact module design allows fast installation and is suitable for applications requiring space-saving integration and mass deployment.
Key Features
- Supports HDMI 1.4 with backward compatibility to HDMI 1.2
- Supports up to 4096×2160@30Hz 4K video
- 10Gbps maximum transmission rate

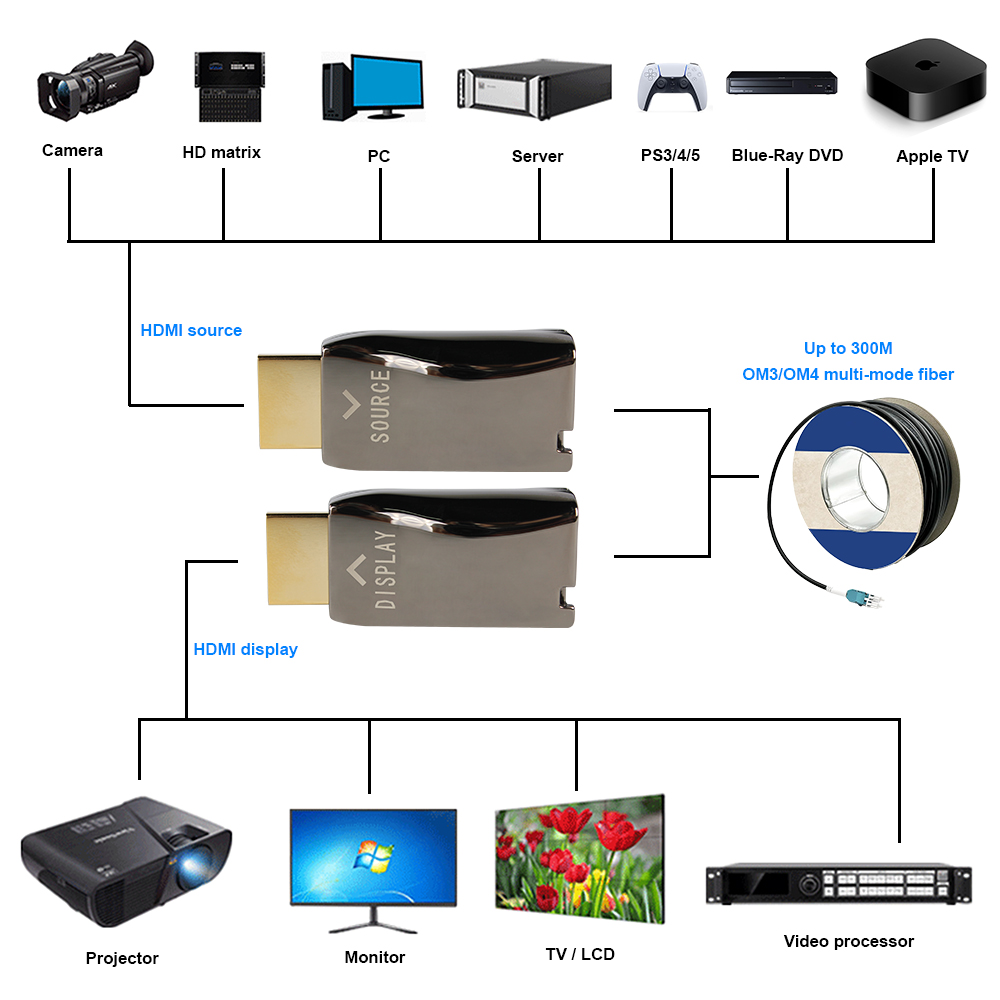

- Up to 300m transmission over OM3/OM4 multimode fiber
- Uses a single LC fiber with WDM technology
- Supports HDCP, DDC and CEC pass-through
- Supports TMDS signal transmission
- Hot-plug operation for convenient installation and maintenance
- Compact and lightweight module design
- Strong immunity to electromagnetic interference
- Designed for rapid installation and mass production
Applications
- Digital home theater systems
- 4K video conferencing
- Meeting rooms and conference halls
- Auditoriums and commercial displays
- LED and outdoor advertising screens
- Security monitoring systems
- Educational multimedia classrooms
- Broadcast and TV monitoring
- Industrial automation monitoring
- Medical imaging and surgical video transmission
