Bidirectional 12G-SDI Fiber Optic Extender with Dual V-Mount Plates, 20km Single-Mode LC, 4K

Original price was: $ 1.102,00.Current price is: $ 936,00.

Bidirectional 12G-SDI fiber transmission up to 20km
Supports SD, HD, 3G, 6G and 12G-SDI
Supports SDI rates up to 11.88Gbps
Dual V-Mount plates for camera and battery mounting
V-Mount battery can power camera and extender
Supports 4K/UHD SDI video transmission
Low jitter performance of ≤0.2UI
Transparent embedded audio and ancillary data
LC single-mode single-fiber transmission

Power Plug

EU Plug
US Plug
UK Plug
AU Plug

Clear

SKU: FQ-V-12G-1Vv-T/R Categories: SDI Fiber Extender (HD / 3G / 12G), Video Fiber Extenders, Video Transmission Brand: Meeter

Guaranteed Safe Checkout

Product Overview

The FQ-V-12G-1Vv-T/R Bidirectional 12G-SDI Fiber Optic Extender is a professional broadcast-grade fiber transmission system designed for reliable long-distance transmission of high-bandwidth SDI video signals.

The system provides 1-channel bidirectional 12G-SDI optical transmission with low jitter and transparent signal transmission. It supports SDI data rates from 270Mbps to 11.88Gbps and is compatible with SMPTE ST-2082, ST-2081, SMPTE 424M, SMPTE 344M, SMPTE 292M, SMPTE 259M, and DVB-ASI standards.

Designed specifically for mobile camera and broadcast applications, the unit features front and rear V-Mount plates. The front V-Mount plate can be attached to the rear V-Mount interface of compatible professional cameras, including cameras from Blackmagic Design, Sony, and similar systems. The rear V-Mount plate allows a V-Mount battery to be mounted directly on the extender, providing power to both the extender and connected camera equipment.

Using single-mode single-fiber transmission with LC optical interfaces, the system supports transmission distances up to 20km. Embedded audio and ancillary data are transparently transmitted along with the SDI signal.

Key Features

1-channel bidirectional 12G-SDI fiber transmission
Supports up to 88GbpsSDI data rate
Supports SDI rates from 270Mbps to 11.88Gbps
Compatible with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
Supports 4K/UHD video transmission
Low jitter, ≤0.2UI
Transparent transmission of embedded audio and ancillary data
Front V-Mount plate for mounting to compatible professional cameras
Rear V-Mount plate for mounting a V-Mount battery
V-Mount battery can power both extender and camera
Up to 20kmover single-mode single-fiber
LC optical interface
Automatic SDI input detection
Supports ITU-R BT.2020
Aluminum alloy construction

Applications

Professional broadcast camera systems
4K outside broadcasting
Live event and stage production
TV and studio production
Mobile video production
OB vans and field production
Long-distance SDI transmission
Broadcast-grade camera links

SDI Video

Item	Specification
SDI Channels	1
Transmission Direction	Bidirectional
Video Standard	SD-SDI / HD-SDI / 3G-SDI / 6G-SDI / 12G-SDI
Maximum Data Rate	11.88Gbps
Supported Data Rates	270Mbit/s / 1.48Gbit/s / 2.97Gbit/s / 5.94Gbit/s / 11.88Gbit/s
SDI Interface	BNC
SDI Impedance	75Ω
Jitter	≤0.2UI
Embedded Audio	Transparent
Ancillary Data	Transparent
Input Detection	Automatic
Video Standard	ITU-R BT.2020

SDI Cable Equalization

SDI Data Rate	Automatic Cable Equalization
11.88Gbps	75m
5.94Gbps	120m
2.97Gbps	200m
1.485Gbps	280m
270Mbps	600m

Cable equalization values are based on Belden 1694A cable.

Fiber Optic

Item	Specification
Optical Interface	LC
Fiber Type	Single-Mode Single-Fiber
Transmission Distance	Up to 20km
Operating Wavelength	1270–1610nm
Optical Power	-6 to -1dBm
Receiver Sensitivity	< -14.4dBm

Power & General

Item	Specification
Power Input	DC 5–18V
Power Consumption	<7W
Front Mount	V-Mount Plate
Rear Mount	V-Mount Plate
Battery Support	V-Mount Battery
Housing Material	Aluminum Alloy
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Operating Humidity	0–95% RH, Non-Condensing

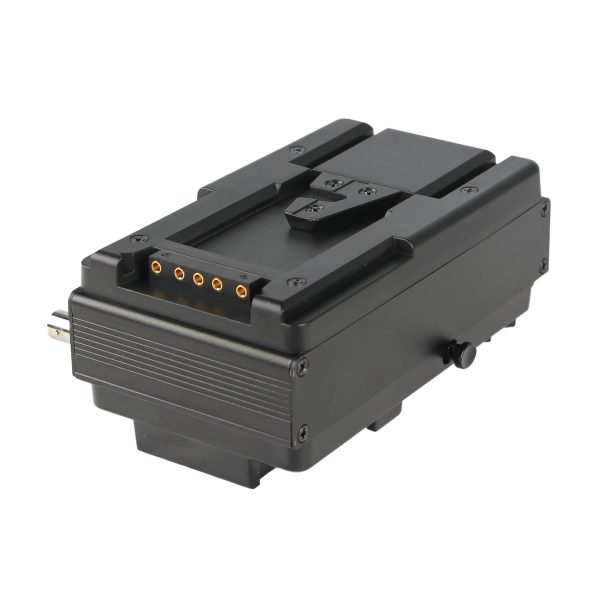

V-Mount Design

Front V-Mount Plate

The front V-Mount plate is designed to mount the extender onto the rear V-Mount interface of compatible professional cameras, including Blackmagic Design, Sony, and similar camera systems.

Rear V-Mount Plate

The rear V-Mount plate allows a compatible V-Mount battery to be mounted directly onto the extender. The battery can provide power to both the extender and the connected camera system, making the unit suitable for mobile and field production.

Item	Quantity
12G-SDI Transmitter	× 1
12G-SDI Receiver	× 1
Power Adapter	× 2
