Product Overview

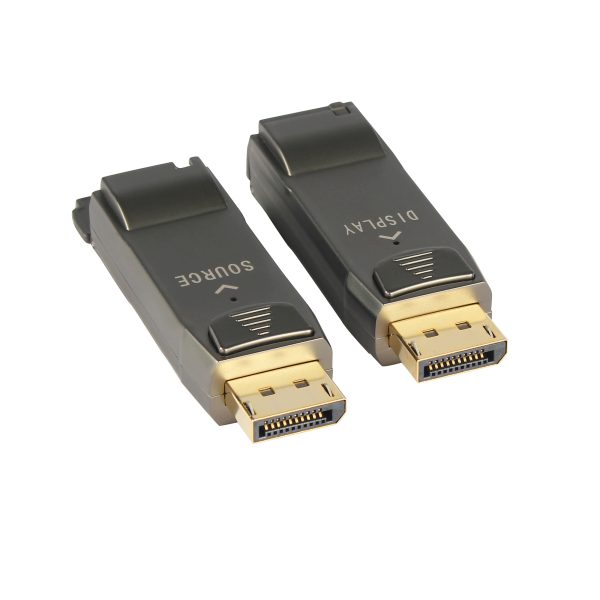

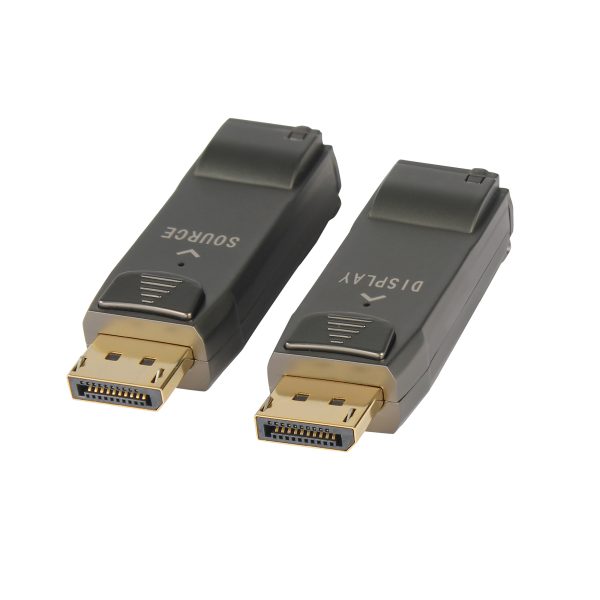

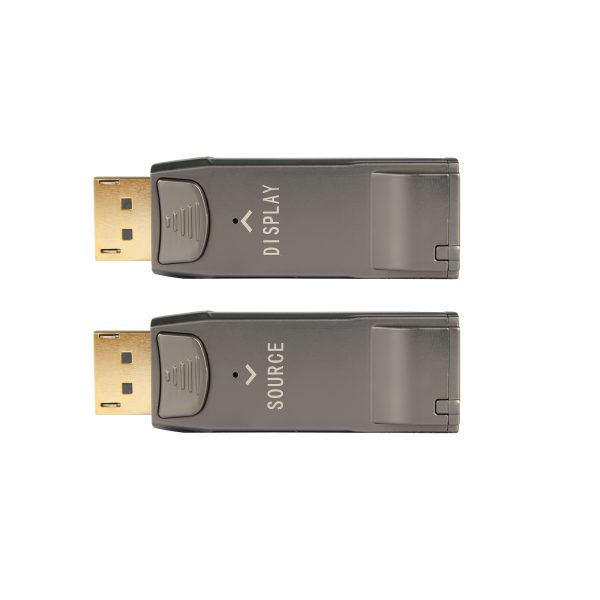

The ZH-THF01DP-T/R DP 1.4 Fiber Optic Extender is a high-speed optical transmission module designed for long-distance DisplayPort video and audio extension. It supports DisplayPort 1.4, 32.4Gbps total bandwidth, and resolutions up to 8K@30Hz and 4K@144Hz.
Using wavelength division multiplexing and a patented miniature diffraction optical system, the extender transmits high-bandwidth DisplayPort signals through one OM3/OM4 multimode LC fiber, providing transmission distances of up to 300 meters.

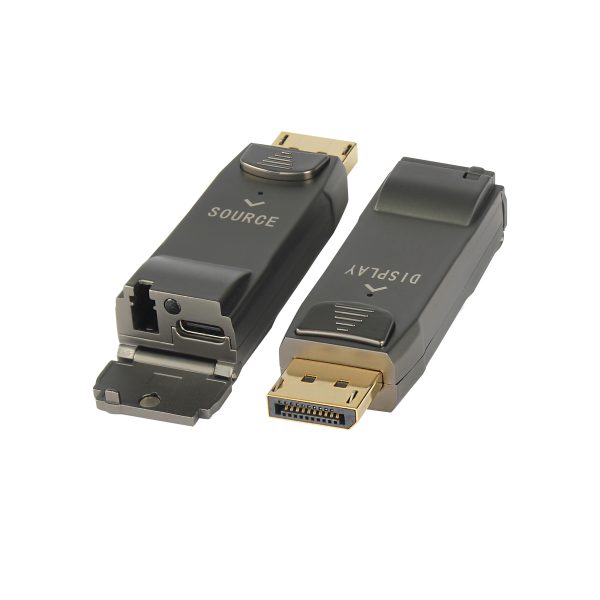

The compact module design is suitable for equipment integration and mass production. Both the transmitter and receiver are powered independently through USB Type-C 5V, and both units must be powered simultaneously during operation.
Key Features
- DisplayPort 1.4 fiber optic extender
- Supports up to 32.4Gbps transmission bandwidth
- 1Gbps per channel × 4 channels
- Supports 8K@30Hz and 4K@144Hz
- Supports 4K@60Hz, 4K@30Hz, 1080p, 1080i and 720p
- Single-fiber transmission using OM3/OM4 multimode fiber

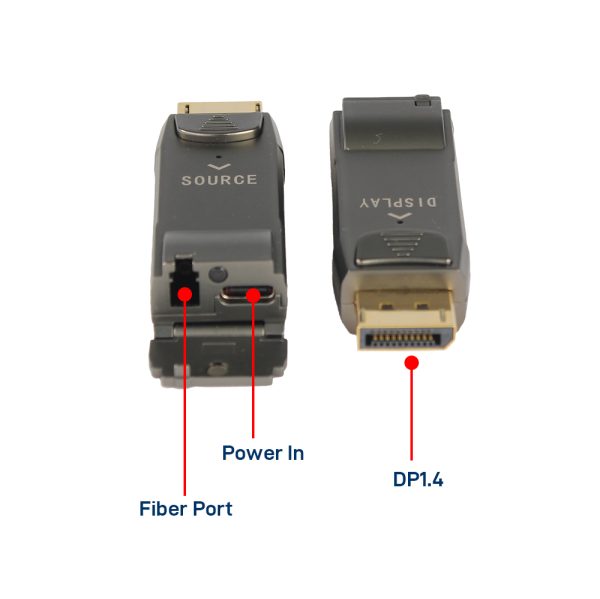

- LC-LC optical connection

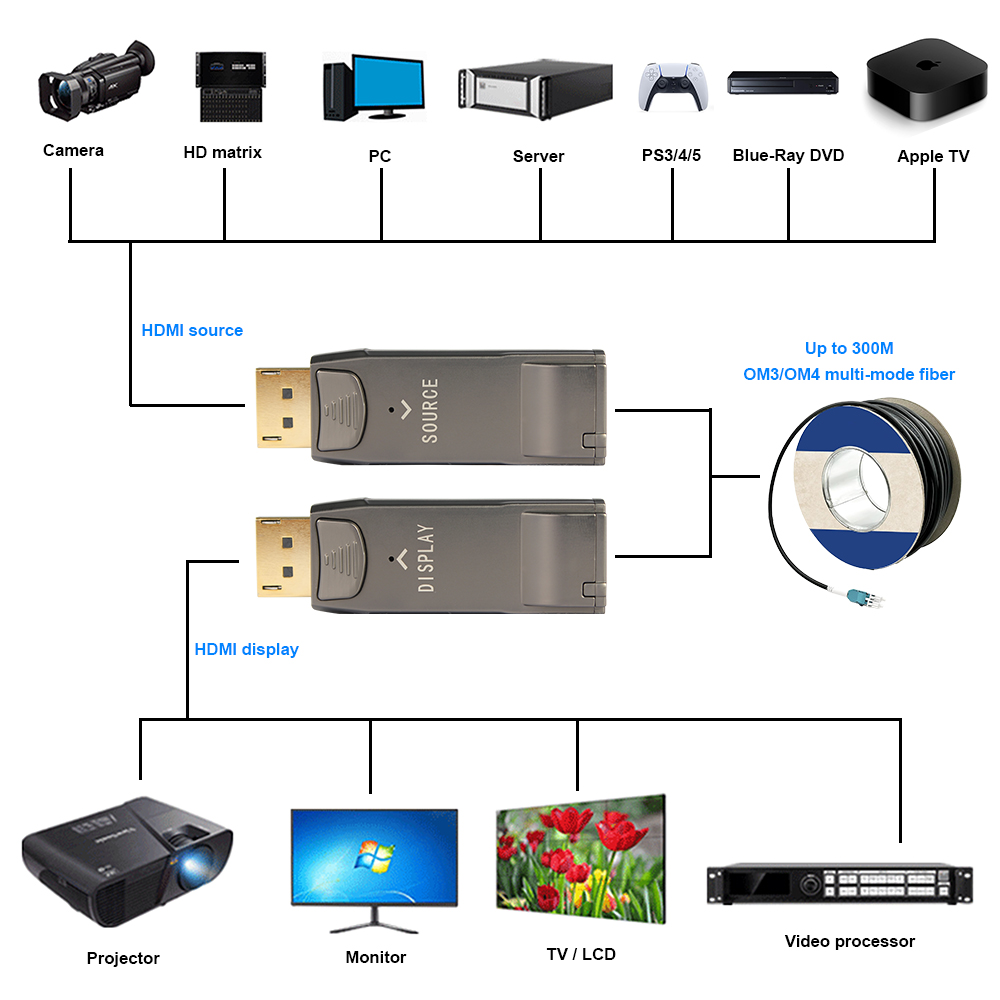

- Up to 300m transmission distance
- 850nm multimode optical transmission
- Supports AUX, HPD and HDCP 2.2
- Wavelength division multiplexing technology
- Built-in miniature diffraction optical system
- Strong resistance to electromagnetic interference

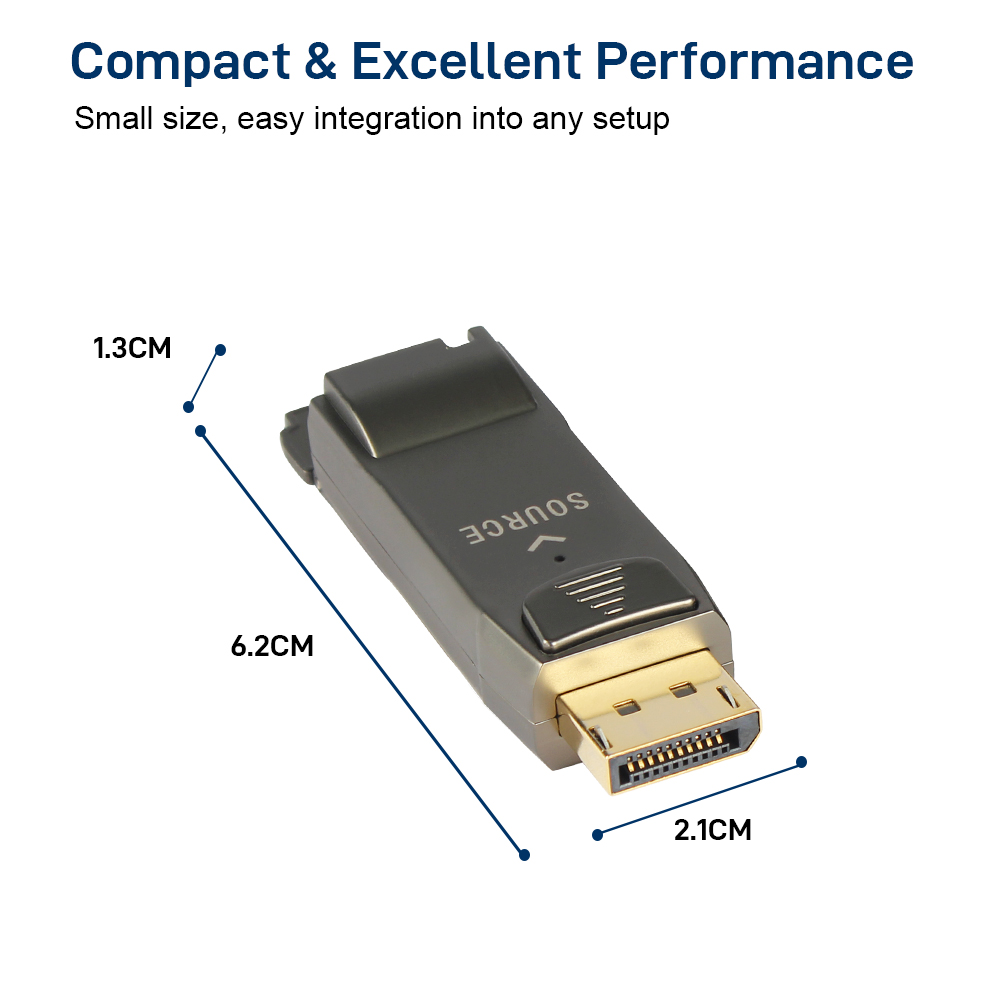

- Compact module design for equipment integration
- USB Type-C 5V power input
- TX and RX require simultaneous power

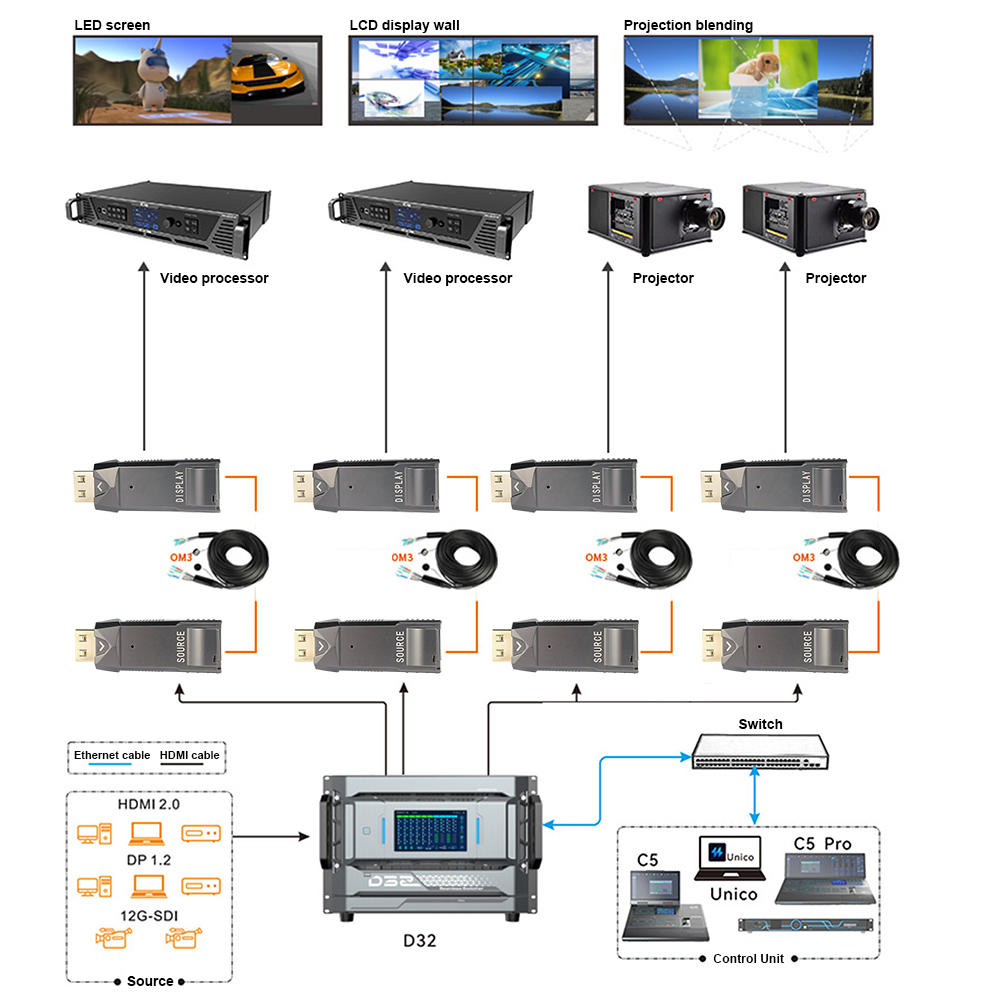

Applications
- Digital home theater
- 8K/4K professional AV systems
- High-definition video conferencing
- Conference rooms
- Auditoriums
- Digital signage and outdoor advertising
- Computers and DisplayPort monitors
- DisplayPort projectors
- Professional display systems
- Equipment integration and OEM applications
