Product Overview
The FQ-EFP1200 EFP Broadcast Camera Fiber System is a professional long-distance fiber transmission solution designed for Electronic Field Production (EFP), Outside Broadcast (OB), studio production, sports broadcasting, and live events.
The system is designed to transmit essential broadcast camera signals between the camera position and production control room through a LEMO optical/electrical hybrid fiber cable. It supports 1-channel forward 12G-SDI video together with return video, allowing the return signal to be configured as analog video, SD-SDI, HD-SDI, or 12G-SDI.
In addition to video transmission, the FQ-EFP1200 integrates TALLY, bidirectional broadcast intercom, camera remote control, GENLOCK, Timecode, and remote camera power into the EFP camera fiber system, providing an efficient connection solution for professional broadcast production.

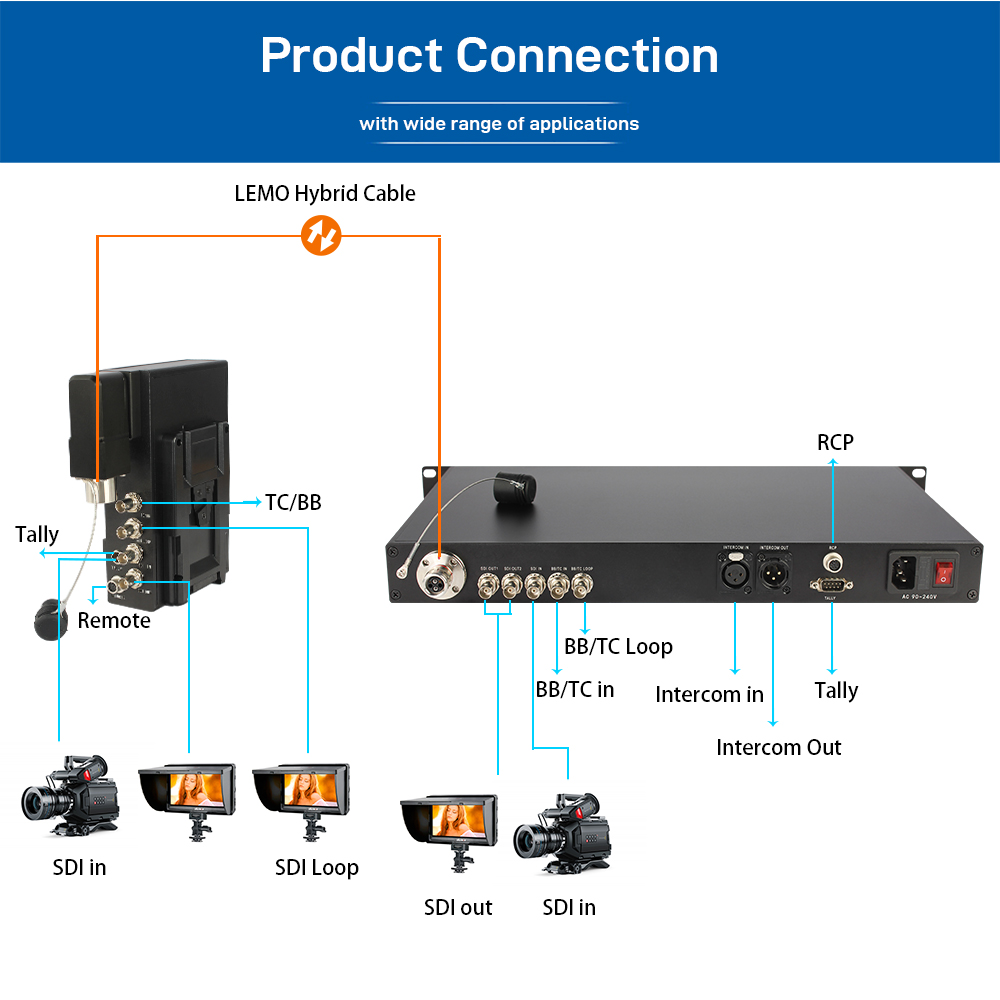

One-Cable EFP Transmission
The FQ-EFP1200 combines multiple camera and production signals through a LEMO hybrid optical/electrical cable, including:
- Forward 12G-SDI video
- Return video
- TALLY
- Bidirectional intercom
- Camera remote control
- GENLOCK / Timecode
- Remote camera power
This integrated design helps reduce cable complexity and simplifies long-distance connections between broadcast cameras and the production control room.
Key Features
- Professional EFP broadcast camera fiber transmission system
- Supports 1-channel forward 12G-SDI video
- Supports return video in analog, SD-SDI, HD-SDI, or 12G-SDIformats
- LEMO optical/electrical hybrid cableconnection
- Remote camera power through the LEMO hybrid cable
- TALLY indicator with single-color or dual-color options
- Bidirectional broadcast intercom
- Supports professional 4-pin or 5-pin XLR camera headsets
- Control-room intercom connection compatible with systems such as Clear-Com and Datavideo
- Supports camera remote control
- Compatible with Sony camera remote control units including RM-B150, RM-B170, and RM-B750
- Compatible with Panasonic remote control units including AJ-RC10G and AG-EC4G
- Supports GENLOCK and Timecode signals
- Designed for professional long-distance EFP and OB applications
Remote Camera Control
The FQ-EFP1200 supports remote control communication between compatible broadcast cameras and their camera control units.
For Sony broadcast cameras, the system can be used with compatible remote control units such as RM-B150, RM-B170, and RM-B750.
For Panasonic broadcast cameras, supported remote control equipment includes AJ-RC10G and AG-EC4G.
Broadcast Intercom
The system provides bidirectional director-to-camera intercom communication for professional EFP production.
The camera side can connect to professional 4-pin or 5-pin XLR intercom headsets, while the production side can connect to compatible intercom systems such as Clear-Com and Datavideo.
Remote Camera Power
The FQ-EFP1200 uses a LEMO optical/electrical hybrid cable to provide remote power transmission to the camera side.
This allows video, communication, control, synchronization, and power signals to be integrated into a single hybrid fiber connection, making the system suitable for professional camera positions where long-distance centralized power is required.
