Product Overview

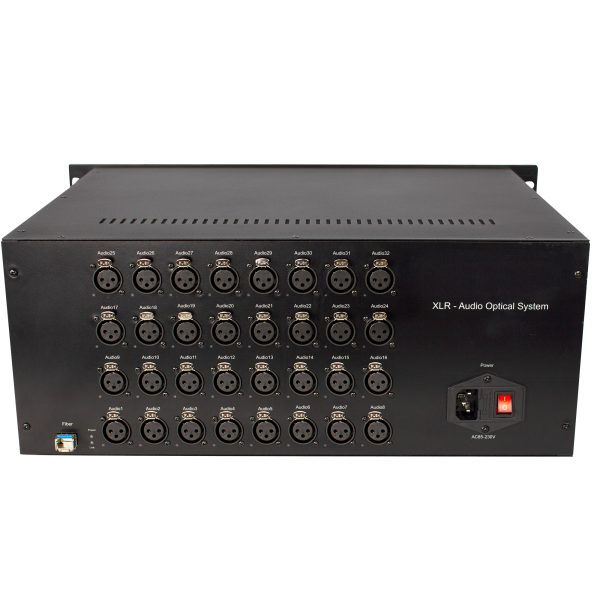

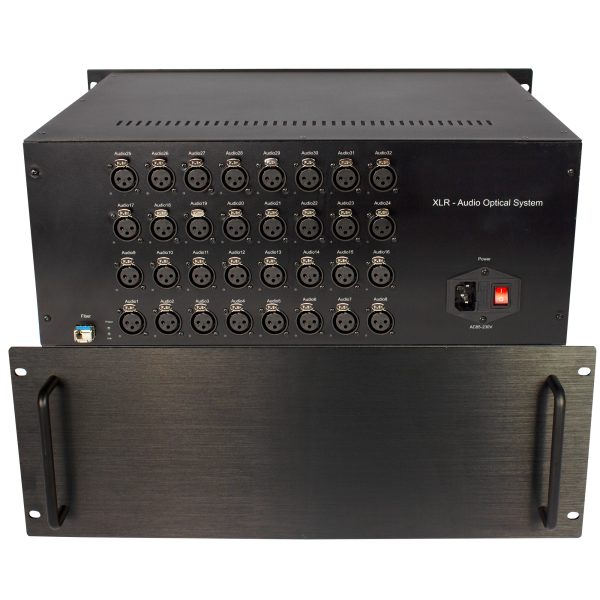

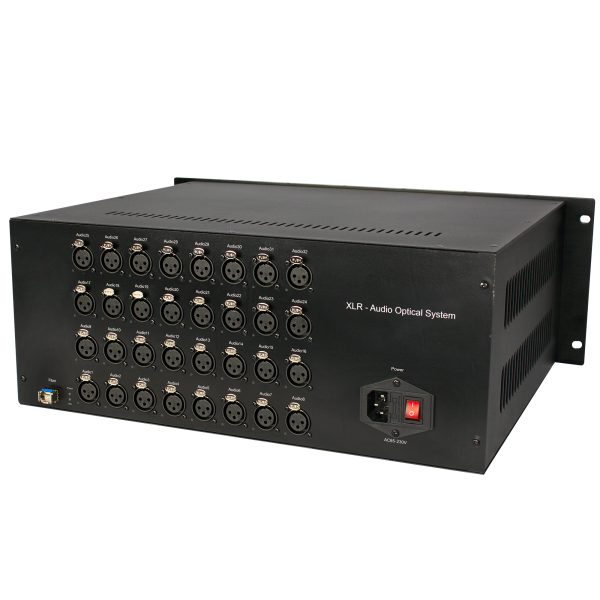

The FQ-KN32A-T/R 32-Channel Unidirectional XLR Audio Fiber Optic Extender is designed for high-density, long-distance transmission of balanced XLR audio signals over single-mode single-fiber. It supports 32-channel unidirectional audio transmission, making it suitable for professional audio systems requiring multiple audio channels over a single optical fiber.
The system uses 24bit/192kHz digital audio sampling and a 155Mbps optical transmission interface to transmit audio signals over distances up to 20km. With a built-in AC220V power supply and a 19-inch 4U rackmount chassis, it is designed for professional audio installations, broadcast systems, stage applications, and large-scale distributed audio systems.
Key Features
- 32-channel unidirectional balanced XLR audio transmission
- 32 × XLR female audio inputs an
Product Overview
The FQ-KN32A-T/R 32-Channel Unidirectional XLR Audio Fiber Optic Extender is designed for high-density, long-distance transmission of balanced XLR audio signals over single-mode single-fiber. It supports 32-channel unidirectional audio transmission, making it suitable for professional audio systems requiring multiple audio channels over a single optical fiber.
The system uses 24bit/192kHz digital audio sampling and a 155Mbps optical transmission interface to transmit audio signals over distances up to 20km. With a built-in AC220V power supply and a 19-inch 4U rackmount chassis, it is designed for professional audio installations, broadcast systems, stage applications, and large-scale distributed audio systems.
Key Features
- 32-channel unidirectional balanced XLR audio transmission
- 32 × XLR female audio inputs and 32 × XLR male audio outputs
- 24bit/192kHz digital audio sampling
- 155Mbps optical transmission
- Single-mode single-fiber transmission up to 20km
- SC/FC/ST/LC optical connector options
- 1310/1550nm operating wavelength
- Built-in AC220V power supply

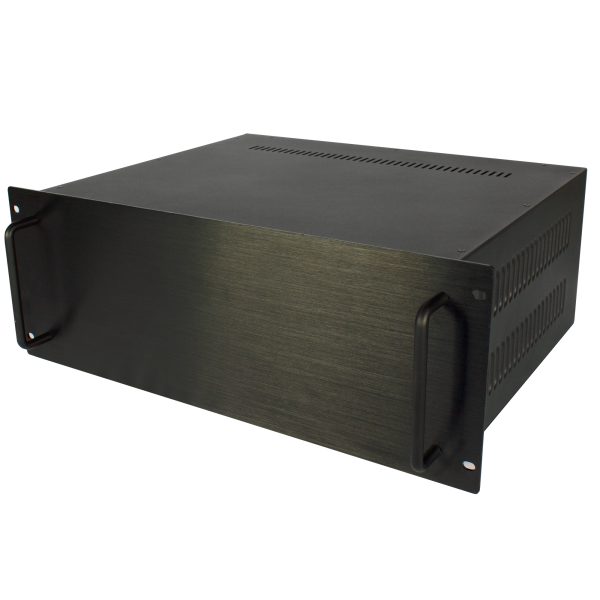

- 19-inch 4U rackmount design
Applications
- Professional audio systems
- Large-scale live concerts and stage events
- Broadcasting and production studios
- Conference and meeting systems
- Distributed audio systems
- Theater and venue audio installations
- Long-distance multi-channel audio transmission
- Professional AV and communication systems
d 32 × XLR male audio outputs
- 24bit/192kHz digital audio sampling
- 155Mbps optical transmission
- Single-mode single-fiber transmission up to 20km
- SC/FC/ST/LC optical connector options
- 1310/1550nm operating wavelength
- Built-in AC220V power supply
- 19-inch 4U rackmount design
Applications
- Professional audio systems
- Large-scale live concerts and stage events
- Broadcasting and production studios
- Conference and meeting systems
- Distributed audio systems
- Theater and venue audio installations
- Long-distance multi-channel audio transmission
- Professional AV and communication systems
