Product Overview

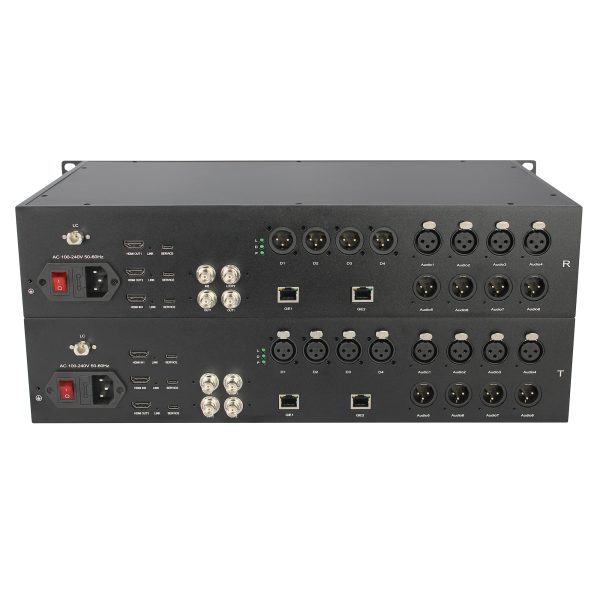

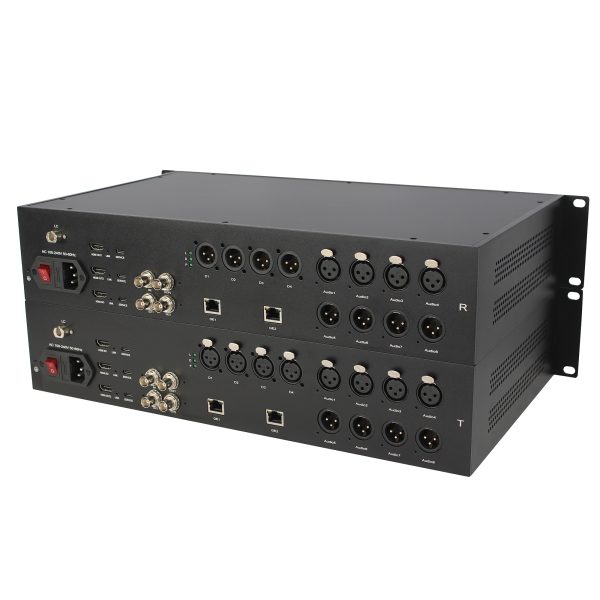

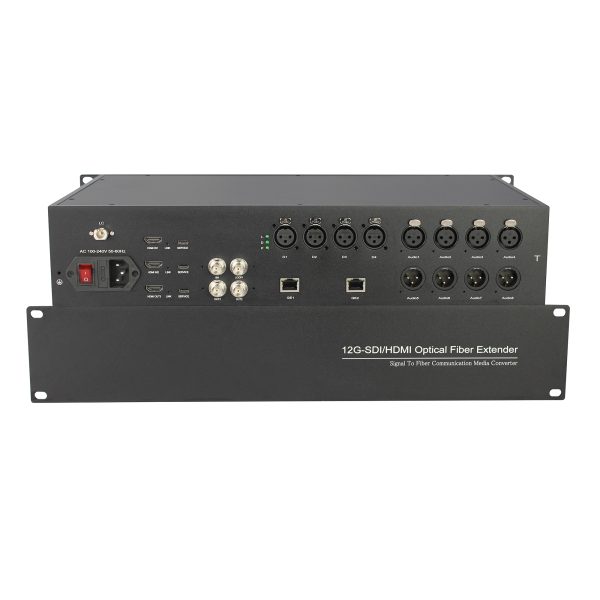

The FQ-2H1h1Ss2GE4Aa4D-T/R Multi-Signal Fiber Optic Extender is a professional multi-service fiber transmission system designed to integrate HDMI, 12G-SDI, XLR audio, DMX512 lighting control, and Gigabit Ethernet over a single fiber link.

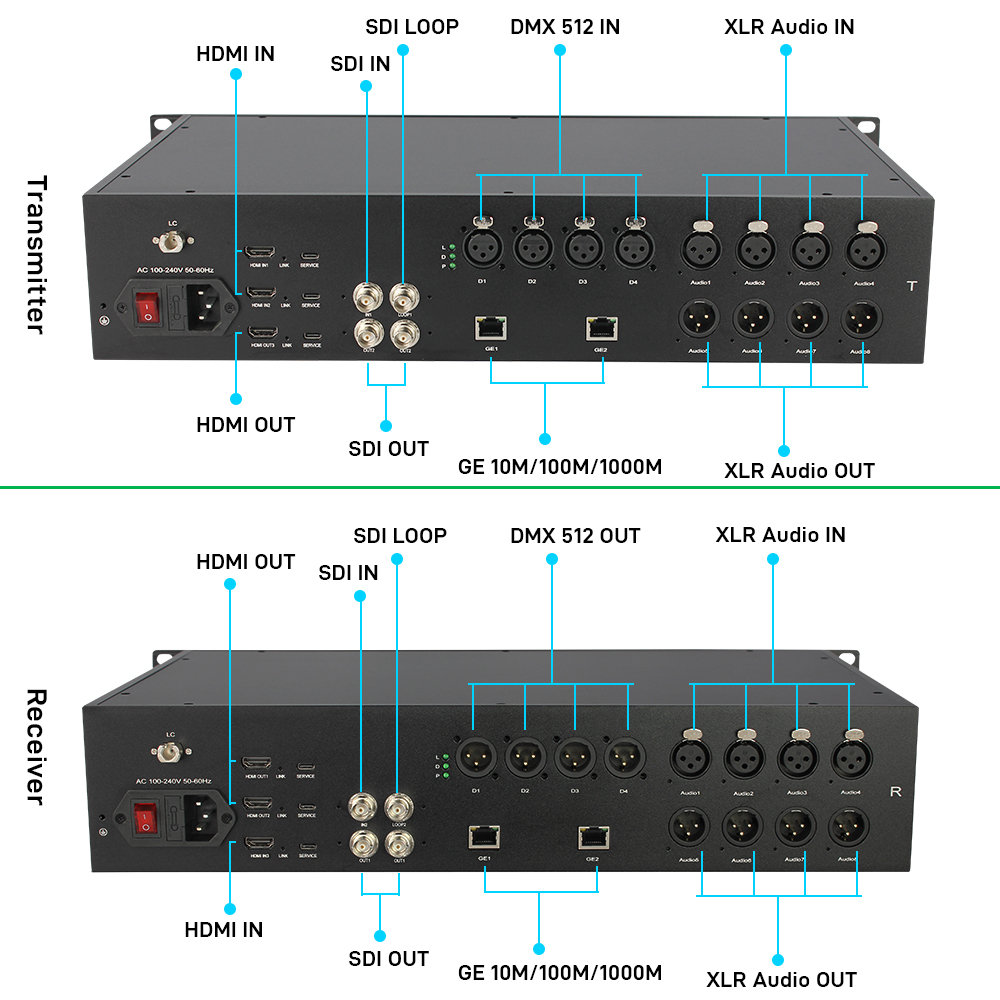

It supports 2-channel forward HDMI transmission and 1-channel reverse HDMI transmission at resolutions up to 4K@60Hz, together with 1-channel bidirectional 12G-SDI with loop out for professional broadcast and video production applications.

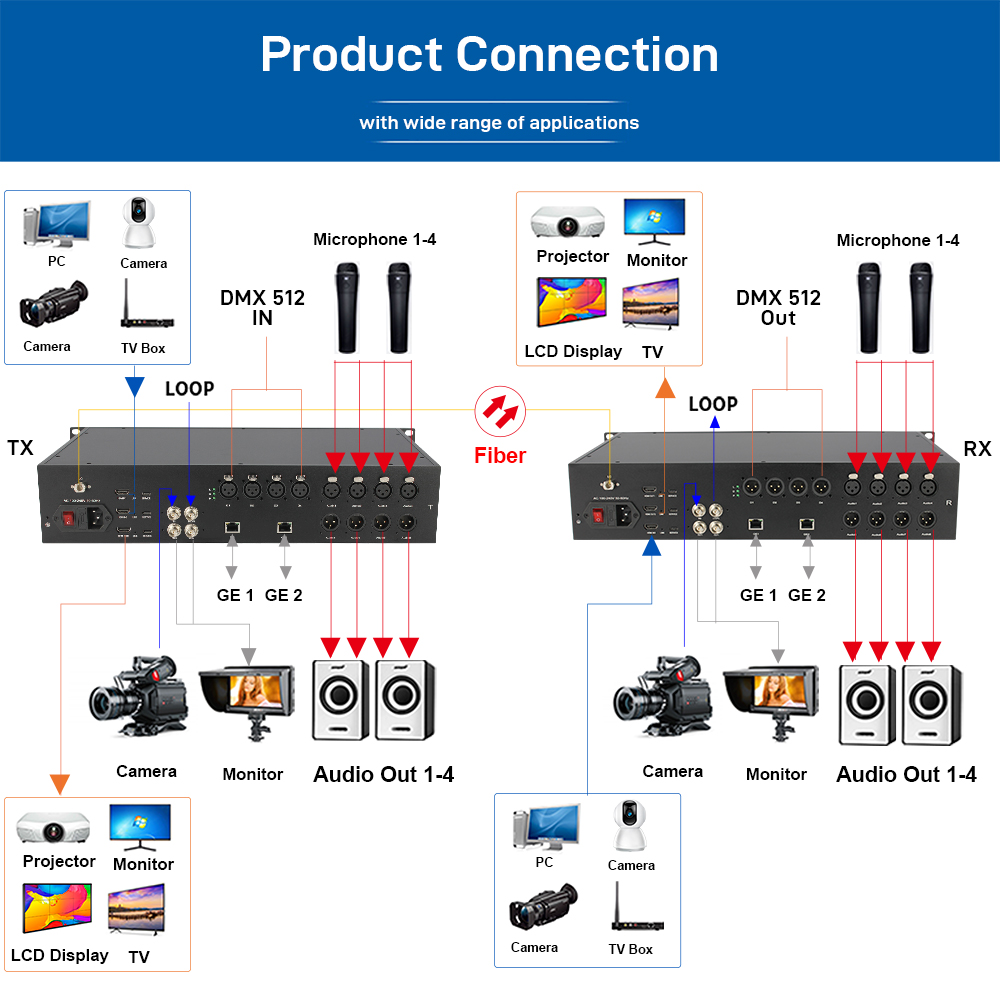

The system also provides 4-channel bidirectional balanced XLR audio, 4-channel DMX512 lighting control, and 2 isolated Gigabit Ethernet ports, enabling video, audio, lighting and network signals to be transmitted through one LC fiber connection.
Using single-mode fiber, the system supports transmission distances of up to 20km, while fiber optic transmission provides strong immunity to electromagnetic interference and helps simplify cabling in large-scale AV, broadcast and control environments.
Note: The Type-C service ports are reserved for firmware upgrades and debugging only.
Key Features
- Multi-service transmission over a single LC fiber
- 2-channel forward HDMI and 1-channel reverse HDMI
- Supports HDMI 2.0 and HDCP 2.2 up to 4K@60Hz
- Bidirectional 12G-SDI with SDI loop out
- 4-channel bidirectional balanced XLR audio
- 4-channel DMX512 lighting control
- 2 isolated Gigabit Ethernet ports
- Up to 20km transmission over single-mode fiber
- Strong EMI immunity for complex operating environments

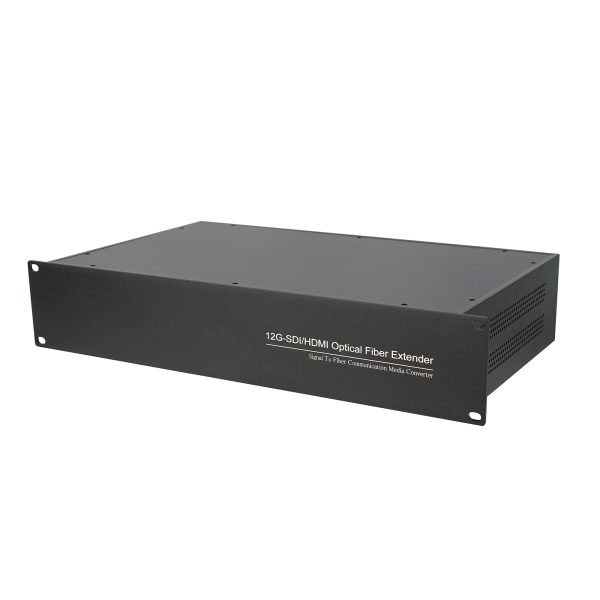

- Metal housing for professional and industrial applications
- AC 110–240V, 50–60Hz power supply
Applications
- Broadcast and television production
- 4K video production and monitoring
- LED display systems
- Stage lighting and live events
- Concert and entertainment systems
- Command and control centers
- Professional AV installations
- Industrial automation and control systems
