1920×1200P 60Hz DVI Fiber Optic Extender 500m OM3 Multimode / 1.5km Single-Mode, EDID

Product Overview

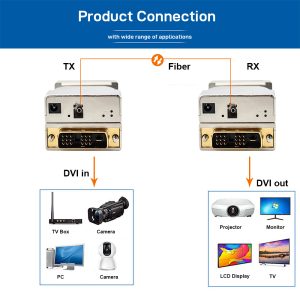

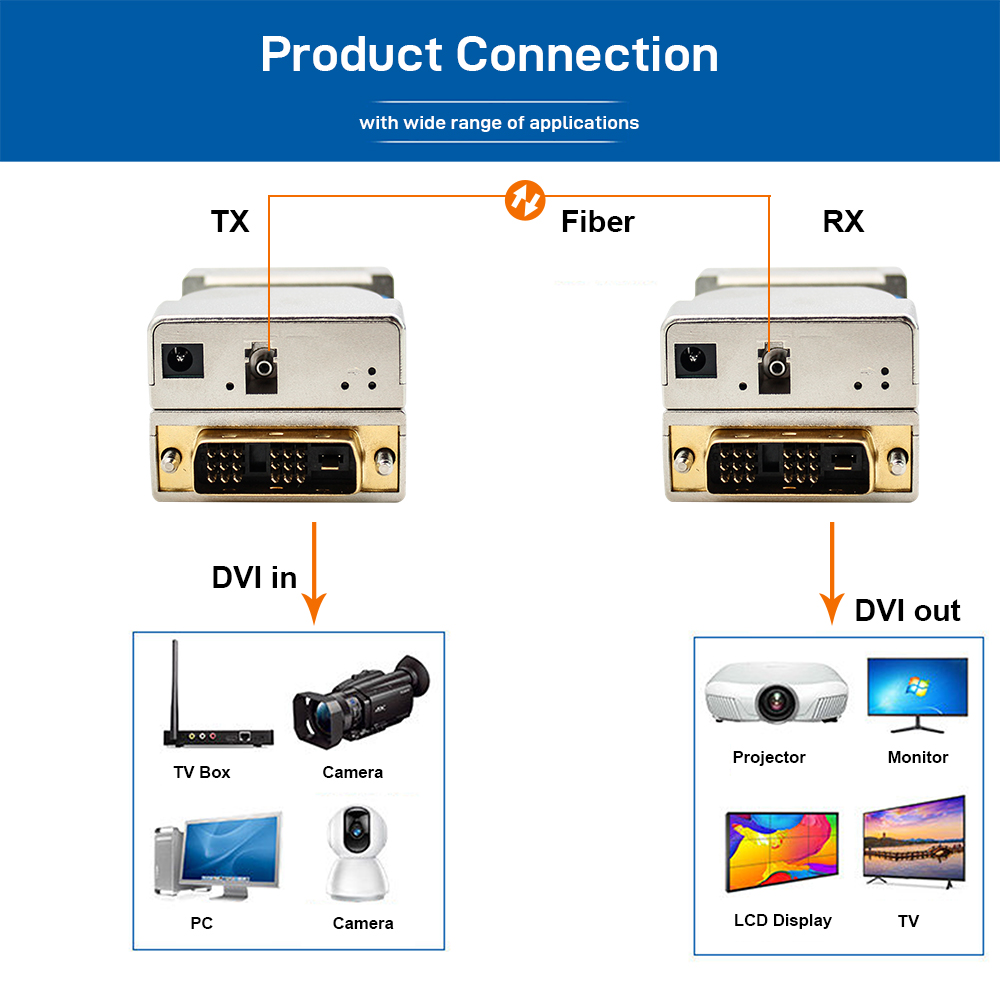

The ZH-THF1201D DVI/HDMI Fiber Optic Extender is a compact digital fiber optic transmission solution designed to extend DVI/HDMI video signals over long distances using a single LC fiber connection.

The extender supports both OM3 multimode fiber up to 500m and G.652D single-mode fiber up to 1.5km, providing flexible deployment options for different video transmission environments.

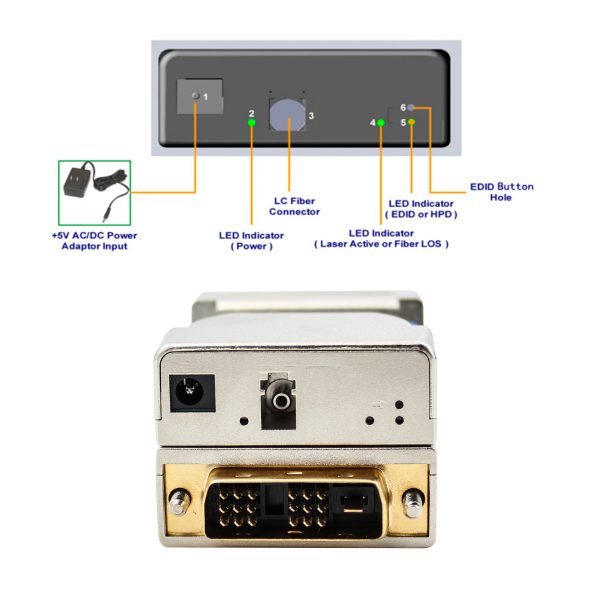

With manual EDID learning, the ZH-THF1201D can adapt to different display devices and resolutions. The transmitter and receiver feature front-panel optical, power, EDID, HPD, and signal status indicators for convenient installation and troubleshooting.

Key Features

• DVI/HDMI Signal Transmission:Supports DVI/HDMI digital video signals over a single optical fiber.
• Single-Fiber LC Interface:Uses one LC optical connection for long-distance video transmission.
• 500m Multimode / 1.5km Single-Mode:Supports OM3 multimode fiber up to 500m or G.652D single-mode fiber up to 1.5km.
• 1920×1200 Maximum Resolution:Supports up to 1920×1200@60Hz, 1920×1080p@60Hz, and 1600×1200@60Hz.
• Manual EDID Learning:Allows the transmitter to learn display EDID information for improved display compatibility.
• Default EDID:Includes a built-in default EDID for convenient initial system operation.
• Embedded Audio:Supports HDMI video and audio signals without HDCP.
• DVI-D Interface:Uses a DVI-D 18+1 male connector for video connection.
• Low Power Consumption:Designed for low-power operation with approximately 200–350mA consumption.
• Dual Power Options:Can be powered through an external 5V DC adapter or through pin 14 of the DVI connector when sufficient source/display power is available.
• Status Indicators:Provides Power, Laser Active/Fiber LOS, EDID/HPD status indicators.
• ESD Protection:Supports ±15kV air discharge and ±8kV contact discharge protection.
• Compact Metal Housing:Aluminum construction with a compact design suitable for professional AV installations.

Applications

• Digital Signage Systems
• Conference Rooms
• Control Rooms
• Video Walls
• Computer and Display Systems
• Professional AV Systems
• Broadcast and Production Systems
• Matrix and Video Distribution Systems
• Long-Distance DVI/HDMI Video Transmission
• LED Display and Large-Screen Systems
