4096×2160@30Hz DVI 4K Fiber Optic Extender 1km Single-Mode Single-Fiber LC, EDID

Original price was: $ 860,00.Current price is: $ 731,00.

4K DVI/HDMI Fiber Extender
1km Single-Mode Single-Fiber
LC Optical Interface
EDID Learning & Recovery
Compact Metal Housing

Power Plug

EU Plug
US Plug
UK Plug
AU Plug

Clear

SKU: N/A Categories: DVI Fiber Extender, Video Fiber Extenders, Video Transmission Brand: Meeter

Guaranteed Safe Checkout

Product Overview

The ZH-THF1401D Pro DVI/HDMI 4K Fiber Optic Extender is a compact professional solution for extending DVI/HDMI video signals over long distances using single-fiber LC optical transmission. It supports G.652D single-mode fiber up to 1000m, providing reliable signal extension for professional AV installations and high-resolution display systems.

The extender supports video resolutions up to 4096×2160@30Hz, 3840×2160@30Hz, and 2560×1440@60Hz. Built-in EDID manual learning allows the transmitter to learn display EDID information, improving compatibility with different displays and helping the system operate at the appropriate resolution.

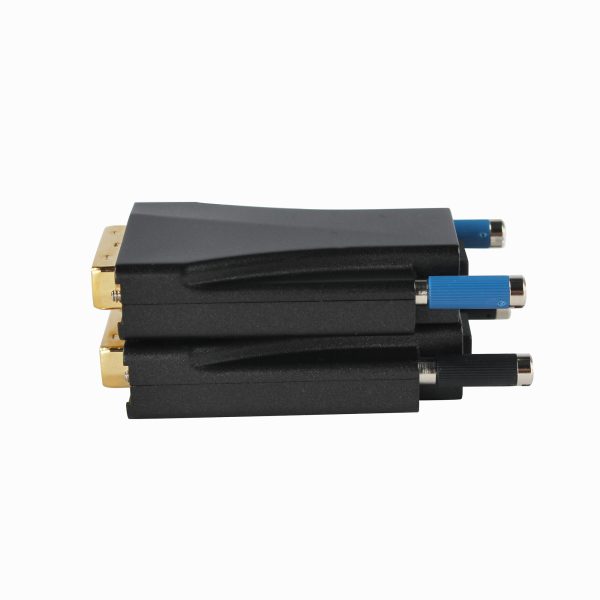

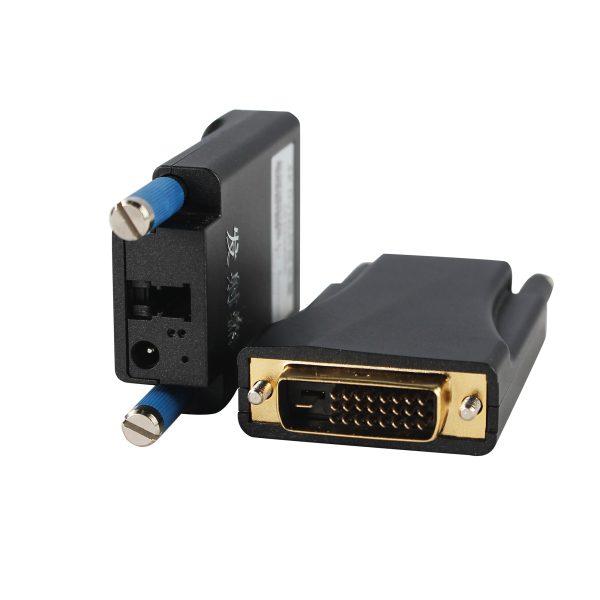

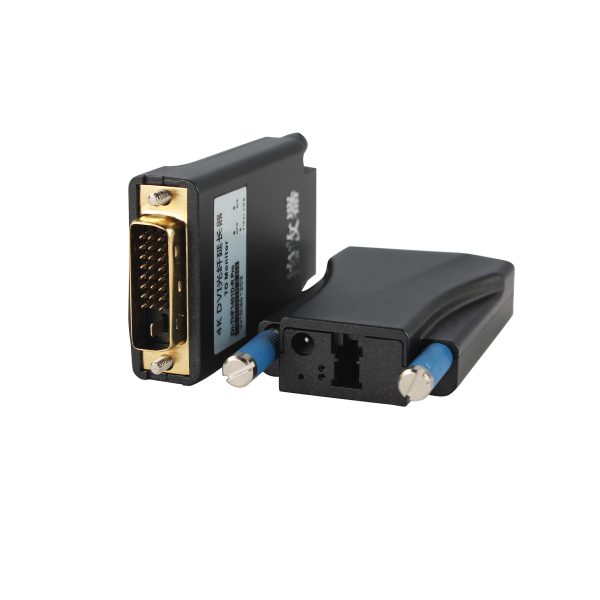

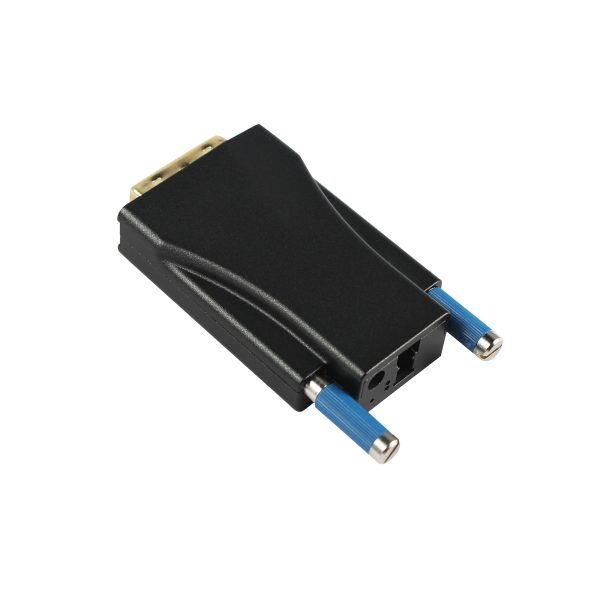

The ZH-THF1401D Pro features a compact metal enclosure, front-panel optical interface and status indicators, and a recessed EDID learning button. The DVI interface can provide +5V power under suitable conditions, while external 5V power is recommended for reliable operation.

Key Features

4K DVI/HDMI Fiber Extension:Supports resolutions up to 4096×2160@30Hz.
Single-Fiber LC Transmission:Uses a single LC optical fiber for long-distance video transmission.
1km Single-Mode Transmission:Supports up to 1000m over G.652D single-mode fiber.
EDID Manual Learning:Allows the transmitter to learn the connected display’s EDID information.
Default EDID Recovery:Supports restoration of the factory default EDID.
Embedded HDMI Audio:Supports embedded HDMI audio transmission with non-HDCP video signals.
Low Power Consumption:Typical operating current of 200–350mA.
Compact Metal Housing:Durable metal enclosure with detachable upper cover.
DVI Power Support:The DVI interface can provide +5V power under suitable conditions.
Front-Panel Indicators:Provides clear status indication for laser activity, EDID, fiber signal, and display connection.
Software Upgrade Support:Hidden serial interface design facilitates software upgrades.
ESD Protection:Supports ±15kV air discharge and ±8kV contact discharge protection.
RoHS Compliant:Designed for professional applications with stable operation.

Applications

Professional AV Systems
Digital Signage
Control Rooms
Conference Rooms
Video Walls
Large-Screen Display Systems
Computer-to-Display Extension
DVI/HDMI Matrix Systems
Broadcast and Production Systems
Long-Distance DVI/HDMI Transmission

Technical Specifications

Specification	Details
Model	ZH-THF1401D-T/R Pro
Product Type	DVI/HDMI 4K Fiber Optic Extender
Optical Interface	LC
Fiber Configuration	Single-Fiber
Fiber Type	G.652D Single-Mode
Fiber Core/Cladding	9/125μm
Maximum Transmission Distance	Up to 1000m
Maximum Resolution	4096×2160@30Hz
Other Supported Resolutions	3840×2160@30Hz / 2560×1440@60Hz
Signal Format	DVI

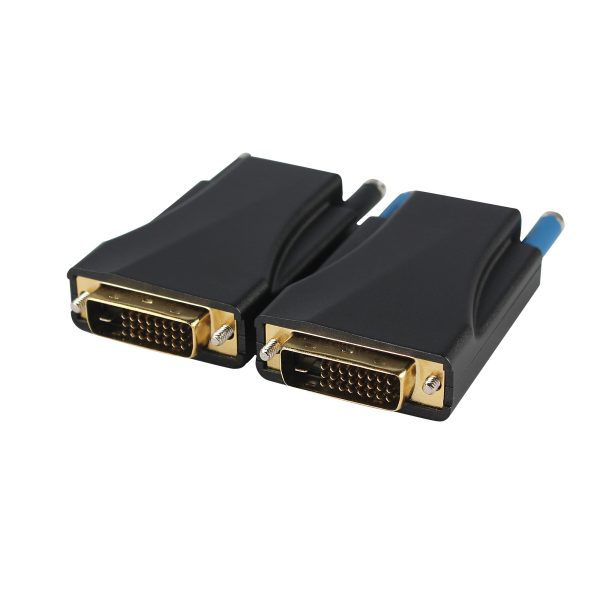

DVI Connector	DVI-D 24+1 Male
EDID	Manual Learning / Default EDID Recovery
Embedded Audio	Supported
HDCP	Not Supported
Operating Voltage	+5V DC
Operating Voltage Range	+4.85V to +5.15V
Typical Operating Current	200–350mA
Operating Temperature	0°C to +60°C
Storage Temperature	-20°C to +70°C
ESD Protection	±15kV Air / ±8kV Contact
Dimensions	61 × 40 × 15mm

Optical Specifications

Specification	Details
Optical Interface	LC
Fiber Type	G.652D Single-Mode
Fiber Size	9/125μm
Fiber Count	1 Fiber
Maximum Distance	1000m

Power Specifications

Specification	Details
Device Input	+5V DC
Recommended External Power	AC100–240V, 50–60Hz
Power Adapter Output	+5V DC / 1A
Alternative Power	+5V through DVI Pin 14 under suitable conditions

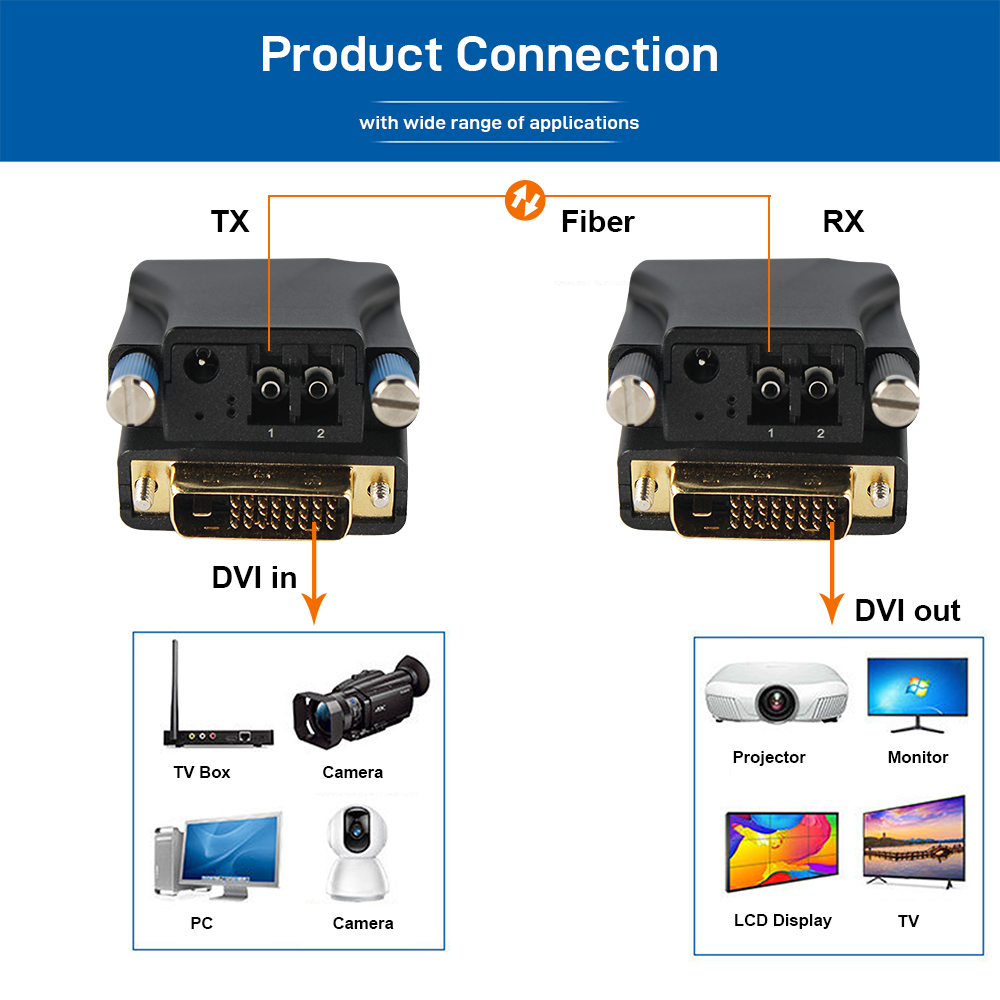

TX / RX Functions

Unit	Function
ZH-THF1401D-T Pro	Transmitter; connects to the DVI/HDMI video source
ZH-THF1401D-R Pro	Receiver; connects to the display

LED Indicators

Indicator	Description
Laser Active	Indicates transmitter laser activity
EDID	Indicates EDID status and learning process
Fiber LOS	Indicates loss of optical signal at the receiver
HPD	Indicates successful connection with the display

EDID Function

The transmitter includes a factory default EDID and supports manual EDID learning.

For the best compatibility with 4K displays, the transmitter can learn the EDID information from the connected display. The factory default EDID is designed for broad display compatibility and provides a default 1080p output.

Item	Quantity
DVI/HDMI Fiber Optic Transmitter	× 1
DVI/HDMI Fiber Optic Receiver	× 1
Power Adapter	× 2
