Product Overview

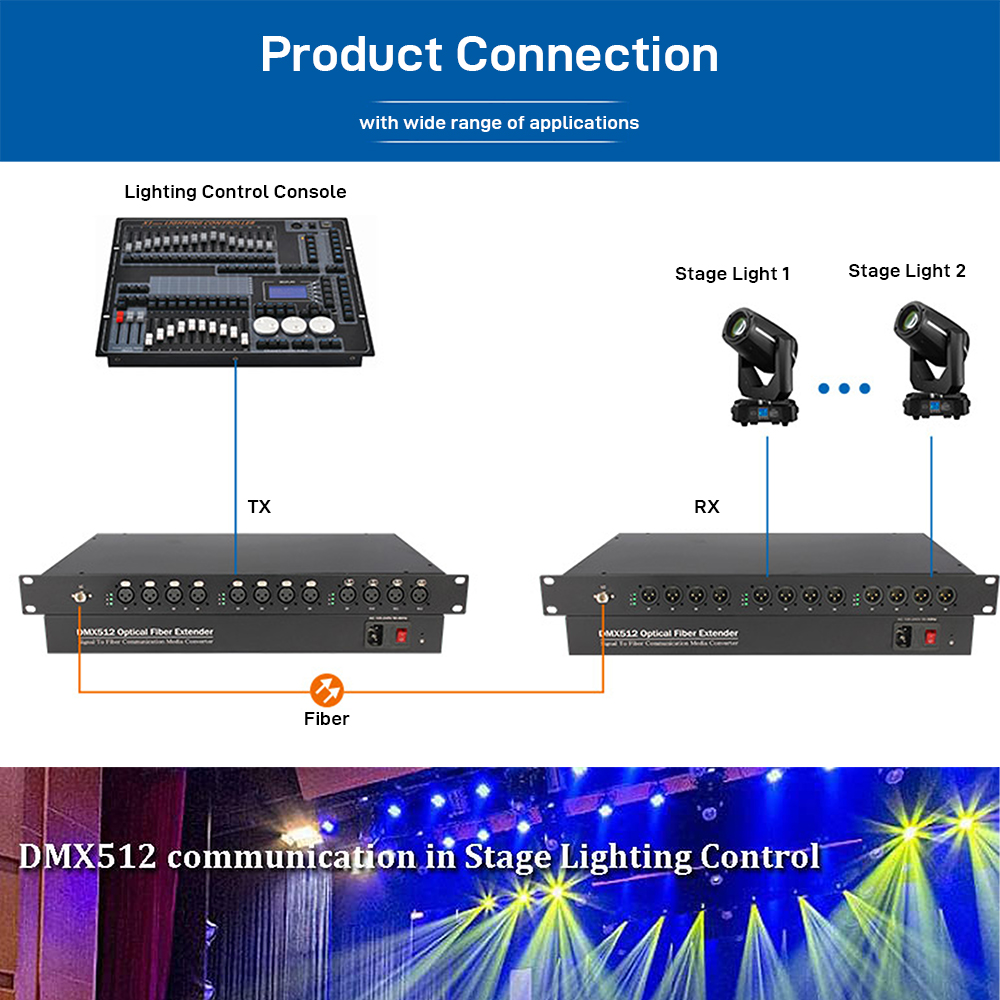

The FQ-KN12D-T/RL 12-Channel XLR DMX512 Fiber Optic Extender is a professional fiber transmission solution designed to extend standard DMX512 lighting control signals over long distances. It connects DMX512 lighting consoles with remote lighting equipment through a reliable single-mode optical fiber link.
The system supports 12 standard DMX512 channels and uses single-mode single-fiber transmission to provide long-distance signal extension while reducing the effects of lightning, surge interference, electromagnetic interference, and other electrical disturbances.

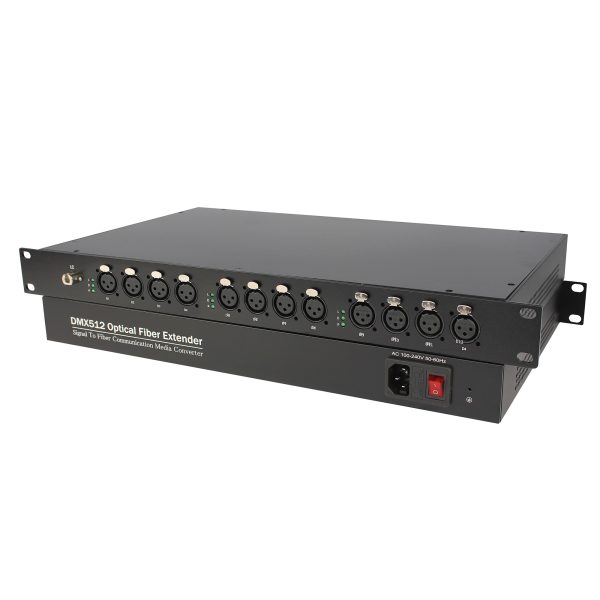

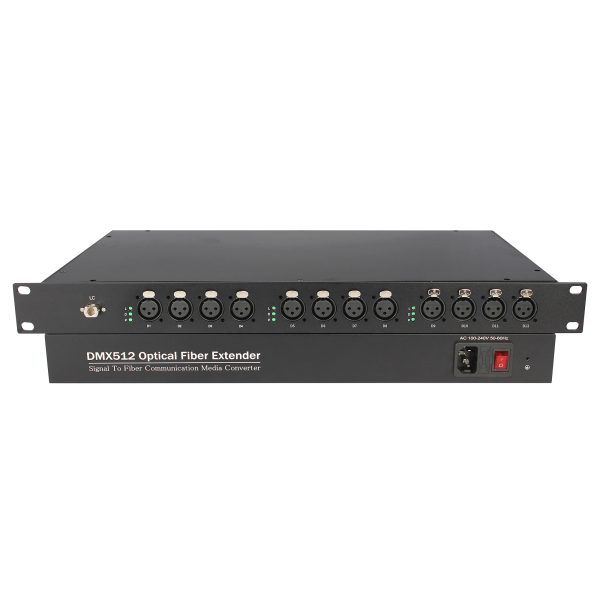

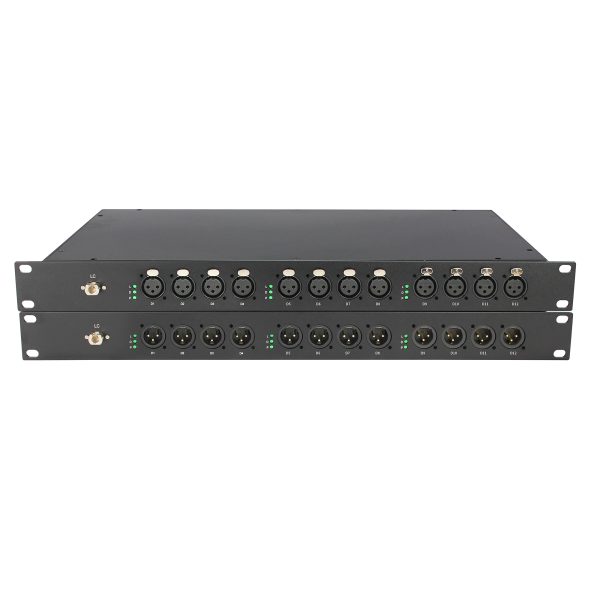

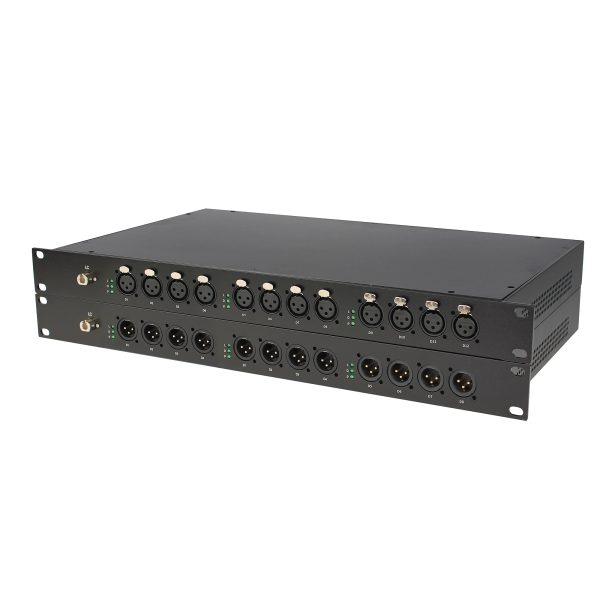

The transmitter connects to the DMX512 control system through XLR female connectors, while the receiver uses XLR male connectors for connection to lighting equipment. Its 19-inch 1U rackmount design is suitable for professional stage, theater, concert, and centralized lighting installations.
Key Features
- 12-Channel DMX512:Supports 12 standard DMX512 lighting control channels.
- XLR Interfaces:Transmitter uses XLR female connectors and receiver uses XLR male connectors.
- 20km Transmission:Supports up to 20km over single-mode single-fiber.
- LC Optical Interface:Uses an LC optical connector for fiber transmission.
- 155Mbps Optical Link:Provides a high-speed optical transmission interface.
- Automatic Data Rate Detection:Automatically detects the DMX512 signal rate for convenient operation.
- Electrical Isolation:Fiber transmission helps reduce the effects of lightning, surges, and electromagnetic interference.
- 32 Devices per Channel:Each DMX512 channel supports up to 32 terminal devices, with expansion possible through a DMX512 amplifier.

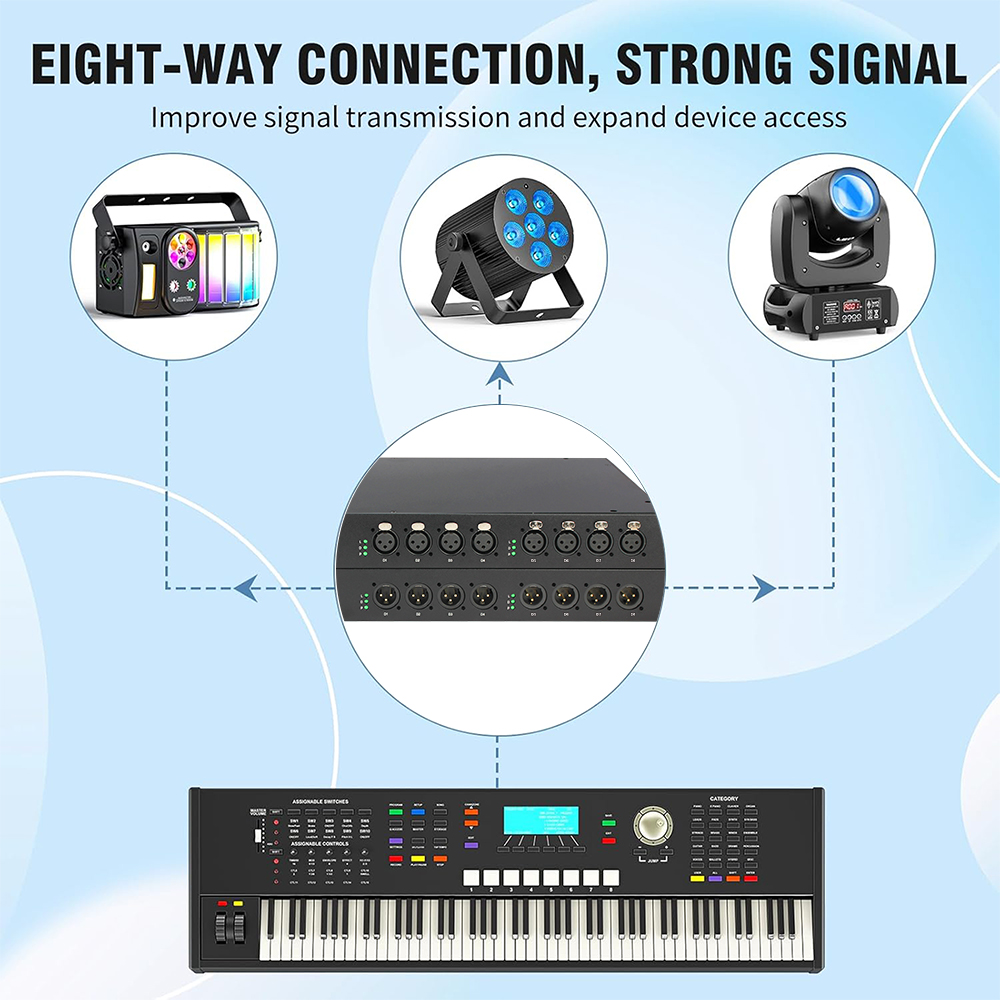

- Point-to-Multipoint Support:Can be combined with an optical splitter for one-to-multiple receiver applications.
- 1U Rackmount Design:19-inch rackmount construction for professional centralized installations.
- AC220V Power Supply:Designed for direct AC220V rackmount operation.
Applications
- Stage Lighting Systems
- DMX512 Lighting Control
- Concerts and Live Events
- Theater Lighting
- Entertainment Venues
- LED Stage Lighting
- Professional AV Systems
- Lighting Rental Systems
- Broadcast and Event Production
- Long-Distance DMX512 Transmission
