4-Channel XLR DMX512 Fiber Optic Extender 20km Single-Mode Single-Fiber SC/FC/LC, 1310/1550nm

Product Overview

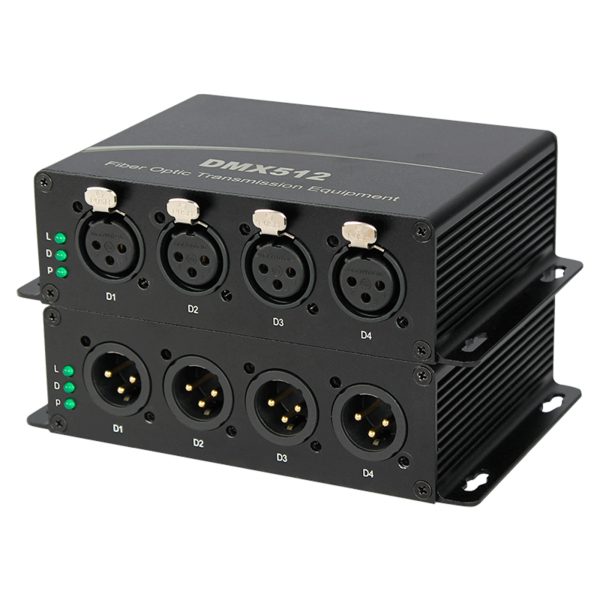

The FQ-KN4D-T/R 4-Channel XLR DMX512 Fiber Optic Extender is designed to transmit standard DMX512 lighting control signals over long-distance single-mode fiber. It provides a reliable optical connection between DMX512 lighting consoles and remote lighting equipment.

The system supports 4 independent DMX512 channels and uses fiber optic transmission to extend communication distance while providing electrical isolation from lightning, surge interference, electromagnetic interference, and other electrical disturbances.

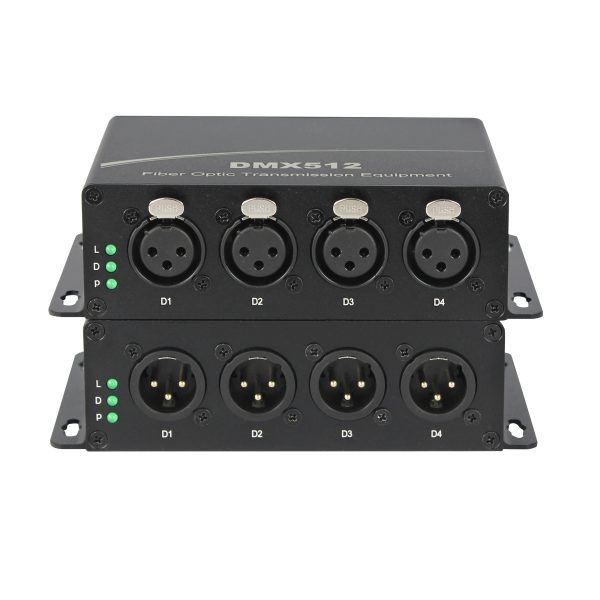

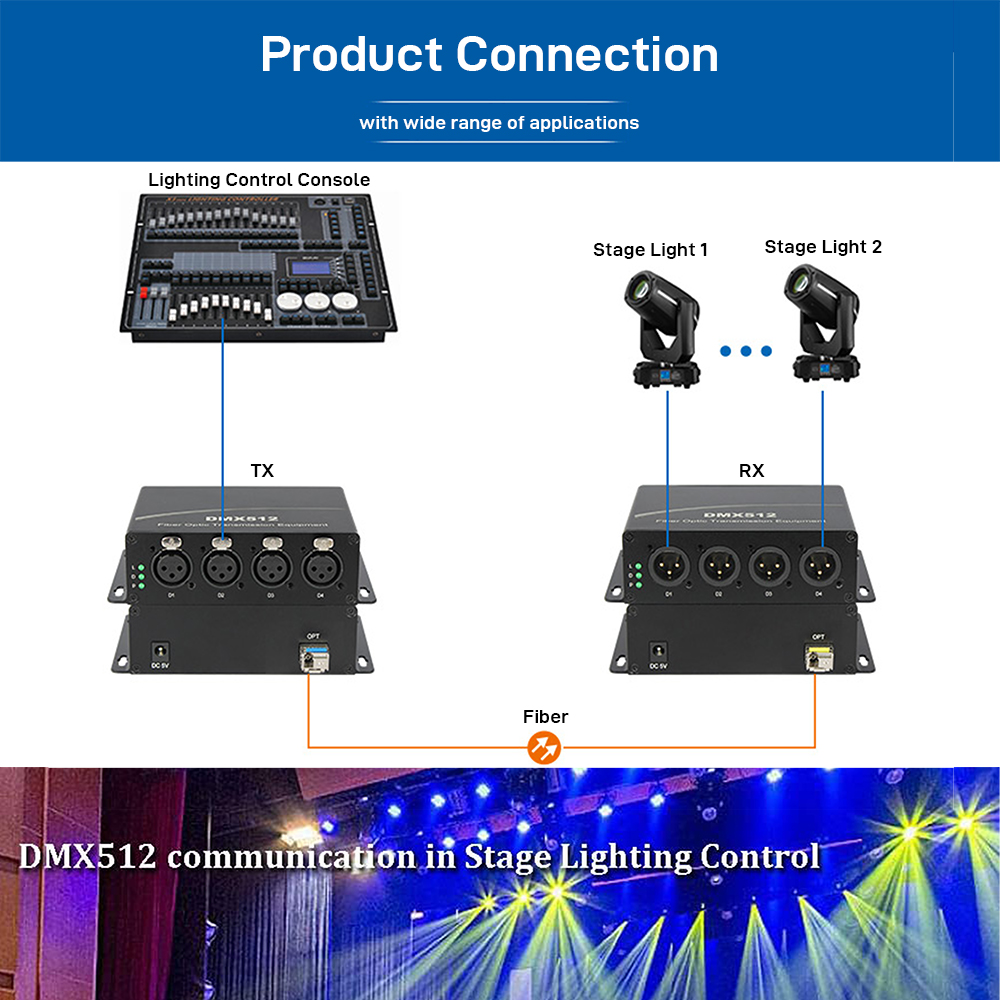

The transmitter connects to the DMX512 control system through XLR female connectors, while the receiver provides XLR male connectors for connection to lighting equipment. The system supports point-to-point transmission and can also be used with an optical splitter for point-to-multipoint applications.

Key Features

• 4-Channel DMX512:Supports four standard DMX512 lighting control channels.
• XLR DMX512 Interfaces:Transmitter uses XLR female connectors and receiver uses XLR male connectors.
• 20km Single-Mode Transmission:Supports up to 20km transmission over single-mode single-fiber.
• SC / FC / LC Options:Available with SC, FC, or LC optical connectors.
• High-Speed Optical Link:Supports 155Mbps optical transmission; the LC version uses a 1.25Gbps optical interface.
• Automatic Data Rate Detection:Automatically detects the DMX512 signal rate for convenient operation.
• Electrical Isolation:Fiber transmission helps reduce the effects of lightning, surges, and electromagnetic interference.
• 32 Devices per DMX512 Channel:Each DMX512 channel supports up to 32 terminal devices, with expansion possible through a DMX512 amplifier.
• Point-to-Multipoint Support:Can be combined with an optical splitter for one-to-multiple receiver applications.
• ESD Protection:Supports ±15kV human-body-model ESD protection and ±8kV contact discharge protection.
• External Power:Uses an external 5V DC / 2A power supply.

Applications

• Stage Lighting Systems
• DMX512 Lighting Control
• Concerts and Live Events
• Theater Lighting
• Entertainment Venues
• LED Stage Lighting
• Professional AV Systems
• Lighting Rental Systems
• Outdoor Lighting Control
• Long-Distance DMX512 Transmission
