Product Overview

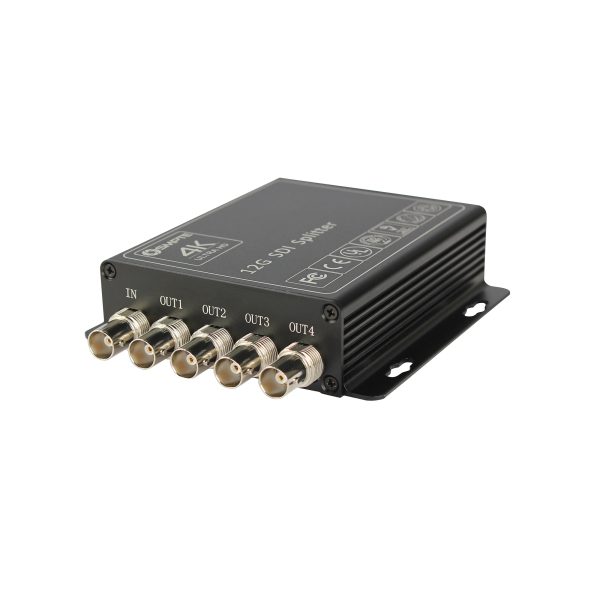

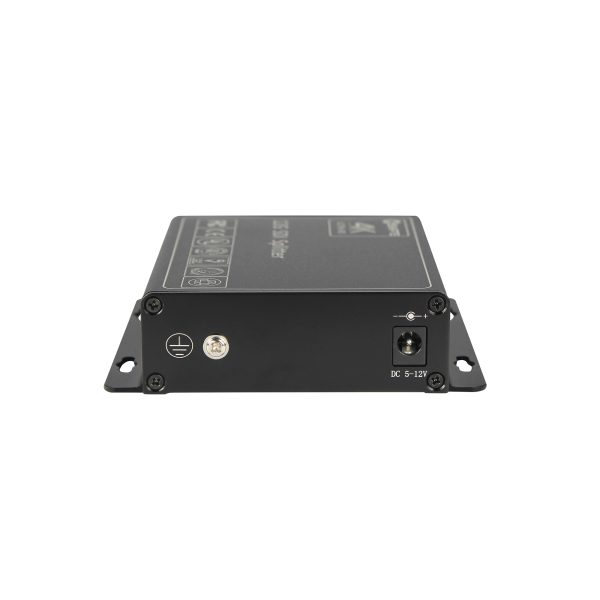

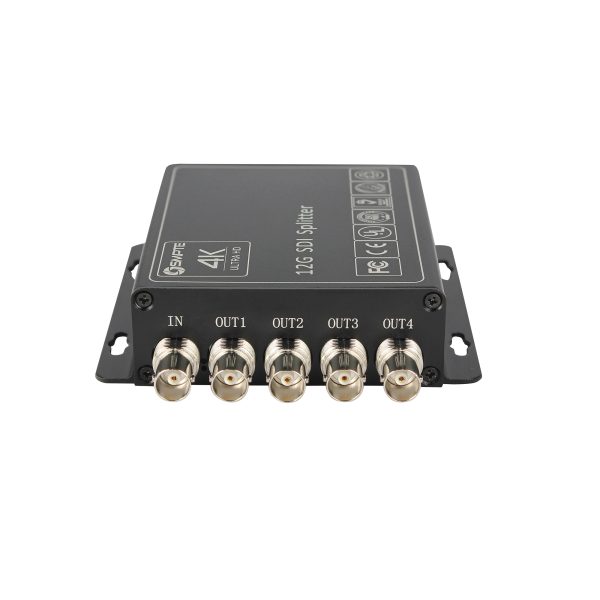

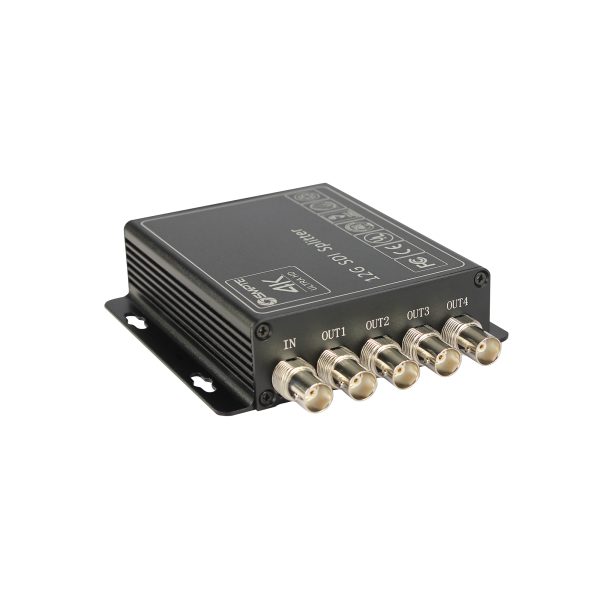

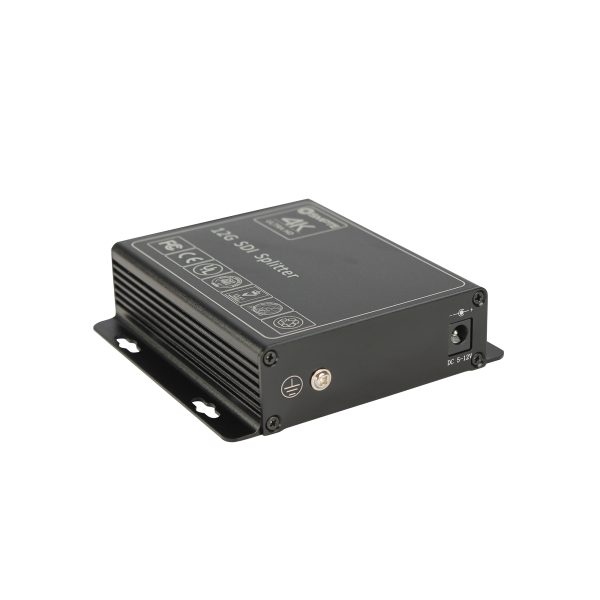

The FQ-SDI104K 12G-SDI 1×4 Distribution Amplifier is a professional SDI signal distribution solution designed to split one SDI input into four independent SDI outputs.
It supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI signals, with automatic adaptation to the input SDI rate. The distributor supports video formats up to 3840×2160@60Hz, making it suitable for 4K broadcast, live production, video monitoring and professional AV systems.
Built-in broadcast-grade clock recovery and reclocking helps reduce signal jitter and maintain stable SDI signal transmission across all outputs.
Key Features
- 1 × 12G-SDI input and 4 × 12G-SDI outputs
- Supports 12G/6G/3G/HD/SD-SDI signals
- Automatic adaptation to the incoming 12G-SDI signal rate
- Supports 4K@60Hz and resolutions including 1080p, 1080i, 720p, 480i and 576i
- Broadcast-grade clock recovery and reclocking for improved signal stability
- BNC 75Ω SDI interfaces
- Compact 114 × 104 × 28mm design
- External DC 5–12V power supply
Applications
- 4K broadcast and television systems
- Live event and studio production
- Professional video monitoring
- SDI signal distribution
- Broadcast equipment rooms
- 4K/HD video systems
- Professional AV installations
