Product Overview

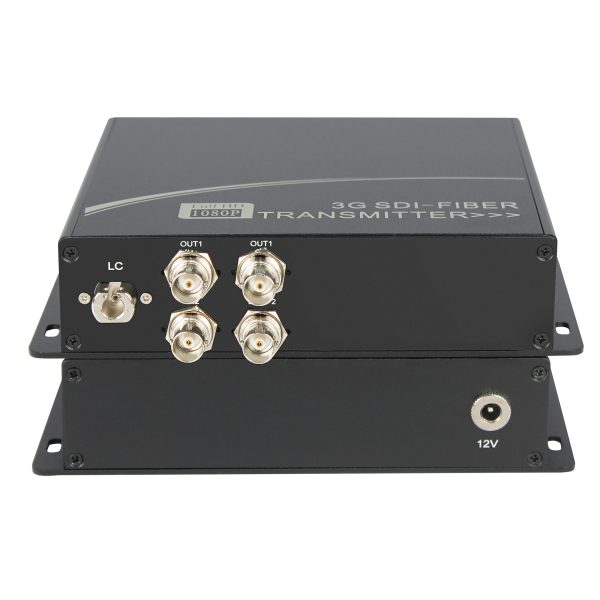

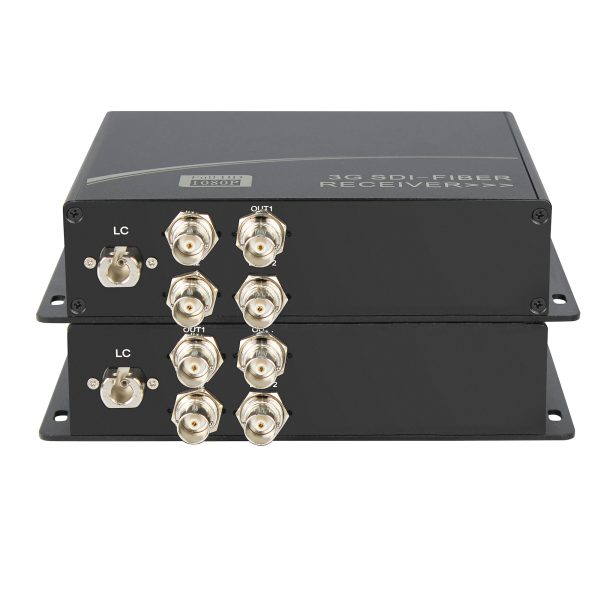

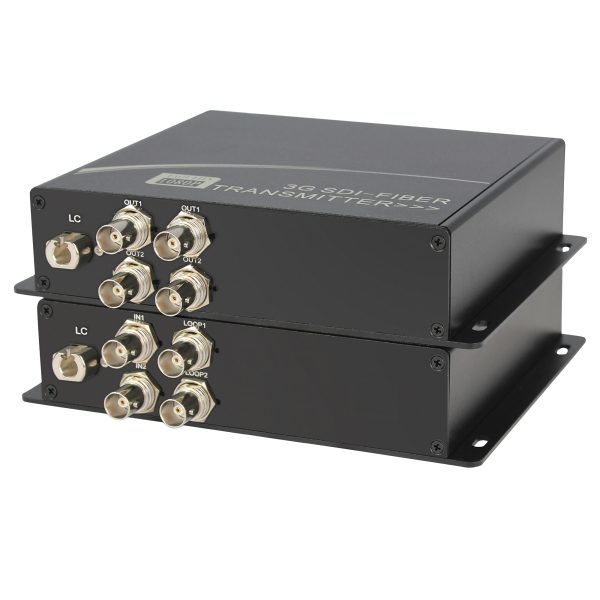

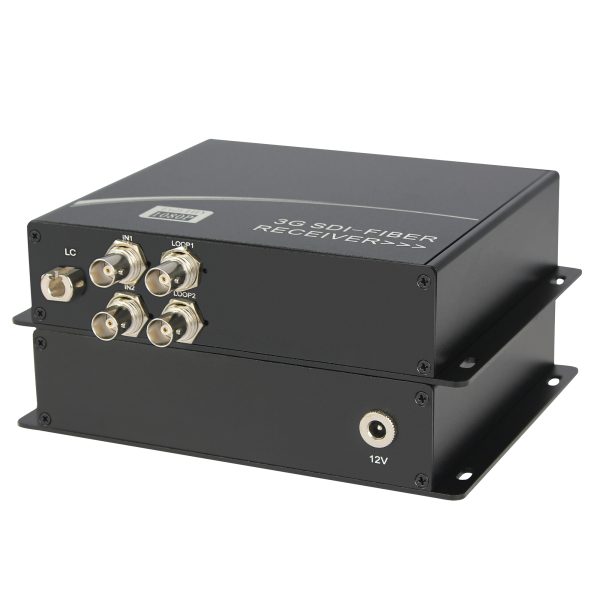

The FQ-SDI-2V-T/R 2-Channel 3G-SDI Fiber Optic Extender is a desktop fiber transmission solution designed to extend two independent SDI video signals over a single optical fiber.
It supports SD-SDI, HD-SDI and 3G-SDI standards with resolutions up to 1920×1080@60Hz and data rates of 270Mbps, 1.48Gbps and 3Gbps. Two SDI channels are transmitted simultaneously through a single-mode single-fiber LC connection over distances up to 20km.
The compact desktop design measures only 135 × 105 × 27mm and uses an external 5–12V DC power supply, making it suitable for professional video systems where multiple SDI signals need to be extended over long distances using a single fiber.
Key Features
- Supports 2-channel SD-SDI, HD-SDI and 3G-SDI
- Supports resolutions up to 1920×1080@60Hz
- Supports 270Mbps / 1.48Gbps / 3GbpsSDI rates
- Transmits two SDI channels over one optical fiber
- Up to 20kmtransmission over single-mode fiber
- LC optical interface
- Supports 1310nm / 1550nmwavelengths
- Supports SMPTE-424M, SMPTE-292M and SMPTE-259M
- Supports DVB-ASIserial digital signals
- 75Ω BNC SDI interfaces
- Desktop design for convenient installation
- External 5–12V DCpower supply
Applications
- Broadcast and television systems
- Live video production
- Professional camera systems
- Multi-camera video transmission
- Studio and OB applications
- SDI monitoring and distribution
- Long-distance SDI transmission
- Professional AV systems
- CCTV and video surveillance
