Product Overview

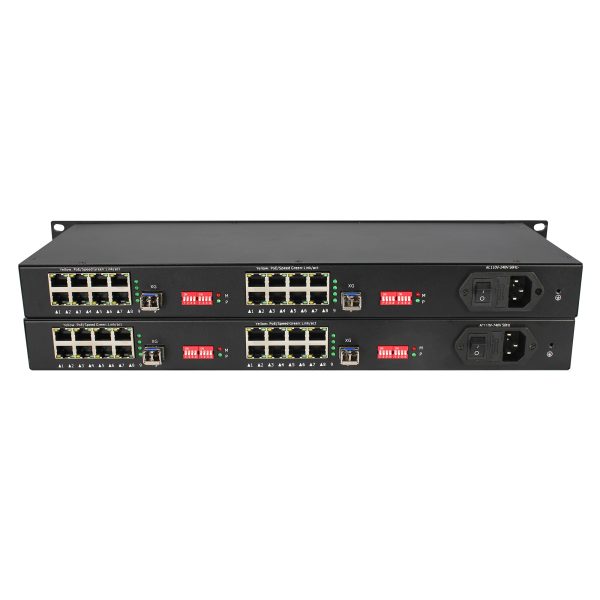

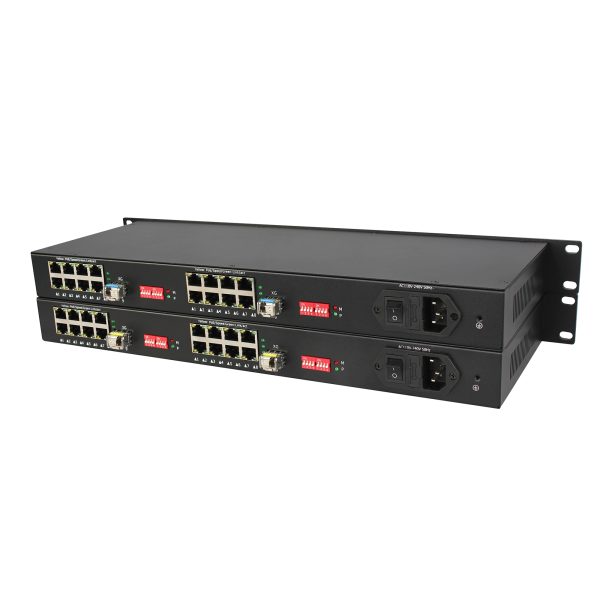

The FQ-CVT216 Series Physically Isolated Fiber Media Converter provides 16 independent 100/1000Mbps Ethernet ports and 2 × 10G SFP+ uplink slots for high-density, isolated network transmission.
Using high-speed TDM technology, each Ethernet port operates through an independent Gigabit transmission channel, helping prevent mutual interference and data infiltration between different network subsystems. This design is ideal for applications requiring multiple independent Ethernet channels with a high degree of physical isolation.
With high-bandwidth 10G SFP+ uplinks, the FQ-CVT216 can consolidate multiple isolated Ethernet channels while saving fiber resources. The fanless design, wide DC input range, watchdog function, and surge/ESD protection make it suitable for reliable deployment in industrial and infrastructure networks.
Key Features
- 16 × 100/1000Mbps physically isolated RJ45 Ethernet ports
- 2 × 10G SFP+ optical uplink slots
- Independent transmission channel for each isolated Ethernet port
- High-speed TDM technology for low-jitter and low-latency transmission
- Non-blocking architecture for reliable data transmission
- PoE support available on Ports 1–8
- 10G fiber uplink helps save fiber resources

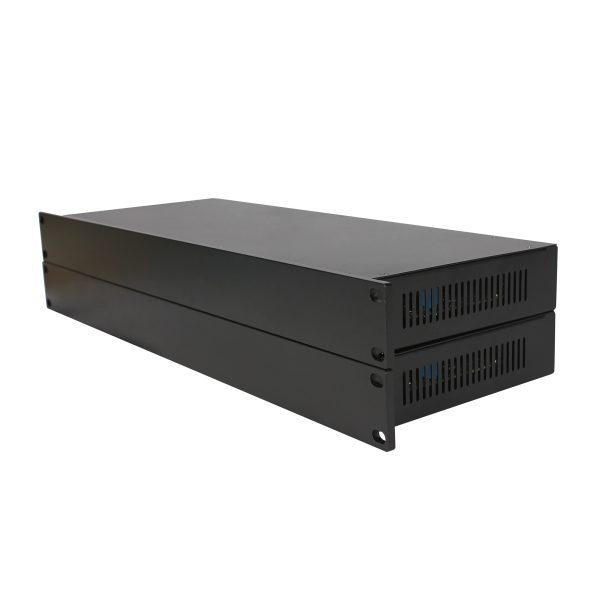

- Fanless design with natural cooling
- Watchdog function for automatic recovery after equipment malfunction
- Wide DC 5–16V input for the non-PoE version
- 4kV surge protection and Level 4 ESD protection

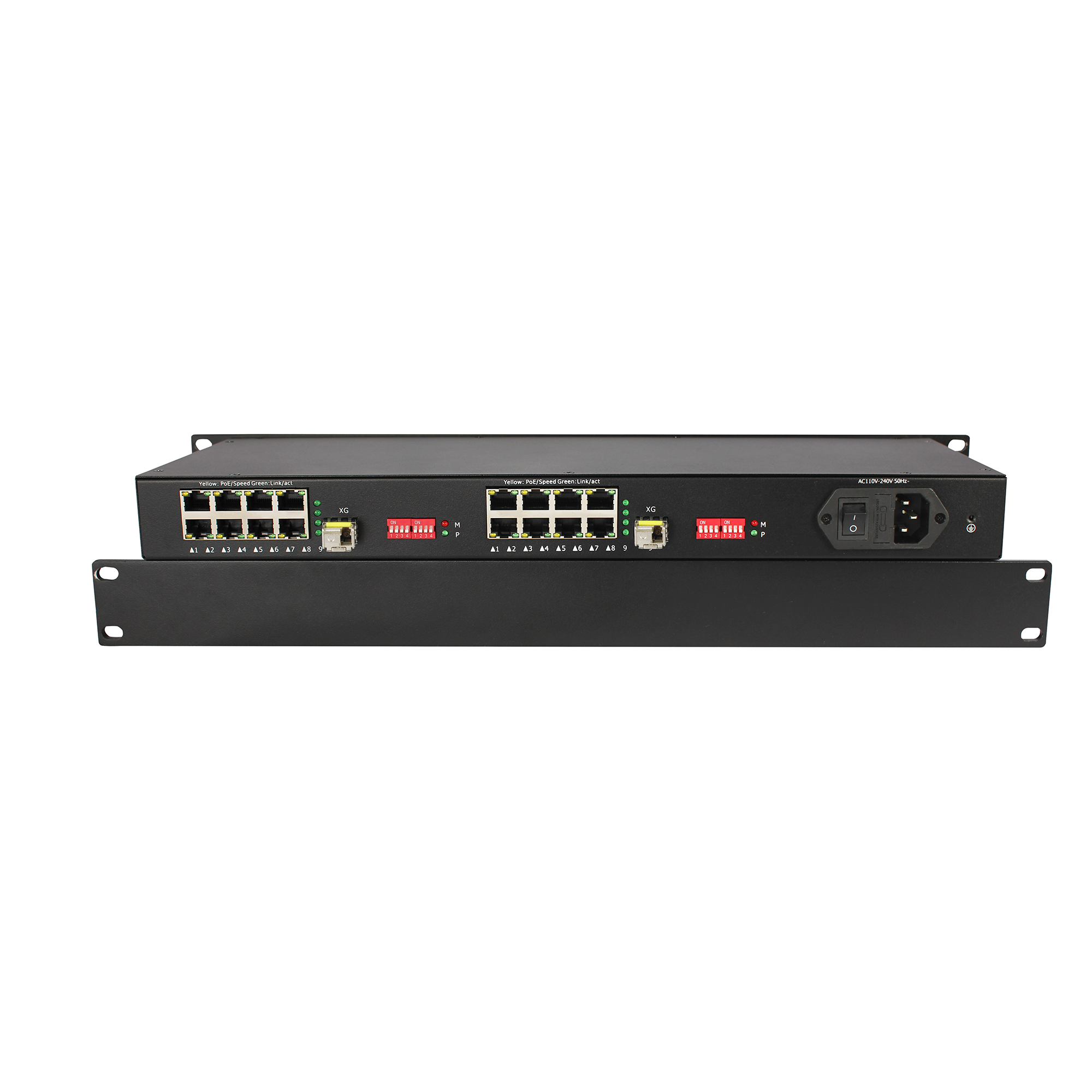

- Designed for 19-inch 1U rack installation
Applications

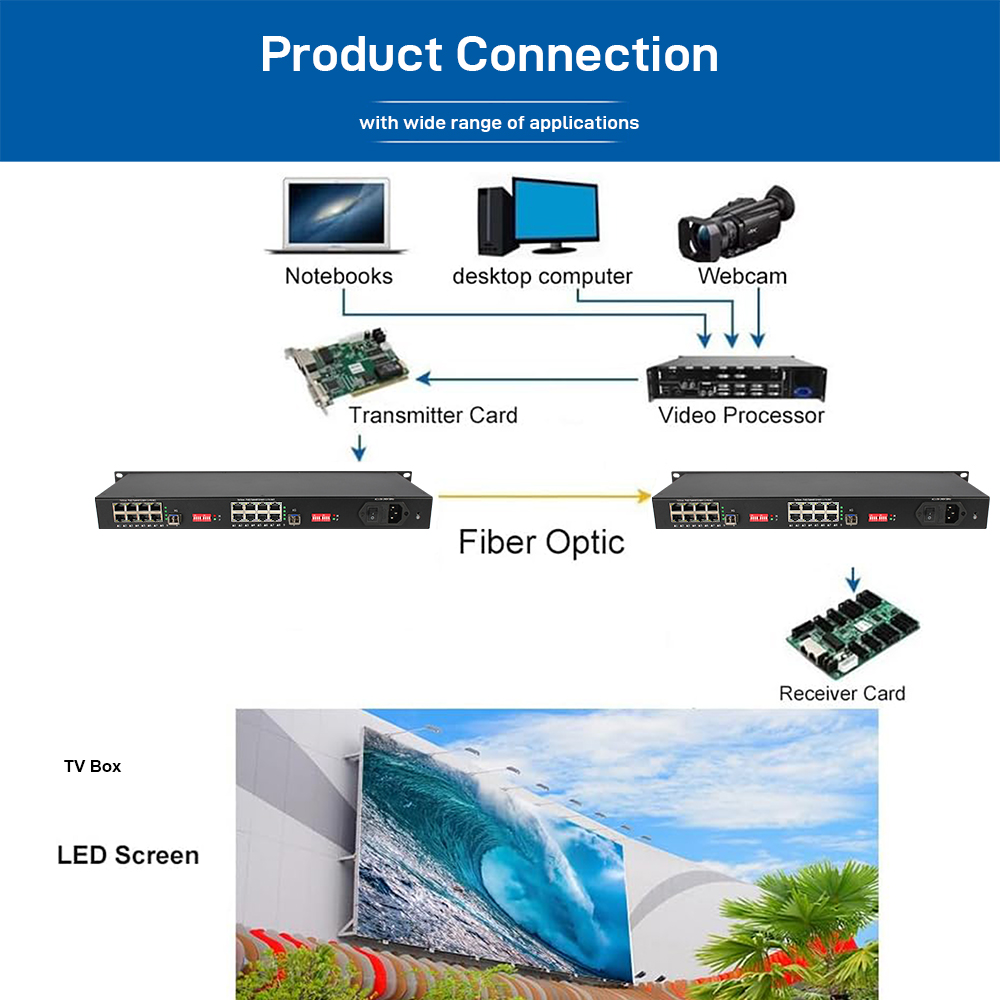

- LED high-definition large-screen signal transmission
- Government and public information networks
- Military communication networks
- Transportation and traffic systems
- Secure and isolated enterprise networks
- Multi-channel Ethernet transmission
- Network environments requiring physical isolation between subsystems
- Applications with limited fiber resources and multiple independent Ethernet channels
