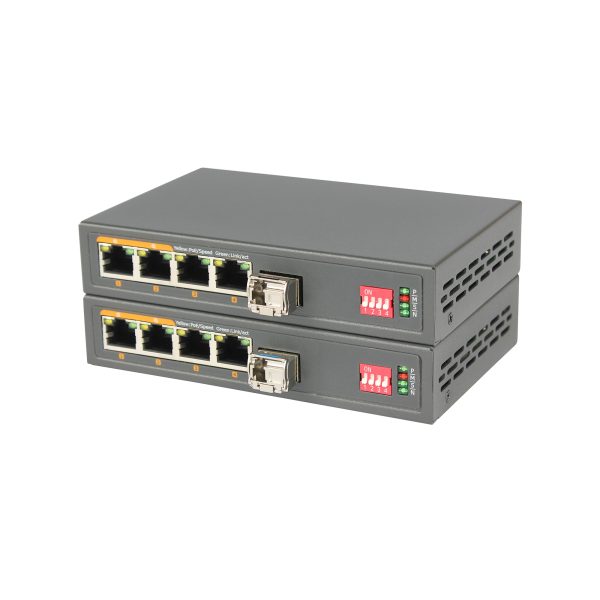

Product Overview
The FQ-CVT104 Series 4-Port Gigabit Physically Isolated Fiber Media Converter is a high-performance Ethernet-to-fiber transmission device designed for LED display systems, surveillance networks, and applications requiring independent and secure data transmission.
The converter provides four physically isolated Gigabit Ethernet ports and a high-speed optical uplink. Using advanced TDM transmission technology, each Ethernet port is assigned a dedicated transmission channel, helping eliminate crosstalk between different network subsystems.
This physical isolation design is particularly suitable for surveillance systems and multi-network applications where independent data transmission is required. It helps prevent interference and reduce the risk of data leakage between different network channels.
The series is available in Non-PoE and PoE versions. The PoE version supports IEEE 802.3af/at and can provide power to compatible network devices through Ethernet cables.
The fanless design provides silent operation without mechanical cooling components, while built-in surge and ESD protection improves reliability in demanding network environments.
Key Features
- 4 physically isolated Gigabit Ethernet ports
- 1 × high-speed 10G SFP+ optical uplink
- Dedicated TDM transmission channel for each Ethernet port
- Helps eliminate crosstalk between network subsystems
- Helps reduce data leakage between isolated network channels
- 10/100/1000Mbps auto-negotiation Ethernet ports
- Optional IEEE 802.3af/at PoE support
- Supports PoE priority through DIP switch
- Supports single-mode and multimode fiber transmission
- Single-mode transmission options up to 100km
- Fanless design for silent operation
- Surge and ESD protection
- Compact desktop installation
- Plug and Play operation
Applications

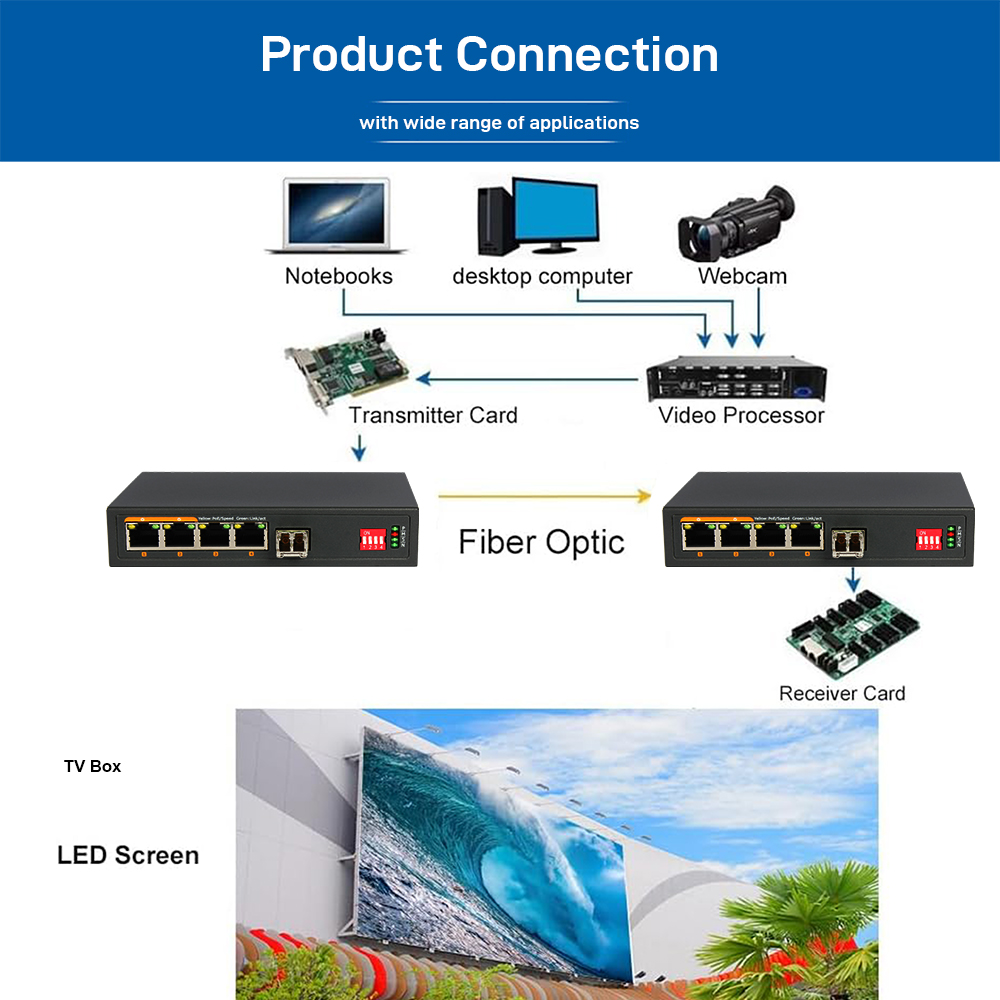

- LED display systems
- LED video wall networking
- Indoor and outdoor LED display projects
- IP surveillance systems
- Multi-channel surveillance networks
- Physically isolated Ethernet networks
- Industrial Ethernet networks
- Long-distance Gigabit Ethernet transmission
- Network security and data isolation
- Video monitoring systems
- Multi-network fiber transmission

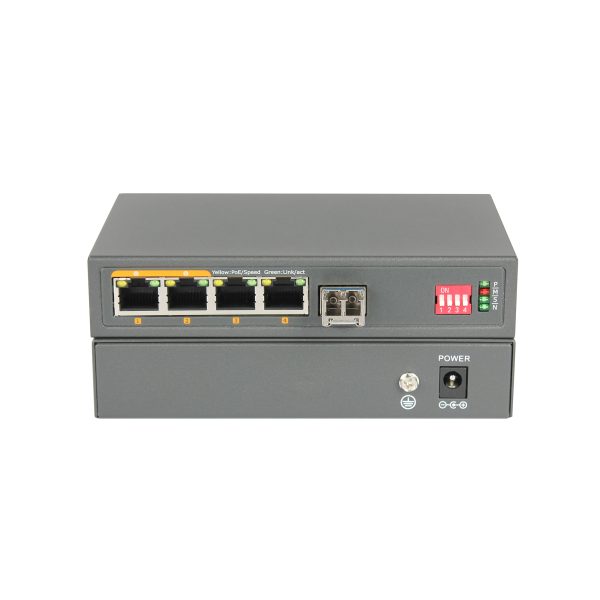

Network & Optical Interface
|
Specification
|
Details
|
|
Ethernet Ports
|
4 × 10/100/1000Mbps RJ45
|
|
Ethernet Mode
|
Auto-Negotiation
|
|
Optical Port
|
1 × 10G SFP+
|
|
Transmission Technology
|
High-Speed TDM
|
|
Network Isolation
|
4 Physically Isolated Ethernet Channels
|
|
Optical Interface
|
SFP+
|
|
Fiber Connector
|
LC / SC depending on optical module
|
|
Installation
|
Desktop
|

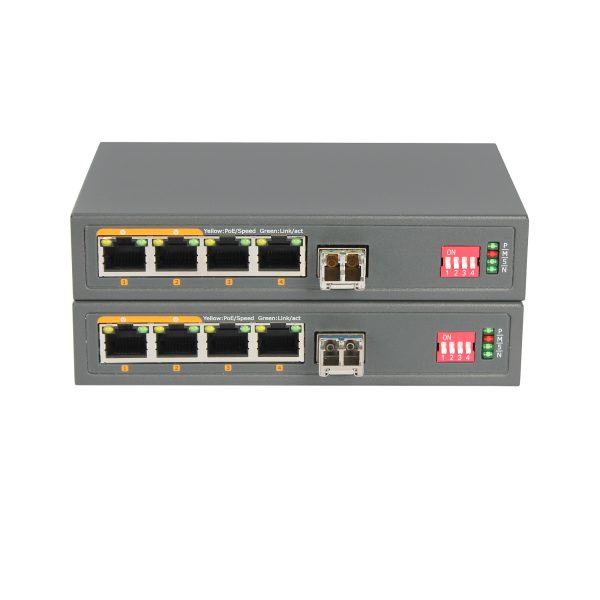

Fiber Transmission
|
Specification
|
Details
|
|
Single-Mode Fiber
|
20 / 40 / 60 / 80 / 100km
|
|
Multimode Fiber
|
Up to 550m
|
|
Fiber Configuration
|
Duplex / Simplex depending on optical module
|
|
Optical Module
|
SFP+
|
|
Transmission Distance
|
Determined by selected optical module and fiber
|
PoE Specifications
|
Specification
|
Details
|
|
PoE
|
Optional
|
|
PoE Ports
|
RJ45 Ports 1–4
|
|
PoE Standard
|
IEEE 802.3af / 802.3at
|
|
802.3af Power
|
15.4W per port
|
|
802.3at Power
|
30W per port
|
|
Pin Assignment
|
1/2+ and 3/6-
|
|
PoE Short-Circuit Protection
|
Supported
|
|

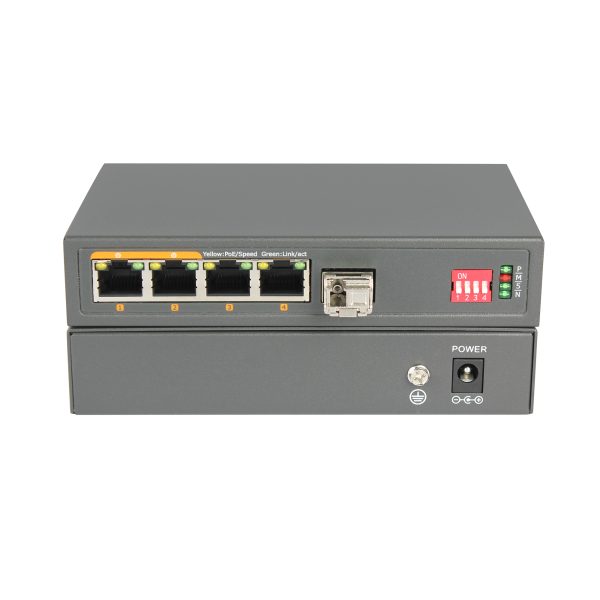

PoE Priority DIP Switch
|
Supported
|
|
PoE Priority Function
|
Provides priority power to designated ports when total load exceeds available power
|

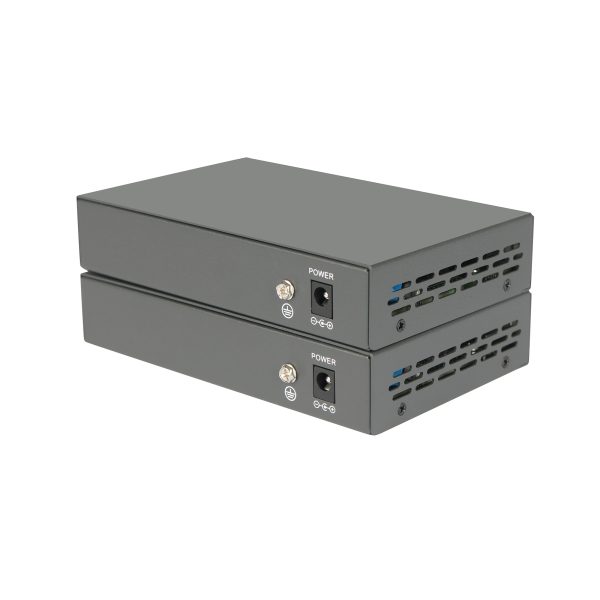

Power Specifications
|
Model
|
Power Supply
|
Full-Load Power Consumption
|
|
Non-PoE
|
DC 5–16V
|
≤5W
|
|
PoE
|
DC 48V
|
≤125W
|
Recommended PoE power input: DC 52–57V.
Ethernet Cable & Transmission Distance
|
Version
|
Cable Type
|
Transmission Distance
|
|
Non-PoE
|
CAT5e / CAT6
|
0–100m
|
|
PoE at 1000Mbps
|
CAT5e / CAT6
|
0–100m
|
|
PoE at 10Mbps
|
CAT5e / CAT6
|
0–250m
|
Environmental Specifications
|
Specification
|
Non-PoE
|
PoE
|
|
Operating Temperature
|
-25°C to +70°C
|
-25°C to +60°C
|
|
Storage Temperature
|
-40°C to +70°C
|
-40°C to +70°C
|
|
Relative Humidity
|
5%–95%, Non-Condensing
|
5%–95%, Non-Condensing
|
|
Cooling
|
Fanless Natural Cooling
|
Fanless Natural Cooling
|
|
MTBF
|
50,000 Hours
|
50,000 Hours
|
Protection & Reliability
|
Specification
|
Details
|
|
Power Surge Protection
|
IEC 61000-4-5 Level 3, 2kV, 8/20μs
|
|
Ethernet Surge Protection
|
IEC 61000-4-5 Level 4, 4kV, 10/700μs
|
|
ESD Protection
|
IEC 61000-4-2 Level 4, 8kV/15kV
|
|
Free Fall
|
0.5m
|
|
Cooling
|
Fanless
|
Mechanical Specifications
|
Specification
|
Details
|
|
Dimensions
|
140 × 88 × 28 mm
|
|
Installation
|
Desktop
|
|
Weight
|
0.3kg
|
|
Housing
|
Metal
|
Model Options
|
Model
|
Ethernet Ports
|
Optical Port
|
PoE
|
Power Supply
|
|
No POE
|
4 × 10/100/1000Mbps RJ45
|
1 × 10G SFP+
|
No
|
DC 5–16V
|
|
POE
|
4 × 10/100/1000Mbps PoE RJ45
|
1 × 10G SFP+
|
IEEE 802.3af/at
|
DC 48V
|
