Product Overview

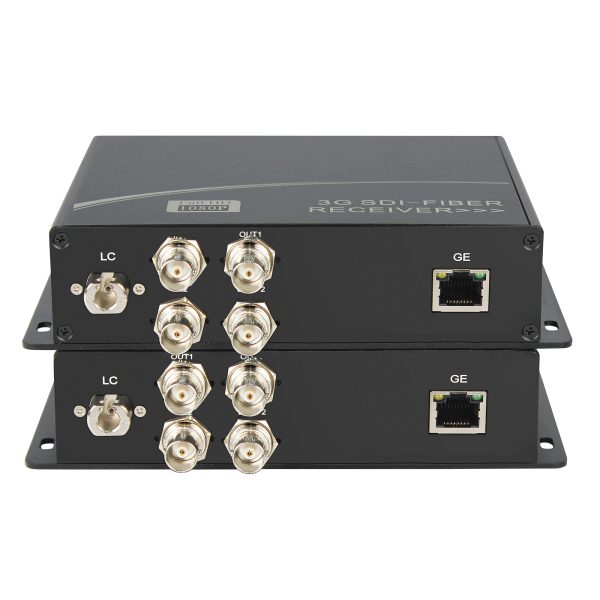

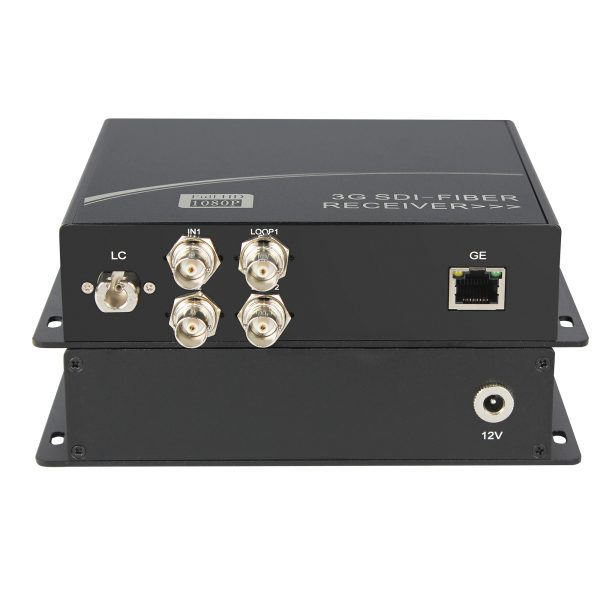

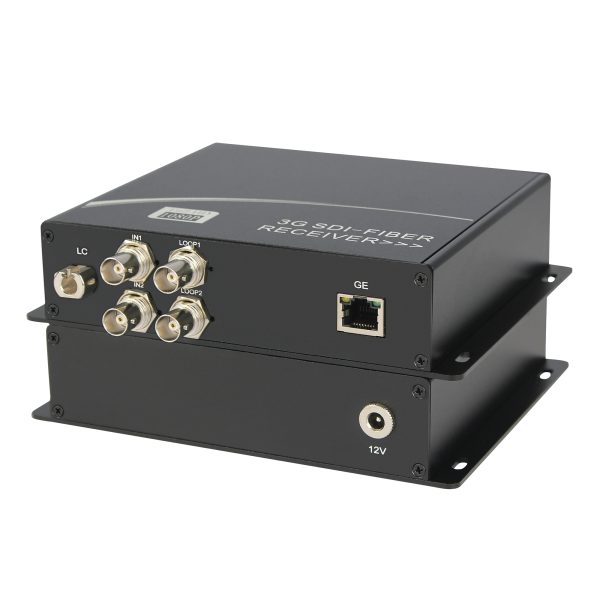

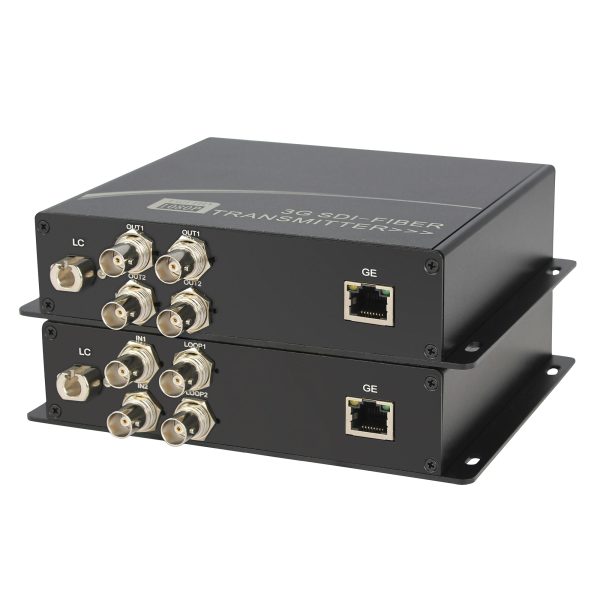

The FQ-SDI-2V1GE-T/R 2-Channel 3G-SDI Fiber Optic Extender is a professional desktop transmission solution for extending two independent SDI video signals and one Gigabit Ethernet connection over a single optical fiber.
It supports SD-SDI, HD-SDI and 3G-SDI standards with resolutions up to 1920×1080@60Hz and SDI data rates of 270Mbps, 1.48Gbps and 3Gbps. Two SDI channels are transmitted simultaneously over single-mode single-fiber with a transmission distance of up to 20km through an LC optical interface.
The unit also provides one Gigabit RJ45 Ethernet port, supporting 10/100/1000Mbps Ethernet connectivity and IEEE 802.3, IEEE 802.3u and IEEE 802.3z standards. It supports both full-duplex and half-duplex operation.
With a compact 135 × 105 × 27mm desktop enclosure and external 5–12V DC power supply, the FQ-SDI-2V1GE-T/R is suitable for professional video, broadcast, AV and network transmission applications.
Key Features
- Supports 2-channel SD-SDI, HD-SDI and 3G-SDI
- Supports resolutions up to 1920×1080@60Hz
- Supports 270Mbps / 1.48Gbps / 3GbpsSDI rates
- Transmits 2 SDI channels over one single-mode fiber
- Up to 20kmtransmission distance
- LC optical interface
- 1 × Gigabit RJ45 Ethernet port
- Supports 10/100/1000Mbps Ethernet
- Supports full-duplex and half-duplex operation
- Supports IEEE 802.3, 802.3u and 802.3z standards
- Supports 1310nm / 1550nmwavelengths
- Supports SMPTE-424M, SMPTE-292M and SMPTE-259M
- Supports DVB-ASIserial digital signals
- External 5–12V DCpower supply
- Compact desktop design
Applications
- Broadcast and television systems
- Live video production
- Multi-camera video systems
- Studio and OB applications
- SDI video and Ethernet transmission
- Professional AV systems
- Remote video monitoring
- CCTV and surveillance systems
- Video production and event systems
- Long-distance video and network connectivity
