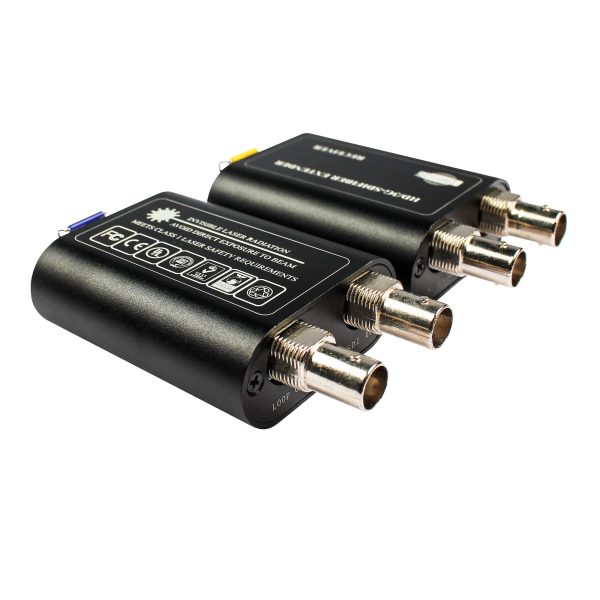

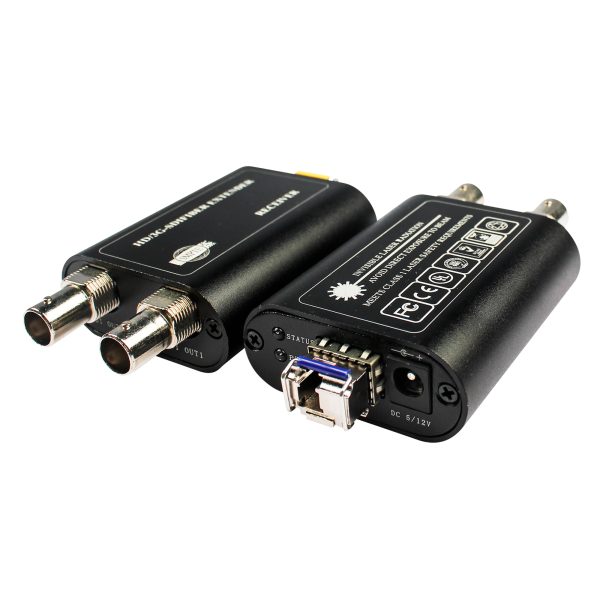

Product Overview

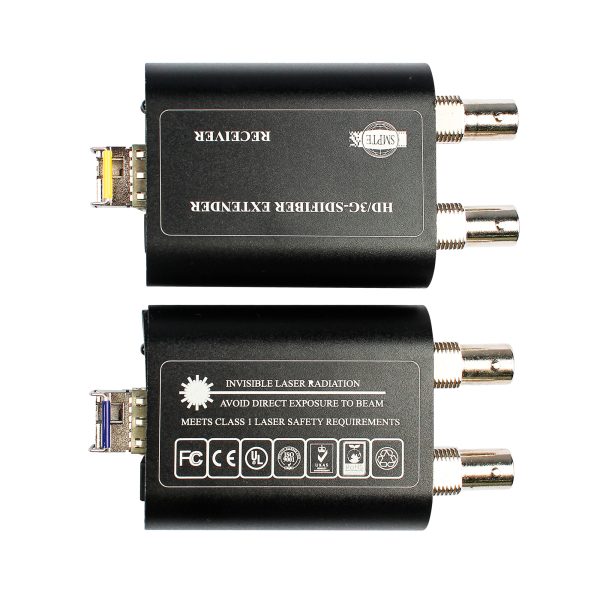

The FQ-MH300-T/R 3G-SDI Fiber Optic Extender is a compact and portable solution for long-distance transmission of SD-SDI, HD-SDI, and 3G-SDI video signals over optical fiber.
Supporting video data rates from 270Mbit/s to 3Gbit/s and resolutions up to 1920 × 1080 @ 60Hz, the extender is compatible with SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI signals.
Built-in reclocking (clock recovery) technology regenerates and cleans the SDI signal during transmission, helping reduce jitter and maintain signal integrity for stable long-distance video transmission.

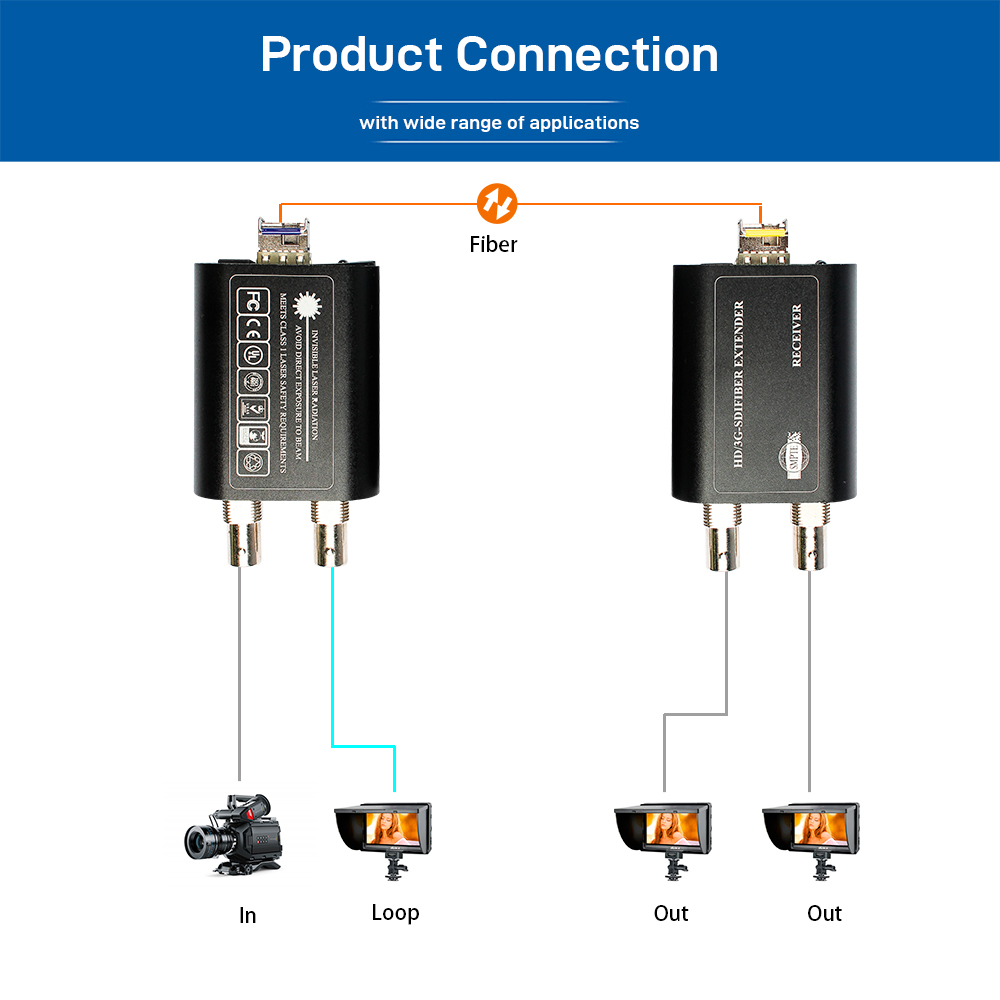

The transmitter also provides an SDI loop output, allowing the original SDI signal to be connected to a local monitor or another SDI device while the signal is simultaneously transmitted over fiber.

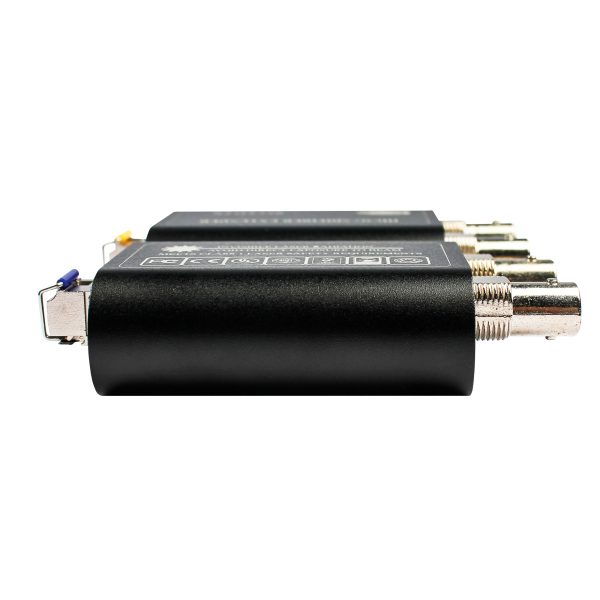

Using single-mode single-fiber transmission, the FQ-MH300-T/R supports distances of up to 20km through an LC optical interface. Its compact 64 × 52 × 22mm enclosure makes it easy to install in portable video systems, field production equipment, monitoring systems, and other space-constrained applications.

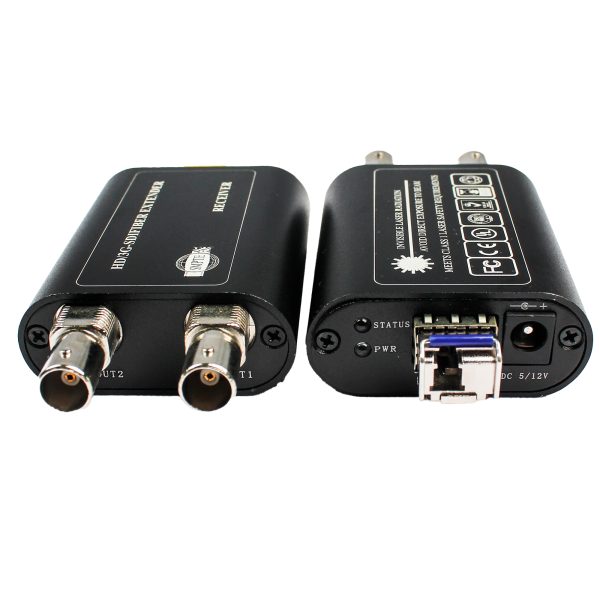

The unit uses an external DC 5–12V power supply and can also be powered by a compatible power bank, making it suitable for mobile and outdoor applications.
Key Features
- 3G-SDI Fiber Transmission– Supports SD-SDI, HD-SDI, and 3G-SDI signals.
- 1080p60 Support– Supports resolutions up to 1920 × 1080 @ 60Hz.
- Reclocking Technology– Recovers the SDI clock and improves signal stability.
- SDI Loop Out– Provides local monitoring while transmitting the signal over fiber.
- 20km Single-Fiber Transmission– Uses single-mode fiber through an LC optical interface.
- 270Mbit/s to 3Gbit/s– Supports multiple SDI signal data rates.
- Multiple SDI Standards– Supports SMPTE 424M, 292M, 259M, and DVB-ASI.
- Miniature Design– Compact 64 × 52 × 22mm housing for space-saving installation.
- Flexible Power Options– Supports DC 5–12V external power and compatible power banks.
- Low-Interference Fiber Transmission– Provides reliable digital video transmission over optical fiber.
Applications
- Broadcast and television systems
- Live production and event video transmission
- Professional camera and field shooting
- Portable video systems
- CCTV and video monitoring
- SDI signal extension
- Studio and control room video transmission
- Long-distance SDI video links
