Product Overview

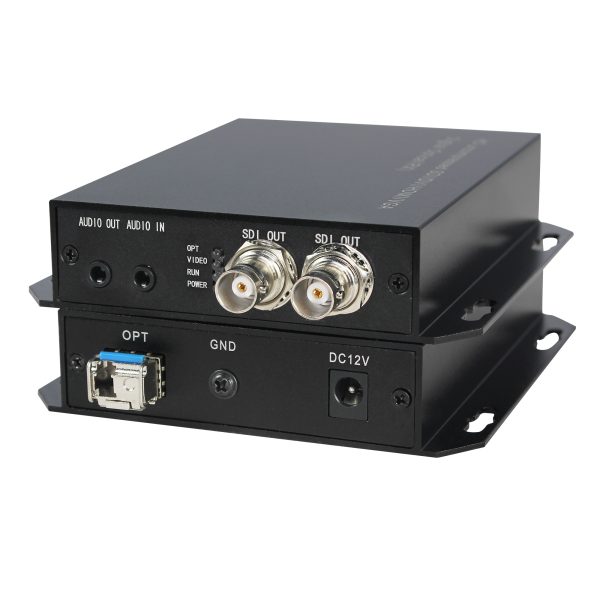

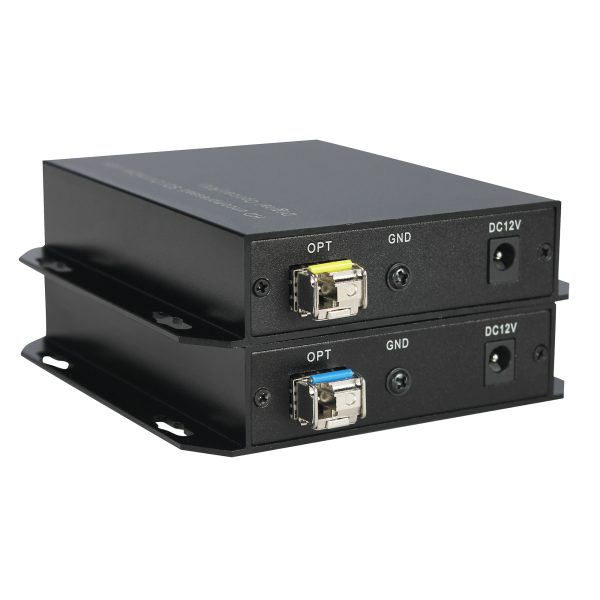

The FQ-SDI-1V1Aa-T/R 3G-SDI Fiber Optic Extender is a professional SDI over fiber transmission solution designed for long-distance transmission of SD-SDI, HD-SDI and 3G-SDI video signals.
It supports video resolutions up to 1920×1080@60Hz and transmission rates up to 3Gbps. The system uses single-mode single-fiber transmission over distances up to 20km and is available with LC optical interfaces.

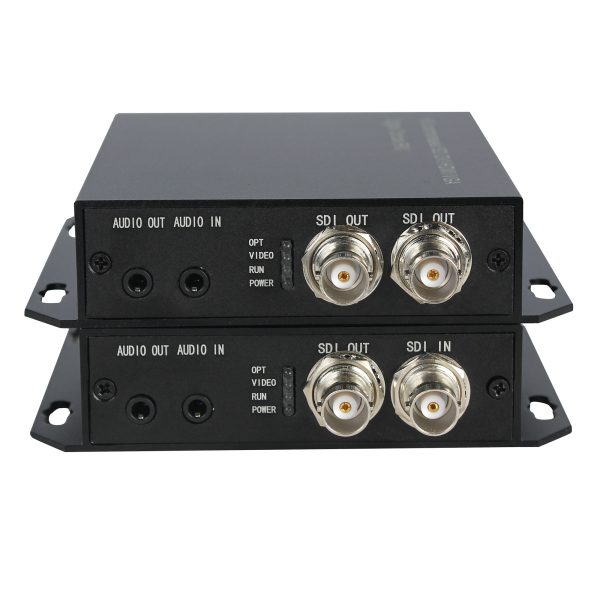

In addition to SDI video transmission, the extender provides an SDI loop output for local monitoring or connection to additional SDI equipment, plus one bidirectional 3.5mm audio channel for flexible audio transmission.
Key Features
- Supports SD-SDI, HD-SDI and 3G-SDI video signals
- Supports resolutions up to 1920×1080@60Hz
- Supports 270Mbps, 1.485Gbps and 3GbpsSDI data rates
- Supports 3G-SDI 1080ptransmission
- SDI loop outfor local monitoring and signal distribution
- Supports one bidirectional 3.5mm audio channel
- Single-mode single-fiber transmission up to 20km
- Available withLC optical connectors
- Supports 1310nm / 1550nmoptical wavelengths
- Compliant with SMPTE-424M, SMPTE-292M and SMPTE-259M
- Supports DVB-ASIserial digital signals
- 75Ω BNC SDI interface
- Compact 140 × 110 × 25mmdesign
- External 5–12V DCpower supply
Applications
- Broadcast and television production
- Live video production and events
- Professional camera systems
- SDI monitoring and distribution
- Studio and OB applications
- Long-distance video transmission
- Surveillance and professional video systems
- Conference and AV systems
