Product Overview
The ZH-AES800-T/R 2-Channel AES50 Fiber Optic Extender is a professional digital audio and network fiber transmission solution designed to extend AES50 audio signals over long distances while providing multiple Gigabit Ethernet connectivity options.
Using advanced high-speed digital fiber optic transmission technology, the ZH-AES800-T/R provides reliable, interference-resistant transmission for digital audio consoles, professional audio systems, live sound applications, and AV networking environments.
The system supports 2 channels of AES50 with sampling rates of 44.1 kHz, 48 kHz, and 96 kHz. It supports transmission distances of up to 10 km over single-mode fiber and 500 m+ over multimode fiber, making it suitable for professional audio installations requiring stable and long-distance AES50 transmission.

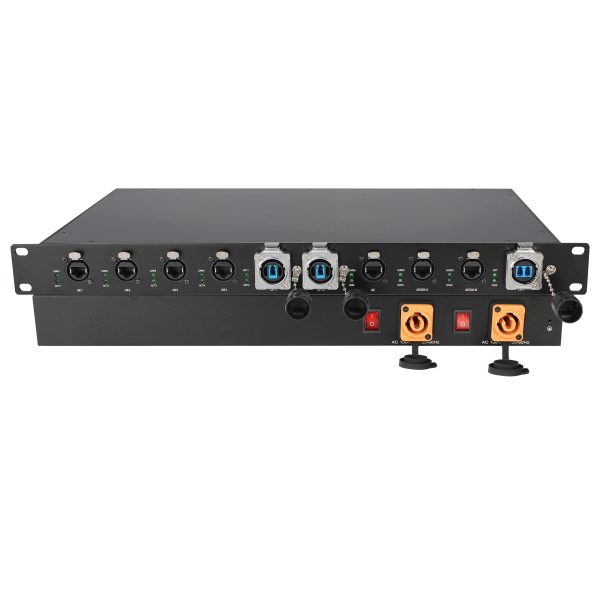

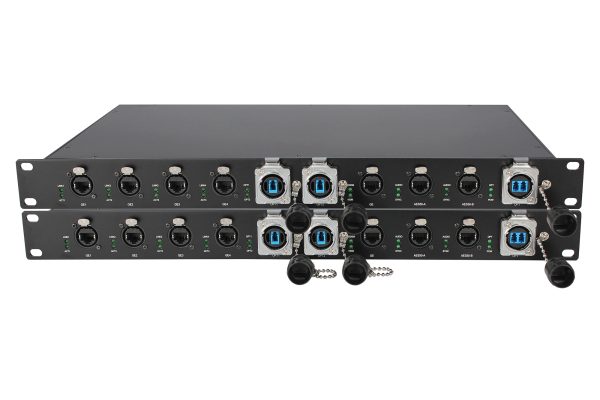

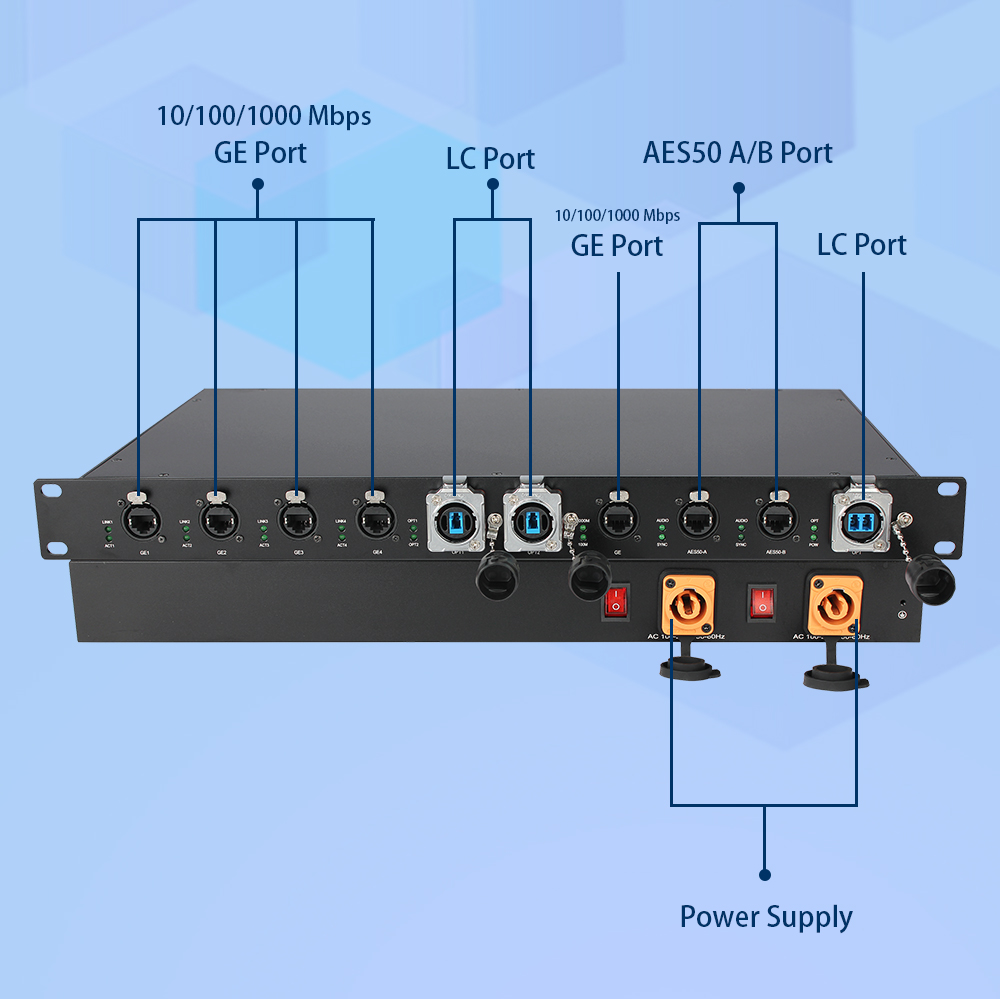

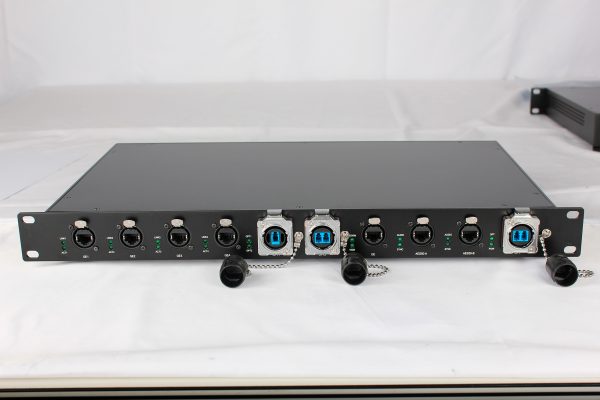

The ZH-AES800-T/R features dual LC optical fiber interfaces with 1+1 backup, providing redundant optical transmission for improved system reliability. In addition, it provides two independent single LC optical interfaces, OPT1 and OPT2, as well as four independent Gigabit Ethernet interfaces, GE1, GE2, GE3, and GE4, providing flexible connectivity for audio, control, and network applications.
With plug-and-play operation and comprehensive LED status indicators, the ZH-AES800-T/R can be quickly deployed in live sound, broadcast, stage, theater, professional audio, and AV networking environments.
Key Features
- 2-Channel AES50 Transmission– Supports two AES50 audio channels for professional digital audio systems.
- Uncompressed Digital Transmission– Transmits AES50 signals through full digital fiber transmission without compression.
- Long-Distance Transmission– Supports up to 10 km over single-mode fiber and 500 m+ over multimode fiber.
- Multiple Sampling Rates– Supports 1 kHz, 48 kHz, and 96 kHz AES50 sampling rates.
- Dual LC Fiber Backup– Two main LC optical fiber interfaces provide a 1+1 redundant fiber transmission path for improved transmission reliability.
- Additional Single LC Optical Interfaces– Provides two independent single LC optical interfaces, OPT1 and OPT2, for additional optical connectivity.
- 4-Port Gigabit Ethernet– Provides four independent Ethernet interfaces, GE1, GE2, GE3, and GE4, supporting 10 Mbps, 100 Mbps, and 1 Gbps network connections.
- Independent Network Status Indicators– Each Ethernet port has dedicated LINK and ACT indicators for monitoring network connection and data activity.
- Optical Status Indicators– Dedicated OPT1 and OPT2 LED indicators provide optical signal status for the additional LC optical interfaces.
- Strong EMI Resistance– Fiber optic transmission offers excellent resistance to electromagnetic interference and helps maintain signal integrity.
- Plug and Play– No software installation or complicated configuration is required.
- Comprehensive LED Monitoring– Provides real-time status information for AES50, optical fiber, Ethernet network, synchronization, and power.
- Professional Audio Design– Suitable for live events, broadcast, stage, theater, and other professional audio applications.

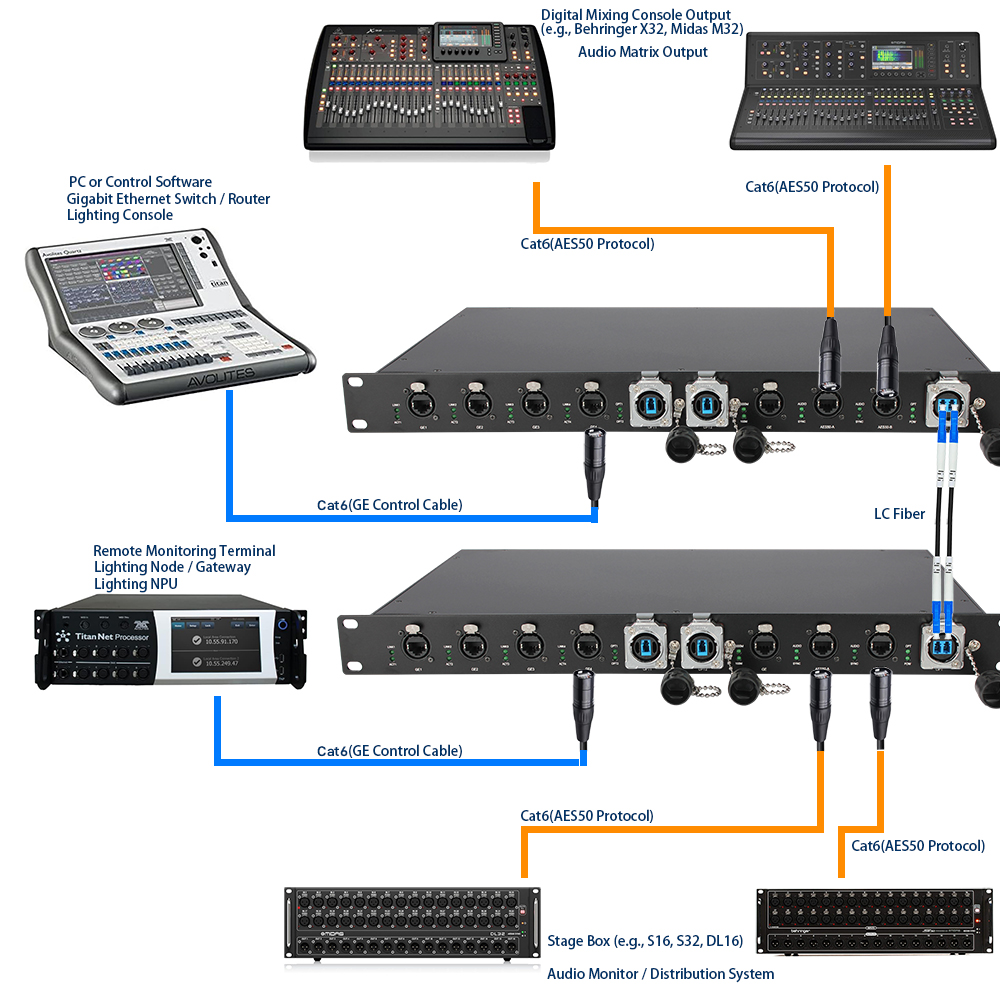

Applications
- Professional Audio and Live Sound Systems
- Digital Audio Consoles and Mixing Systems
- Concerts and Live Events
- Broadcast and Production Studios
- Stage and Theater Audio Systems
- Conference and Large Venue Audio Systems
- Long-Distance AES50 Audio Transmission
- Professional AV and Audio Networking
- Audio System Network Control and Management
- Professional Fiber-Based AV Infrastructure
