Product Overview
The 4-Channel MADI Fiber Optic Extender is a professional rack-mount digital audio transmission solution designed for long-distance MADI signal extension over optical fiber. It provides real-time, bidirectional conversion between MADI coaxial and optical fiber signals, maintaining high-fidelity audio quality without compression.
The system supports 4 independent MADI channels, with each MADI link supporting up to 64 audio input and 64 audio output channels. It is designed for professional digital audio consoles, MADI stage boxes, interface boxes, broadcast systems, recording studios, live sound systems, and other professional audio applications.
This version uses single-mode single-fiber optical transmission with LC connectors. The optical interface operates at 1.25 Gb/s and supports transmission distances of up to 20 km, providing an efficient solution for long-distance MADI signal transmission while reducing fiber cabling requirements.
The converter provides 75-ohm BNC MADI input and output interfaces and supports the AES10-2008 MADI standard. It is compatible with professional MADI equipment from DiGiCo and other major audio manufacturers.

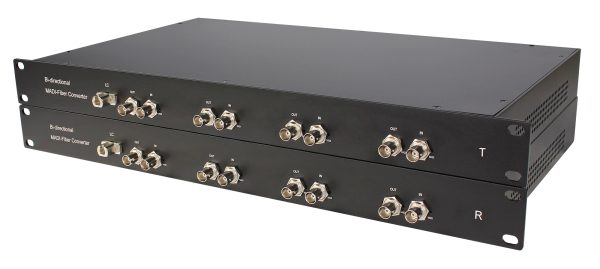

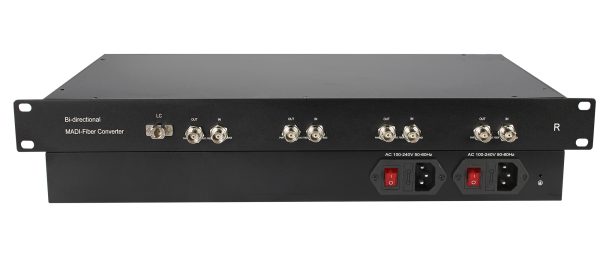

Designed in a standard 19-inch 1U rack-mount format, the unit can be easily installed in professional audio racks and equipment cabinets. It also features dual AC 220V power supplies with 1+1 redundant backup, improving system reliability for critical audio applications.
Key Features
- 4-Channel MADI Fiber Transmission– Supports four independent MADI optical transmission channels.
- Up to 64 Audio Channels per MADI Link– Supports up to 64 audio input and 64 audio output channels for each MADI connection.
- Single-Fiber Optical Transmission– Uses single-mode single-fiber transmission with LC connectors, reducing fiber cabling requirements.
- 20 km Long-Distance Transmission– Supports transmission distances of up to 20 km over single-mode fiber.
- 25 Gb/s Optical Transmission– Provides high-speed optical transmission for professional MADI audio signals.
- Real-Time, Lossless Conversion– Provides real-time signal conversion without compression, maintaining high-fidelity audio quality.
- 75-Ohm BNC MADI Interfaces– Each MADI channel provides one 75-ohm BNC input and one 75-ohm BNC output.
- AES10-2008 Support– Supports the standard MADI digital audio interface specification.
- Wide MADI Compatibility– Designed for use with DiGiCo and other major professional audio consoles, stage boxes, and MADI interface equipment.

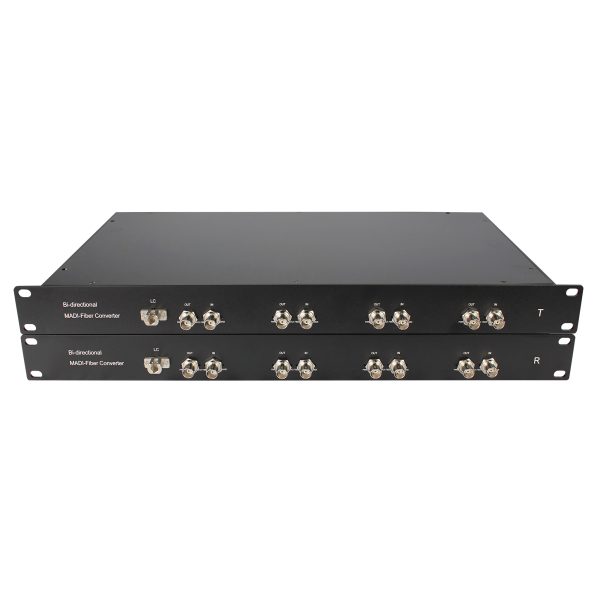

- 19-Inch 1U Rack-Mount Design– Fits standard 19-inch equipment racks for professional installation.

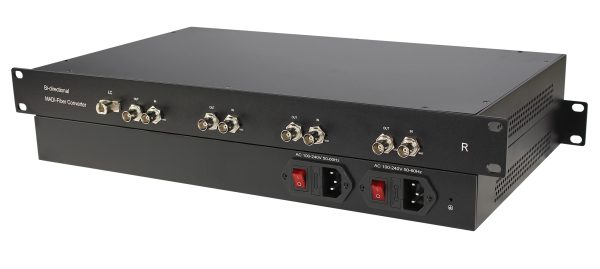

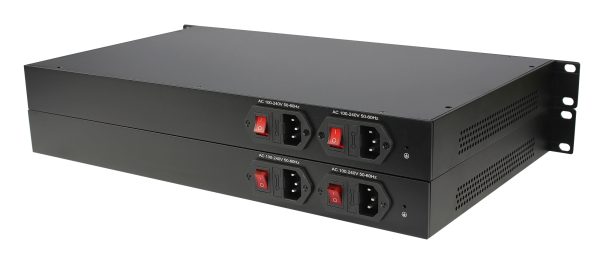

- Dual AC 220V Power Supply– Features 1+1 redundant power backup for improved reliability in critical audio systems.
- Professional Fiber Transmission– Optical fiber provides long-distance transmission with strong resistance to electromagnetic interference.
Applications
- Professional Digital Audio Systems
- MADI Audio Transmission
- Digital Mixing Consoles
- DiGiCo and Other MADI-Compatible Consoles
- MADI Stage Boxes and Interface Boxes
- Live Concert and Touring Audio
- Broadcast Audio Systems
- Recording Studios
- Theater and Performing Arts Venues
- Professional Audio Equipment Racks
- Long-Distance MADI Signal Transmission
- Professional AV and Audio Networking
Transmission & Connectivity
The 4-Channel MADI Fiber Optic Extender converts MADI signals between 75-ohm BNC coaxial interfaces and single-mode optical fiber for long-distance transmission.

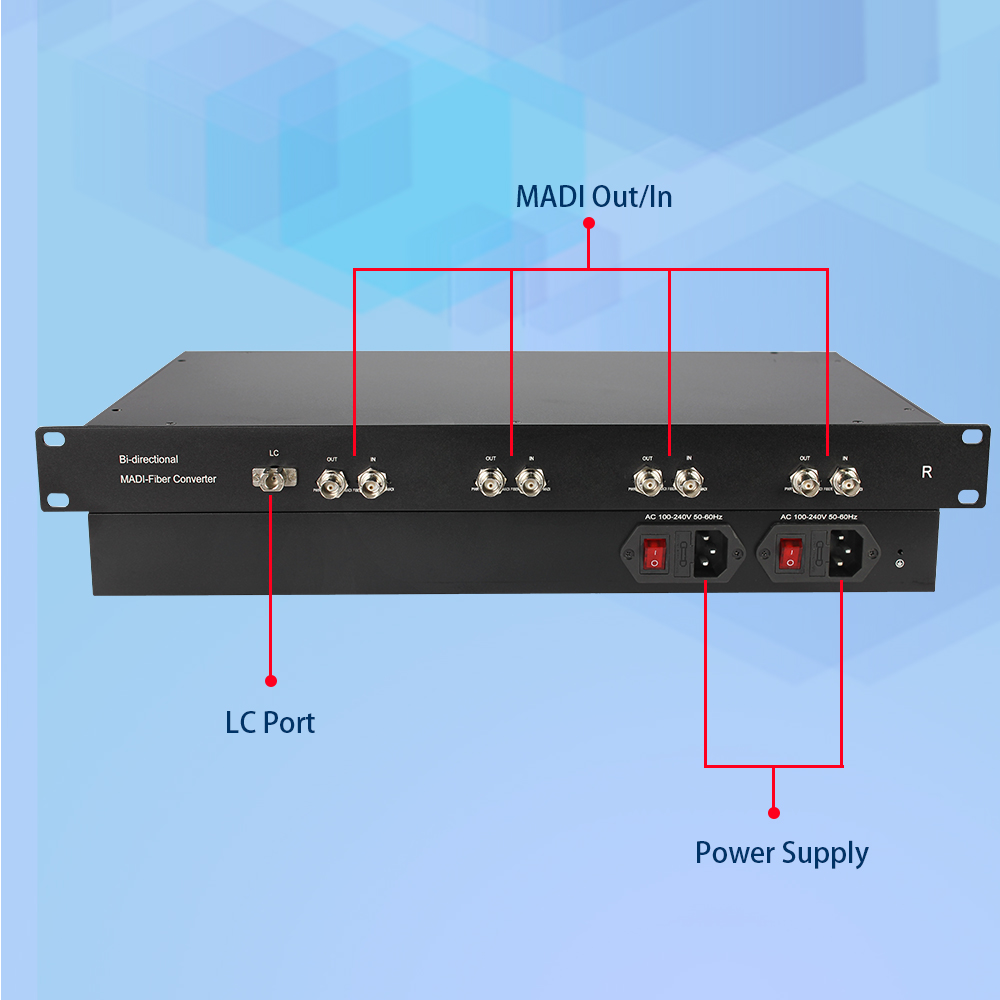

Each MADI channel provides one BNC input and one BNC output, supporting up to 64 audio input and 64 audio output channels. The four MADI links are transmitted through single-fiber optical connections using LC connectors at a data rate of 1.25 Gb/s.

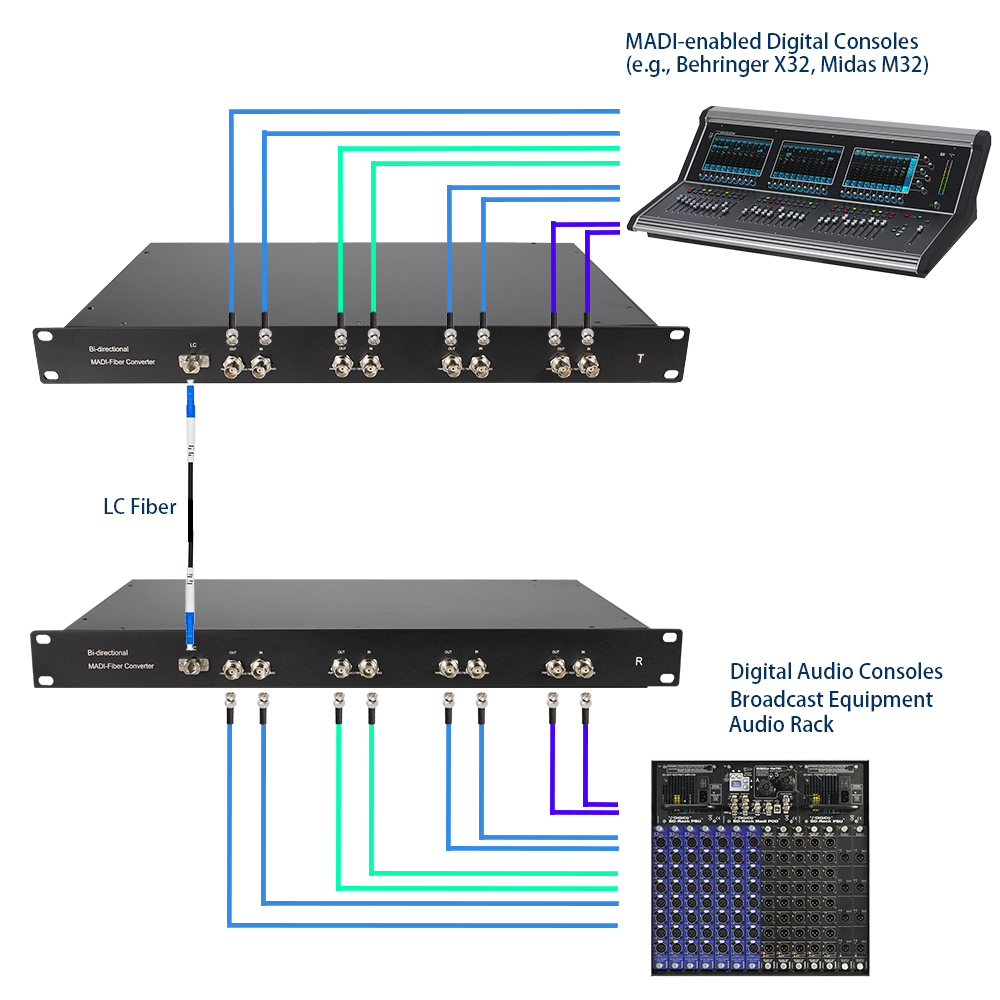

When used as a pair, the units can create a complete long-distance MADI extension system between a local audio console or interface box and remote MADI equipment.
