Product Overview

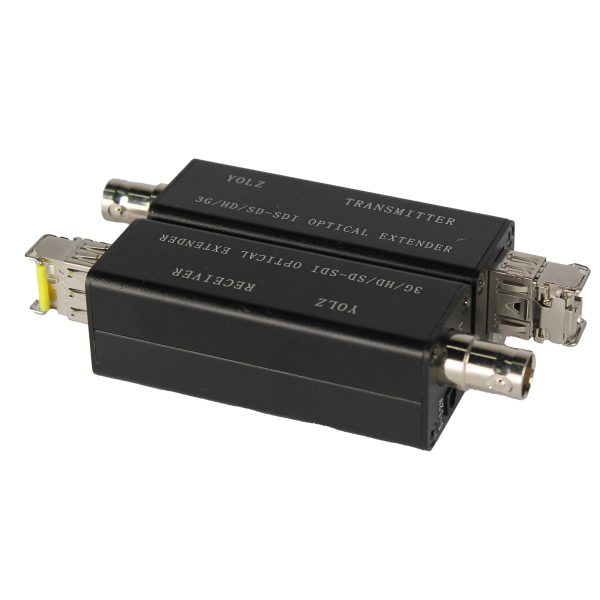

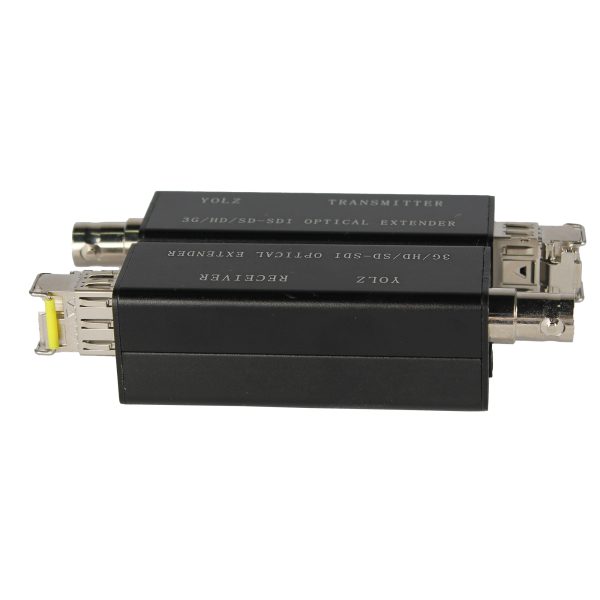

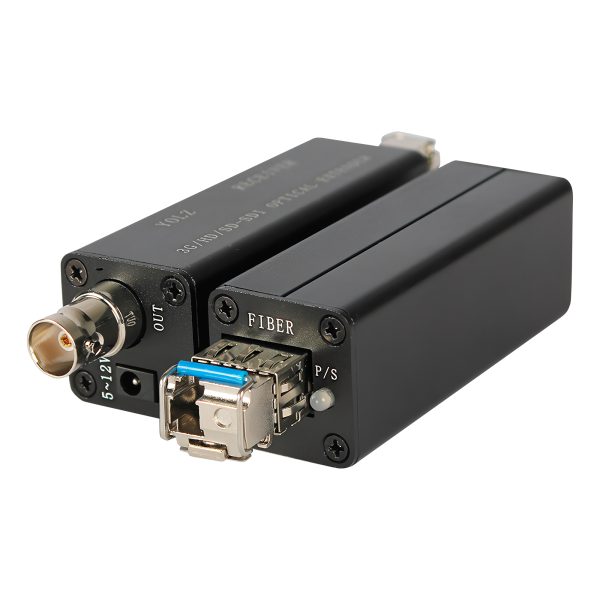

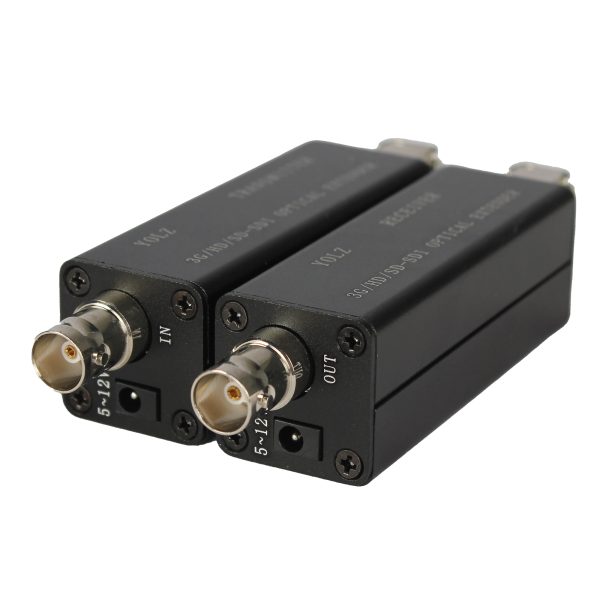

The FQ-SGV300-T/R 3G/HD-SDI Fiber Optic Extender is a professional long-distance transmission solution for uncompressed HD and 3G-SDI video signals. It converts SDI video signals to optical signals for transmission over single-mode fiber and converts them back to SDI at the receiver.
Supporting resolutions up to 1920 × 1080p at 60Hz and transmission distances of up to 20km over single-mode fiber, the system provides reliable, high-quality video transmission without compression or signal degradation caused by long copper cable runs.
The optical interface uses a field-replaceable LC/PC SFP optical module, allowing convenient installation and replacement. The plug-and-play design requires no configuration and is suitable for professional video, broadcast, surveillance, live events, and other high-definition video applications.
Key Features
- Supports standard HD-SDI and 3G-SDIsignals
- Supports resolutions up to 1920 × 1080p @ 60Hz
- Up to 20km transmission over single-mode fiber
- Supports 300m transmission over multimode fiber

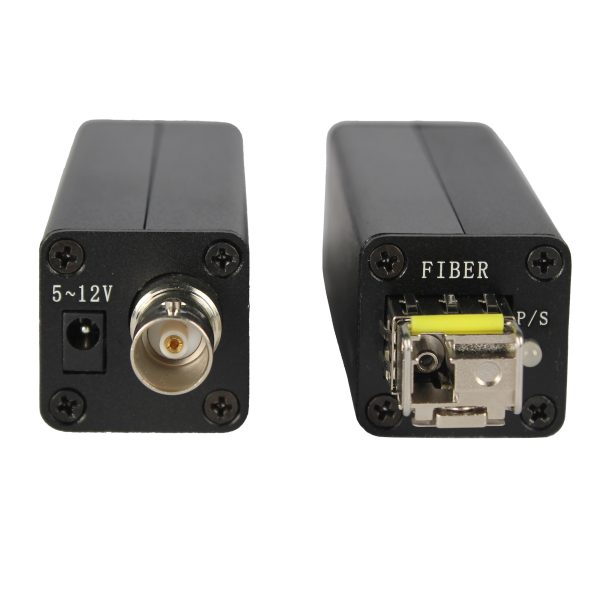

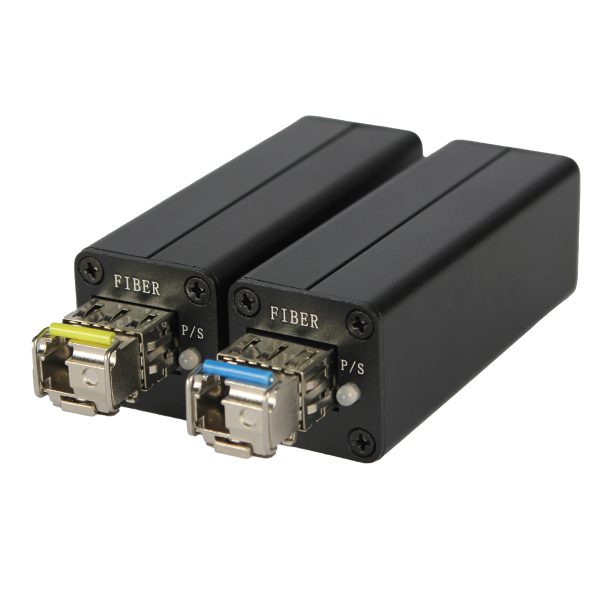

- LC/PC SFP optical interface with field hot-swappable module
- Uncompressed, high-fidelity SDI video transmission
- Real-time transmission with no video compression
- Supports plug-and-play operation
- Power and SDI signal status indicators
- Compact and lightweight design
- Low power consumption of 2W maximum
Applications
- HD security and surveillance video transmission
- Military and field video systems
- Live concerts and large-scale events

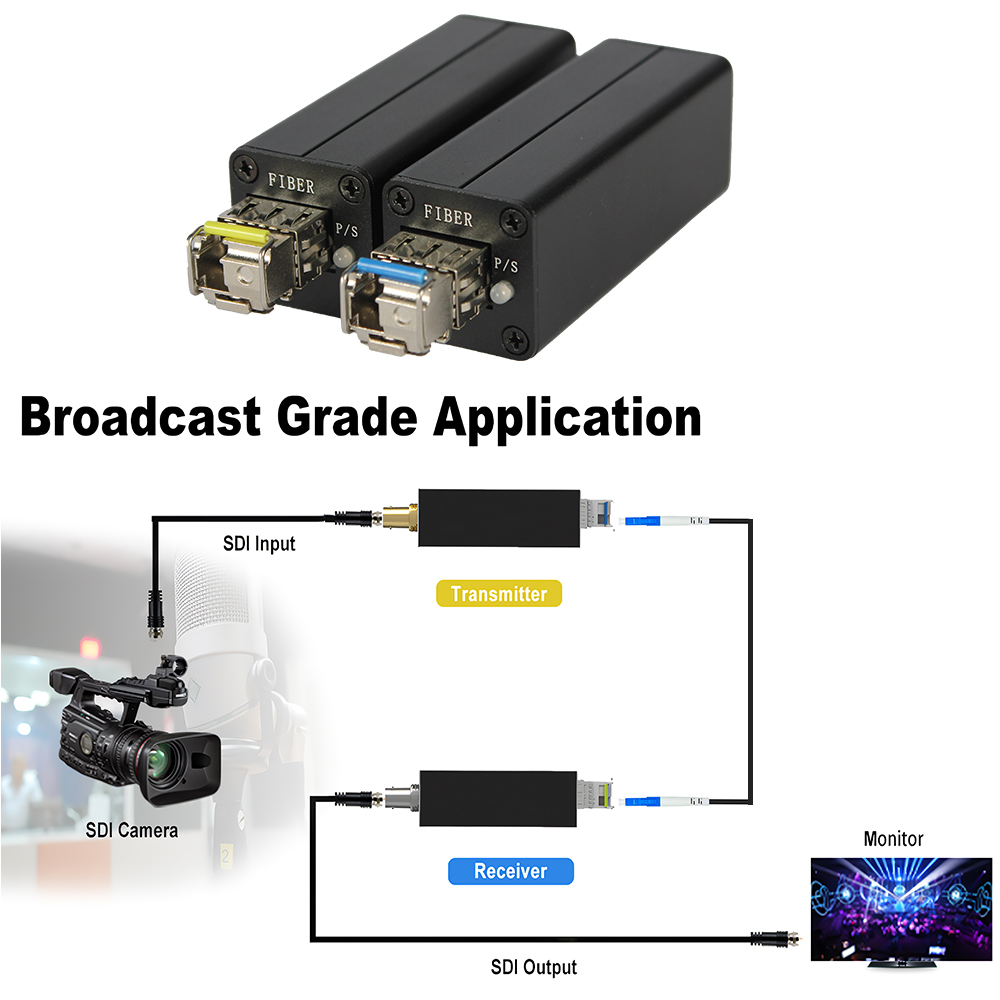

- Broadcast and professional video systems
- Long-distance SDI camera transmission
- HD multimedia systems
- Video production and control rooms
- High-definition video transmission in challenging environments
