Product Overview

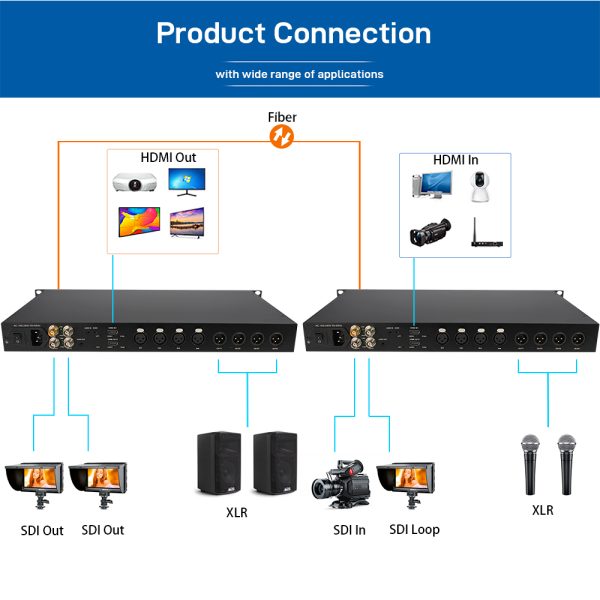

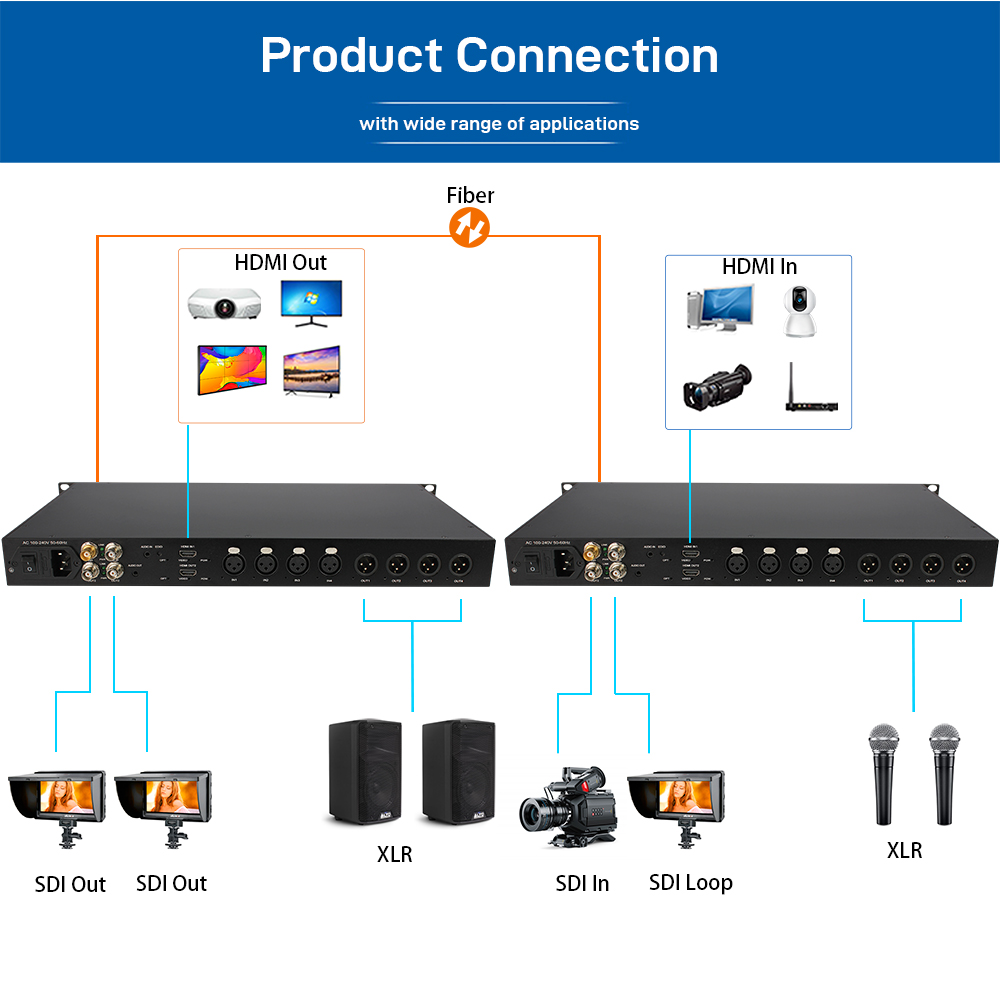

The FQ-1Hh-1Ss-KN4Aa-T/R is a professional 19-inch 1U rackmount fiber optic transmission system designed for bidirectional transmission of 3G-SDI video, HDMI video, and 4 channels of balanced XLR audio over a single optical fiber.
The system supports 1-channel bidirectional SD-SDI, HD-SDI, and 3G-SDI with resolutions up to 1920×1080@60Hz and SDI transmission rates from 270Mbps to 3Gbps. It also supports 1-channel bidirectional HDMI transmission with HDMI 1.3b compatibility and resolutions up to 1920×1200 / 1920×1080@60Hz, including 1080p, 1080i, and 720p.
Four channels of balanced XLR audio support bidirectional transmission with 24-bit/192kHz digital sampling, providing high-quality audio transmission with low noise and interference.
The system uses single-mode single-fiber LC transmission for distances up to 20km. HDMI EDID learning helps maintain compatibility between connected video sources and displays. With a professional 19-inch 1U rackmount design and built-in AC 220V power supply, it is suitable for broadcast, live production, studio, and professional AV applications.
Key Features

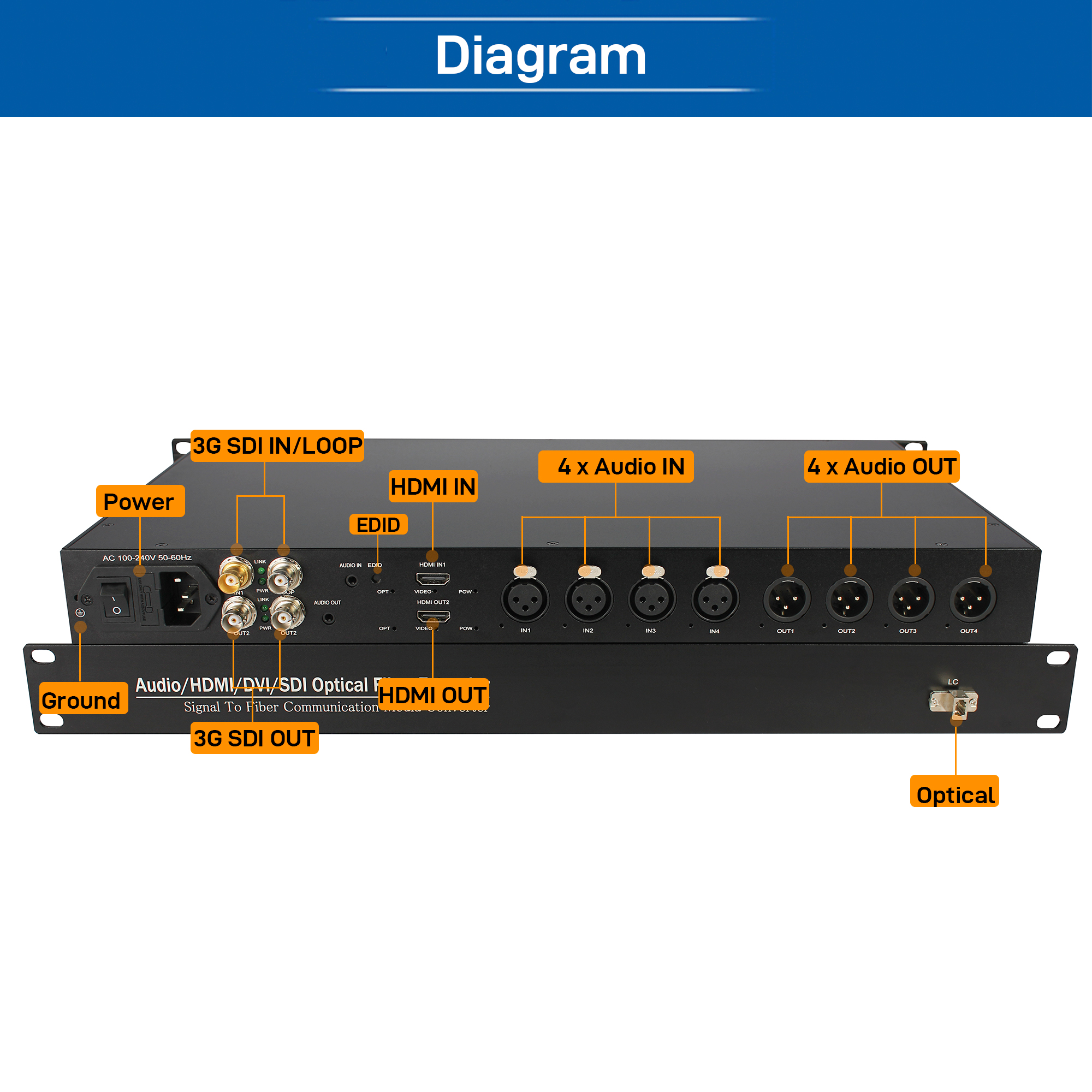

- Supports 1-channel bidirectional SD-SDI, HD-SDI, and 3G-SDI
- Supports 1-channel bidirectional HDMI
- Supports resolutions up to 1920×1080@60Hz for SDI
- HDMI supports up to 1920×1200 and 1920×1080@60Hz
- HDMI 1.3b compatible
- Supports HDMI 1080p, 1080i, and 720p formats
- HDMI EDID learning support
- 4-channel bidirectional balanced XLR audio
- 24-bit/192kHz digital audio sampling
- 20km transmission over single-mode single-fiber LC
- Supports 270Mbps, 1.48Gbps, and 3Gbps SDI rates
- Supports SMPTE-424M, SMPTE-292M, SMPTE-259M, and DVB-ASI

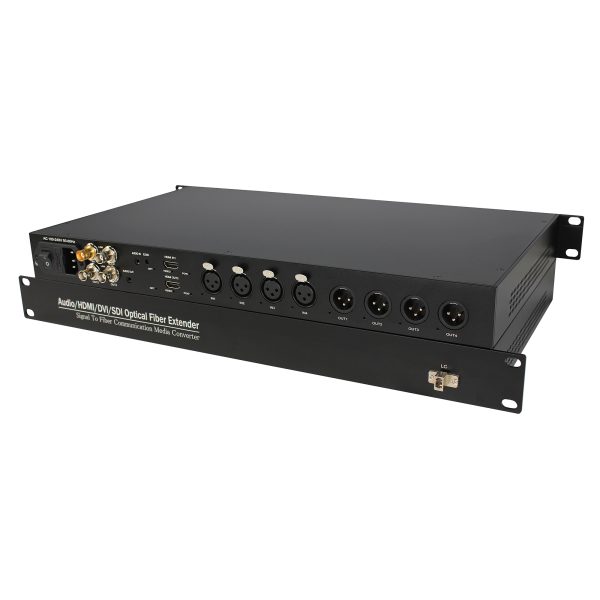

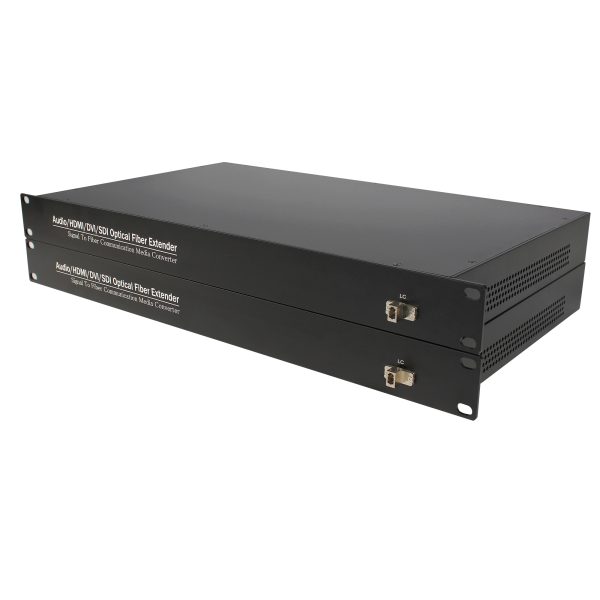

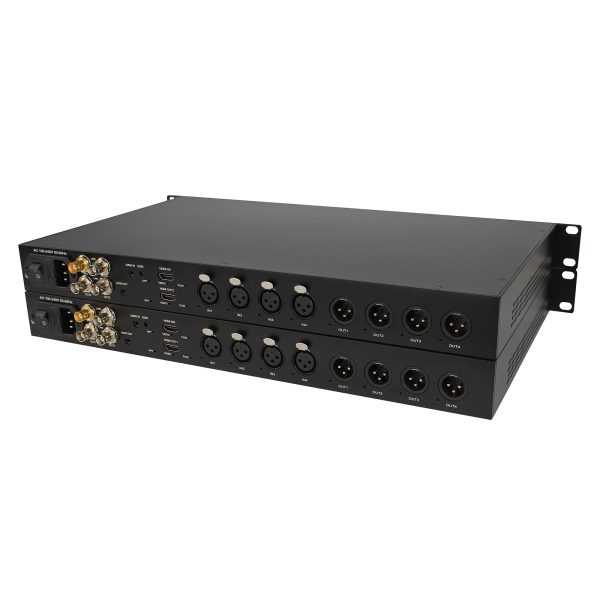

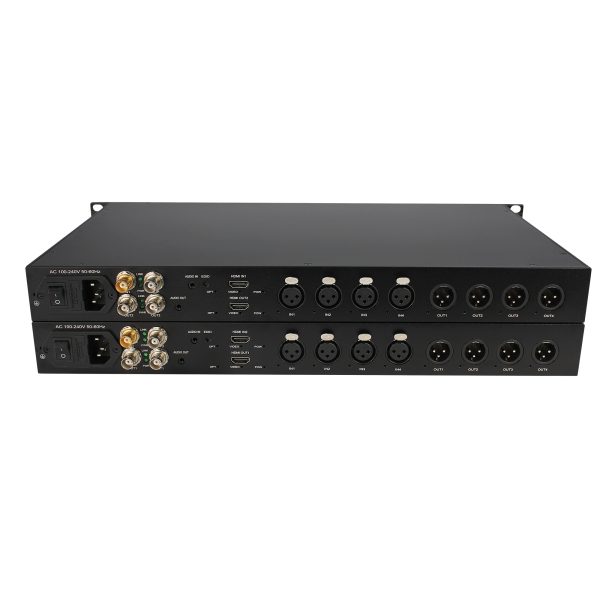

- Professional 19-inch 1U rackmount design
- Built-in AC 220V power supply
Applications
- Broadcast studios and TV stations
- Live event and concert production
- Professional audio and video transmission
- Studio-to-control-room video links
- Broadcast and OB systems
- Professional AV installations
- Long-distance SDI and HDMI transmission
- Integrated video and audio distribution
