Product Overview

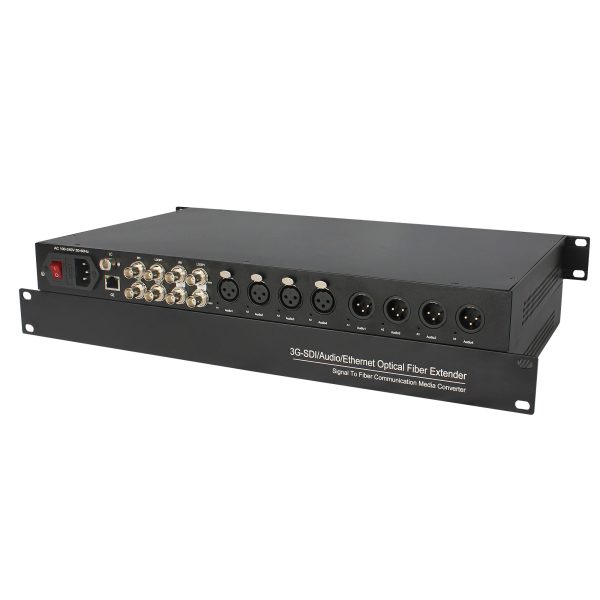

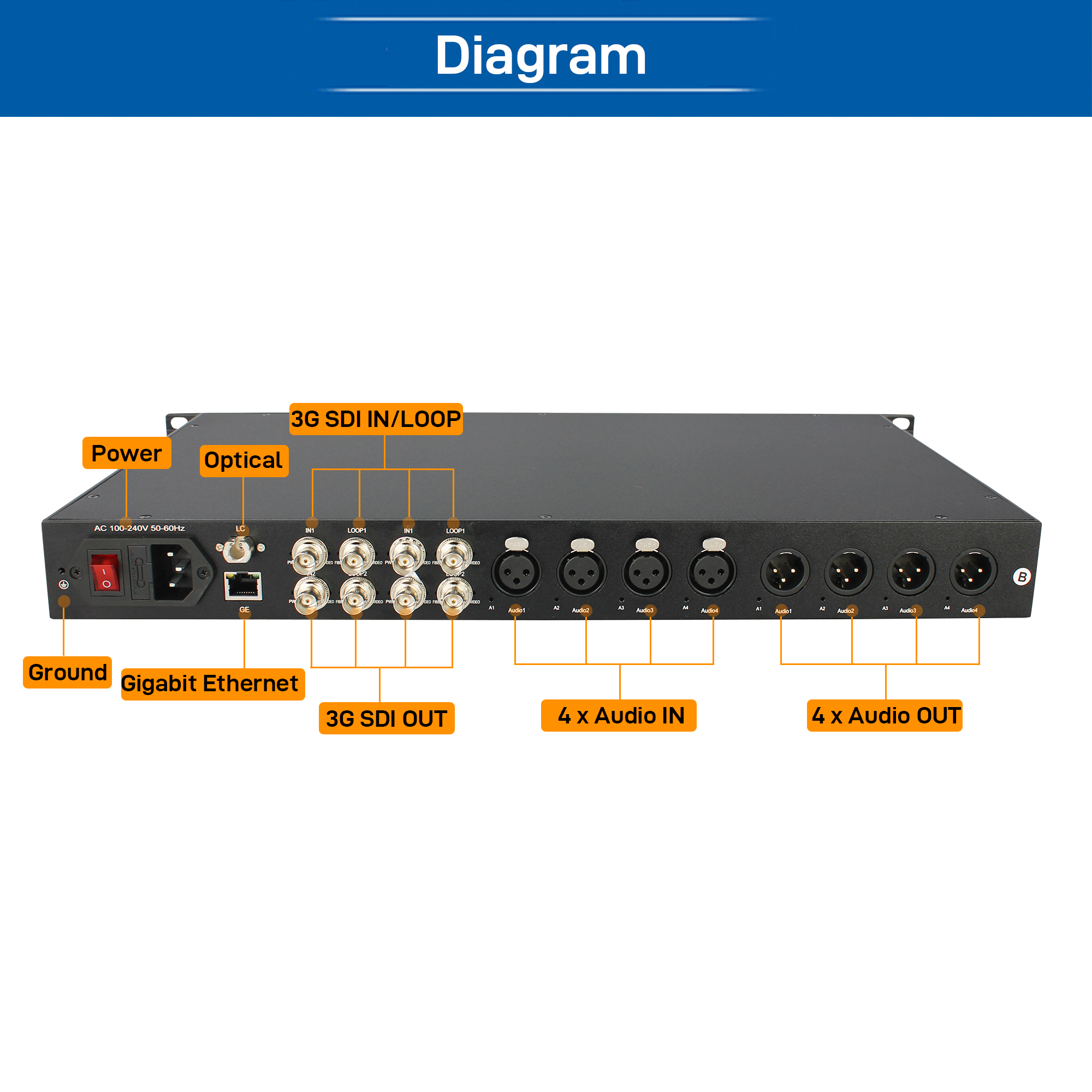

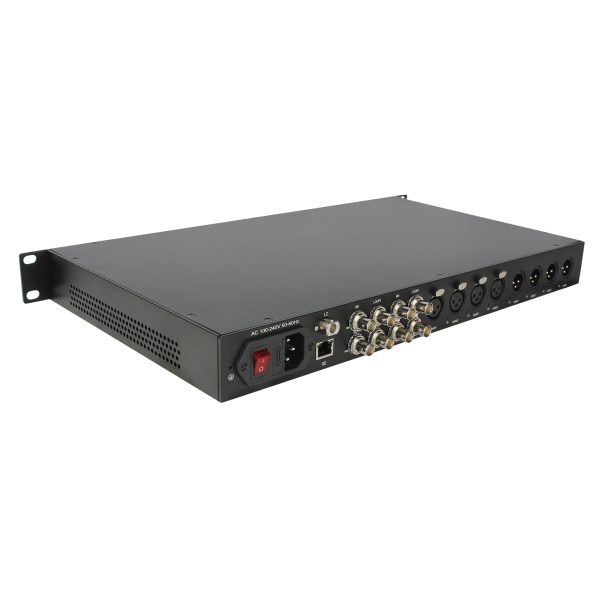

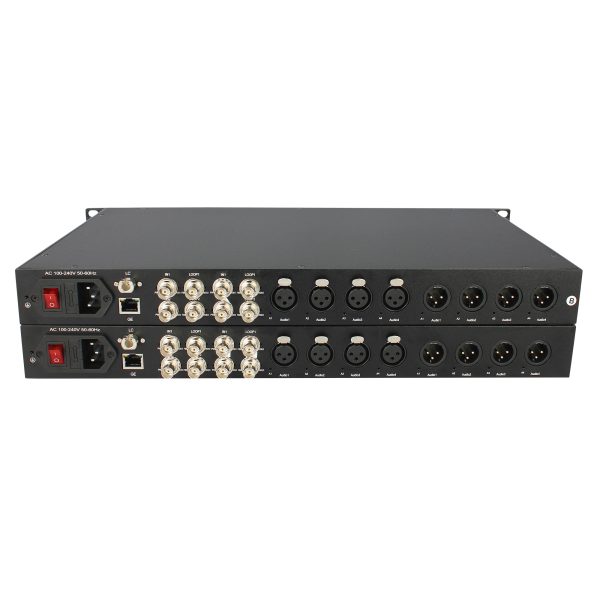

The FQ-2Ss-KN4Aa-1GE-TR is a professional 19-inch 1U rackmount fiber optic transmission system designed for bidirectional transmission of 2 channels of SD-SDI, HD-SDI, and 3G-SDI video, 4 channels of bidirectional balanced XLR audio, and 1 Gigabit Ethernet connection over a single optical fiber.
The system supports video resolutions up to 1920×1080@60Hz and SDI transmission rates from 270Mbps to 3Gbps. Four channels of balanced XLR audio use 24-bit/192kHz digital sampling for high-quality bidirectional audio transmission with low noise and interference.
The integrated Gigabit RJ45 interface supports 10/100/1000Mbps Ethernet and full-duplex or half-duplex operation. Single-mode single-fiber LC transmission supports distances of up to 20km.
With its professional 19-inch 1U rackmount design and built-in AC 220V power supply, the system is well suited for broadcast studios, live events, control rooms, and professional AV installations.
Key Features
- Supports 2-channel bidirectional SD-SDI, HD-SDI, and 3G-SDI
- Supports resolutions up to 1920×1080@60Hz
- 4-channel bidirectional balanced XLR audio
- 24-bit/192kHz digital audio sampling
- 1-port Gigabit Ethernet for network transmission
- Supports 10/100/1000Mbps Ethernet
- Supports full-duplex and half-duplex operation
- 20km transmission over single-mode single-fiber LC
- Supports 270Mbps, 1.48Gbps, and 3Gbps SDI rates
- Supports SMPTE-424M, SMPTE-292M, SMPTE-259M, and DVB-ASI

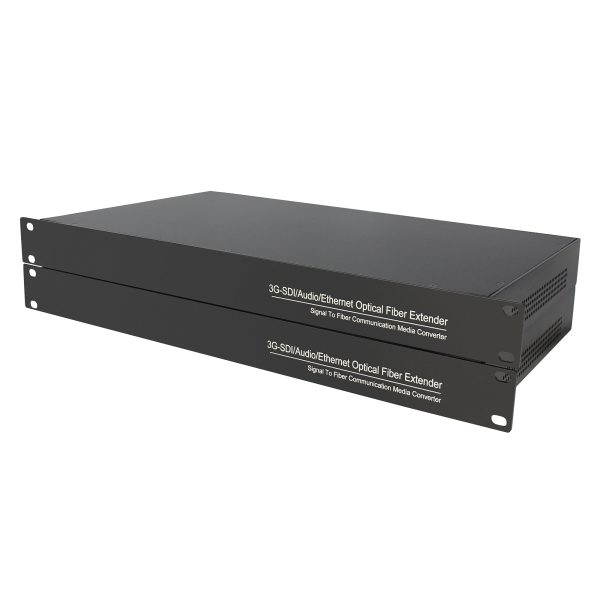

- Professional 19-inch 1U rackmount design
- Built-in AC 220V power supply
Applications
- Broadcast studios and TV stations
- Live concerts and event production
- Professional audio and video transmission
- Bidirectional SDI studio links
- Studio-to-control-room transmission
- OB and mobile broadcast systems
- Integrated video, audio, and Ethernet transmission
- Professional rackmount AV installations
