Product Overview

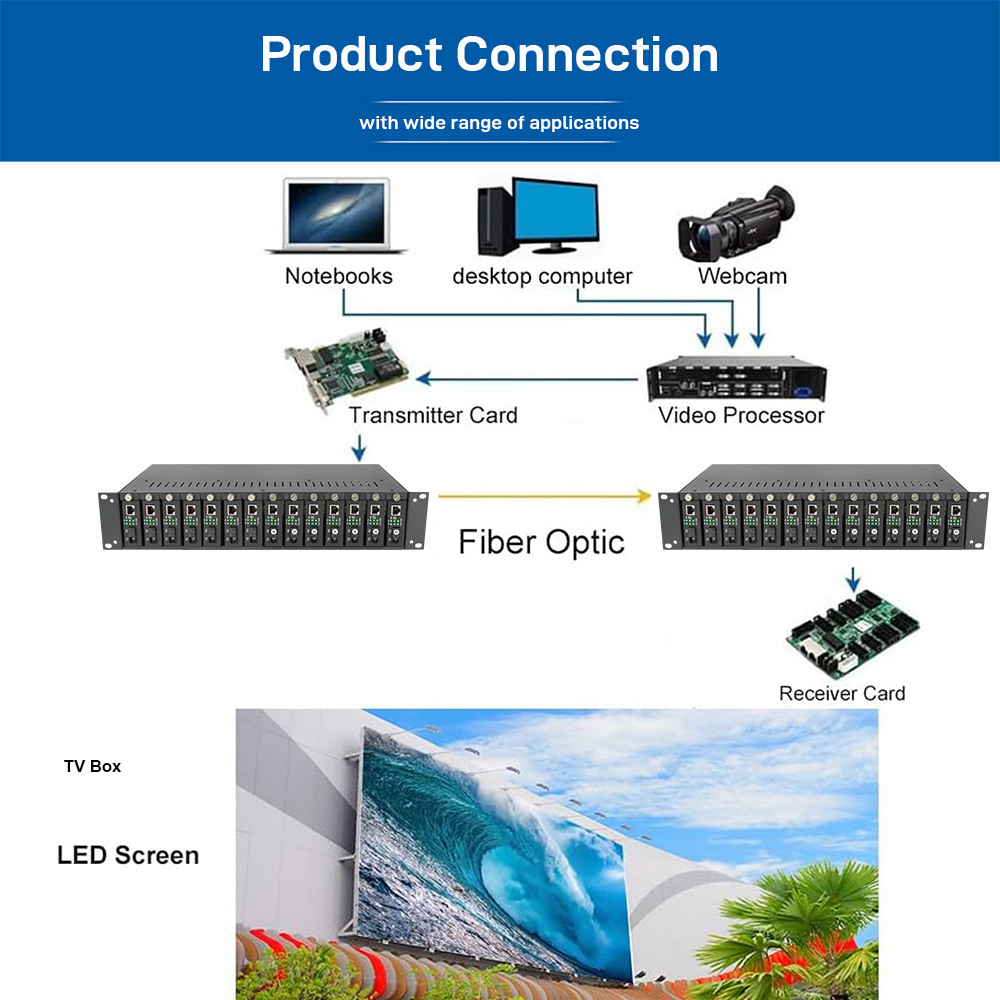

The LED Display Fiber Media Converter is a compact and reliable Ethernet-to-fiber transmission device specially designed for LED display systems. It converts standard Ethernet signals to optical fiber for stable, long-distance transmission between LED sending cards and receiving cards.

Featuring 1 × 10/100/1000Mbps RJ45 Ethernet port and 1 × 1.25Gb/s fiber optical port, the converter provides reliable fiber connectivity for indoor and outdoor LED video walls.

It is compatible with major LED display control systems and sending/receiving cards from NovaStar, Colorlight, Linsn, Mooncell, Kystar, Huidu, DBStar, and other systems using standard Ethernet interfaces.

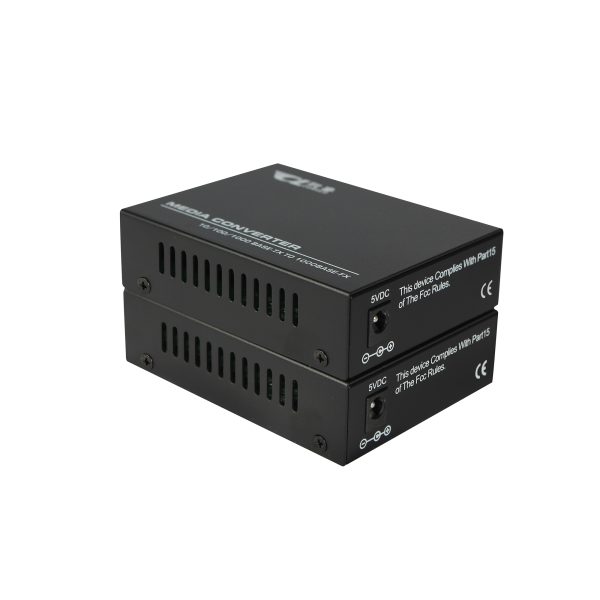

The compact metal housing is suitable for space-constrained installations. The converter supports either local DC 5V power or centralized power through a 14-slot 19-inch rack chassis, providing flexible installation options for individual displays and large-scale LED display projects.

Key Features

• Designed for LED display signal transmission
• 1 × 10/100/1000Mbps Gigabit Ethernet port
• 1 × 1.25Gb/s fiber optical port
• Supports single-mode and multimode fiber options

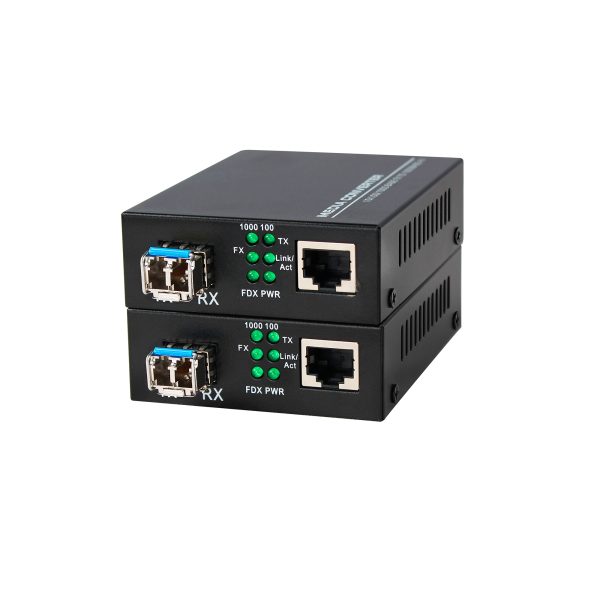

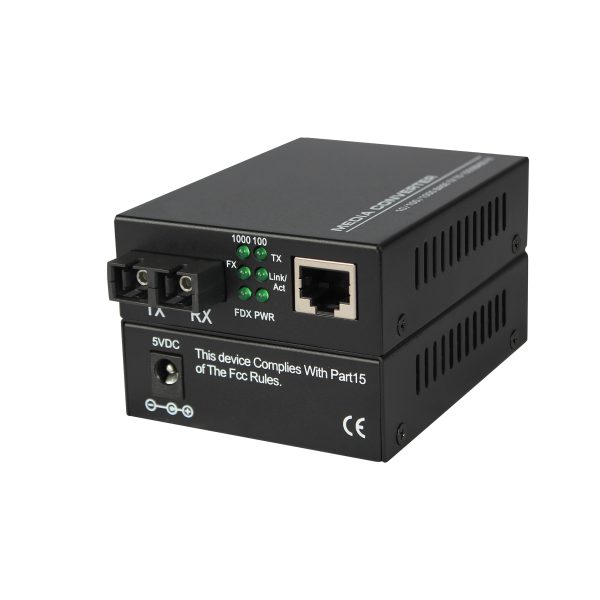

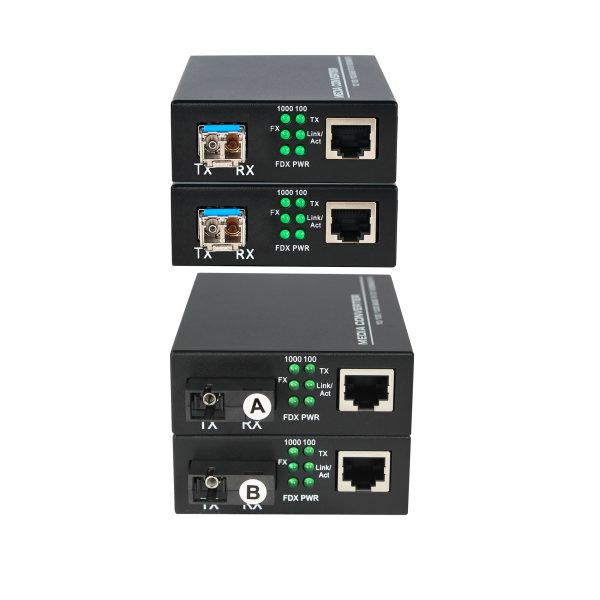

• Supports simplex single-fiber and duplex dual-fiber versions
• Up to 20km transmission over single-mode fiber
• Up to 550m transmission over multimode fiber
• Compatible with major LED display control systems
• Compact metal housing for dense installation
• Plug and Play with no configuration required
• Supports local DC 5V power or centralized rack power

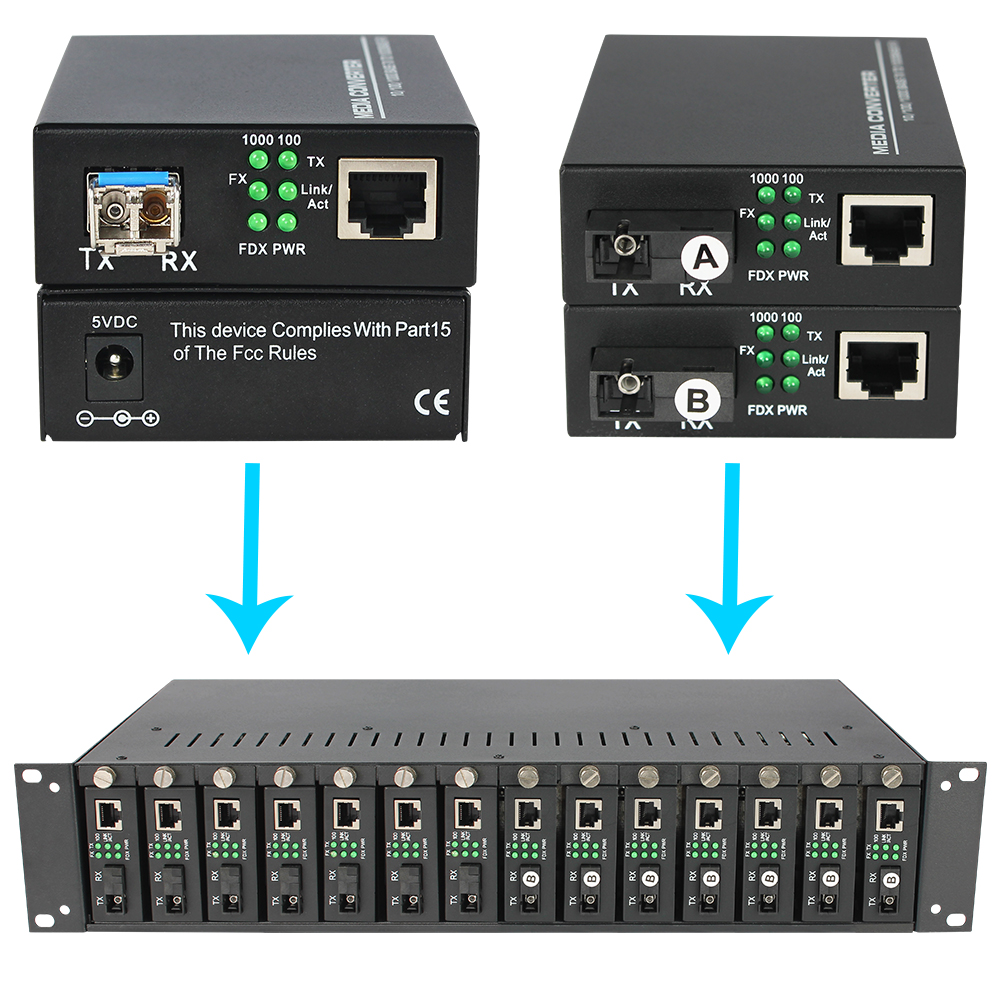

• Compatible with a 14-slot dual-power media converter chassis

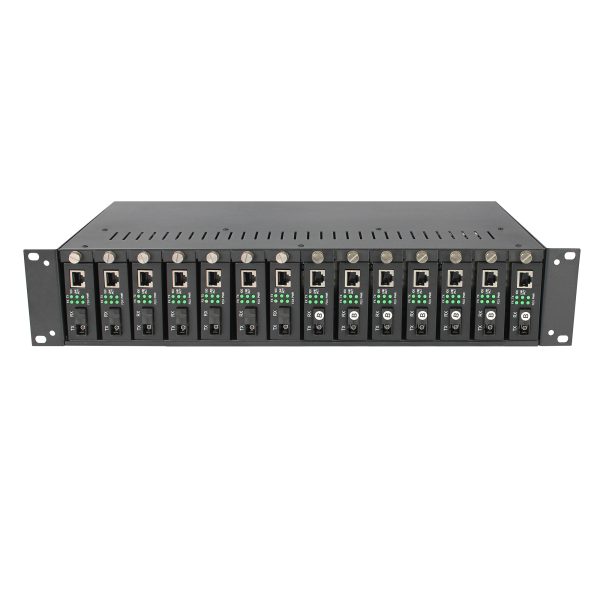

14-Slot Rack-Mount Chassis

The optional 14-slot fiber media converter chassis is designed for centralized installation and power supply of plug-in fiber media converters.

It supports up to 14 media converter modules and features dual built-in power supplies for stable operation in large-scale LED display and fiber networking applications.

Applications

• LED video walls
• Indoor LED displays
• Outdoor LED displays
• Advertising LED screens
• Stage rental LED systems
• Large-format LED display systems
• Control rooms and monitoring centers
• Long-distance LED display signal transmission
• Centralized fiber media converter installations
