Product Overview
The FQ-U214 Series 4-Port USB 2.0 Fiber Optic Extender is designed to extend USB devices over long-distance optical fiber. It supports USB 2.0 and USB 1.1 protocols and provides four remote USB Type-A ports for connecting USB cameras, printers, USB flash drives, scanners, touchscreens, and other USB peripherals.
The system supports High-Speed, Full-Speed, and Low-Speed USB devices and automatically identifies the connected USB device speed. Fiber optic transmission extends the USB connection beyond the normal limits of standard USB cabling while providing strong resistance to electromagnetic interference.

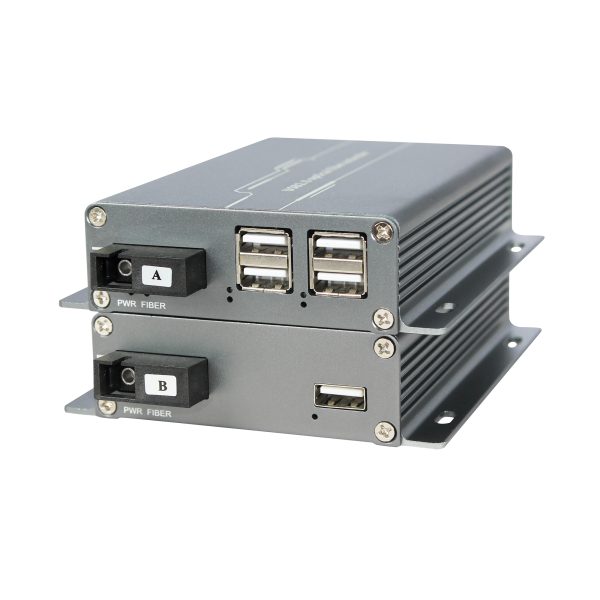

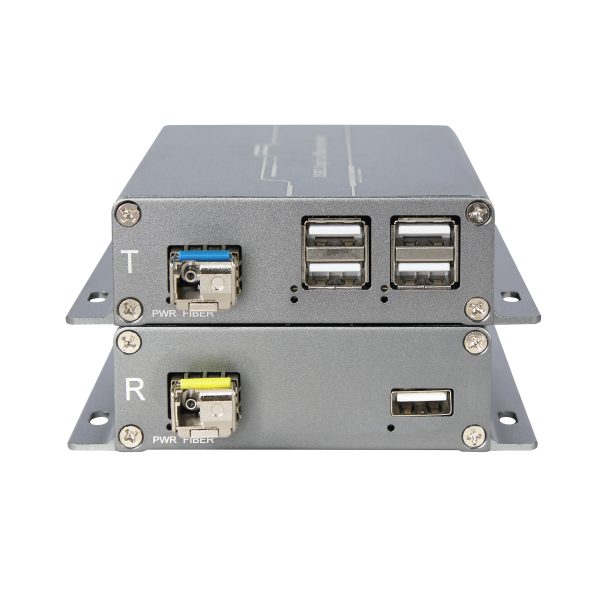

The FQ-U214 series is available with SC, FC, or LC optical interfaces. Each optical interface version supports single-mode dual-fiber, multimode dual-fiber, and single-mode single-fiber configurations, providing flexible options for different fiber infrastructure requirements.

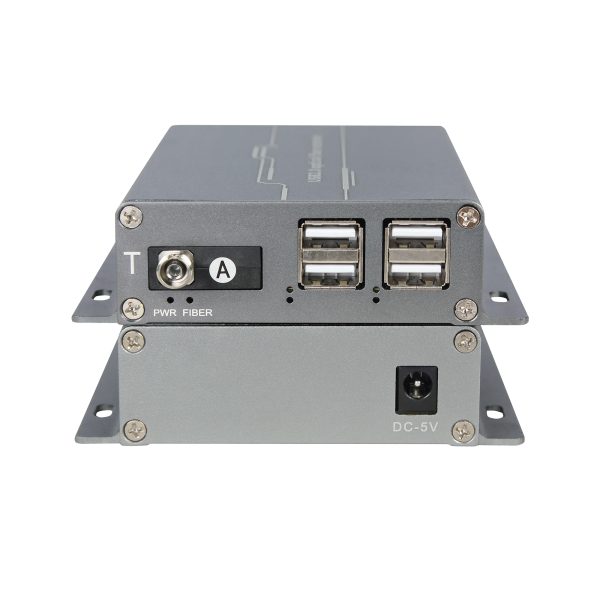

The transmitter provides four USB device ports, with up to 500mA current per USB port. The receiver connects to the host computer through a USB data cable. The system is driver-free and designed for plug-and-play operation with a wide range of operating systems.
Key Features
- 4-Port USB Extension:Extends four USB ports over optical fiber.
- USB 2.0 & USB 1.1 Compatible:Supports both USB 2.0 and USB 1.1 devices.

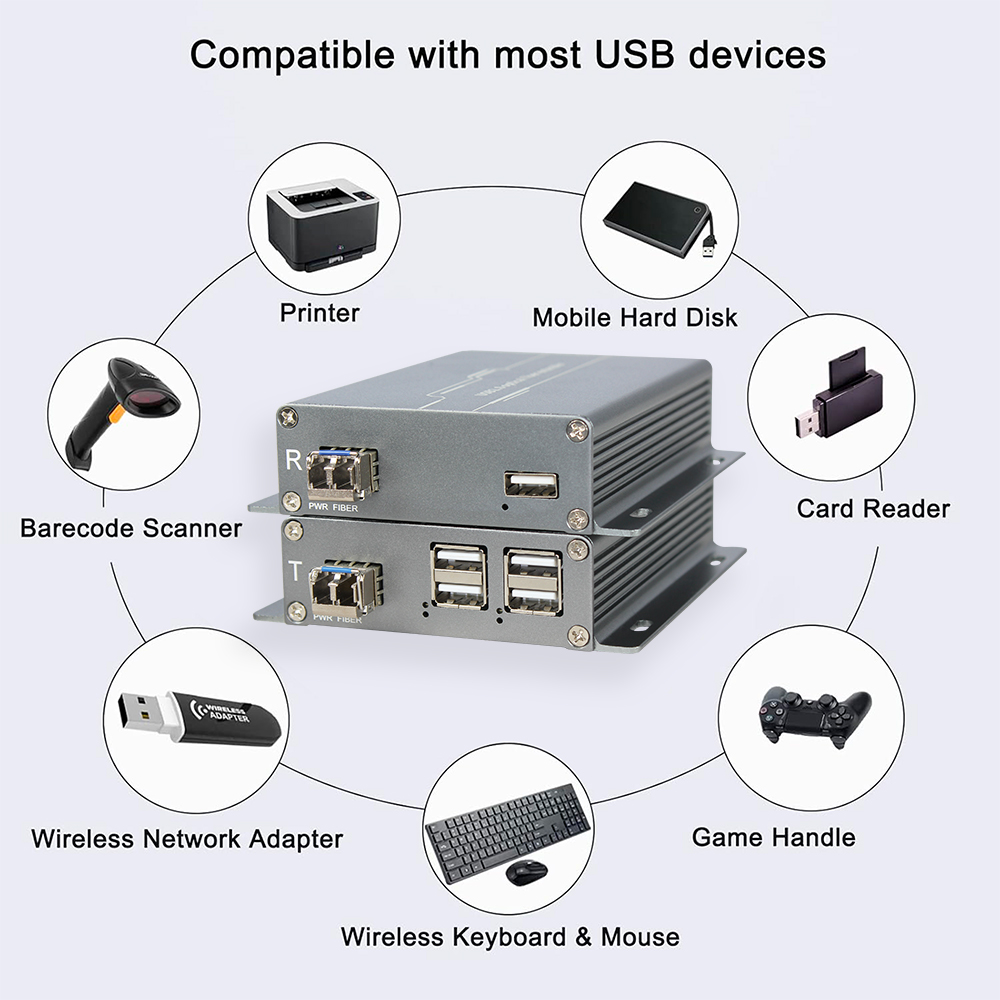

- Multiple USB Applications:Supports USB cameras, printers, flash drives, scanners, touchscreens, and other USB peripherals.
- Automatic USB Speed Detection:Automatically identifies High-Speed, Full-Speed, and Low-Speed USB devices.
- High-Speed USB Support:Supports USB High-Speed devices from 25 Mbps to 480 Mbps.
- Full-Speed USB Support:Supports USB Full-Speed devices from 500 Kbps to 12 Mbps.
- Low-Speed USB Support:Supports USB Low-Speed devices from 10 Kbps to 1.5 Mbps.
- Up to 500mA USB Power:Each remote USB port supports up to 500mA current.
- Long-Distance Fiber Transmission:Supports up to 5 km over single-mode fiber and up to 500 m over multimode fiber.
- Multiple Optical Interfaces:Available with SC, FC, or LC optical interfaces.
- Flexible Fiber Configurations:Supports single-mode dual-fiber, multimode dual-fiber, and single-mode single-fiber options.
- Driver-Free Operation:No additional USB driver installation required.
- Plug and Play:Simple installation and operation.

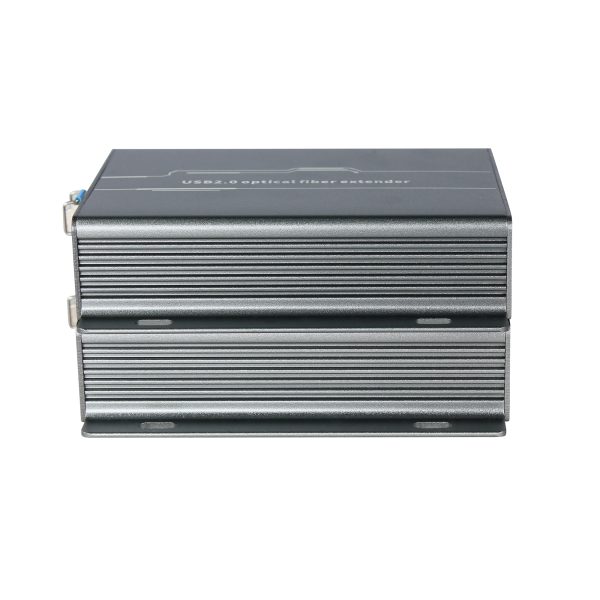

- Compact Design:128 × 104 × 28 mm enclosure.
Model & Fiber Options
| Model | Optical Interface | Fiber Options |
| FQ-U214C-T/R | SC | Single-Mode Dual-Fiber / Multimode Dual-Fiber / Single-Mode Single-Fiber |
| FQ-U214F-T/R | FC | Single-Mode Dual-Fiber / Multimode Dual-Fiber / Single-Mode Single-Fiber |
| FQ-U214L-T/R | LC | Single-Mode Dual-Fiber / Multimode Dual-Fiber / Single-Mode Single-Fiber |
Applications
- USB Camera Extension
- Remote Printer Connection
- Industrial USB Device Extension
- Touchscreen Extension
- USB Scanner Extension
- USB Flash Drive Extension
- Control Room Systems
- Security and Monitoring Systems
- Industrial Automation
- Professional AV Systems
- Long-Distance USB Device Extension
- EMI-Sensitive Environments
