Product Overview

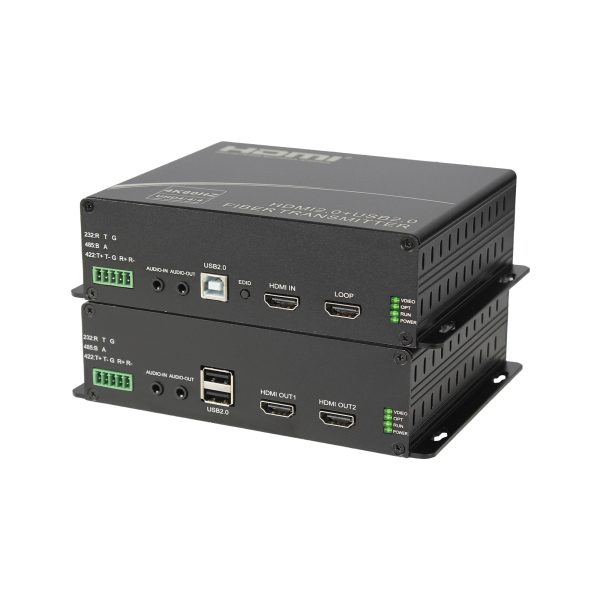

The ZH-THF810HKM-T/R 4K60 HDMI+USB 2.0 Fiber Optic Extender is a professional long-distance transmission solution for high-definition HDMI video, USB 2.0, serial data and analog audio over fiber optic cable.
Supporting up to 3840×2160@60Hz and 4096×2160@60Hz, the system provides uncompressed digital video transmission with up to 594MHz pixel bandwidth. The HDMI interface supports HDMI 2.0, while the USB 2.0 interface enables peripheral data transmission between the transmitter and receiver.
The extender also supports one selectable serial interface: RS232, RS485 or RS422, together with one-channel bi-directional analog audio. Its LC SFP optical interface supports 20km single-mode transmission, making it suitable for different long-distance deployment requirements.
With EDID learning, automatic display configuration, automatic equalization, ESD protection and plug-and-play installation, the ZH-THF810HKM-T/R is suitable for professional AV, control room, industrial, broadcasting and large-display applications.
Key Features
- Supports 4K@60Hz HDMI 2.0transmission
- Supports up to 3840×2160@60Hz / 4096×2160@60Hz
- Uncompressed digital HDMI video transmission
- Supports USB 2.0data transmission
- Selectable RS232 / RS485 / RS422interface
- One-channel bi-directional analog audio
- LC SFP single-mode fiber interface
- Fiber distance upto 20km
- Up to 12Gbps optical bandwidth
- Supports EDID learning
- Automatic display mode detection and configuration
- Built-in automatic equalization
- Built-in ESD protection
- Plug and play installation
- Suitable for long-distance professional AV and industrial systems
Applications
- Control rooms and monitoring centers
- Video walls and large-screen displays
- Professional AV systems
- Video conferencing
- Broadcast and television systems
- Industrial control systems
- Command and dispatch centers
- Education and training
- Medical imaging and teaching
- Long-distance KVM and USB extension
