Product Overview
The FQ-1801H-TR HDMI 2.0 Fiber Optic Extender is a high-performance solution designed for long-distance transmission of HDMI video and audio signals over a single multimode optical fiber.
It supports HDMI 2.0 and 4K@60Hz, with backward compatibility with 4K@30Hz, 1080p, 1080i and 720p formats. With a maximum transmission rate of 18Gbps, it provides high-bandwidth transmission for professional 4K video and display applications.

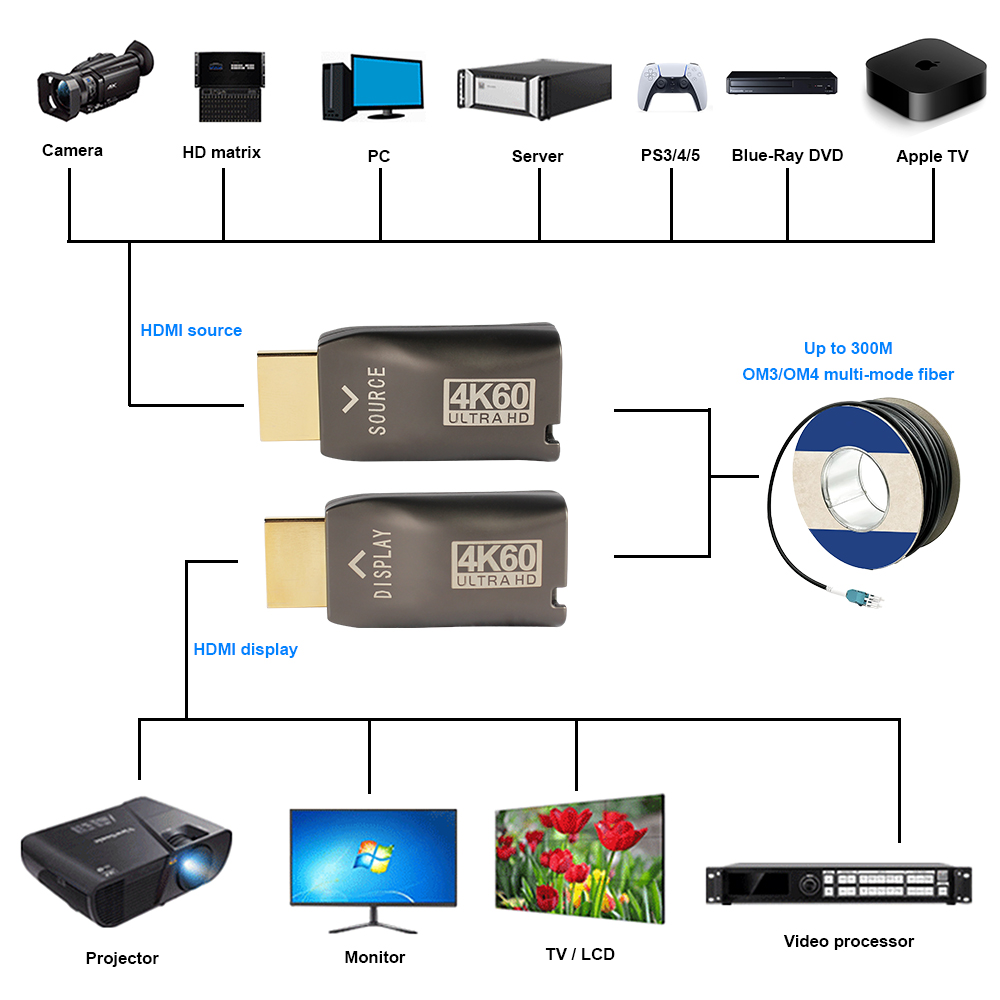

Using Wavelength Division Multiplexing (WDM) and a patented micro-diffraction optical system, the extender transmits TMDS signals over a single OM3/OM4 multimode LC fiber. It supports transmission distances of up to 300m, while providing strong immunity to electromagnetic interference.
The compact module design enables fast installation and is suitable for professional AV systems, commercial displays, video conferencing, monitoring and large-scale deployments.
Key Features
- Supports HDMI 2.0 with backward compatibility to HDMI 1.4
- Supports 4K@60Hz high-definition video transmission
- 18Gbps maximum HDMI transmission rate
- Up to 300m transmission over OM3/OM4 multimode fiber
- Single LC fiber transmission using WDM technology
- Supports HDCP, DDC and CEC pass-through
- Supports TMDS signal transmission
- Hot-plug operation for convenient installation and maintenance

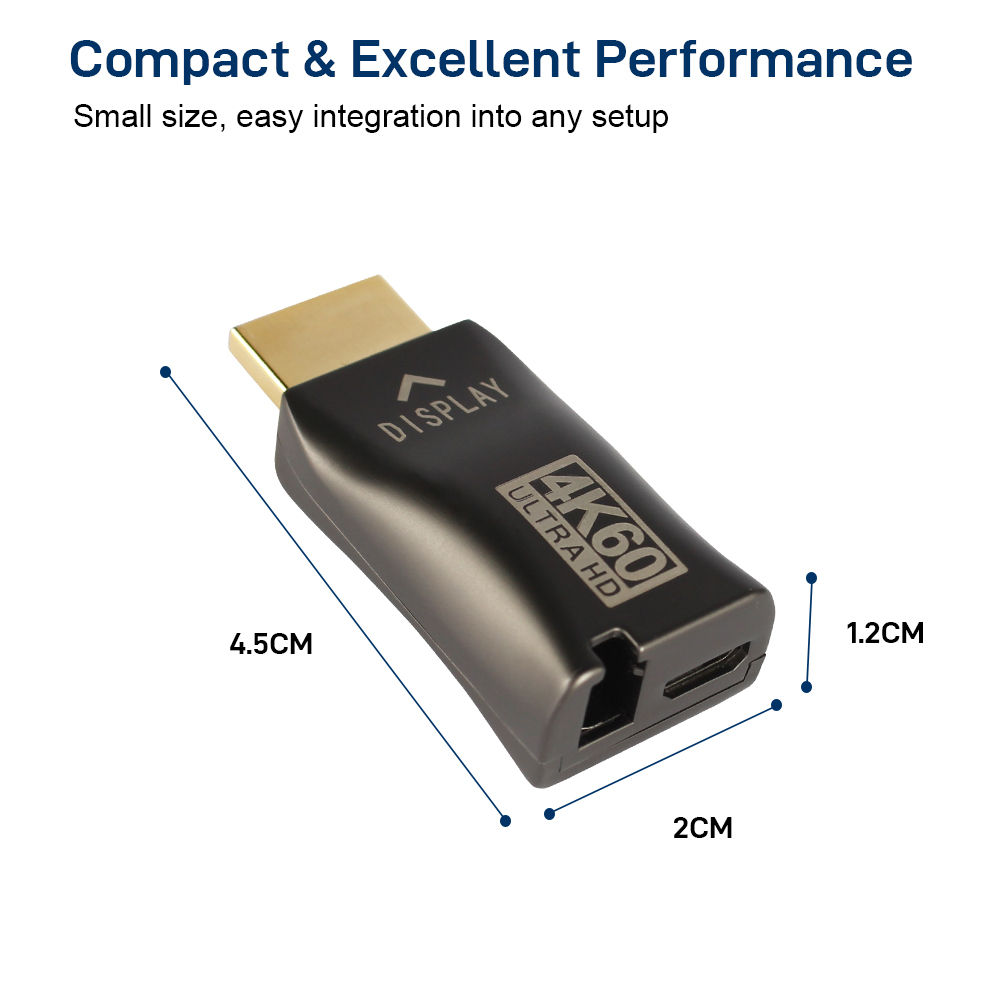

- Compact and lightweight module design
- Strong immunity to electromagnetic interference
- Suitable for rapid installation and mass production

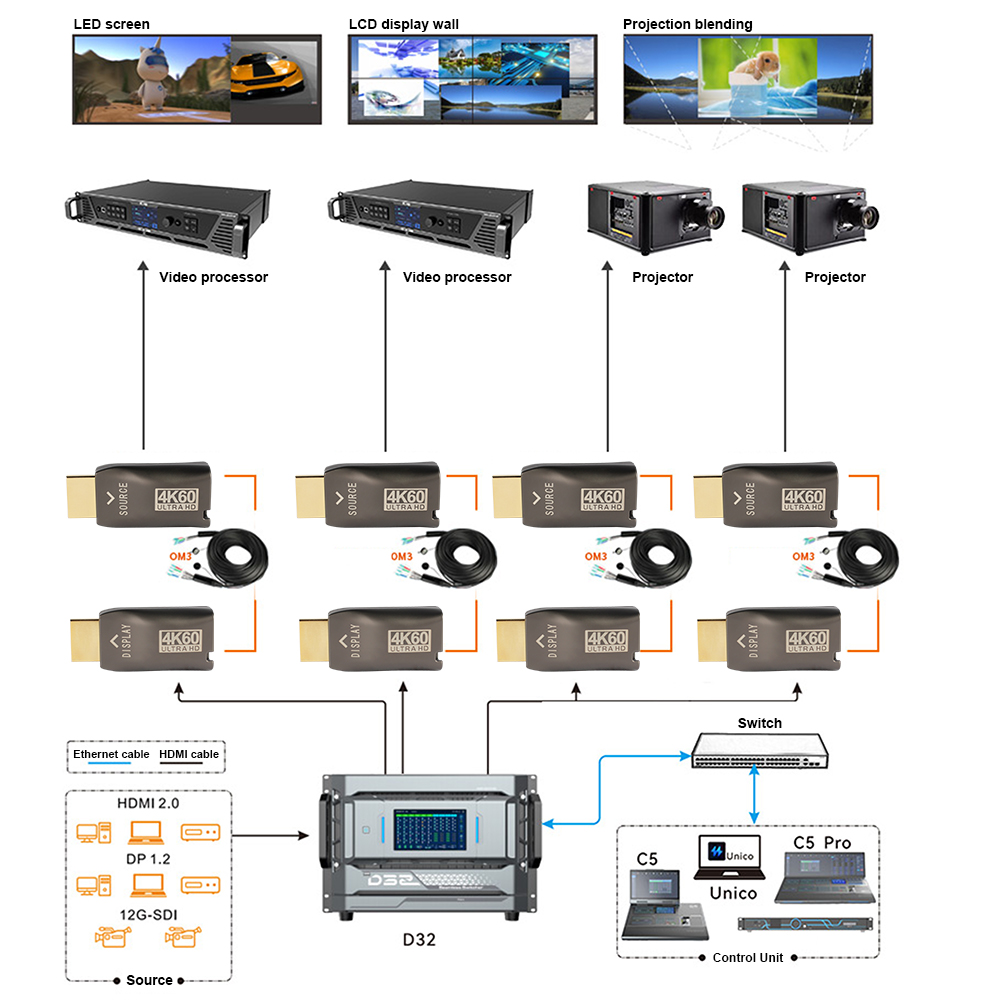

Applications
- Digital home theater systems
- 4K video conferencing systems
- Meeting rooms and conference halls
- Auditoriums and commercial displays
- Outdoor advertising and LED display systems
- Security monitoring systems
- Educational multimedia classrooms
- Commercial exhibition halls
- Broadcast and TV monitoring systems
- Industrial automation monitoring
- Medical imaging and surgical video transmission
