Product Overview

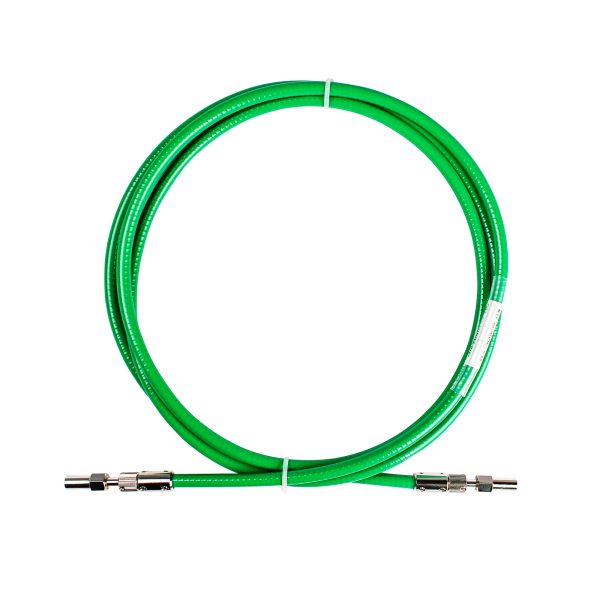

The D80 High Power Energy Fiber Laser Patch Cord is designed for efficient and stable laser energy transmission in high-power industrial laser applications. It uses a Step Index (SI) large-core optical fiber with a D80 energy transmission connector and rugged armored cable construction.

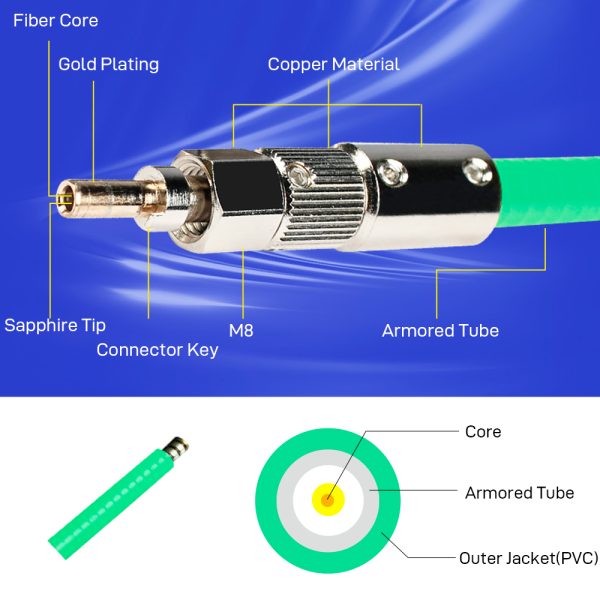

The SI400E and SI600E models are available with 400μm and 600μm core diameters, respectively. Both models feature sapphire-protected end faces and an 8.0mm double-lock armored tube for enhanced mechanical protection and reliable operation in demanding environments.
Available cable lengths include 3m, 5m, 10m, 15m, and 20m, providing flexible options for different laser equipment and installation requirements.
Key Features
- High-Power Laser Energy Transmission:Designed for stable transmission of high-energy laser power.
- SI Large-Core Fiber:Step Index fiber structure supports efficient laser energy transmission.
- SI400E / SI600E Options:Available with 400μm or 600μm core diameter.

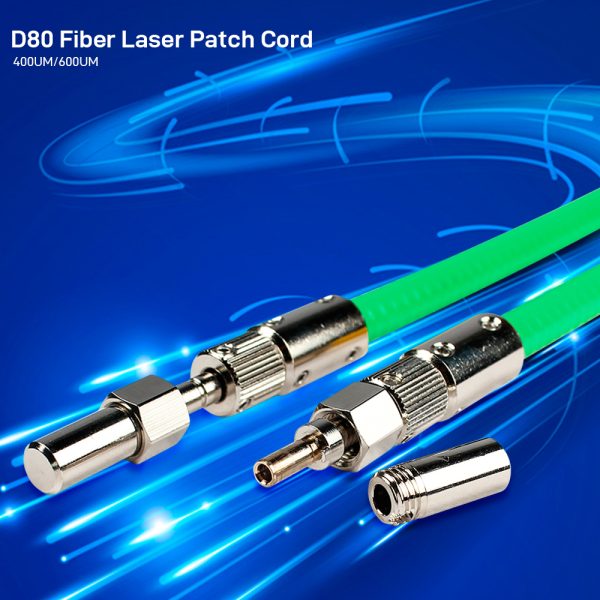

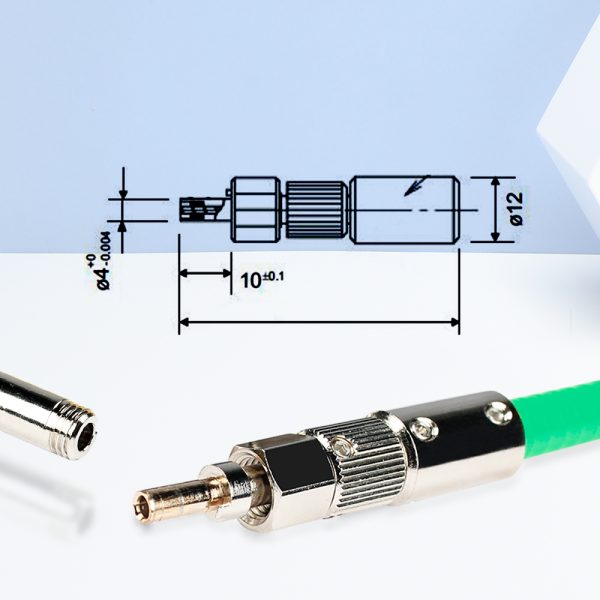

- D80 Energy Transmission Connector:Designed for laser energy transmission applications.

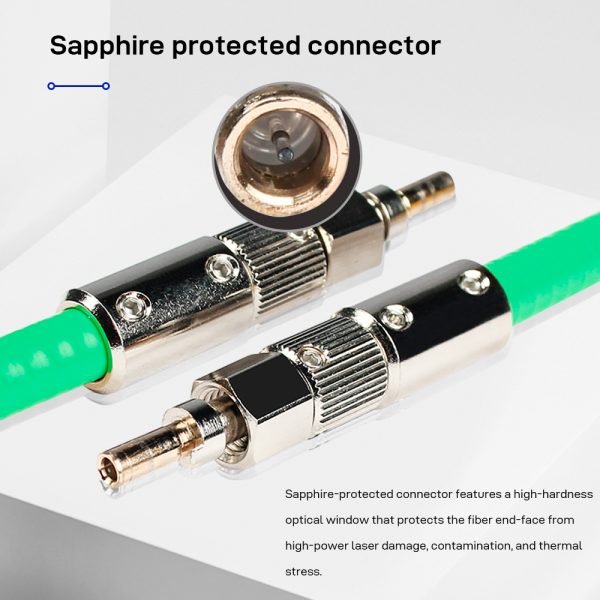

- Sapphire-Protected End Faces:Sapphire protection helps improve resistance to thermal damage and contamination.
- 0mm Armored Cable:Double-lock armored tube provides enhanced mechanical protection and bending resistance.

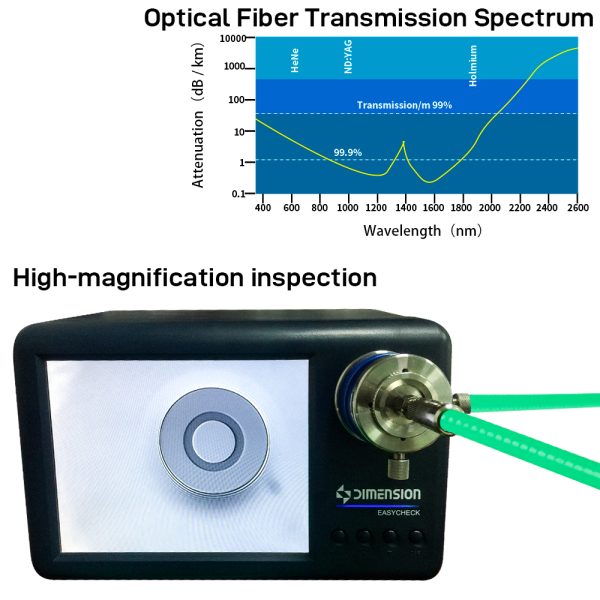

- Wide Wavelength Range:Supports an operating wavelength range of 400–2400nm.
- Multiple Length Options:Available in 3m, 5m, 10m, 15m, and 20m configurations.
Applications
- Industrial Laser Cutting Systems
- Laser Welding Equipment
- Laser Cleaning Systems
- Laser Marking Equipment
- High-Power Laser Energy Transmission
- Material Processing Equipment
- Medical Laser Equipment
- Scientific and Spectroscopy Equipment
