Product Overview

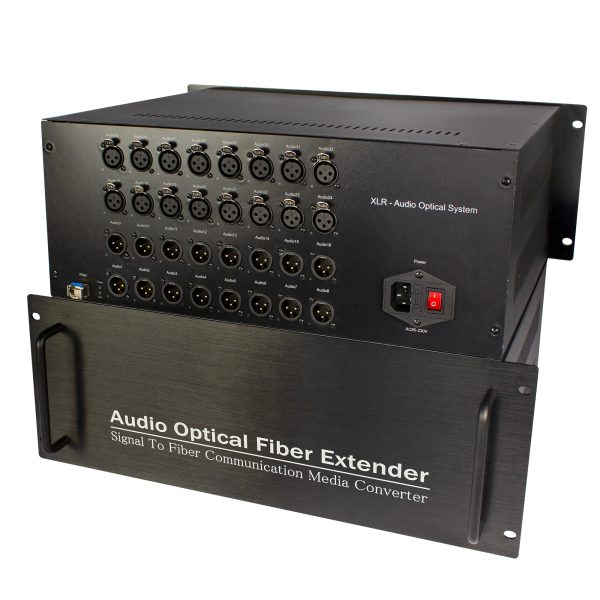

The FQ-KN16Aa-T/R 16-Channel Bidirectional XLR Audio Fiber Optic Extender is designed for long-distance transmission of balanced XLR audio signals over single-mode single-fiber. It supports 16-channel bidirectional audio transmission, providing reliable two-way audio communication for professional audio systems.
The system uses 24bit/192kHz digital audio sampling and a 155Mbps optical transmission interface to transmit audio signals over distances up to 20km. With a built-in AC220V power supply and a 19-inch 4U rackmount chassis, it is suitable for professional audio installations requiring high channel density and long-distance bidirectional transmission.
Key Features
- 16-channel bidirectional balanced XLR audio transmission

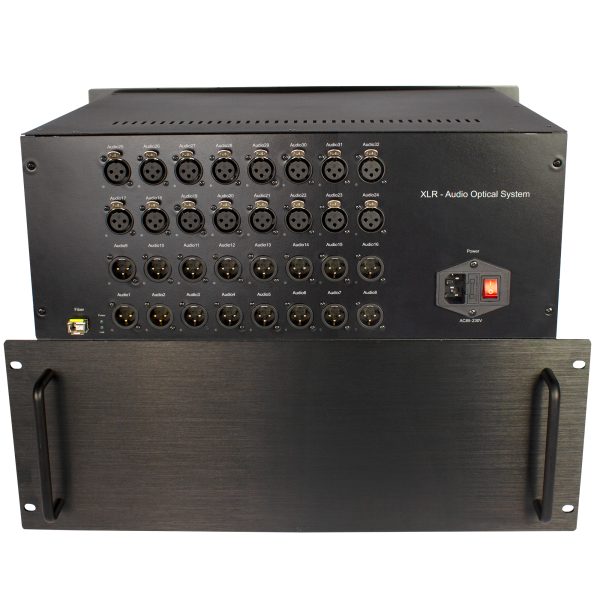

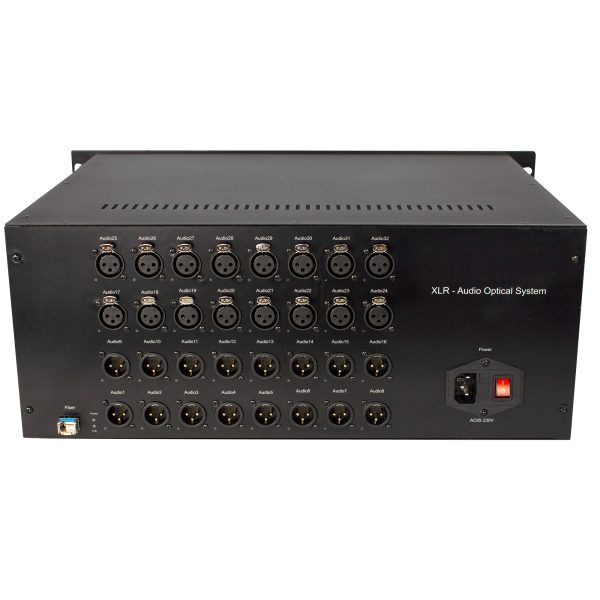

- XLR female inputs and XLR male outputs
- 24bit/192kHz digital audio sampling
- 155Mbps optical transmission
- Single-mode single-fiber transmission up to 20km
- SC/FC/ST/LC optical connector options
- 1310/1550nm operating wavelength
- Built-in AC220V power supply

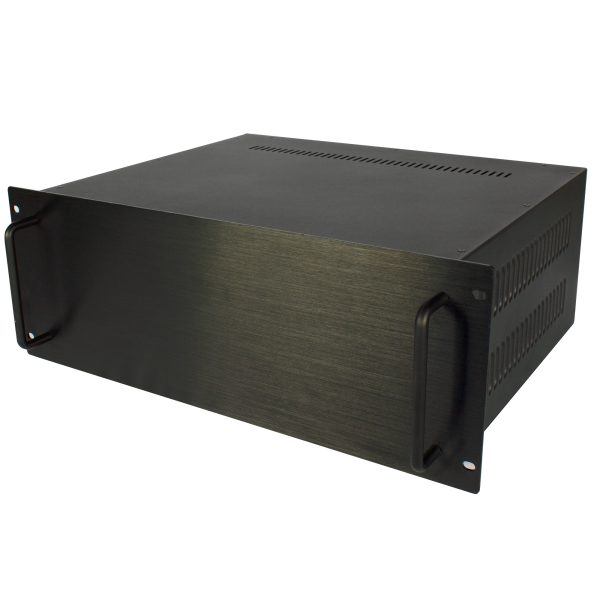

- 19-inch 4U rackmount design
Applications
- Professional audio systems
- Live concerts and stage events
- Broadcasting and studio systems
- Conference and meeting systems
- Distributed audio systems
- Large-scale audio installations
- Long-distance bidirectional audio transmission
- Professional AV and communication systems
