Product Overview

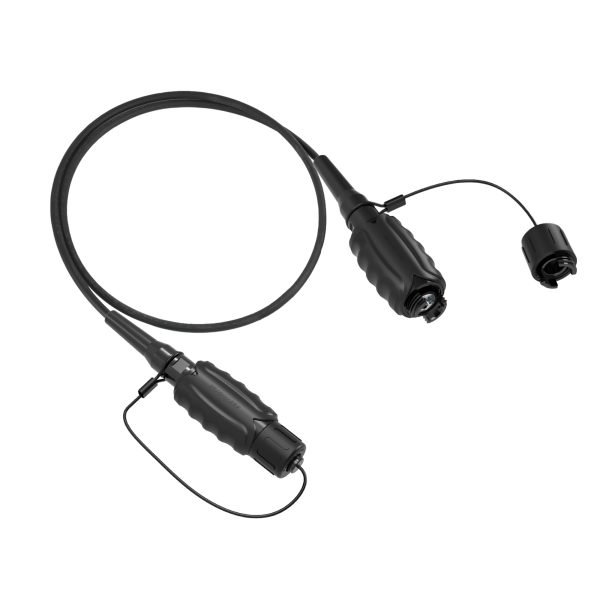

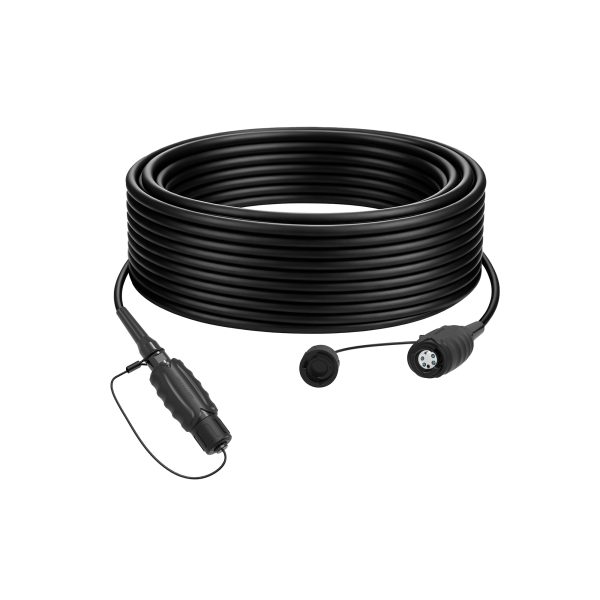

The FQ2L-FQ2L 4-Channel Expanded-Beam Hermaphroditic Fiber Optic Cable is a professional multi-channel fiber optic cable assembly designed for live sound, professional audio, broadcast, LED displays, stage production, rental AV, and other demanding applications.
The cable uses OM4 50/125μm multimode fiber with four independent optical channels in a rugged 5mm TPU armored cable. Both ends are equipped with 4-channel expanded-beam hermaphroditic fiber optic connectors, allowing direct male-to-female mating without an additional coupler.
The expanded-beam optical design uses precision spherical lenses to expand and collimate the optical beam before focusing it back into the receiving fiber. The larger optical beam helps reduce sensitivity to dust and contamination, making the cable suitable for repeated deployment in live events, rental systems, outdoor productions, and other field applications.

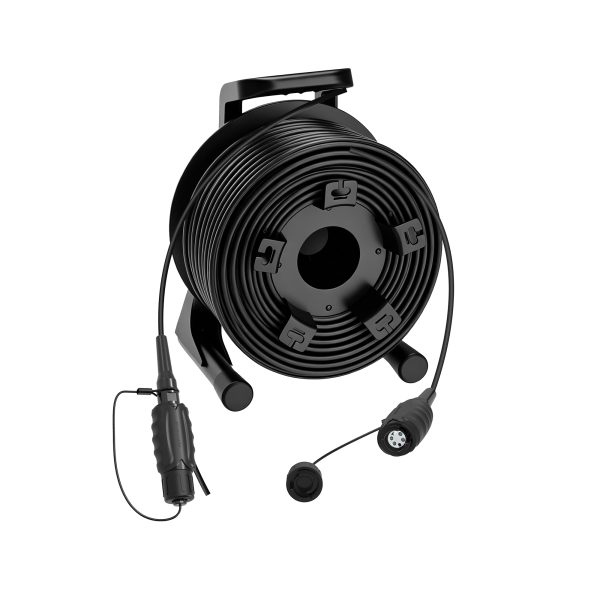

Standard cable lengths include 100m, 150m, and 200m. Each cable assembly is supplied with a fiber cable reel as standard for convenient transportation, deployment, winding, and storage.
Key Features
- 4-Channel OM4 Multimode Fiber:Uses OM4 50/125μm multimode fiber with four optical fibers.
- Expanded-Beam Optical Technology:Spherical-lens design helps reduce the influence of dust and contamination on optical transmission.

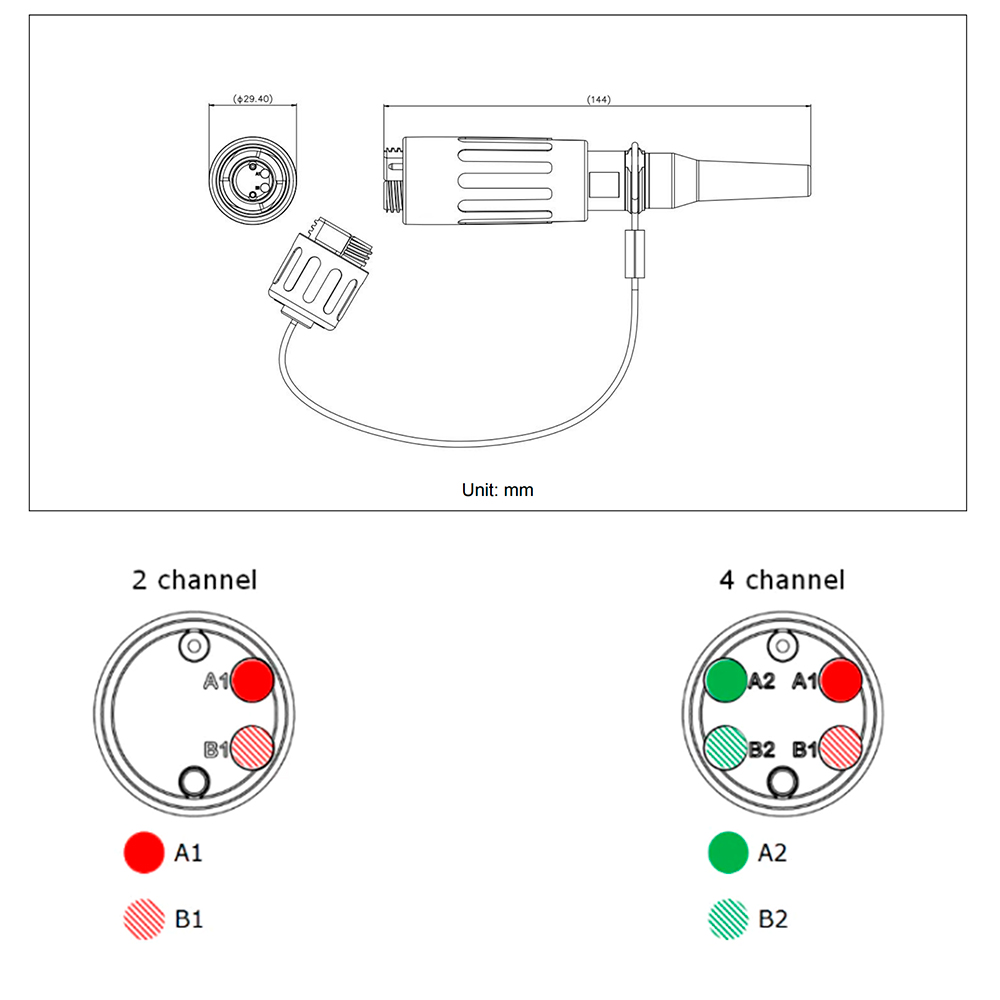

- 4-Channel Hermaphroditic Connectors:Male and female connectors can mate directly without an additional coupler.
- Low Insertion Loss:Typical insertion loss of 7 dB, maximum 1.0 dB per connection, based on the specified connector family.
- IP68 Protection:Provides protection against dust and water when the connectors are properly mated.
- High Mating Durability:Designed for more than 10,000 mating cycles.

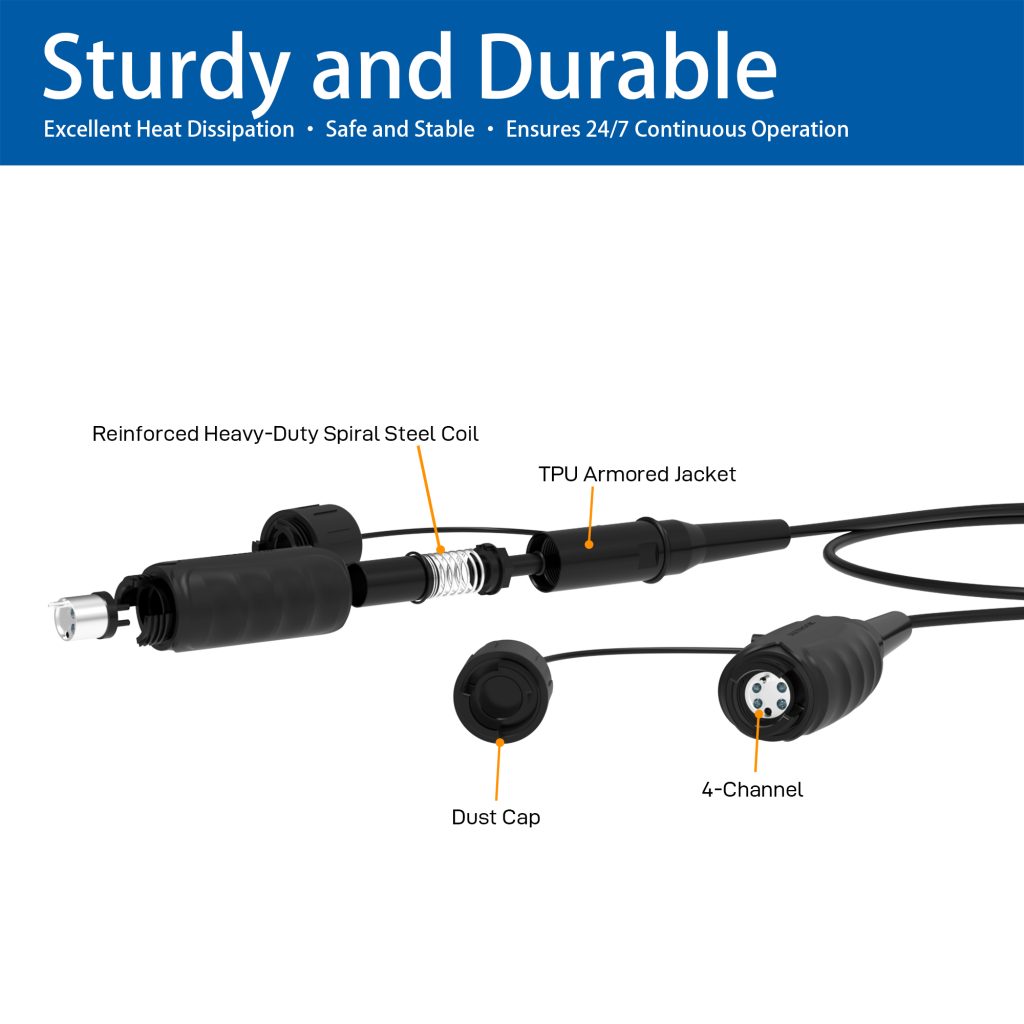

- 5mm TPU Armored Cable:Rugged TPU outer jacket with aramid yarn reinforcement.
- High Tensile Strength:Cable retention strength of more than 800 N.
- Tool-Free Cleaning:Expanded-beam connector design supports convenient field cleaning.
- Threaded Locking:Secure locking mechanism helps prevent accidental disconnection.
- Multiple Length Options:Available in 100m, 150m, and 200m
- Cable Reel Included:A fiber cable reel is supplied as standard with each cable assembly.
- Professional Pre-Terminated Assembly:Factory-terminated and ready for deployment.
Expanded-Beam Optical Technology
The connector uses an expanded-beam optical structure based on precision spherical lenses.
At the transmitting side, light from the fiber is expanded and collimated through the optical lens. The enlarged optical beam passes across the connector interface and is then focused by the receiving lens into the receiving fiber.
Compared with conventional physical-contact fiber connectors, the larger optical beam is less sensitive to small amounts of dust and contamination. The non-contact optical interface also reduces direct contact between optical components, making the connector suitable for repeated connection and disconnection in demanding field environments.
Applications
- Professional Audio and Live Sound Systems
- Digital Audio and Stage Production
- LED Display and Video Systems
- Concerts and Live Events
- Stage Lighting Systems
- Broadcast and Outside Broadcast
- Rental AV Equipment
- Mobile Production Systems
- Portable Fiber Optic Systems
- Outdoor Events and Productions
- Professional AV Infrastructure
- Industrial Fiber Optic Applications
