Product Overview
The ZH-SK-HS8K HDMI 2.1 TPU Armored Active Optical Cable is a high-performance hybrid fiber optic cable designed for long-distance transmission of high-bandwidth HDMI video signals. Supporting HDMI 2.1, 48Gbps bandwidth, 8K@60Hz, and 4K@144Hz, it provides stable and reliable video transmission for professional AV and high-resolution display applications.

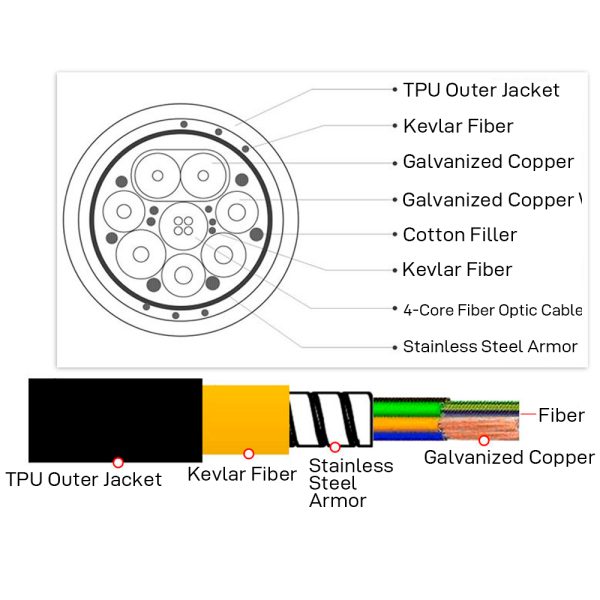

The cable combines 4 optical fibers and 7 copper wires in a hybrid construction. The optical fibers carry the high-speed HDMI signal, while the copper wires provide power to the integrated optical modules through the HDMI interface, eliminating the need for an external power supply.
The TPU outer jacket provides enhanced durability and flexibility for demanding installation environments. Compared with conventional copper HDMI cables, the hybrid optical design offers a smaller diameter, lower weight, and improved flexibility, making the cable easier to route over long distances.

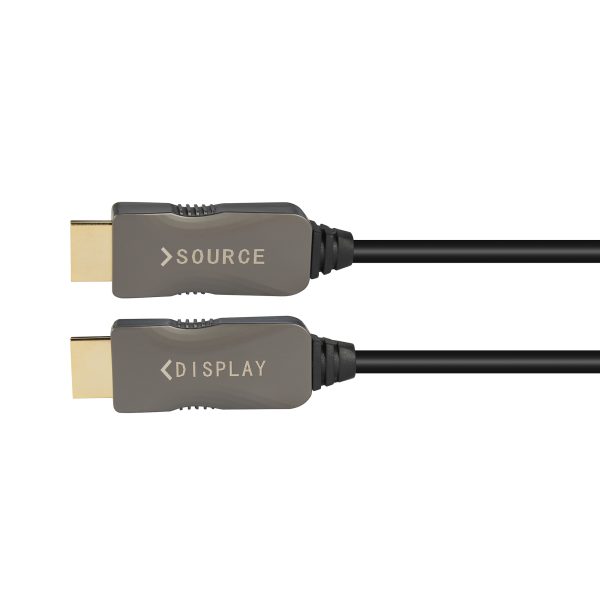

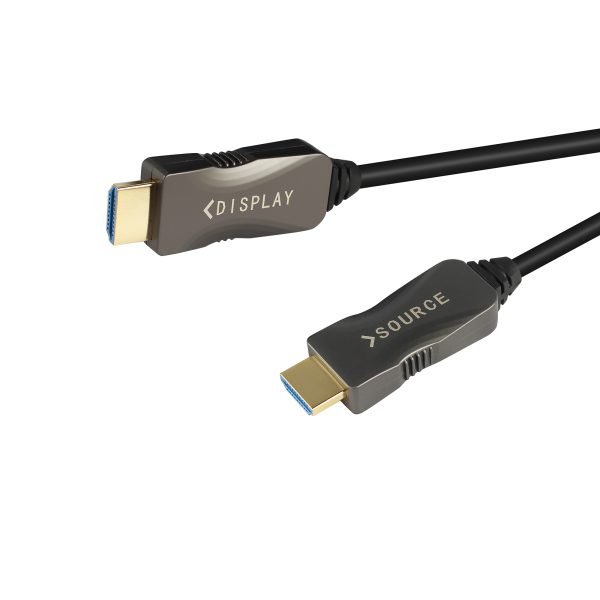

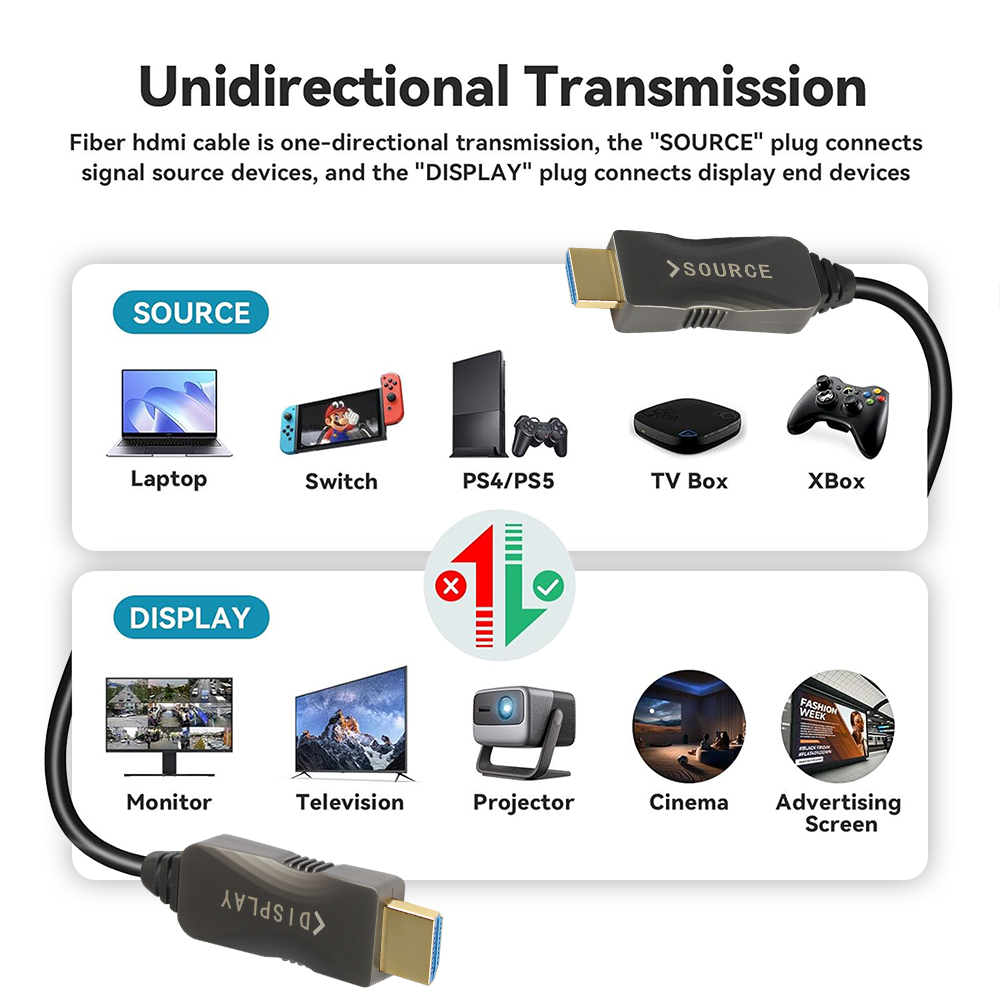

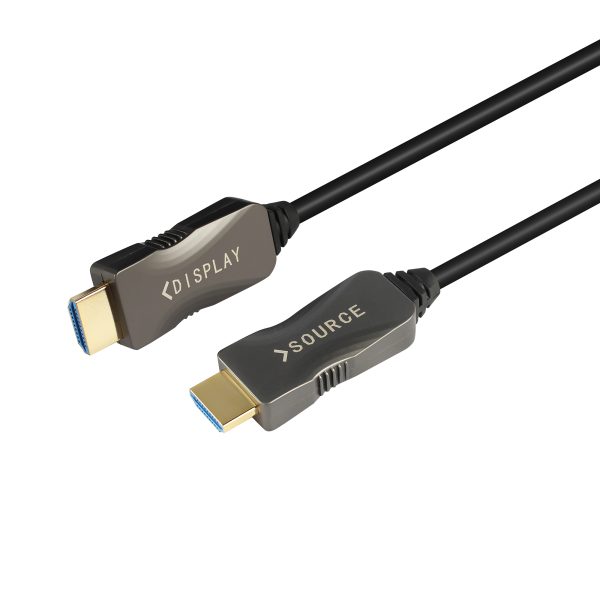

The TX and RX ends feature zinc alloy housings for enhanced mechanical strength and shielding. With transmission distances of up to 100 meters over OM3 multimode fiber, the ZH-SK-HS8K is suitable for 8K displays, projectors, conference rooms, multimedia classrooms, home theaters, and professional AV systems.
Key Features
- HDMI 2.1 Support:Supports high-bandwidth HDMI 2.1 video transmission.
- 48Gbps Bandwidth:Supports up to 48Gbps transmission with 12Gbps per lane.
- 8K@60Hz:Supports high-resolution 8K@60Hz video transmission.
- 4K@144Hz:Supports high-refresh-rate 4K displays.
- 100m Transmission:Supports HDMI transmission up to 100m over OM3 multimode fiber.
- TPU Armored Design:Durable TPU outer jacket provides enhanced protection for demanding installations.
- Hybrid Fiber Construction:Integrates 4 optical fibers and 7 copper wires into a single cable.
- No External Power Required:Integrated copper conductors provide power to the optical modules.
- 850nm VCSEL Technology:Uses 850nm VCSEL array technology for optical transmission.
- 40kg Tensile Strength:Maximum tensile load up to 40kg / 400N.
- Slim and Flexible:8mm cable diameter with a 30mm minimum bend radius.
- Zinc Alloy Housings:TX/RX housings provide enhanced strength and shielding.
- Plug and Play:No external power supply or complicated configuration required.
Applications
- 8K TVs and High-Resolution Displays
- 4K High-Refresh-Rate Displays
- Professional Projectors
- Computers and Workstations
- Media Players
- HDMI Matrix Systems
- Digital Signage Systems
- Home Theater Systems
- Conference Rooms
- Multimedia Classrooms
- Professional AV Installations
- Long-Distance HDMI Video Transmission
