Product Overview

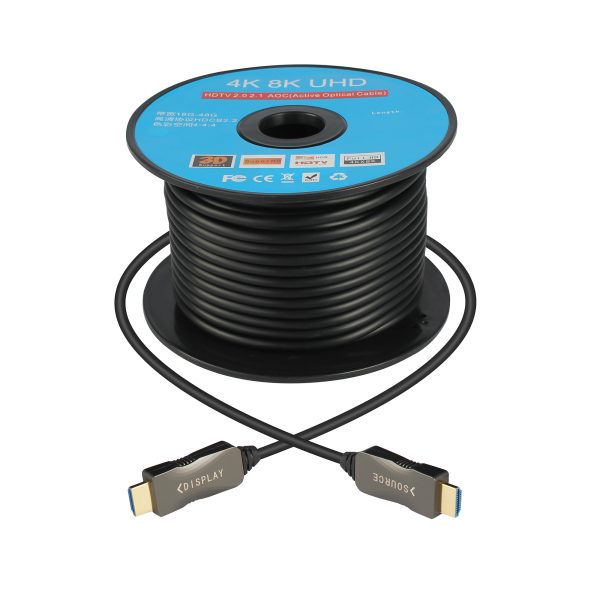

The ZH-SK-HSHD HDMI 2.0 TPU Armored Active Optical Cable is a high-performance hybrid fiber optic cable designed for stable long-distance transmission of HDMI video signals. It supports HDMI 2.0, 18Gbps bandwidth, and 4K@60Hz, providing reliable signal transmission for professional AV, display, projection, and multimedia applications.

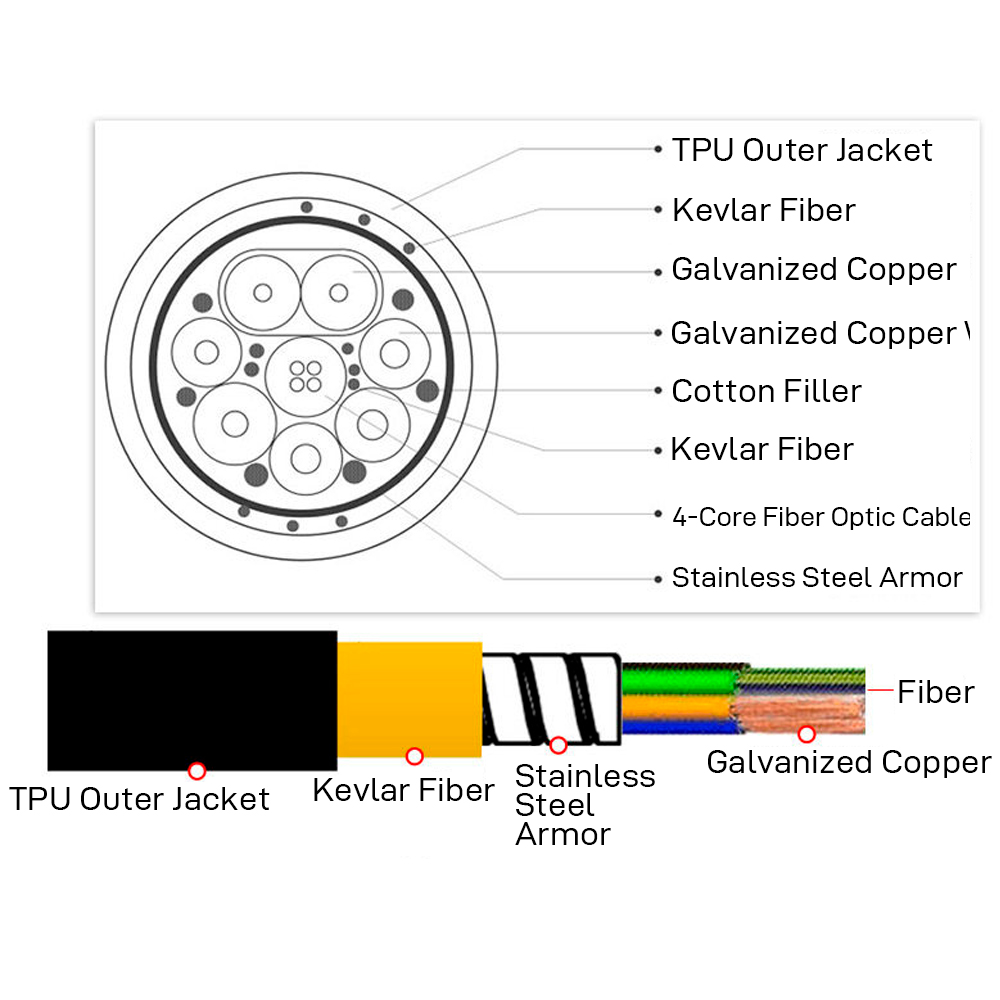

The cable uses a hybrid construction combining 4 optical fibers and 7 copper wires. The optical fibers transmit the high-speed HDMI signal, while the copper conductors provide power to the optical modules through the HDMI interface, eliminating the need for an external power supply.
Compared with conventional copper HDMI cables, the hybrid optical design provides a thinner, lighter, and more flexible solution for long-distance installations. The cable features a durable TPU outer jacket and reinforced armored construction, providing enhanced mechanical protection and a maximum tensile load of 40kg / 400N.

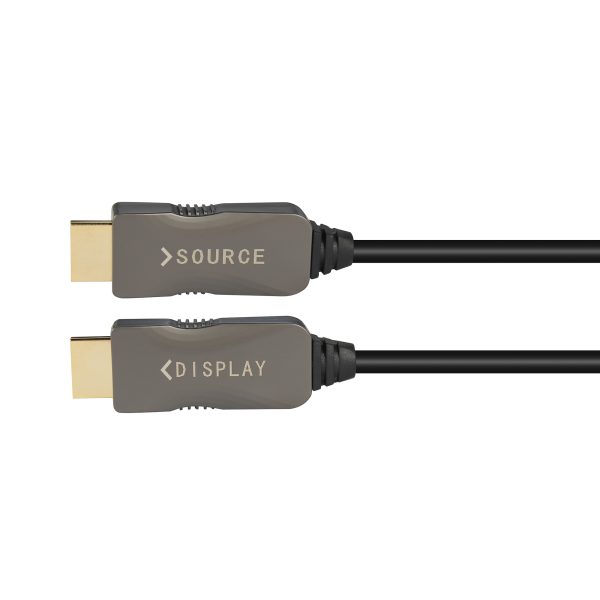

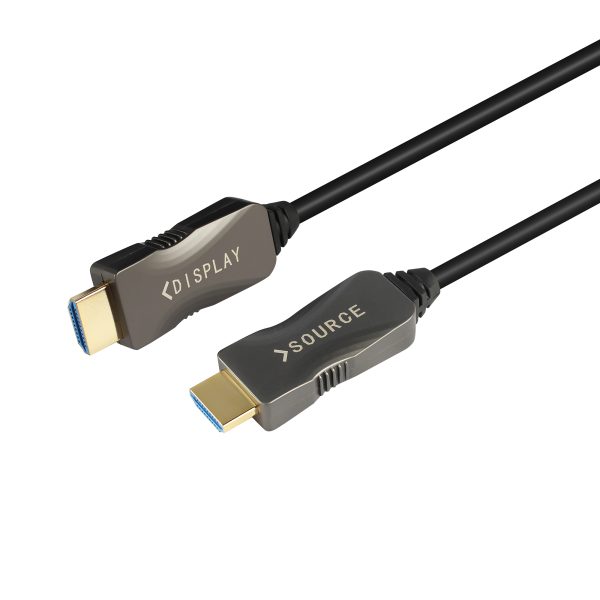

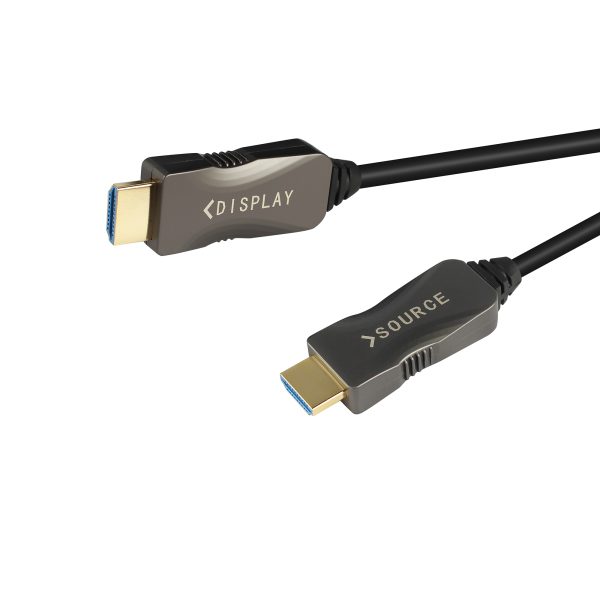

The TX and RX ends use zinc alloy housings for improved strength, shielding, and durability. With transmission distances of up to 100 meters over OM3 multimode fiber, the ZH-SK-HSHD is suitable for professional AV installations requiring long-distance HDMI 2.0 connectivity.
Key Features

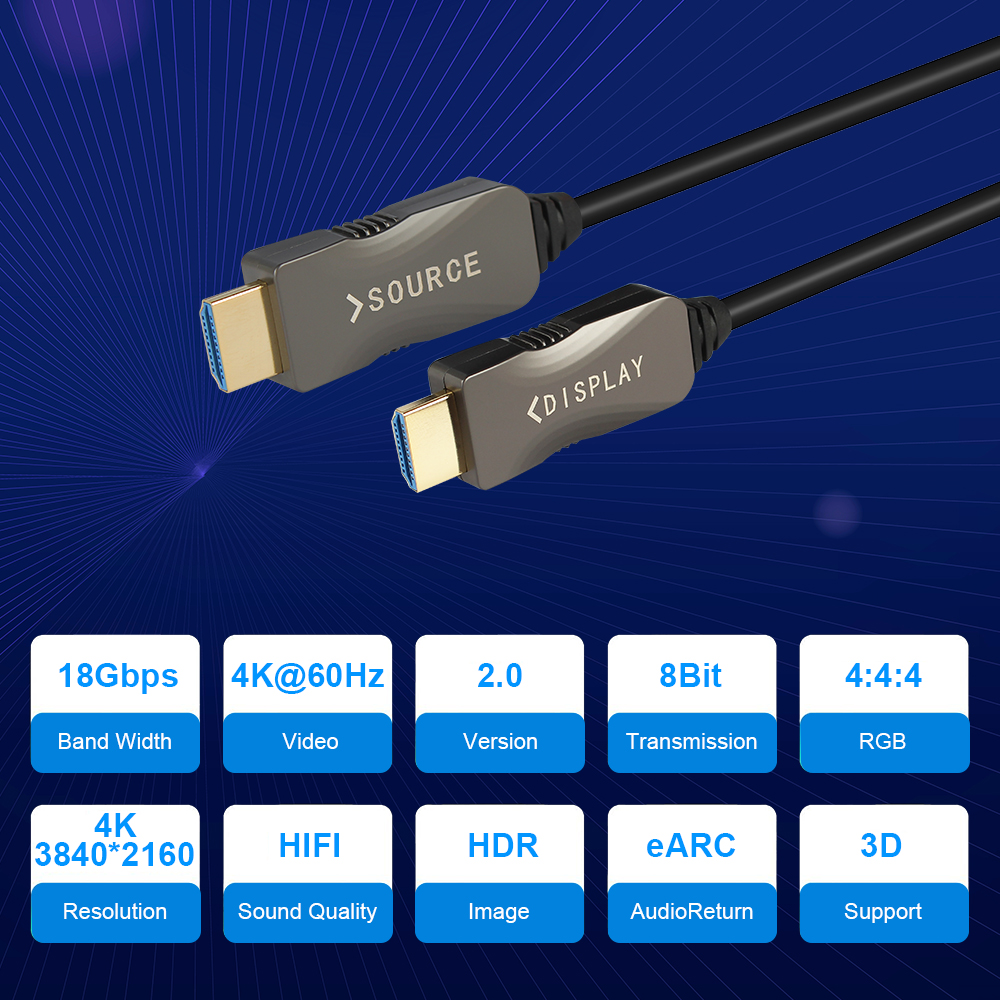

- HDMI 2.0 Support:Supports HDMI 2.0 video transmission up to 18Gbps.
- 4K@60Hz:Supports 4K@60Hz and Full HD video resolutions.
- 18Gbps Bandwidth:Provides up to 18Gbps transmission bandwidth with 6Gbps per channel.
- 100m Long-Distance Transmission:Supports transmission distances up to 100m over OM3 multimode fiber.
- TPU Armored Construction:Durable TPU outer jacket with reinforced internal structure for improved protection.
- 40kg Tensile Strength:Maximum tensile load up to 40kg / 400N.
- Hybrid Fiber Construction:Integrates 4 optical fibers and 7 copper wires into one cable.
- No External Power Required:Copper conductors provide power to the integrated optical modules.
- 850nm VCSEL Technology:Uses 850nm VCSEL array technology for high-speed optical transmission.
- Slim and Flexible Design:8mm cable diameter with a 30mm minimum bend radius.
- Zinc Alloy Housings:Durable TX/RX housings provide enhanced mechanical strength and shielding.
- Plug and Play:No external power supply or complicated configuration required.
Applications
- 4K Displays and TVs
- Professional Projectors
- Computers and Workstations
- Media Players
- HDMI Matrix Systems
- Digital Signage
- Home Theater Systems
- Conference Rooms
- Multimedia Classrooms
- Professional AV Installations
- Long-Distance HDMI Video Transmission
