Product Overview

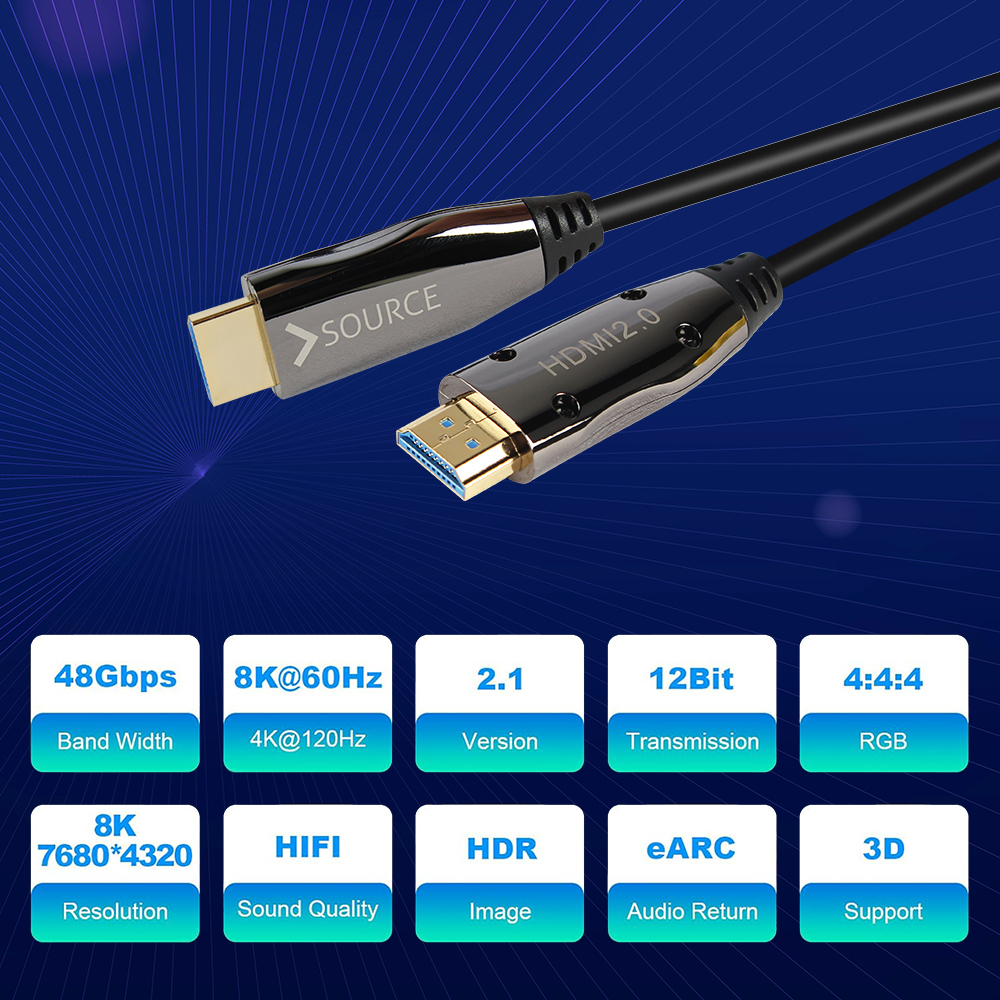

The ZH-ST-HS8K HDMI 2.1 Active Optical Cable is a high-performance hybrid fiber optic cable designed for long-distance transmission of high-bandwidth HDMI video signals. It supports HDMI 2.1, 48Gbps bandwidth, 8K@60Hz and 4K@144Hz, providing stable and high-quality signal transmission for professional AV and high-resolution display applications.

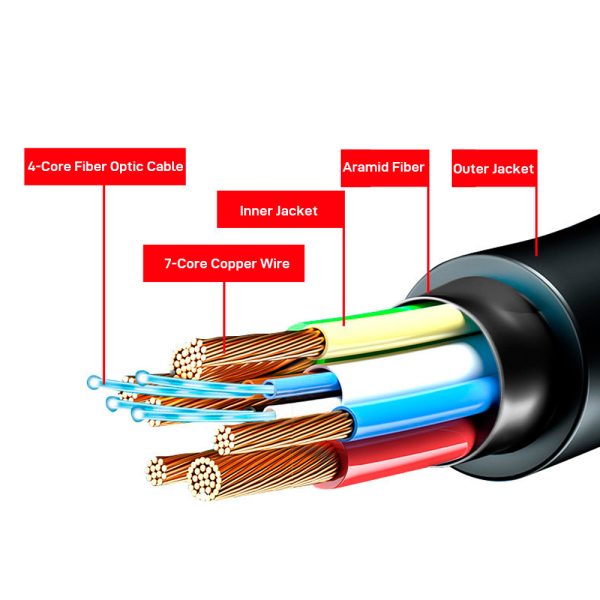

The cable uses a hybrid construction combining 4 optical fibers and 7 copper wires. The optical fibers carry high-speed HDMI signals over long distances, while the copper conductors provide power to the optical modules, eliminating the need for an external power supply.

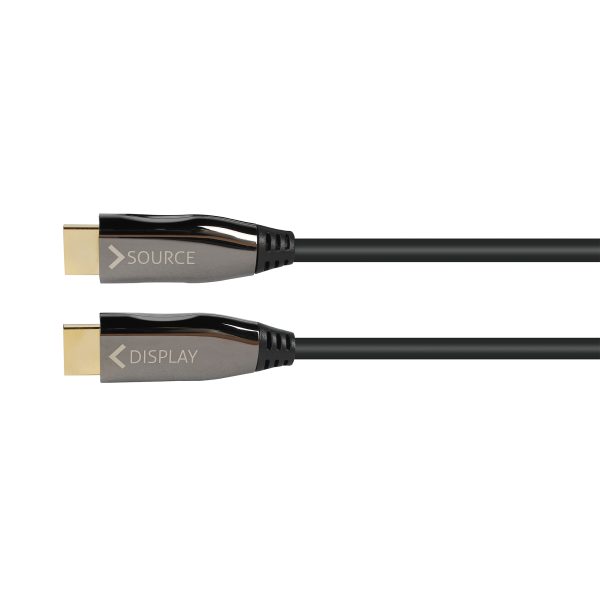

The integrated optical and electrical design provides a thinner, lighter, and more flexible cable compared with conventional long-distance copper HDMI cables. The TX and RX ends feature zinc alloy housings for enhanced mechanical strength, shielding, and durability.
With support for transmission distances of up to 100 meters over 50/125μm multimode fiber, the ZH-ST-HS8K is suitable for 8K displays, projectors, digital signage, conference rooms, multimedia classrooms, home theaters, and professional AV installations.
Key Features
- HDMI 2.1 Support:Complies with the HDMI 2.1 interface standard.
- 48Gbps High Bandwidth:Supports up to 48Gbps transmission bandwidth with 12Gbps per lane.
- 8K@60Hz Support:Supports high-resolution 8K@60Hz video transmission.
- 4K@144Hz Support:Suitable for high-refresh-rate 4K displays and gaming applications.
- Long-Distance Transmission:Supports up to 100m over 50/125μm multimode fiber.
- Hybrid Fiber Construction:Uses 4 optical fibers and 7 copper wires in a single cable.
- No External Power Required:Copper conductors provide power to the optical modules through the HDMI interface.
- 850nm VCSEL Technology:Uses an 850nm VCSEL array for high-speed optical transmission.
- Slim and Flexible:Smaller diameter and lower weight than equivalent long-distance copper HDMI cables.
- Durable Construction:Zinc alloy TX/RX housings provide enhanced strength and shielding.
- High Mechanical Strength:Maximum tensile load up to 10kg.
- Plug and Play:No external power supply or additional configuration required.
Applications
- 8K TVs and High-Resolution Displays
- 4K High-Refresh-Rate Displays
- Professional Projectors
- Computers and Workstations
- Media Players
- Digital Signage Systems
- HDMI Matrix Systems
- Home Theater Systems
- Conference Rooms
- Multimedia Classrooms
- Professional AV Installations
- Long-Distance HDMI Video Transmission
