Product Overview

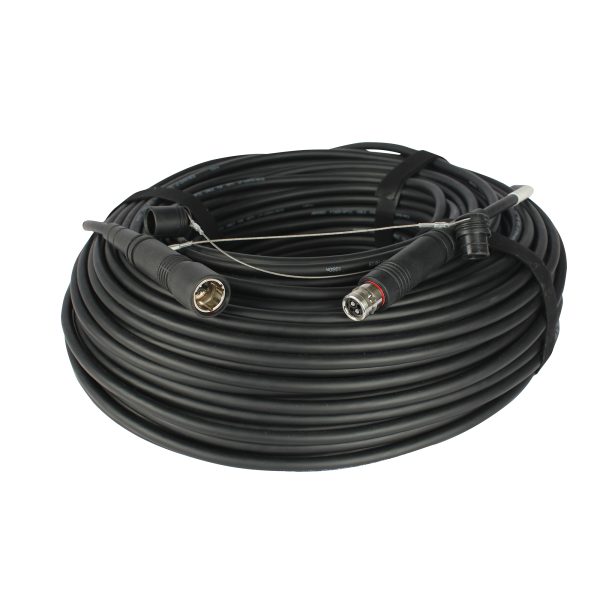

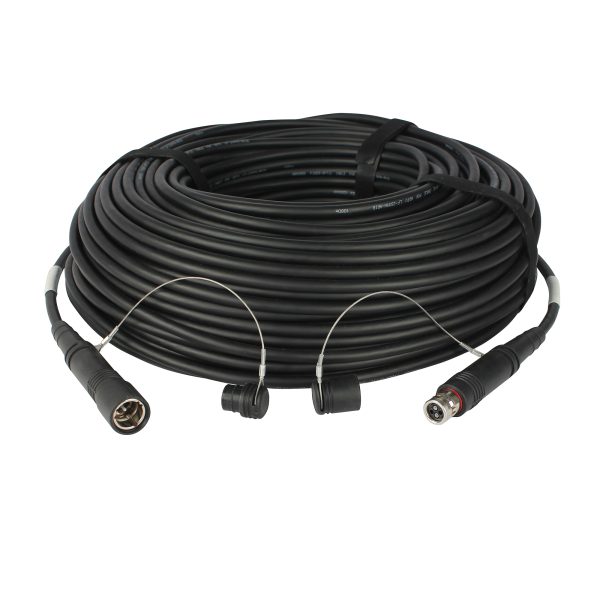

The FQ-3K/FUW-3K/PUW Series 3K.93C HDTV Camera Hybrid Fiber Cable is a professional broadcast camera cable designed for long-distance transmission of video, audio, power, and control signals between HDTV cameras and camera control systems.

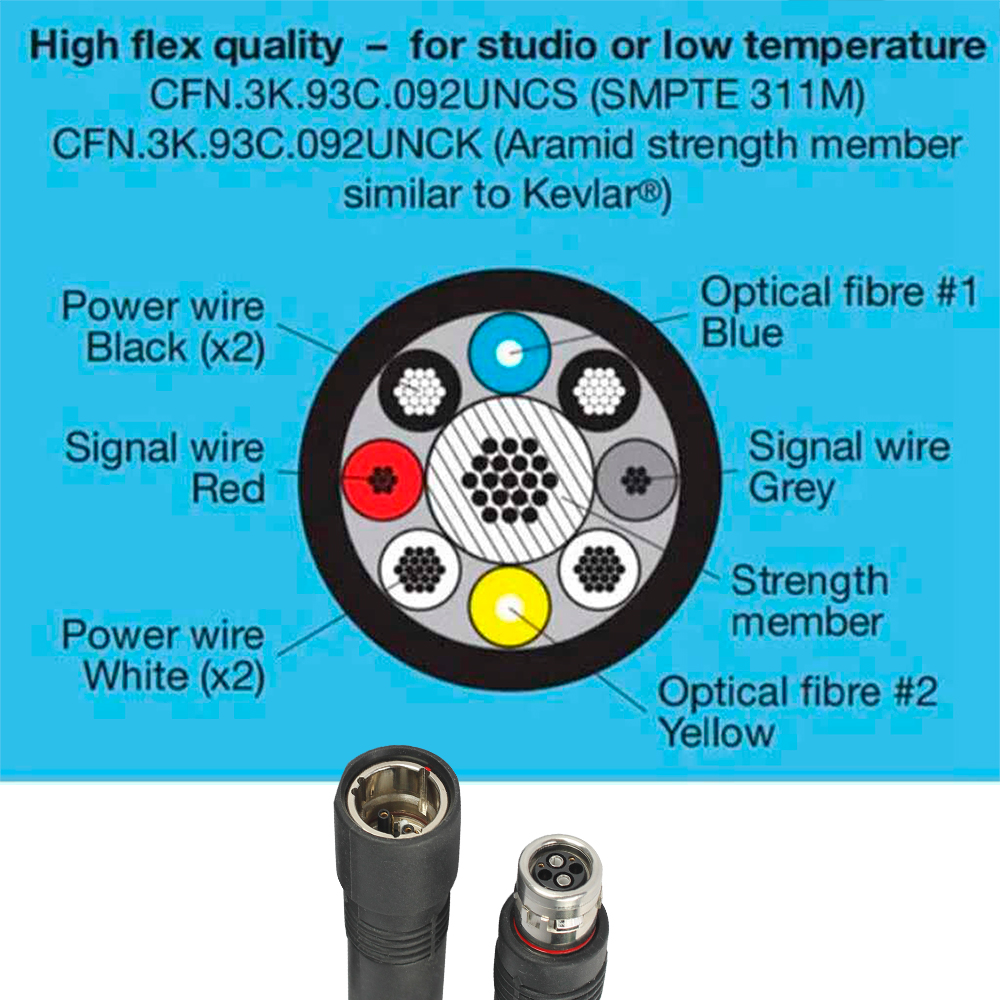

The hybrid cable integrates 2 single-mode optical fibers, 4 power conductors, and 2 signal control conductors into one rugged cable assembly. The four power wires use 20 AWG conductors, while the two signal control wires use 24 AWG conductors, providing an integrated connection for professional camera systems.

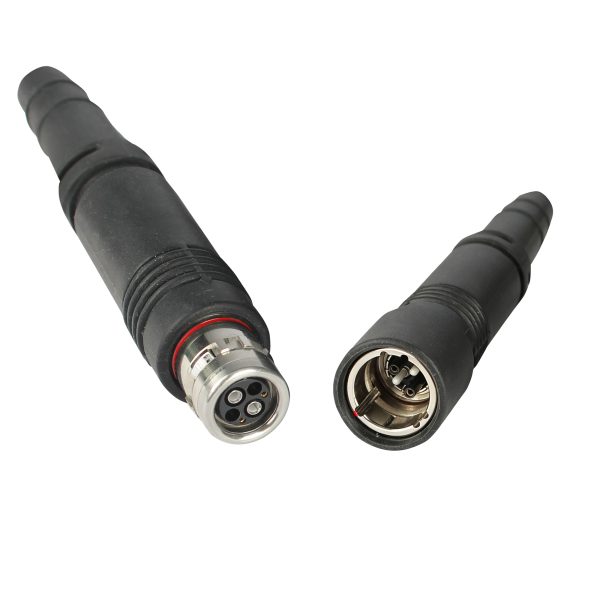

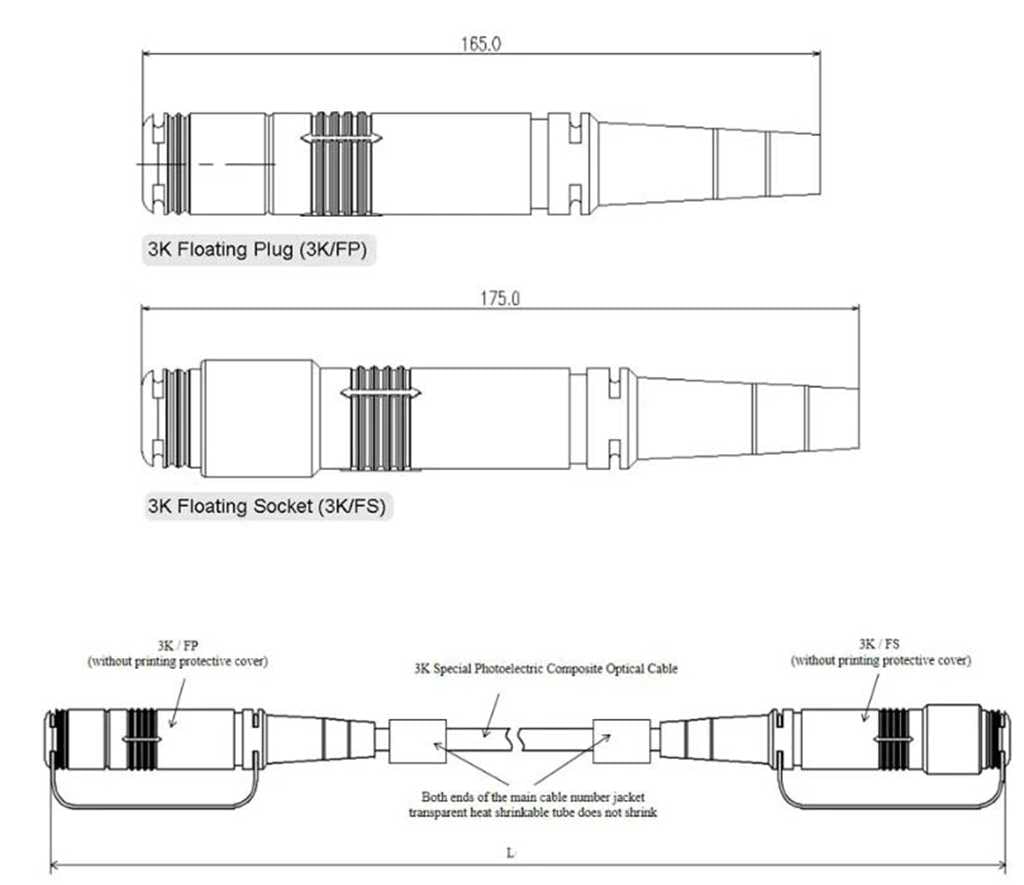

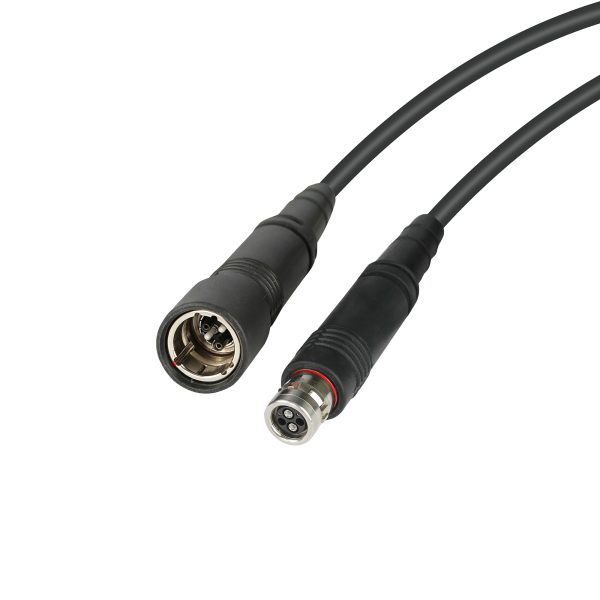

The cable is equipped with FUW floating plug and PUW floating socket connectors and is available in lengths from 50m to 300m. It is designed to be compatible with professional camera connector systems from brands including LEMO, CANARE, Sony, Canon, and Ikegami.
The rugged connector construction is designed for outdoor broadcast and demanding professional environments. The stainless-steel housing provides durability, while the connector system offers IP67 protection when mated and resistance to water and environmental exposure.
The FQ-3K series is suitable for outside broadcast (OB), sports event broadcasting, studio production, concerts, and other professional live production applications.
Key Features
- Professional 93C HDTV camera hybrid fiber cable
- Integrates optical fiber, power, and control signal transmission
- 2-core single-mode optical fiber for video and audio transmission
- 4 × 20 AWG power conductors
- 2 × 24 AWG signal control conductors
- FUW floating plug to PUW floating socket configuration
- Available in 50m, 100m, 150m, 200m, 250m, and 300m
- Compatible with professional camera connector systems from LEMO, CANARE, Sony, Canon, and Ikegami
- Supports SMPTE, ARIB, and EBU-compatible quick-lock connector systems
- Stainless-steel connector housing for demanding environments
- IP67 protection when connected
- Connector insertion loss ≤0.6dB
- Cable assembly retention force ≥500N
- Operating temperature from -40°C to +80°C
- Designed for professional broadcast and live production
Applications
- Outside Broadcast (OB) systems
- Live sports broadcasting
- HDTV camera systems
- Studio camera installations
- Concert and live event production
- Professional television production

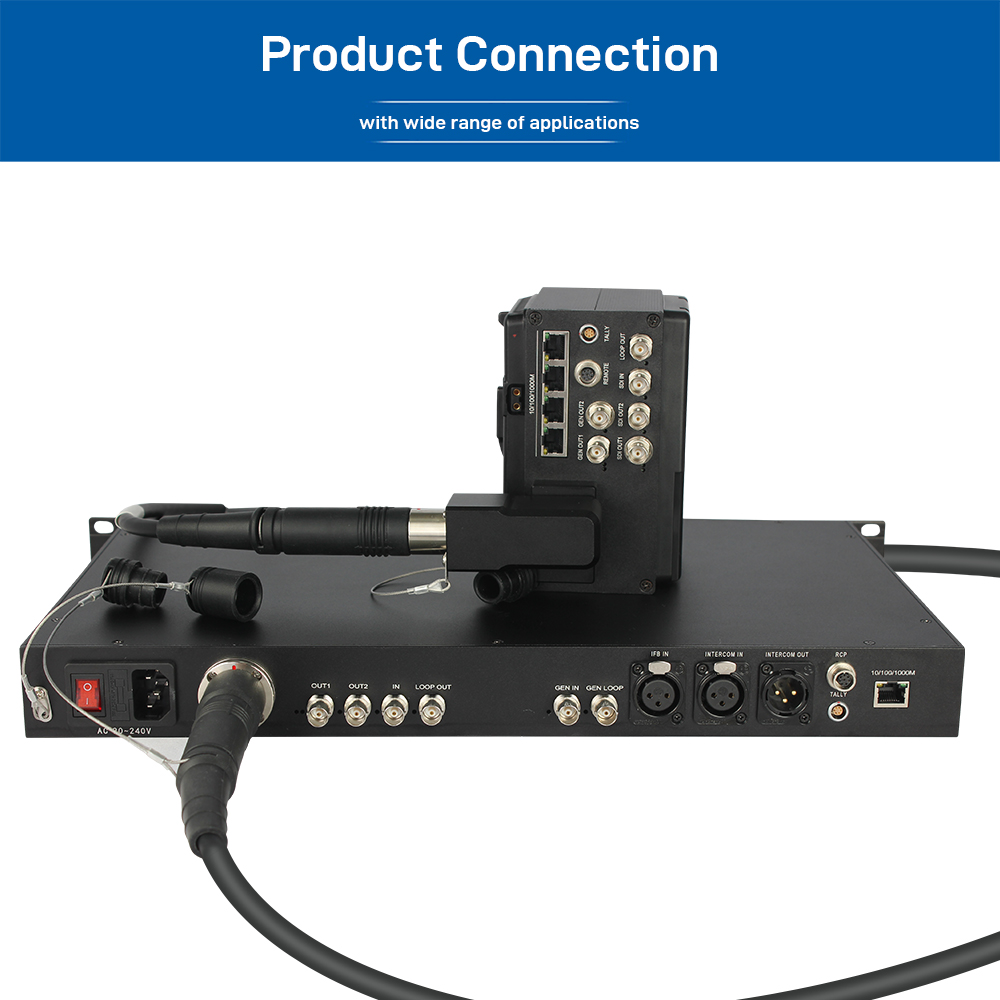

- Camera-to-control-room connections
- Outdoor live production
- Broadcast and mobile production systems
