Product Overview

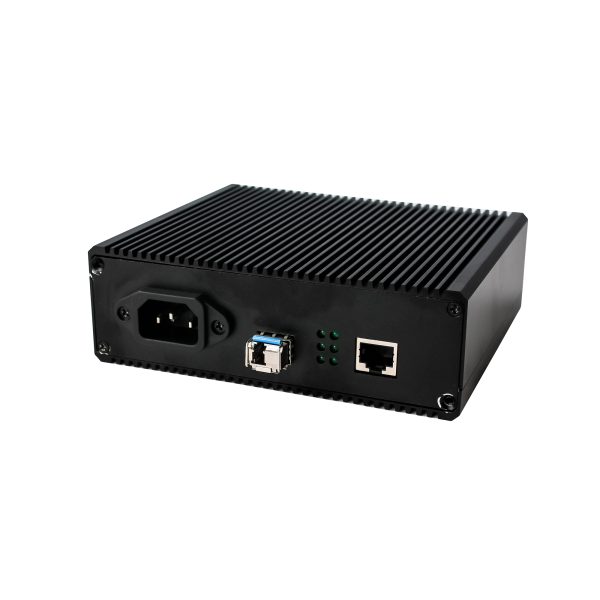

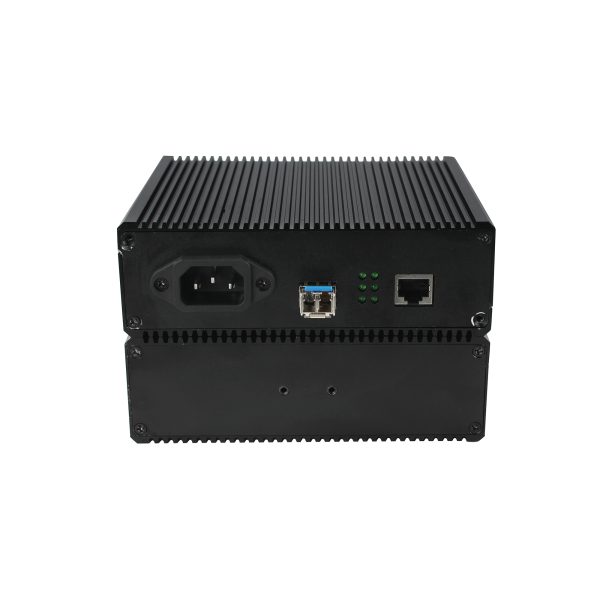

The LED Display Fiber Media Converter is a professional Ethernet-to-fiber transmission device designed for LED display signal extension and long-distance network transmission.

Featuring 1 × 10/100/1000Mbps RJ45 Ethernet port and 1 × 1.25Gb/s LC fiber port, it provides stable Gigabit Ethernet transmission over optical fiber for LED display systems.

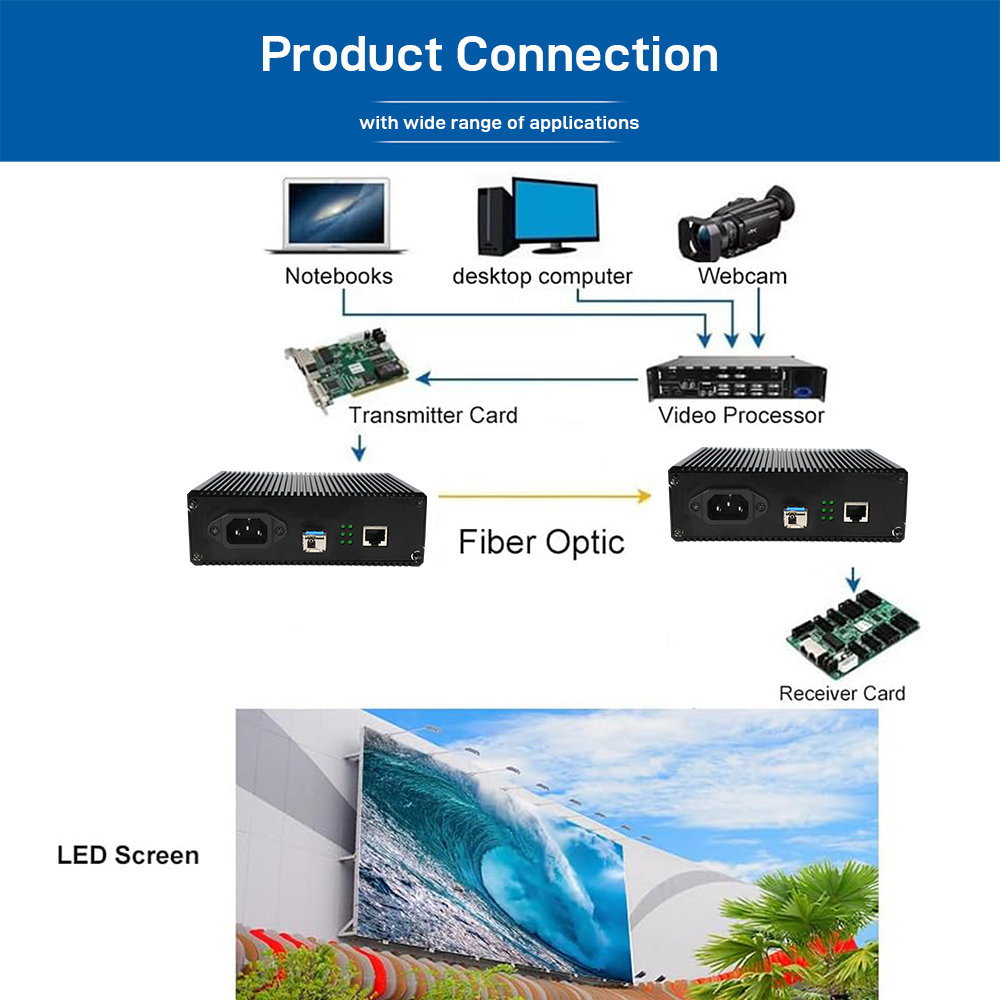

Designed for point-to-point fiber links, this converter provides reliable, low-latency data transmission between LED sending cards and receiving cards, helping maintain stable image output and system synchronization over long distances.

The converter is compatible with major LED display control systems, including NovaStar, Colorlight, Linsn, Mooncell, Kystar, and other LED sending and receiving cards equipped with standard Ethernet ports.

With a built-in AC 220V power supply, no external power adapter is required, making installation and maintenance simple and convenient.

Key Features

• 1 × 10/100/1000Mbps Gigabit Ethernet RJ45 port
• 1 × 1.25Gb/s LC fiber optical port
• Designed specifically for LED display signal transmission
• Stable point-to-point Ethernet-over-fiber transmission
• Supports single-mode and multimode fiber

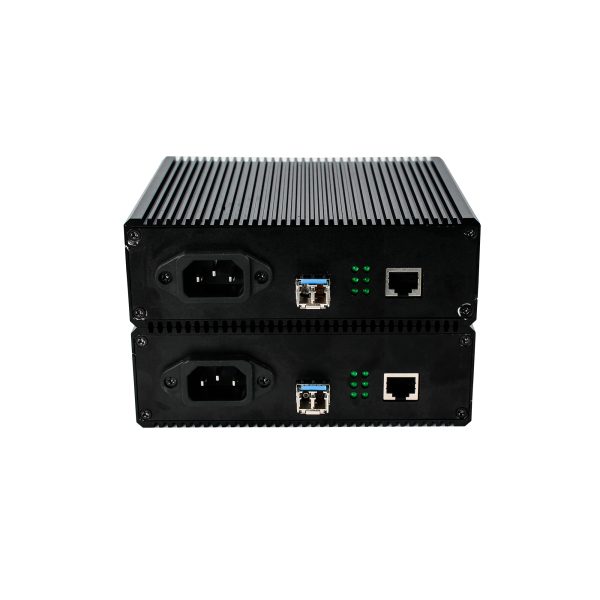

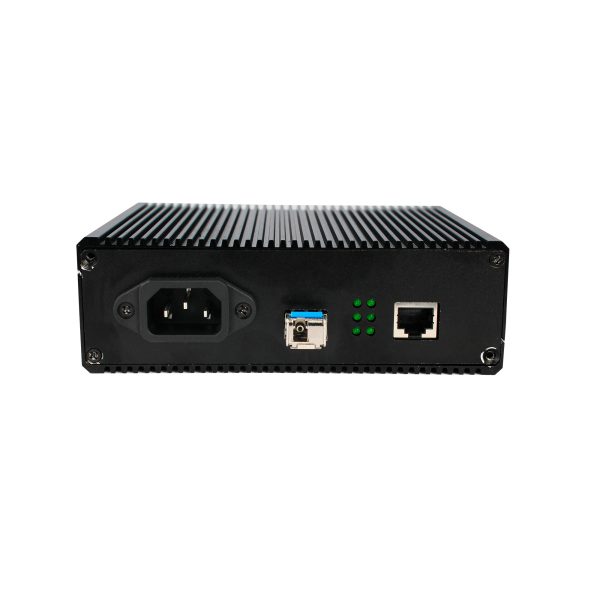

• Supports simplex single-fiber and duplex dual-fiber transmission
• Up to 20km transmission over single-mode fiber
• Up to 550m transmission over multimode fiber
• Compatible with major LED display control systems
• Built-in AC 220V power supply
• Compact desktop design
• Plug and Play with no configuration required

Applications

• LED display screen networking systems
• Indoor and outdoor LED video walls
• LED advertising displays
• LED rental and stage display systems
• Commercial and public information displays
• Control rooms and monitoring centers
• Long-distance LED display signal transmission
• Point-to-point Ethernet-over-fiber links
