Product Overview

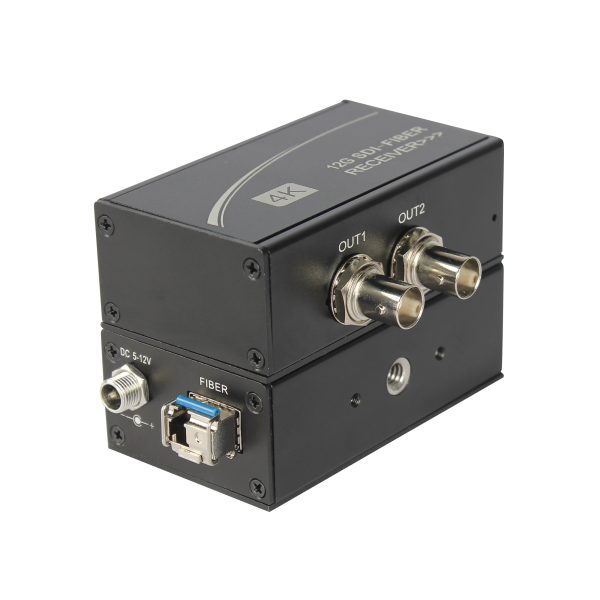

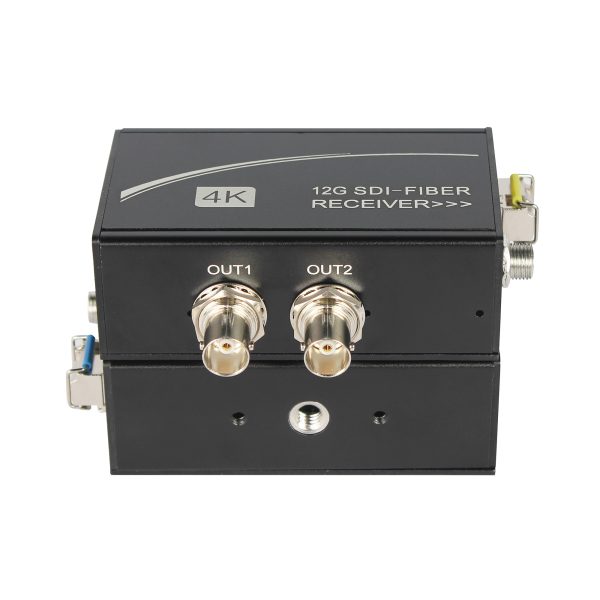

The FQ-12G-1V-T/R 12G-SDI Fiber Optic Extender is a professional single-channel, unidirectional SDI fiber transmission solution designed for long-distance transmission of high-bandwidth video signals.
Supporting SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI, it delivers video resolutions up to 3840×2160@60Hz with transmission rates up to 11.88Gbps. The system uses a single-mode single-fiber connection with an LC optical interface and supports transmission distances up to 20km.

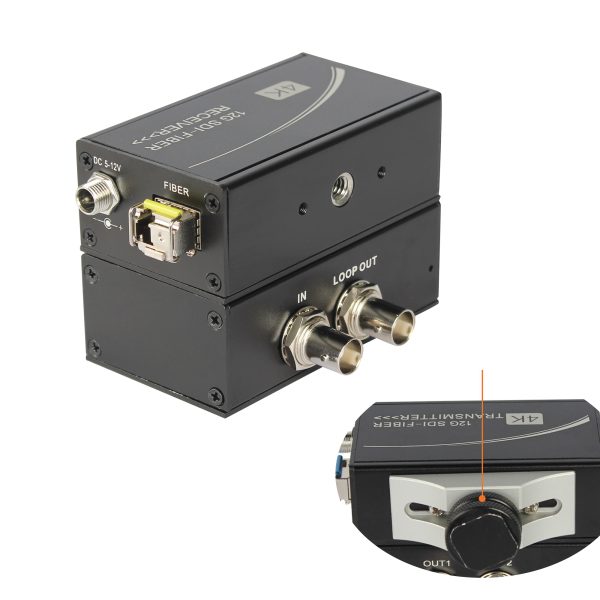

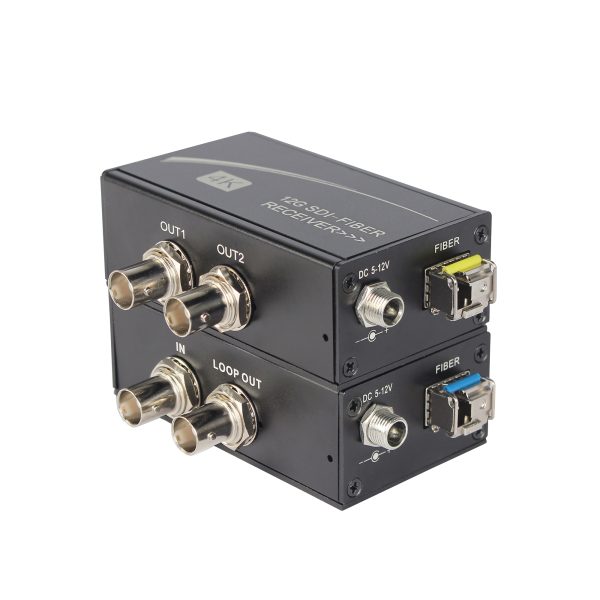

The transmitter features an SDI loop output, allowing the incoming SDI signal to be simultaneously passed through to a local SDI device while being transmitted over fiber. The compact 90×65×32mm design includes a mounting bracket for convenient installation in professional video and field production environments.

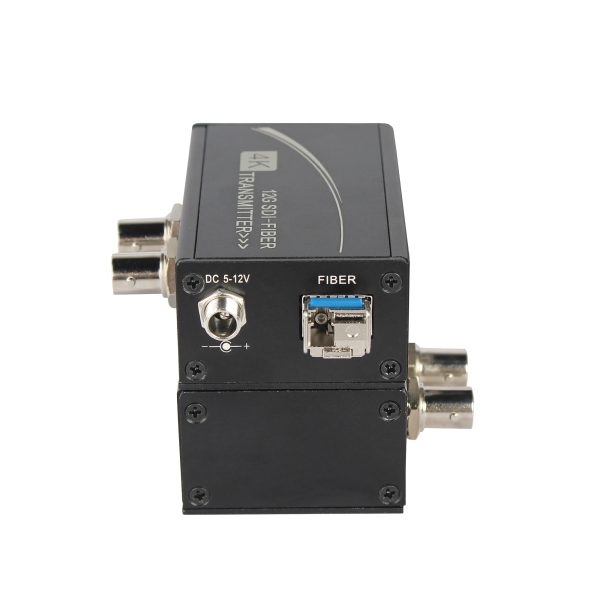

With a locking power connector and support for 5–12V DC power or a power bank, the FQ-12G-1V-T/R is suitable for mobile and fixed installations where flexible power options are required.
Key Features
- Single-channel unidirectional 12G-SDI fiber transmission
- Supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
- Supports resolutions up to 3840×2160@60Hz
- SDI loop out for local monitoring or signal distribution
- Up to 88GbpsSDI transmission rate
- Up to 20kmover single-mode single-fiber
- LC optical interface
- Wide optical wavelength range of 1270–1660nm
- BNC 75Ω SDI interface
- Supports external 5–12V DC power
- Compatible with power banks for mobile operation
- Locking power connector for a secure connection
- Compact design with mounting bracket
Applications
- 4K live event production
- Broadcast and television systems
- Professional video production
- Studio and OB applications
- 4K camera systems
- Live stage and event video
- Long-distance SDI video transmission
- Mobile video production
