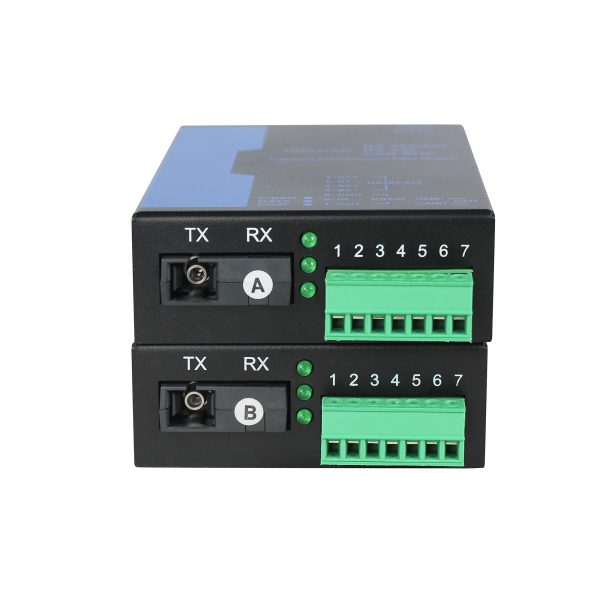

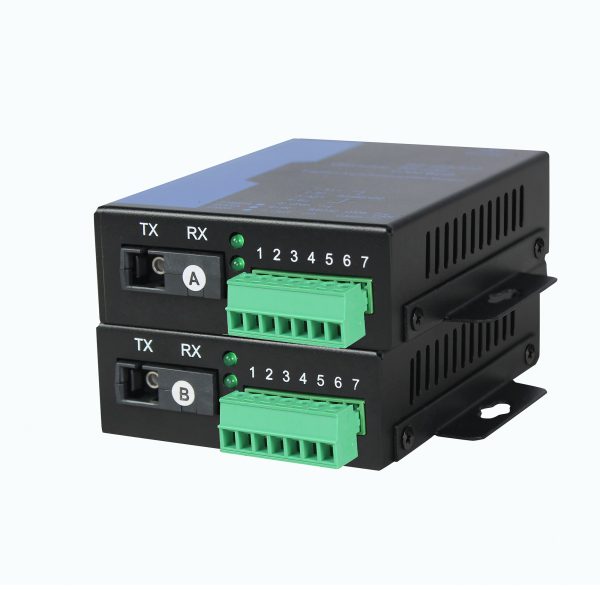

2-Channel DMX512 Fiber Optic Extender 20km Single-Mode Single-Fiber SC/FC

Product Overview

The FQ-DMX512-T/R series 2-Channel DMX512 Fiber Optic Extender is designed to transmit standard DMX512 lighting control signals over long-distance fiber optic links. It uses optical fiber as the transmission medium to provide reliable communication between DMX512 lighting consoles and remote lighting equipment.

Fiber optic transmission helps extend transmission distance while reducing the impact of lightning, surge interference, electromagnetic interference, and other electrical disturbances commonly encountered in complex environments.

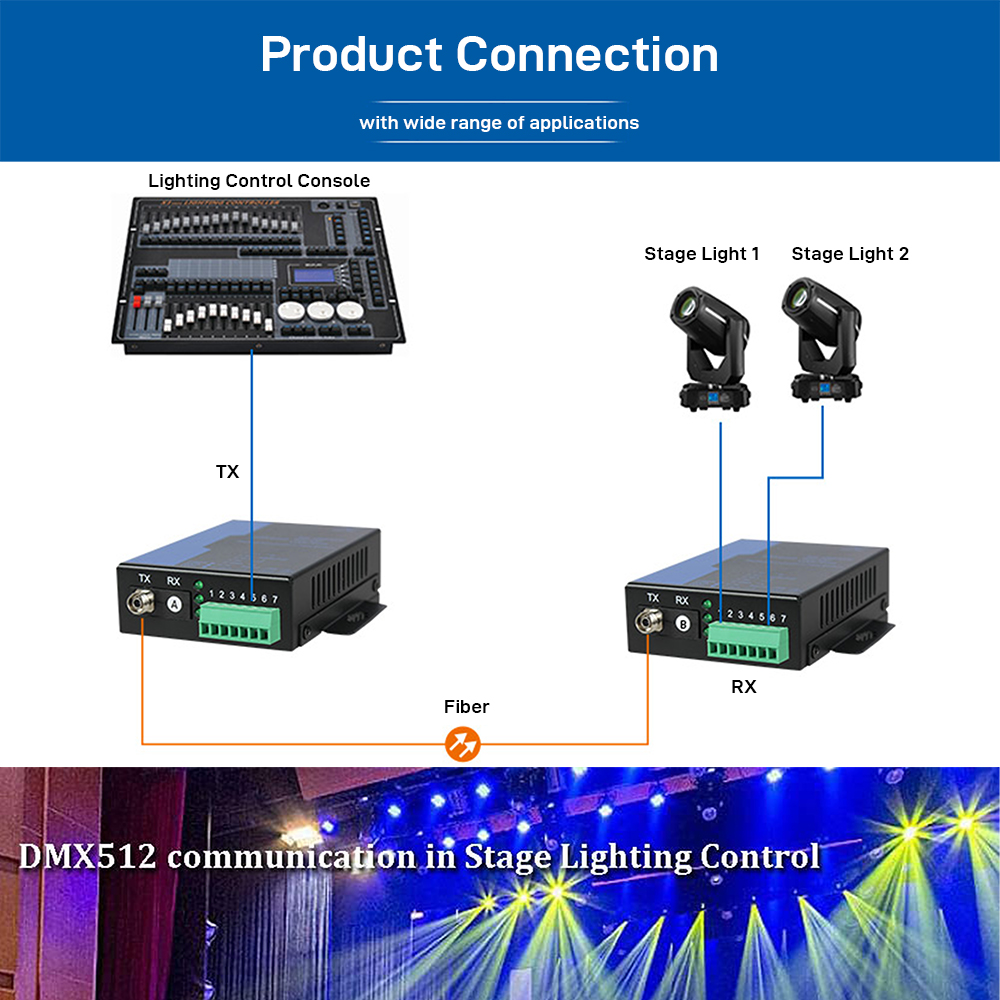

The system supports 2 independent DMX512 channels and is designed for point-to-point transmission. A fiber optic splitter can also be used to build point-to-multipoint configurations.

Key Features

• 2-Channel DMX512 Transmission:Supports two standard DMX512 data interfaces for lighting control applications.
• Long-Distance Fiber Transmission:Supports up to 20km over single-mode single-fiber optical transmission.
• SC / FC Options:Available with SC or FC optical connectors according to installation requirements.
• High-Speed Optical Link:Optical transmission rate up to 155Mbps.
• Automatic Data Rate Detection:Automatically detects the DMX512 signal rate for convenient plug-and-play operation.
• Electrical Isolation:Fiber transmission provides strong resistance to electromagnetic interference, lightning, and surge disturbances.
• DMX512 Connectivity:Each DMX512 interface can support up to 32 terminal devices, with additional devices possible through a DMX512 amplifier.

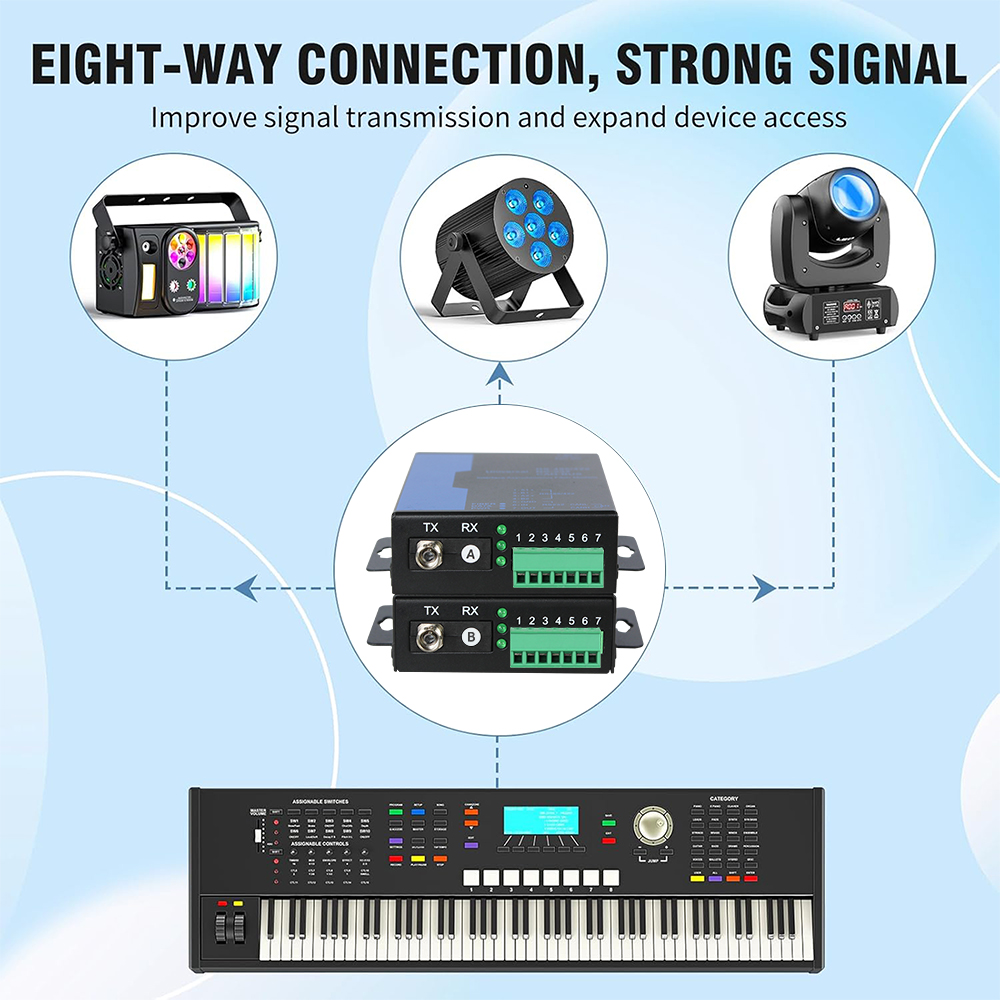

• Point-to-Multipoint Support:Can be combined with a fiber splitter for one-to-multiple receiver applications.

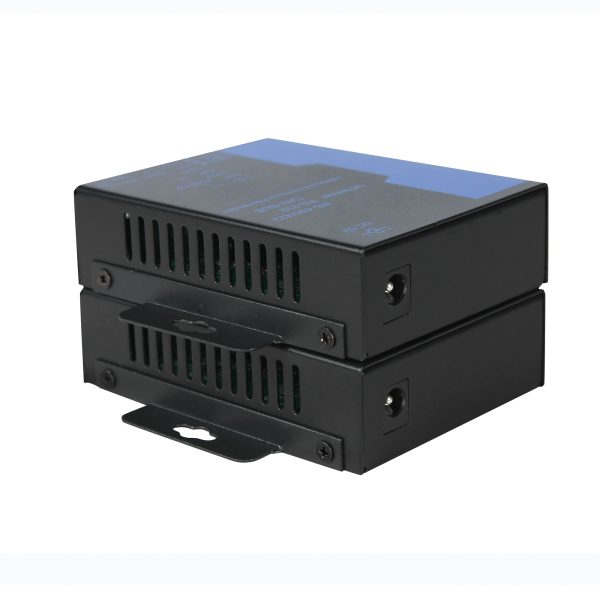

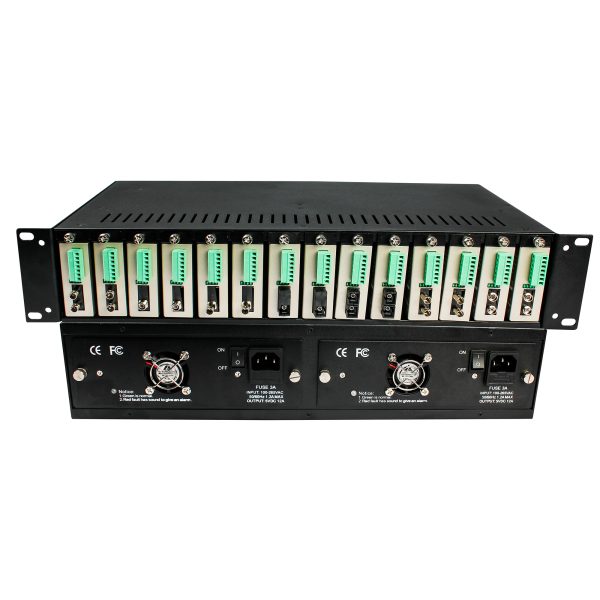

• Flexible Power Options:Supports local 5V DC power or centralized power through the optional 14-slot dual-power rack.
• ESD Protection:Provides ±15kV human-body-model ESD protection and ±8kV contact discharge protection.

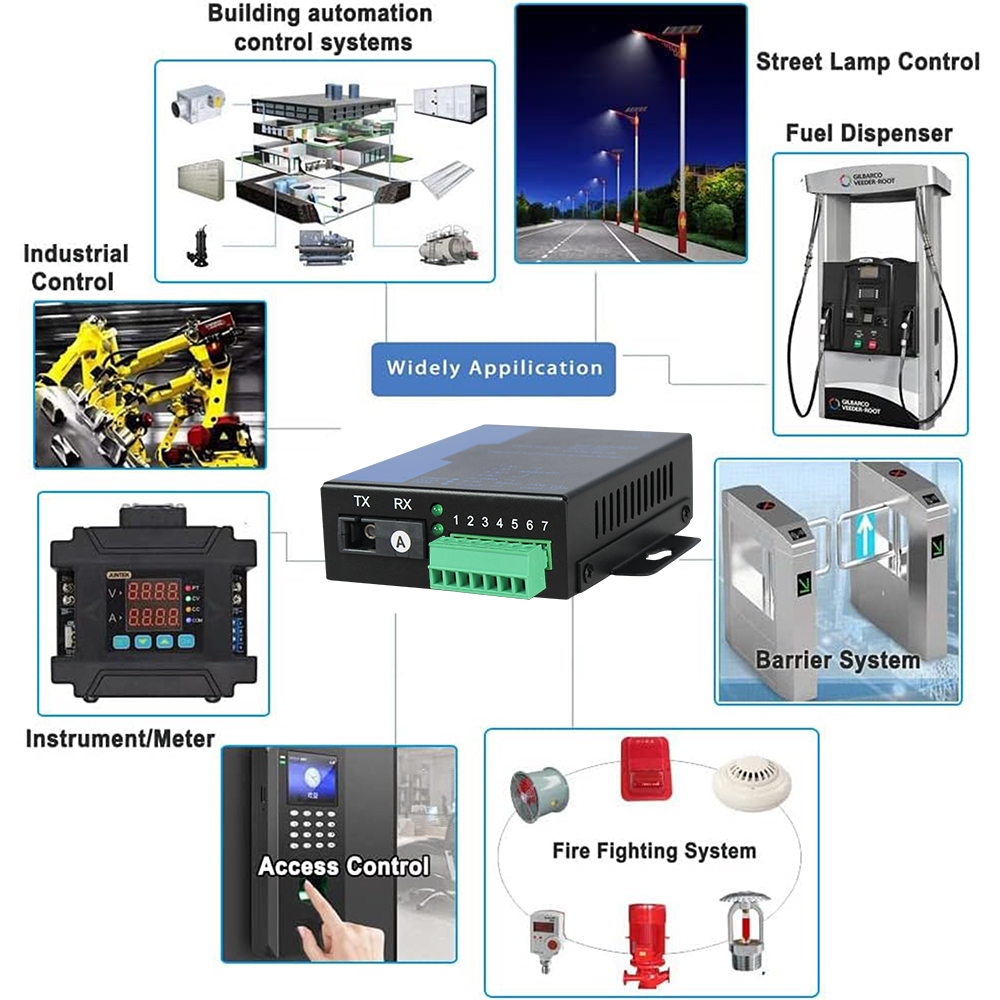

Applications

• Stage Lighting Systems
• DMX512 Lighting Control
• Concerts and Live Events
• Theater Lighting
• Entertainment Venues
• LED Stage Lighting
• Outdoor Lighting Systems
• Long-Distance Lighting Control
• Professional AV Installations
