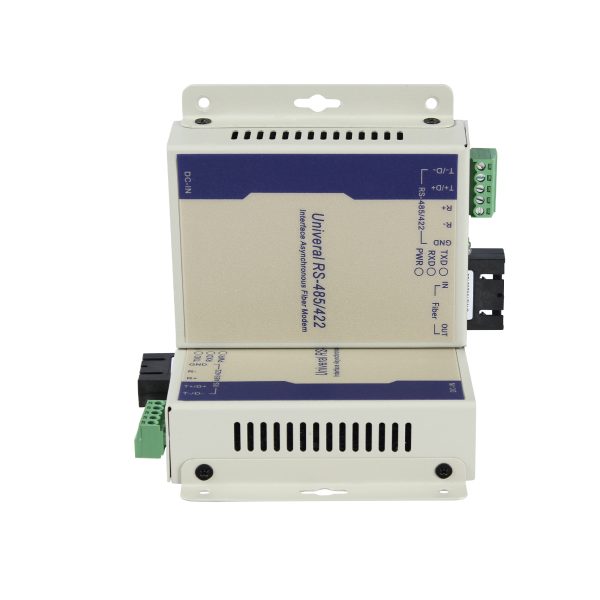

Product Overview
The FQ-MOD268 Series RS485 Fiber Optic Converters are industrial communication converters designed to extend RS485 data signals over fiber optic cable for reliable long-distance transmission.
The converter supports 1-channel RS485 asynchronous data transmission in point-to-point applications, with communication rates of up to 120Kbps. RS485 electrical signals are converted to optical signals for transmission over single-mode or multimode fiber, providing reliable communication with strong resistance to electromagnetic interference.
The series supports a wide range of fiber configurations, including multimode dual-fiber, single-mode dual-fiber, and single-mode single-fiber transmission. Optical interfaces are available in SC, FC, and ST, with transmission distances from 2km to 20km depending on the selected configuration.
The compact 95 × 70 × 25mm enclosure is suitable for industrial automation, control systems, remote data acquisition, and other RS485 communication applications.
Key Features
- 1-channel RS485 fiber optic conversion
- Supports asynchronous RS485 data transmission

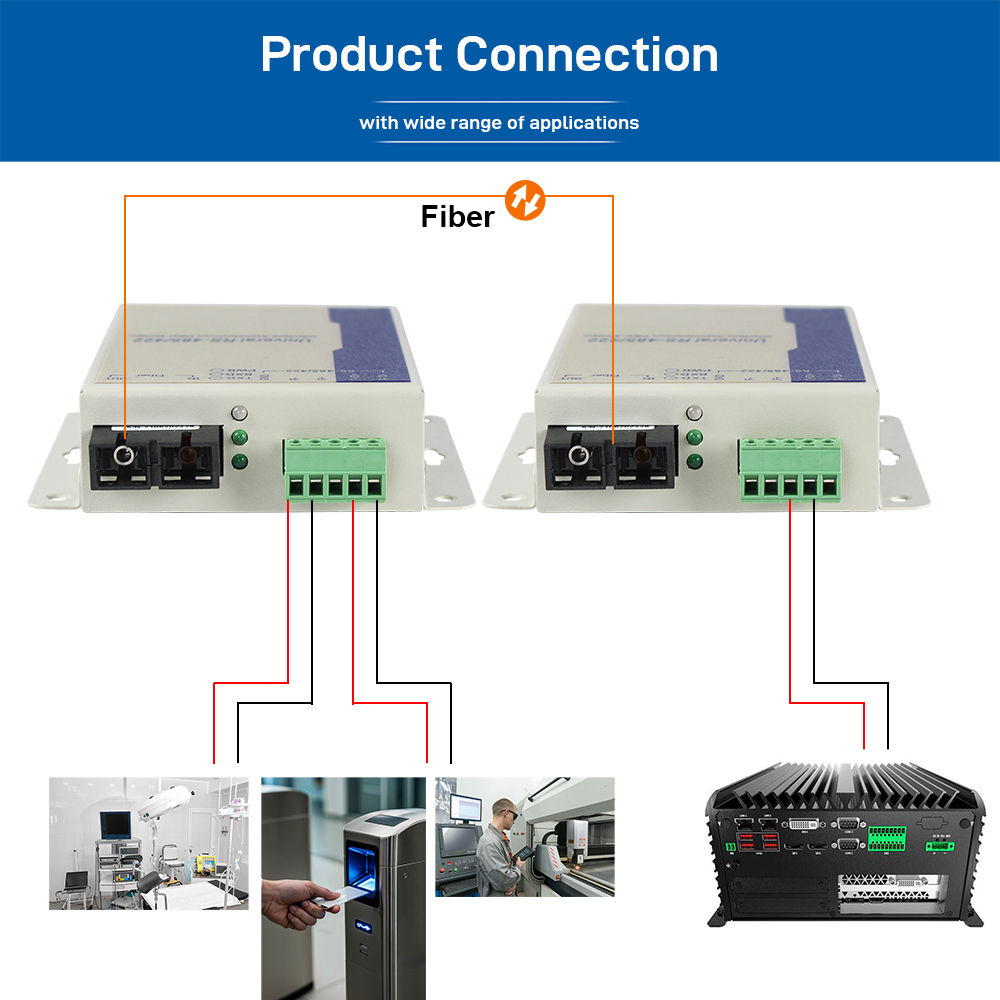

- Point-to-point communication
- Data rate up to 120Kbps
- Supports single-mode and multimode fiber

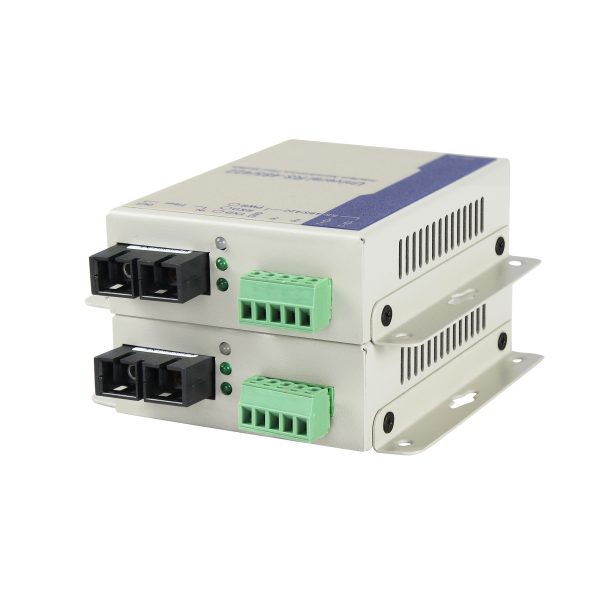

- Supports single-fiber and dual-fiber configurations

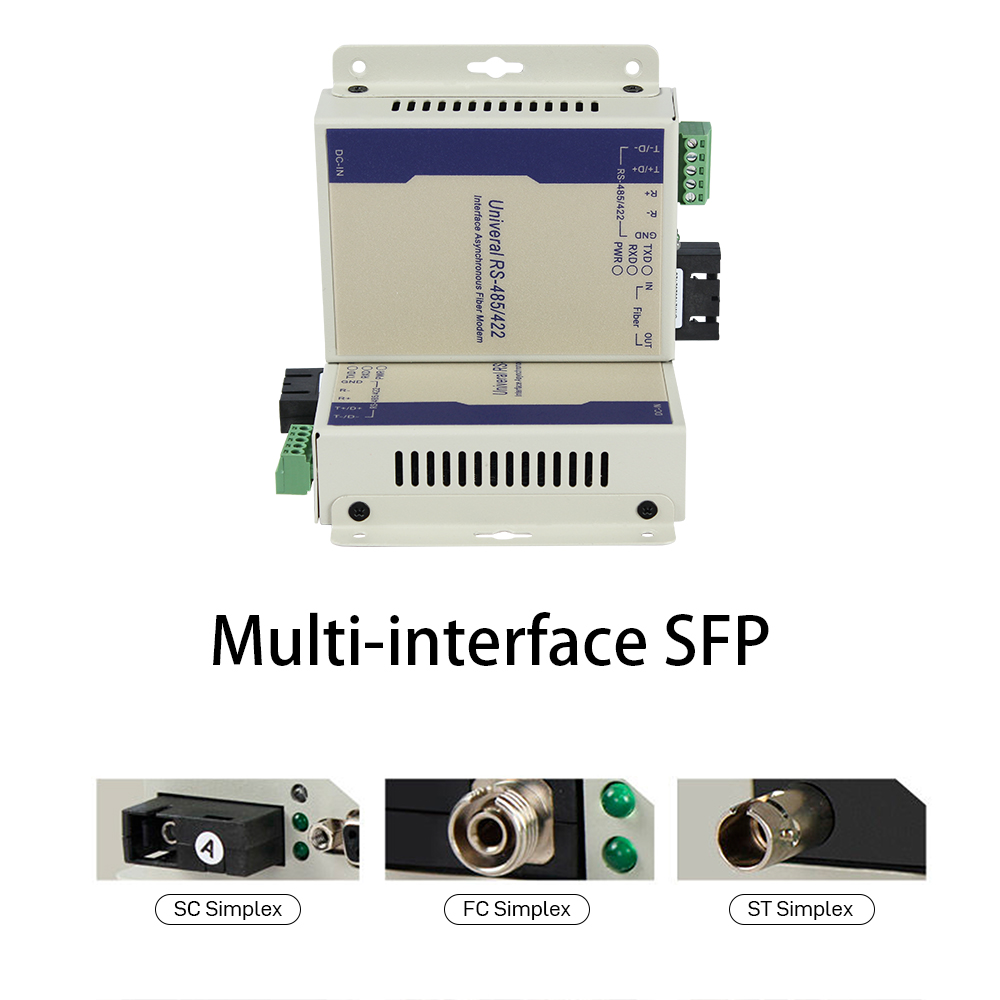

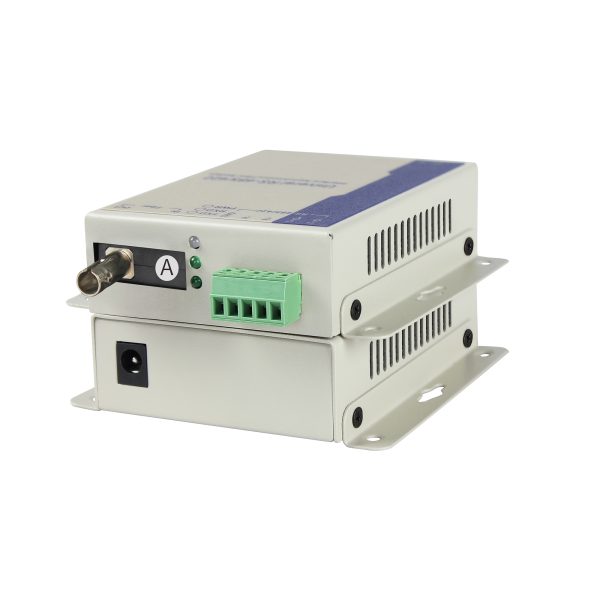

- SC, FC, and ST optical interface options
- Transmission distance up to 2km for multimode configurations
- Transmission distance up to 20km for single-mode configurations
- 155Mbps optical transmission rate
- 1310/1550nm operating wavelength

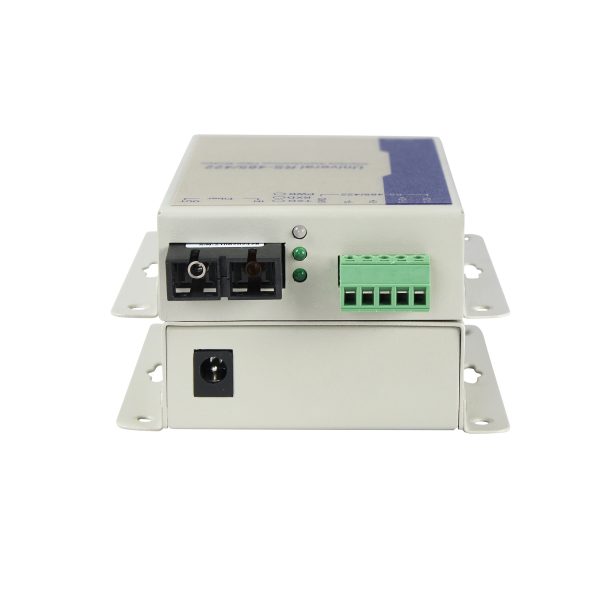

- Phoenix terminal RS485 interface
- Strong resistance to electromagnetic interference
- Compact 95 × 70 × 25mm enclosure

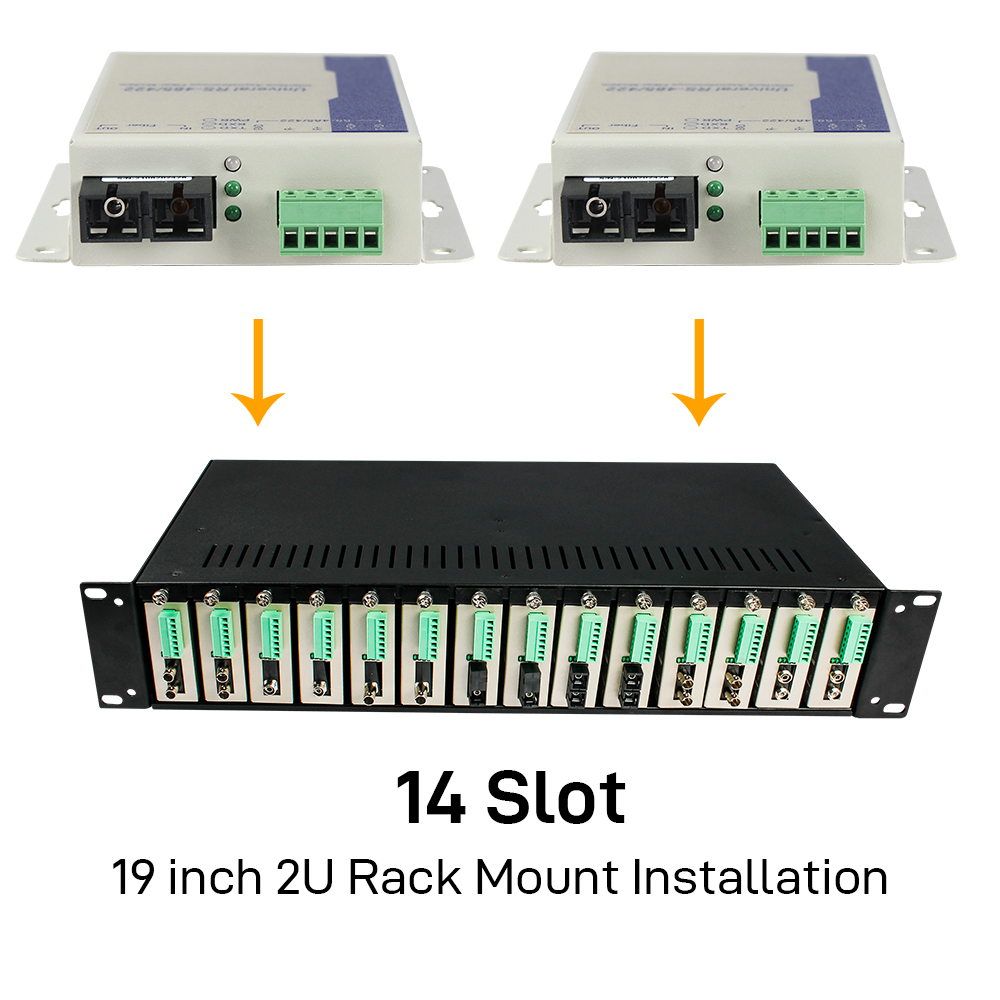

- Supports local or 14-slot rack centralized power
Applications
- Industrial RS485 communication
- Industrial automation systems
- PLC and control systems
- Remote data acquisition
- Industrial monitoring systems
- Building automation
- Access control and security systems
- Metering and instrumentation
- Factory communication networks
- Long-distance RS485 data transmission
