Product Overview

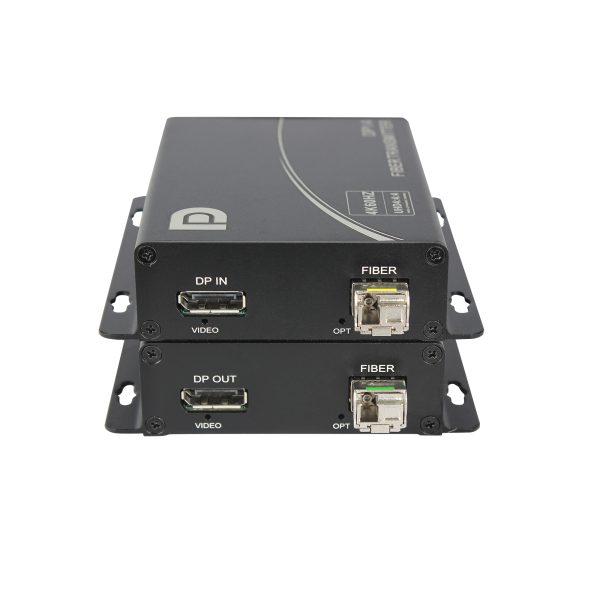

The FQ-GS02DP Series 4K60 DisplayPort Fiber Optic Extender provides uncompressed long-distance transmission of DisplayPort video over single-mode optical fiber. It supports resolutions up to 3840×2160@60Hz and 4096×2160@60Hz, with a 594MHz pixel bandwidth and 10Gbps optical transmission bandwidth.

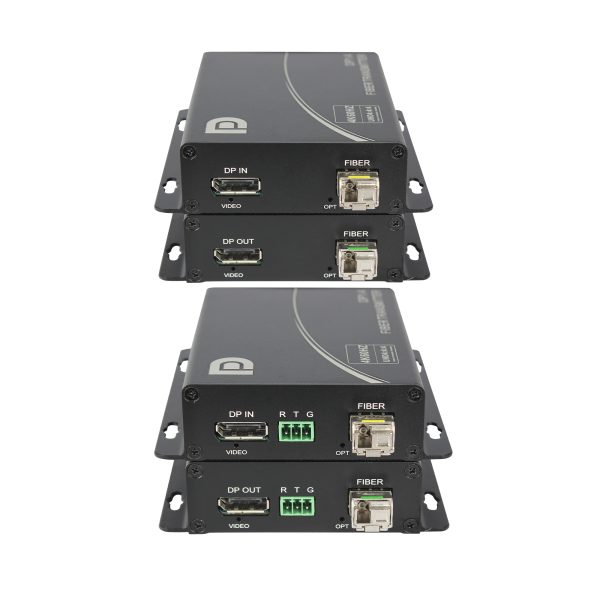

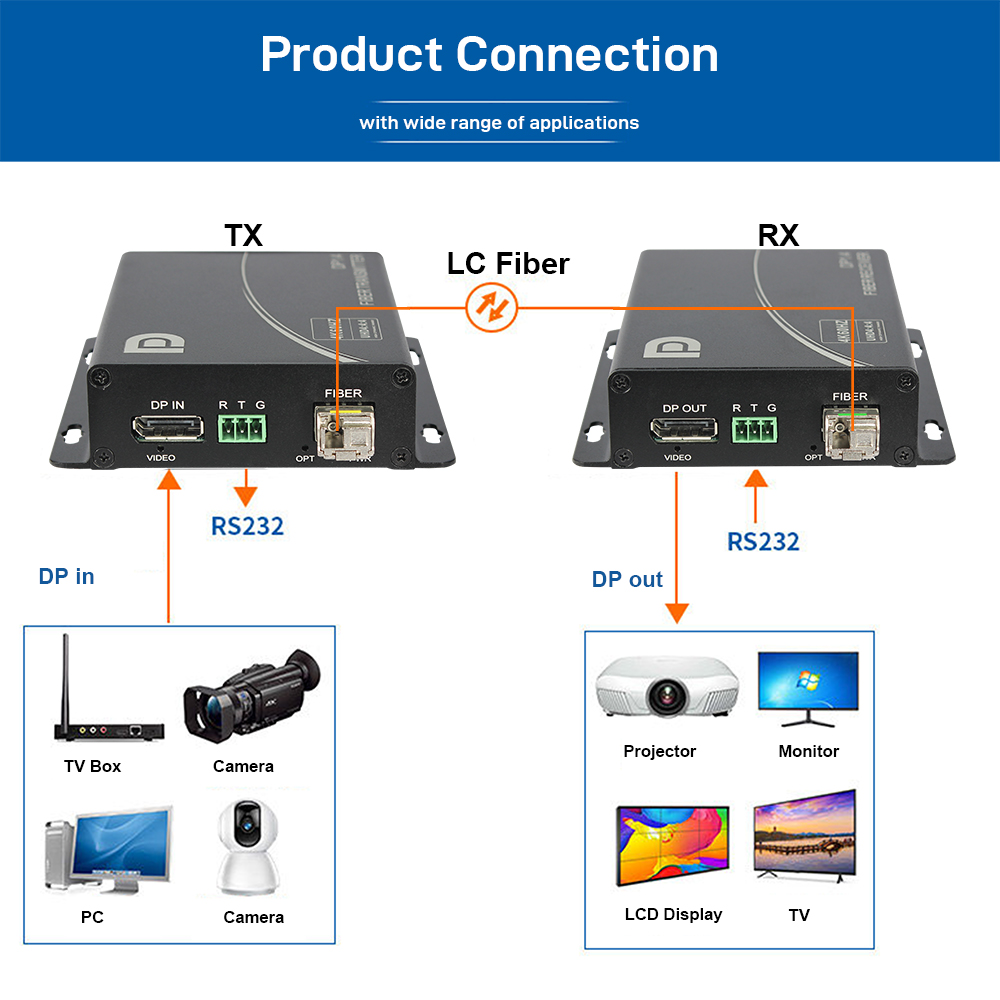

The series is available in two interface configurations: USB KVM for remote keyboard and mouse extension or bi-directional RS232 for serial device control. Both versions use an SFP-based LC optical interface and support transmission distances of 20km.
The extender supports automatic display mode recognition, automatic equalization, and plug-and-play installation, providing a reliable solution for professional AV, control room, KVM, digital signage, and industrial display applications.
Key Features
- Uncompressed DisplayPort video transmission over fiber
- Supports up to 3840×2160@60Hz and 4096×2160@60Hz
- DP 1.4 and HDCP 2.2 compatible
- 594MHz pixel bandwidth

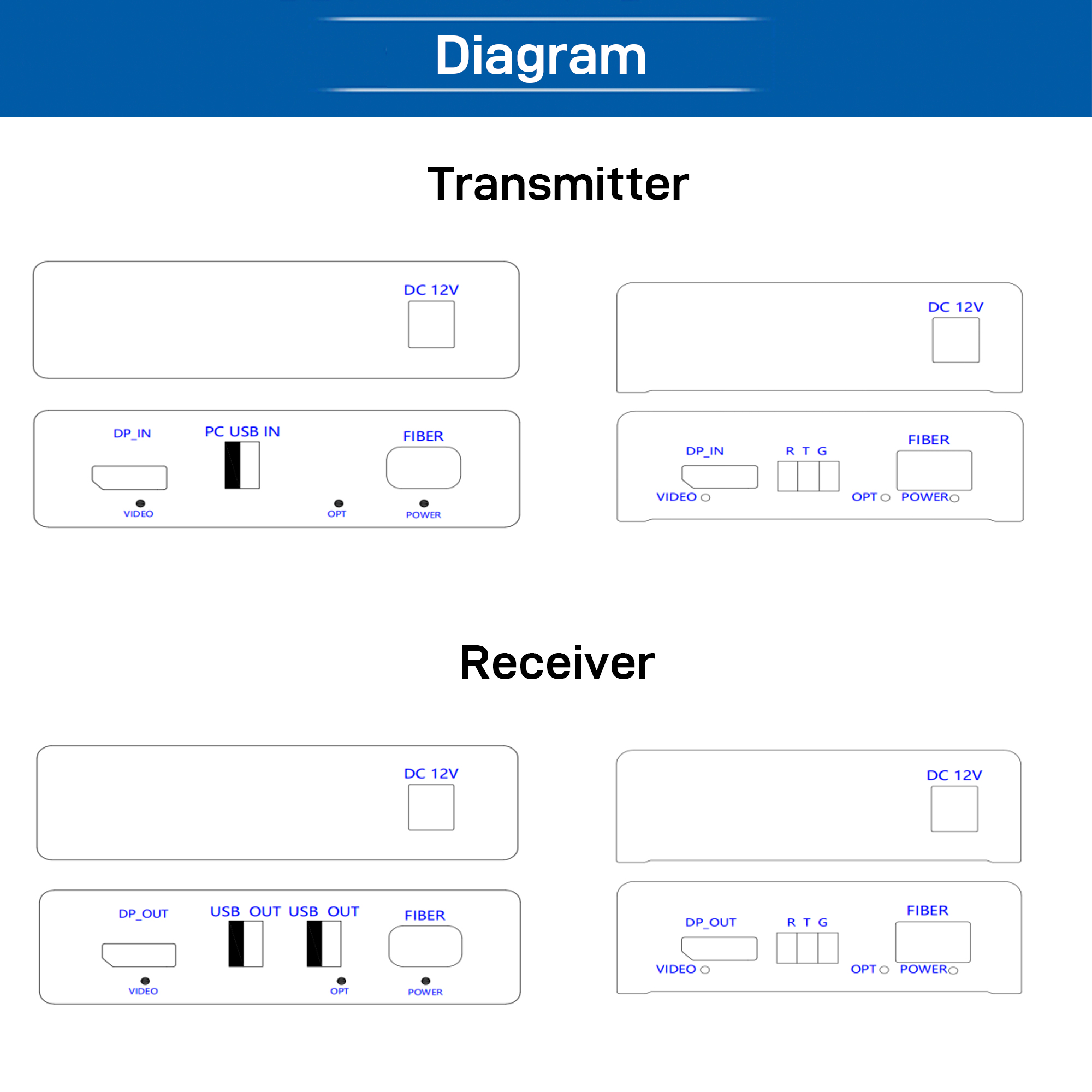

- Available with USB KVM or bi-directional RS232
- USB version supports keyboard and mouse extension

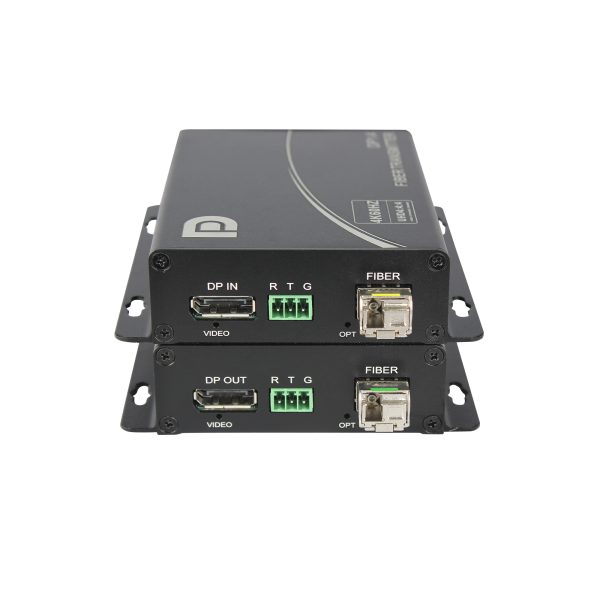

- RS232 version supports bi-directional serial transmission
- LC SFP single-mode optical interface
- 10Gbps optical transmission bandwidth
- Up to 20kmdistance
- Automatic display mode recognition
- Automatic video equalization
- Built-in ESD protection
- Plug and play installation

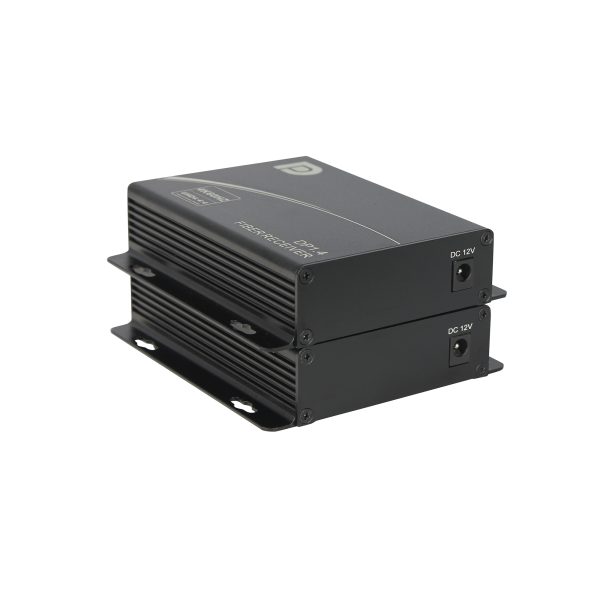

- DC 12V power supply
Applications
- Professional AV systems
- Long-distance 4K display extension
- KVM systems
- Remote computer operation
- Control rooms
- Digital signage
- Conference rooms
- Industrial monitoring and control
- DisplayPort computers and monitors
- Broadcast and video production
