Product Overview

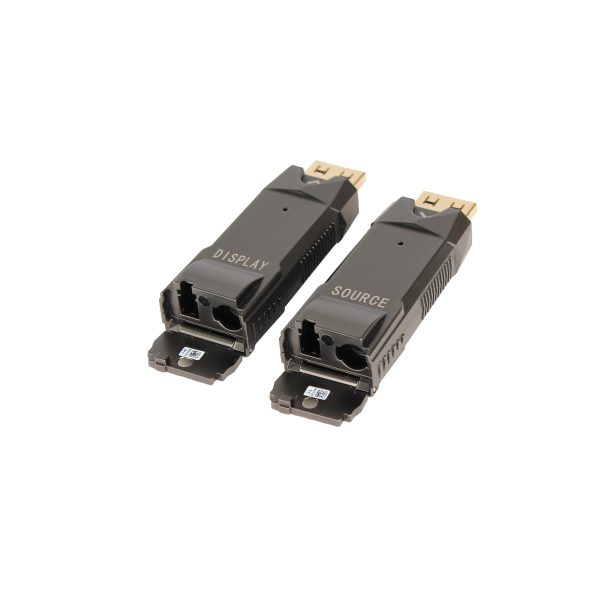

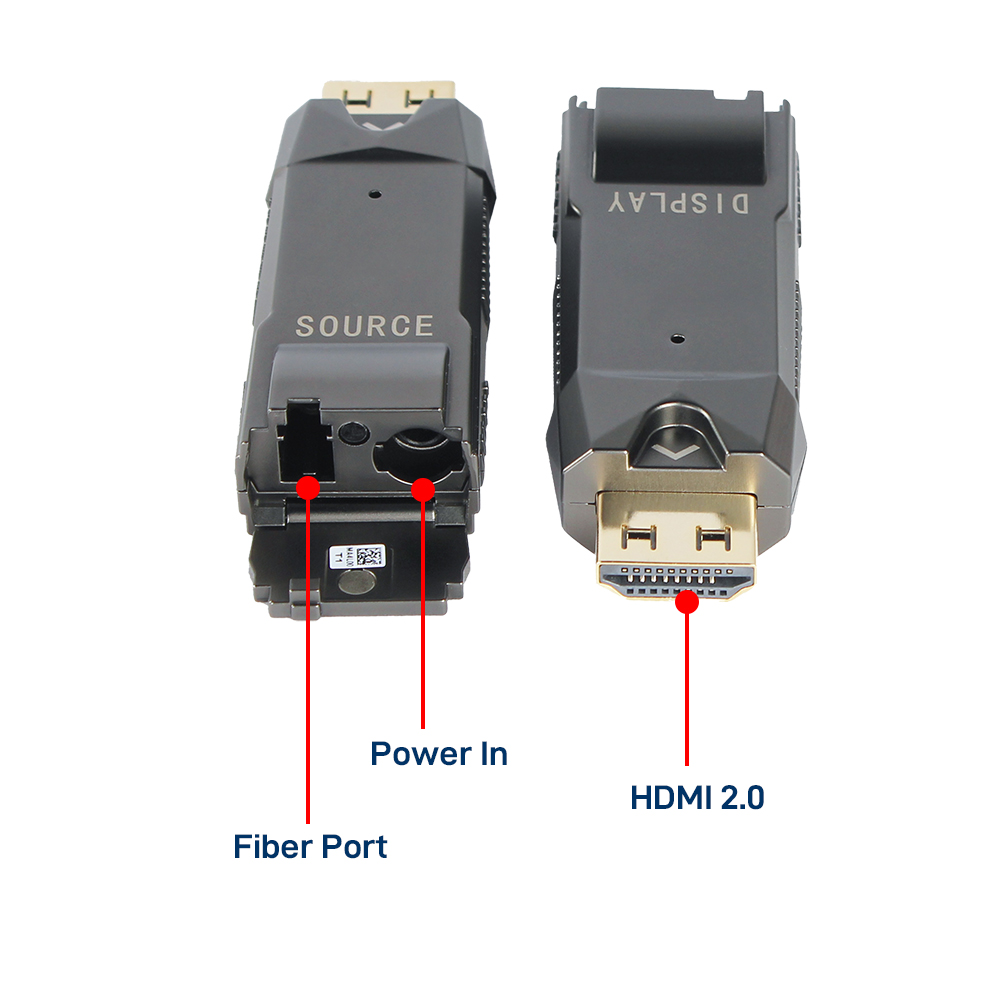

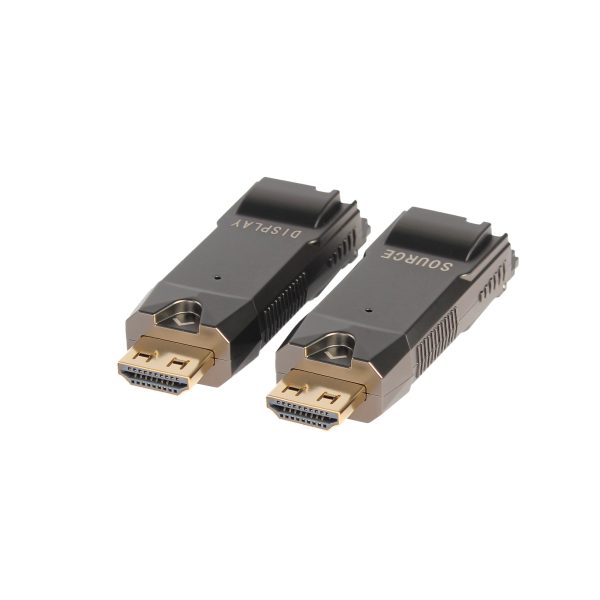

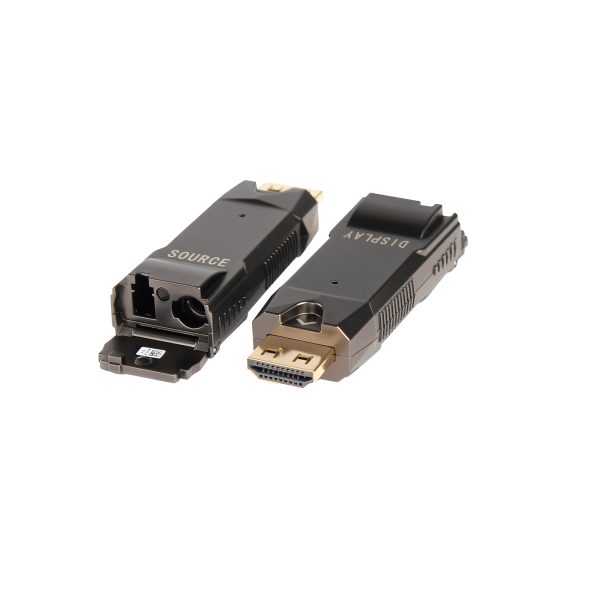

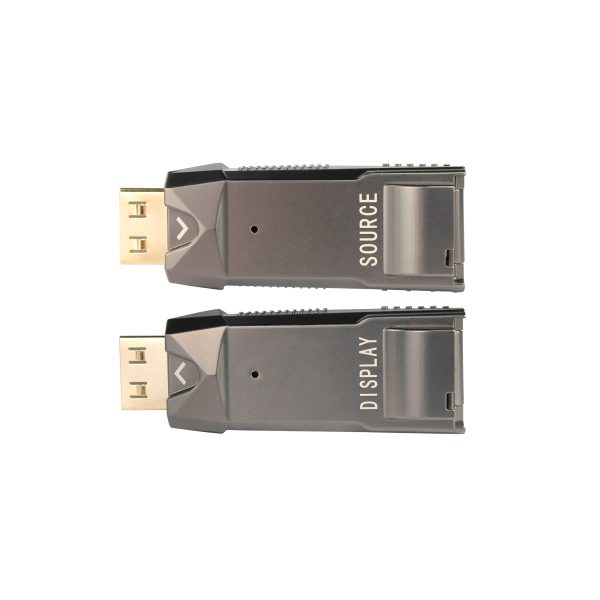

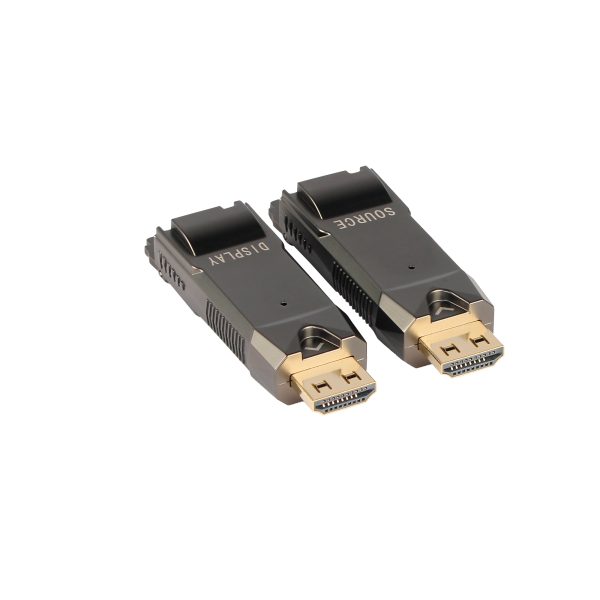

The ZH-THF01HD-T/R HDMI 2.0 Fiber Optic Extender is a compact fiber optic transmission solution designed for long-distance 4K@60Hz HDMI video and audio transmission. It supports up to 18Gbps bandwidth (6Gbps per channel) and uses a single multimode LC fiber to transmit high-definition HDMI signals.

Using WDM technology and a patented miniature diffraction optical system, the extender provides stable transmission with strong resistance to electromagnetic interference. It supports HDCP, DDC and CEC pass-through, as well as hot-plug operation.

The compact module design is easy to integrate into HDMI equipment and is suitable for applications including home theater, video conferencing, meeting rooms, security systems, digital signage and professional displays.

Key Features

• Supports 4K@60Hz HDMI 2.0transmission
• Up to 18Gbps bandwidth, 6Gbps per channel
• Single-fiber transmission over OM3/OM4 multimode LC fiber
• Transmission distance up to 300m
• Supports HDMI 2.0 and is backward compatible with HDMI 1.4
• Supports HDCP/DDC/CEC pass-through
• Uses WDM technology over a single multimode fiber
• Patented miniature diffraction optical system
• Uncompressed digital video and audio transmission
• Strong resistance to electromagnetic interference
• Supports hot-plug operation

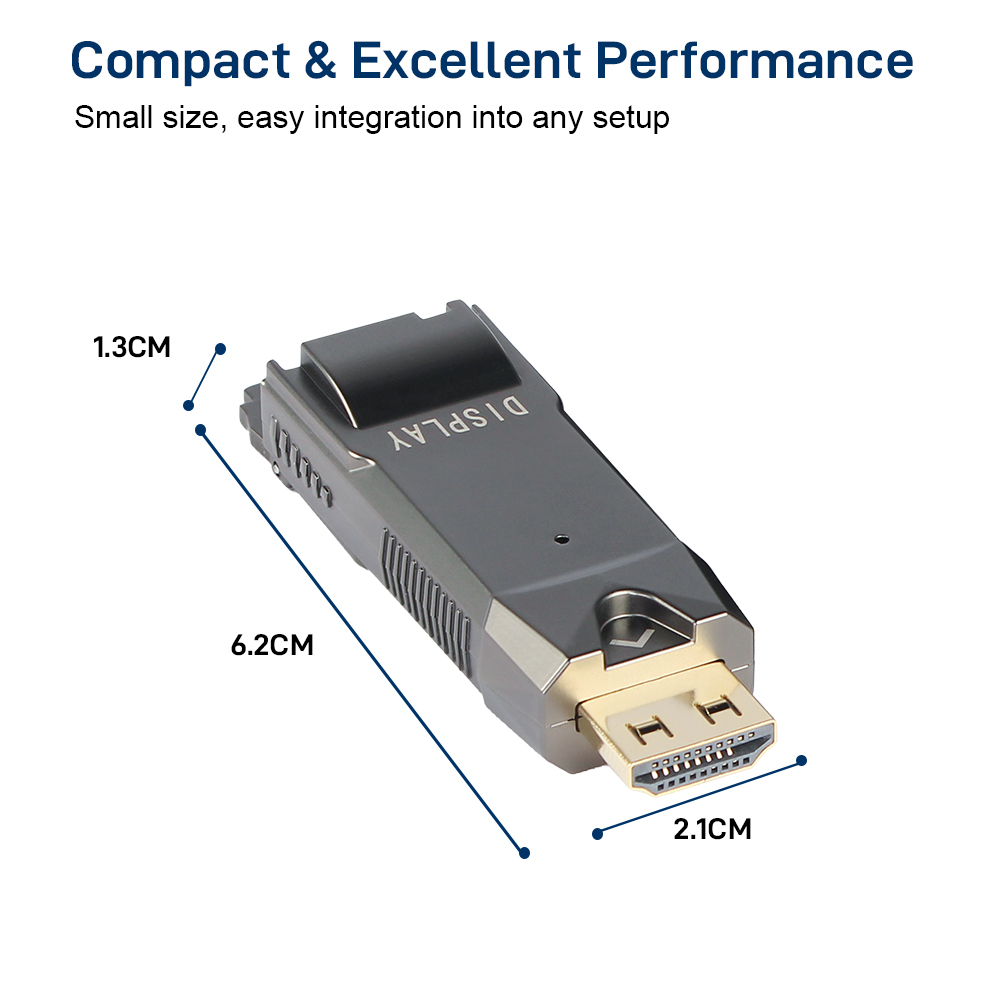

• Compact module design for easy integration
• Suitable for mass production and equipment integration

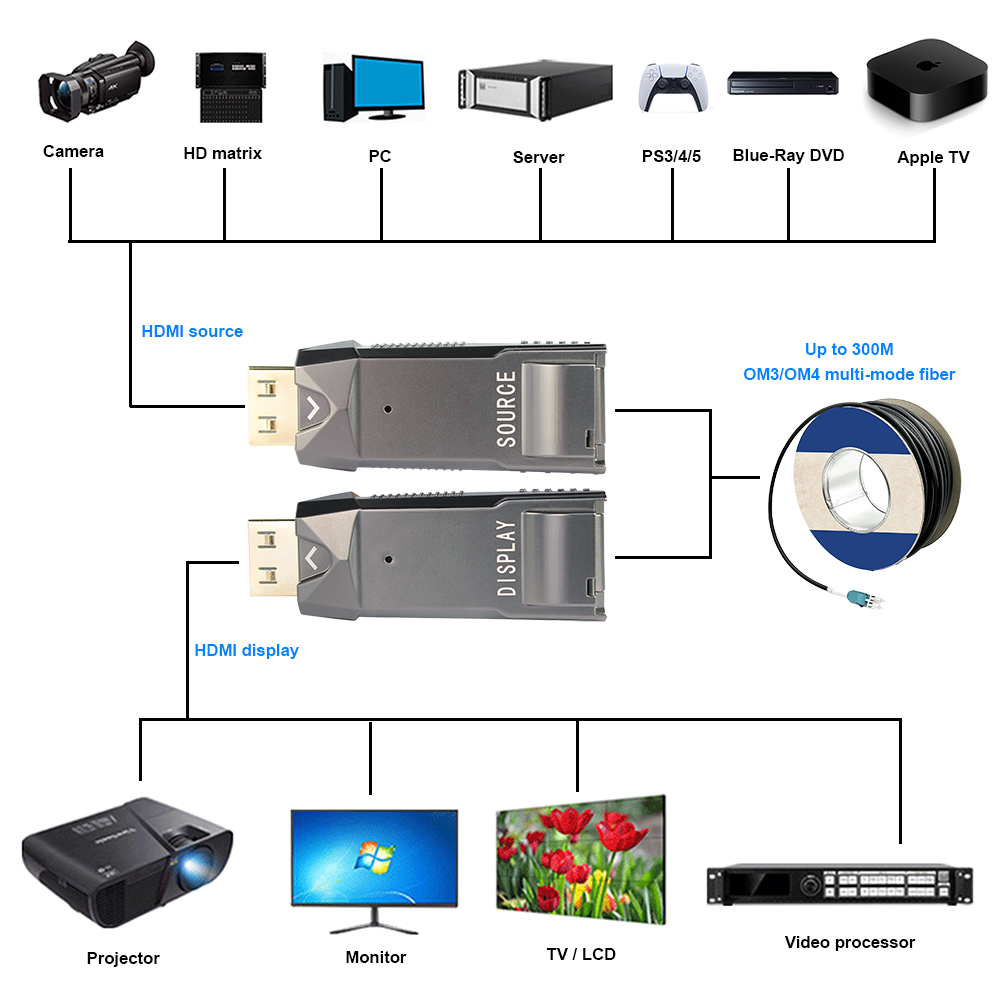

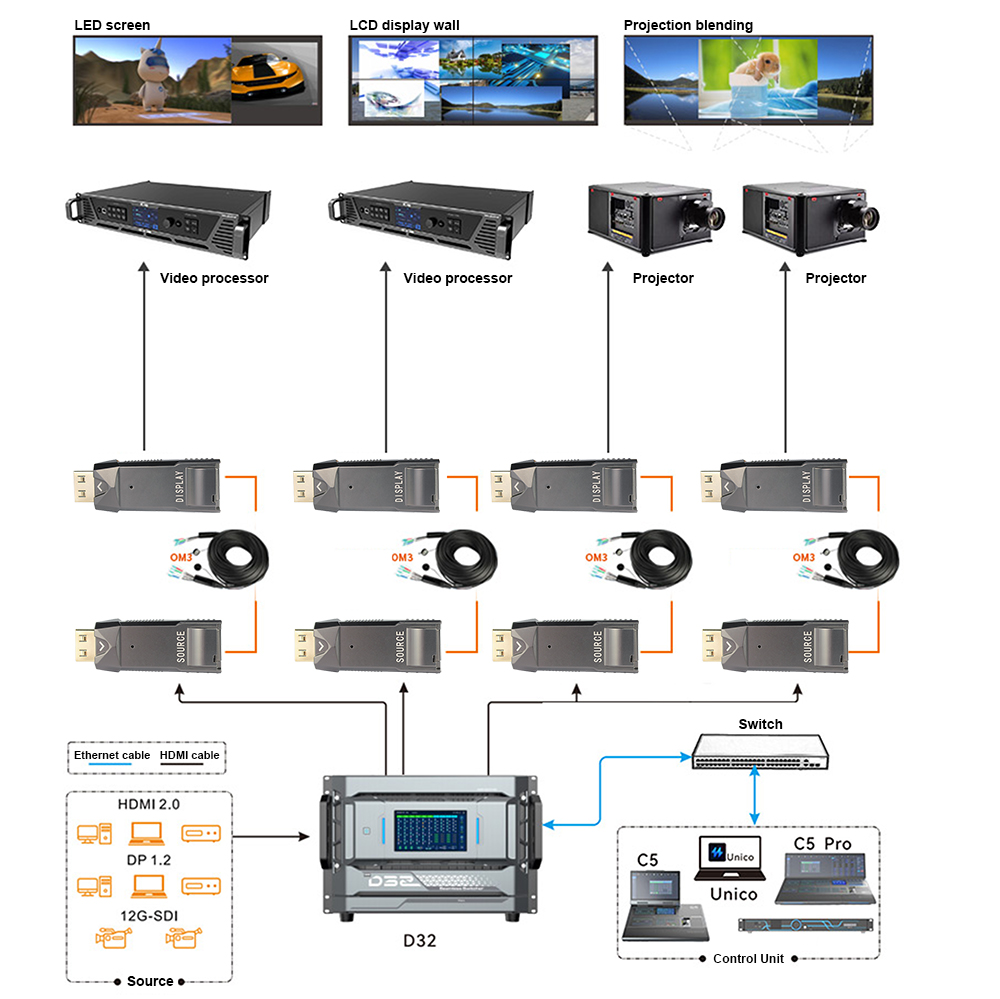

Applications

• Digital home theater
• 4K video conferencing
• Conference rooms
• Auditoriums and large displays
• Outdoor digital advertising
• Security camera systems
• Professional monitors and projectors
• HDMI-enabled computers and media players
