Product Overview

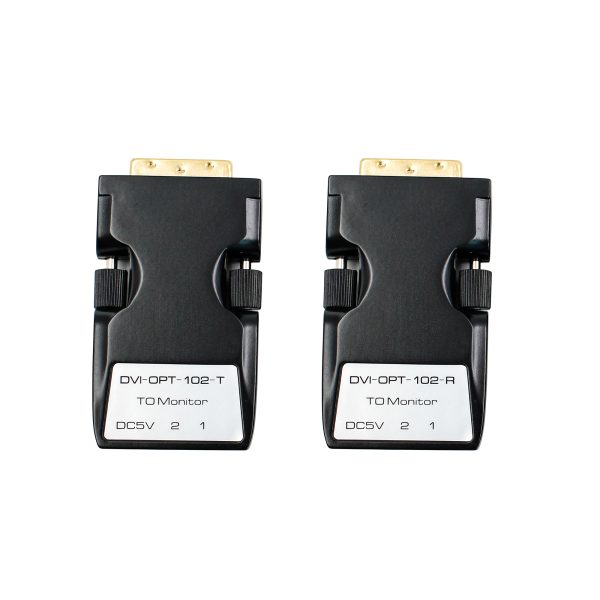

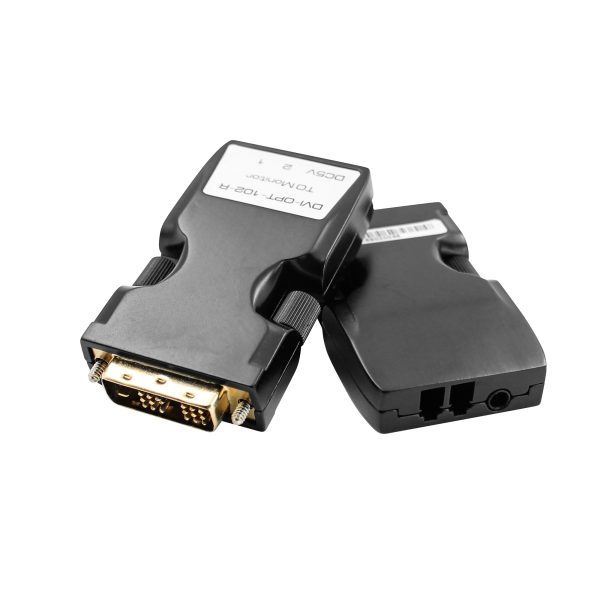

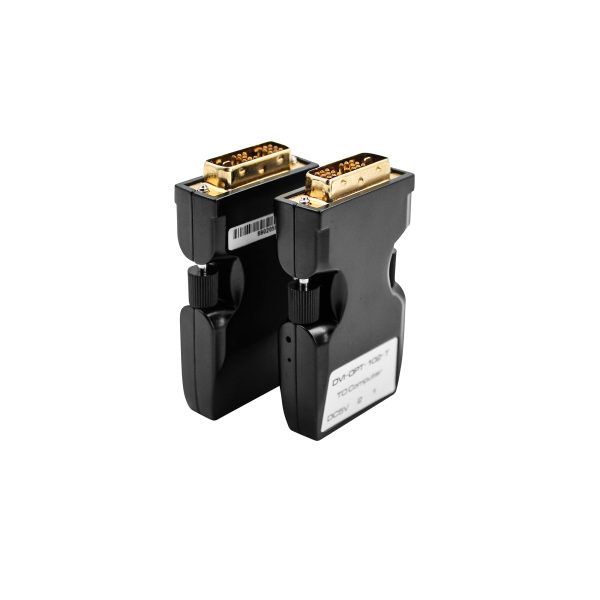

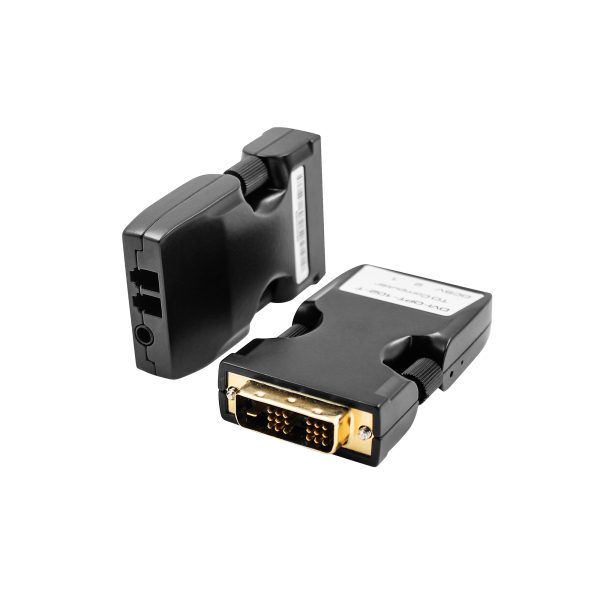

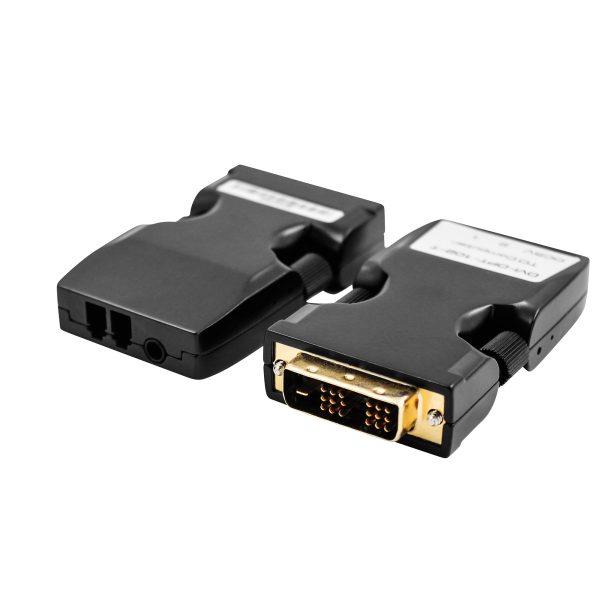

The DVI-OPT-102-TR DVI Fiber Optic Extender is a compact DVI-D transmission solution designed to extend high-resolution DVI video signals over long distances using two-core optical fiber. The system consists of a transmitter (TX) and receiver (RX), providing reliable point-to-point transmission between a computer and display device.
The extender supports DVI resolutions up to 1920×1200@60Hz and can also support HDMI 1080p@60Hz with embedded audio when used with suitable HDMI-to-DVI adapter cables. It supports both G.652.D single-mode fiber up to 2km and OM2 multimode fiber up to 300m.
The transmitter features EDID reading and storage, allowing it to copy the EDID information from a display device and improve compatibility with different displays. The EDID function is particularly useful for systems where the display has non-standard or specific resolution requirements.
The DVI-OPT-102-TR features a compact aluminum alloy housing and simple plug-and-play installation, making it suitable for computer displays, control rooms, digital signage, industrial displays, conference systems, and other long-distance DVI applications.
Key Features
- DVI-D Fiber Extension:Extends one DVI-D video signal over two-core optical fiber.
- 1920×1200@60Hz Support:Supports DVI resolutions up to 1920×1200@60Hz.
- HDMI Compatibility:Supports HDMI signals up to 1080p@60Hz when used with suitable HDMI-to-DVI adapter cables.
- Long-Distance Transmission:Supports up to 2km over G.652.D single-mode fiber or 300m over OM2 multimode fiber.
- 2-Fiber LC Transmission:Uses two-core optical fiber with LC interfaces for reliable signal transmission.
- EDID Reading & Storage:The transmitter can read and store display EDID information for improved display compatibility.
- Embedded Audio Support:Supports embedded audio when transmitting compatible HDMI signals.
- No HDCP Support:Designed for DVI/HDMI signals without HDCP protection.
- Low Power Consumption:Device power consumption is less than 5W.
- Compact Aluminum Housing:Durable aluminum alloy enclosure for professional and space-constrained installations.

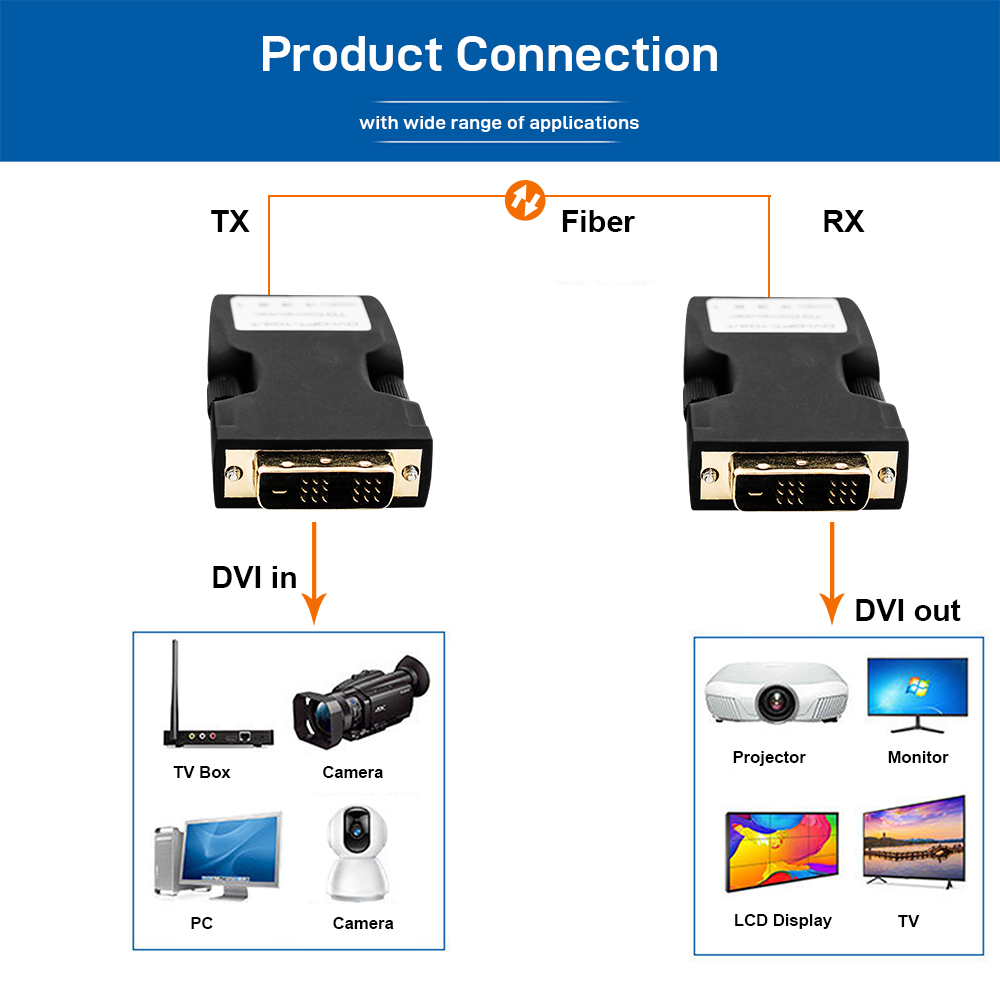

- Simple Installation:Connect the TX and RX units to the source and display, connect the two optical fibers, and supply power.

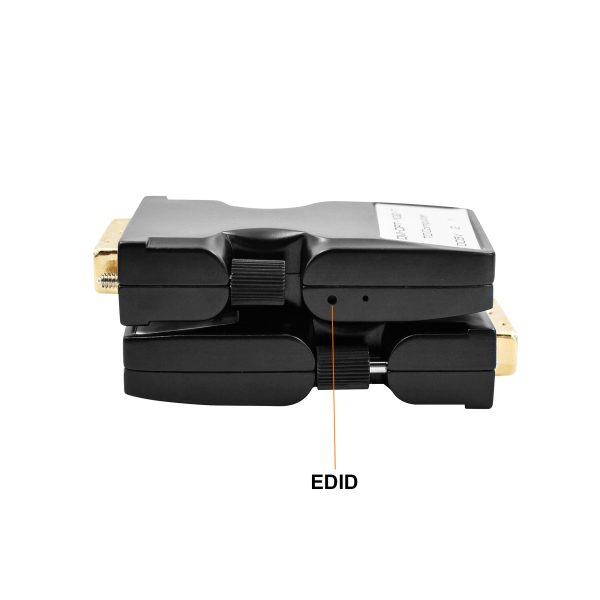

- EDID Status Indication:The power LED flashes during the EDID reading process.
- External DC Power:Both TX and RX are powered by DC 5V adapters.
Applications
- Computer-to-Display Extension
- Digital Signage
- Control Rooms
- Industrial Displays
- Conference Rooms
- Security Monitoring Systems
- Large-Screen Display Systems
- DVI Matrix Systems
- Professional AV Systems
- Long-Distance DVI Video Transmission
