Product Overview

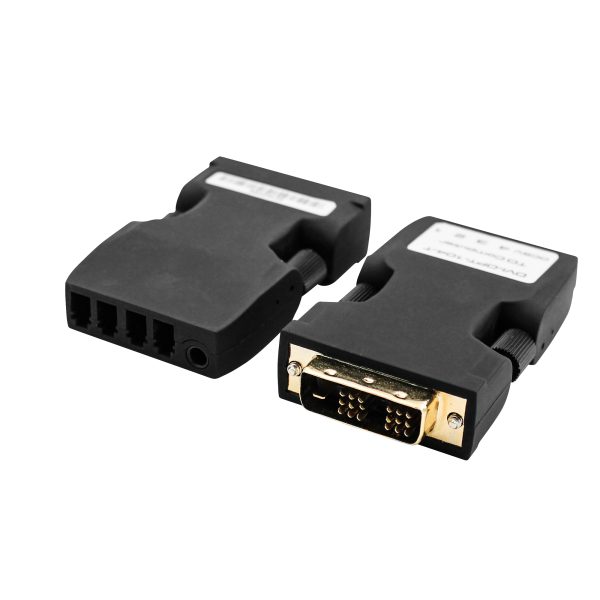

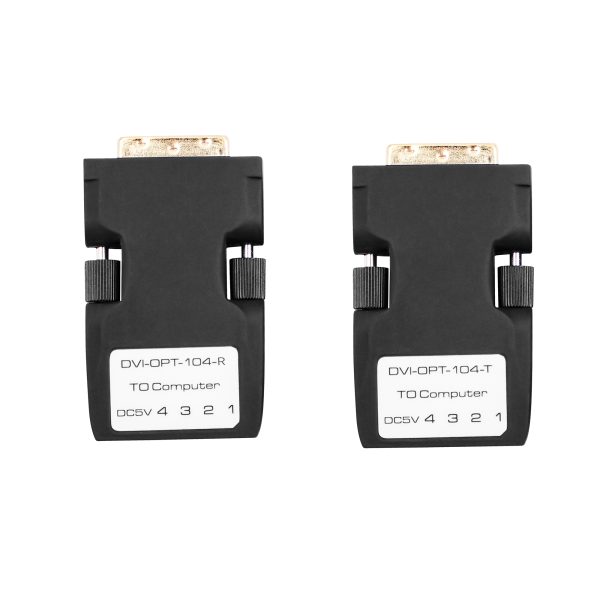

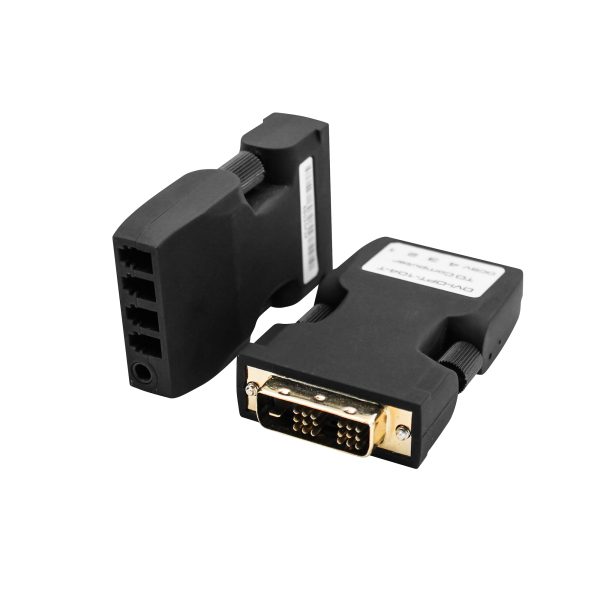

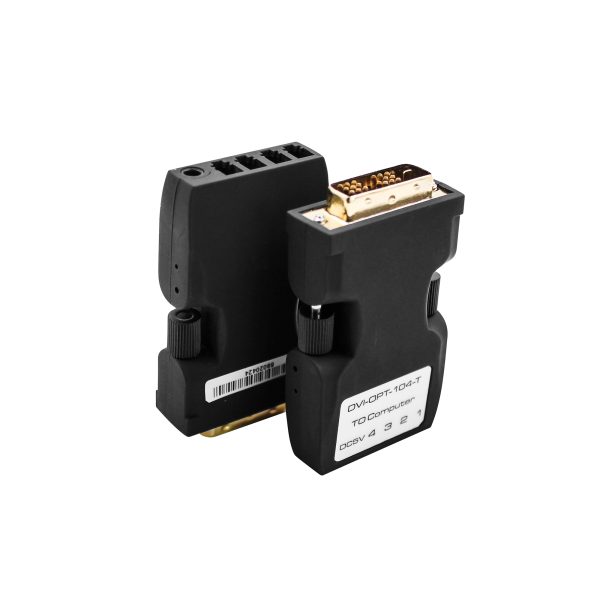

The DVI-OPT-104-T/R DVI Fiber Optic Extender is designed to extend DVI digital video signals over long distances using 4-core OM2 multimode fiber. It transmits RGB video signals and data clock signals through four LC optical fibers, supporting resolutions up to 1920×1200@60Hz with a transmission distance of up to 500 meters.
The extender supports EDID read and storage, allowing the transmitter to read and store the EDID information of a connected display. This helps improve compatibility with different display resolutions and provides a convenient solution for DVI digital video transmission.
The DVI-OPT-104-T/R also supports HDMI 1080p@60Hz with embedded audio when used with an HDMI male-to-DVI female adapter cable. HDCP-protected signals are not supported.
Key Features
- 1920×1200@60Hz DVI Extension:Supports DVI resolutions up to 1920×1200@60Hz.
- 500m Optical Transmission:Extends DVI signals up to 500m over 4-core OM2 multimode fiber.
- 4-Fiber LC Transmission:Uses four LC optical fiber connections with 1-to-1 fiber mapping.
- HDMI 1080p Support:Supports HDMI signals up to 1080p@60Hz through an HDMI-to-DVI adapter cable.
- Embedded Audio:Supports embedded HDMI audio when HDMI-to-DVI conversion is used.

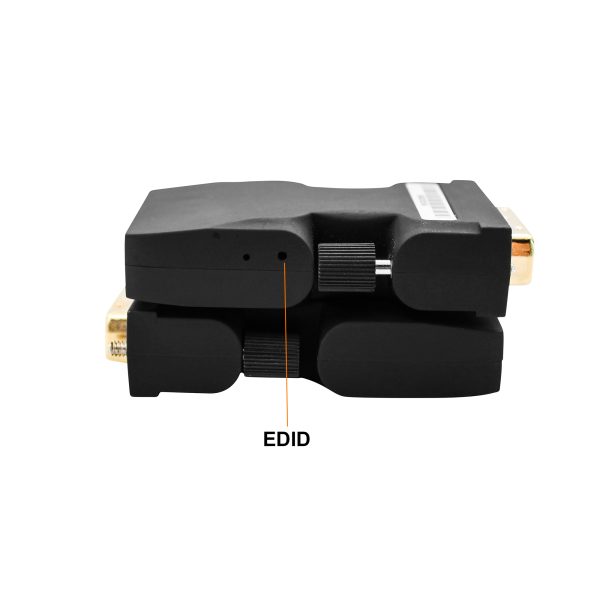

- EDID Read & Storage:Reads and stores display EDID information in the transmitter for improved display compatibility.
- Default EDID Recovery:Allows the transmitter to restore the factory default EDID.
- No HDCP Support:HDCP-protected HDMI/DVI signals are not supported.

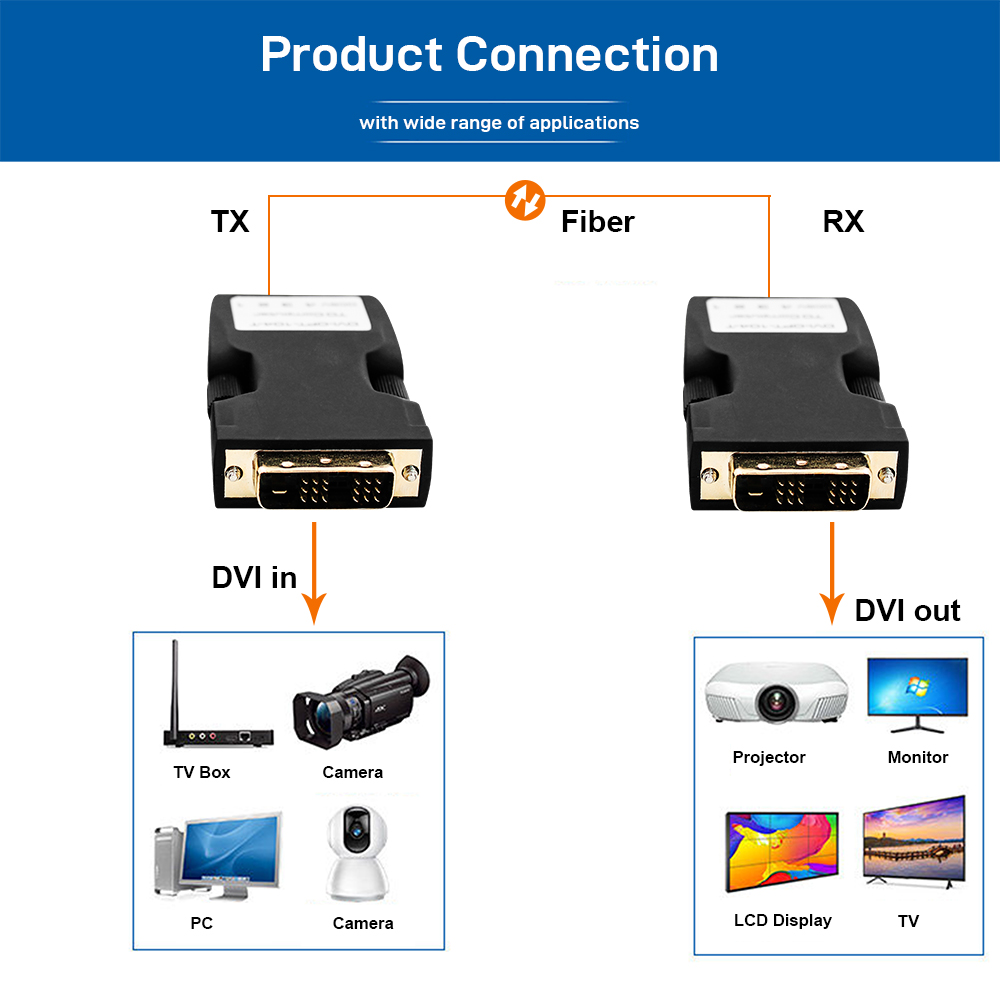

- Plug and Play:Simple TX/RX installation without complicated software configuration.
- Compact Housing:Small aluminum-free engineering plastic housing for space-efficient installation.
Applications
- DVI Digital Signage Systems
- Control Rooms and Monitoring Systems
- Industrial Displays
- Conference Rooms
- Education and Training Systems
- Medical and Professional Displays
- Broadcast and AV Systems
- Long-Distance DVI Video Transmission
- HDMI-to-DVI Display Applications
