Product Overview

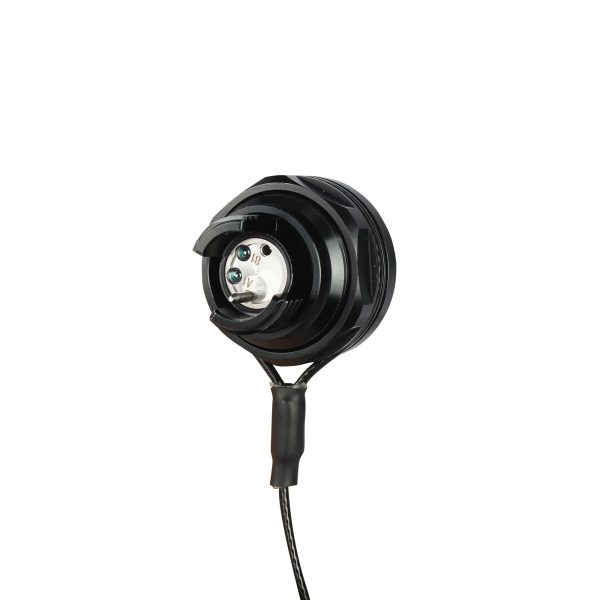

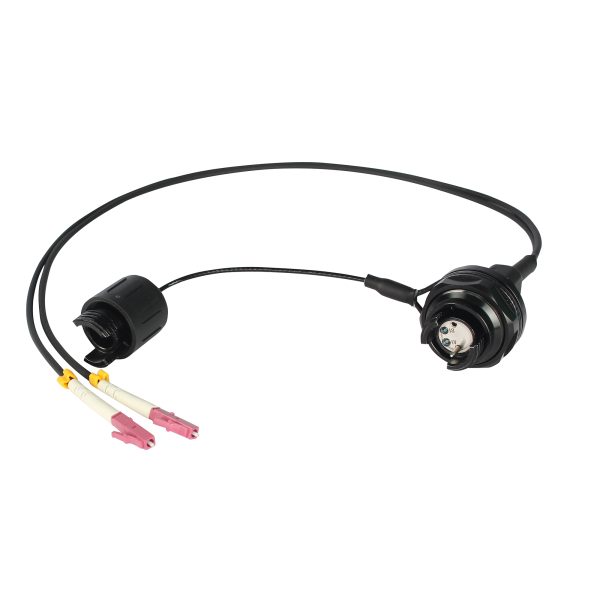

The FQ2CL-MM-2LC-1M 2-Channel Multimode Expanded-Beam Fiber Optic Circular Receptacle is a ruggedized fiber optic chassis connector designed for professional audio, live sound, broadcast, stage production, rental AV, and other demanding fiber optic applications.
The connector uses expanded-beam spherical optical technology with a non-physical-contact optical interface. Instead of directly contacting the fiber end faces, the optical beam is expanded and transmitted through the optical interface, helping reduce the effects of dust, dirt, and contamination and providing stable optical performance during repeated mating.
The receptacle features a thread-locking mounting and mating structure for secure installation and reliable operation in mobile and professional environments. It is designed for 2-channel multimode fiber transmission and provides an IP67-rated enclosure for protection against dust and water.
The connector is suitable for installation on professional equipment and can be used with systems requiring ruggedized expanded-beam fiber connectivity, including applications associated with DiGiCo-style professional audio interfaces and stage systems.
Key Features
- 2-Channel Multimode Fiber:Supports two independent multimode optical channels.
- Expanded-Beam Spherical Technology:Uses a spherical optical structure for non-physical-contact fiber transmission.
- Stable Optical Performance:Non-contact optical coupling helps maintain stable insertion loss during repeated connection and disconnection.
- Low Insertion Loss:Multimode insertion loss is <1.0 dB; single-mode insertion loss is <1.5 dB according to the specified connector design.
- 3000+ Mating Cycles:Designed for more than 3,000 mating cycles for repeated professional use.
- IP67 Protection:Provides protection against dust and temporary water immersion.
- Thread-Locking Design:Secure threaded locking helps prevent accidental loosening during operation.
- Rugged Construction:Designed to withstand mechanical stress, shear pressure, bending, and repeated field deployment.
- Aramid Yarn Reinforcement:High-strength aramid yarn provides strong tensile reinforcement.
- Dust, Water and Contamination Resistant:Ruggedized structure helps protect the optical interface in demanding environments.

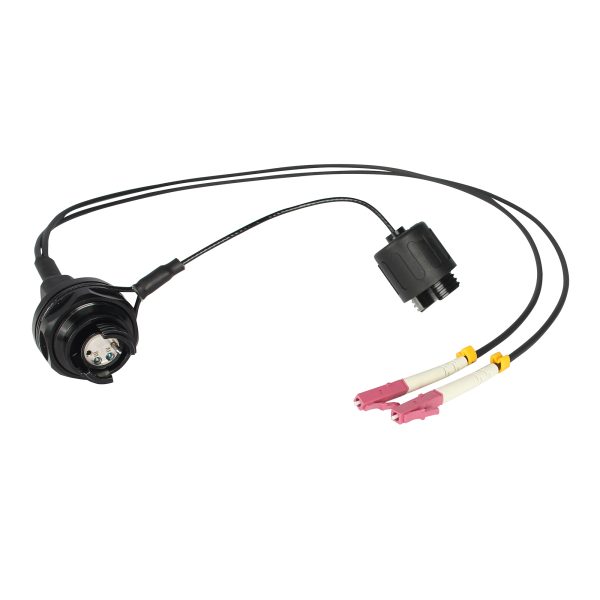

- Lockable Dust Cap:Supplied with a lockable protective dust cap for protecting the connector when not in use.
- Easy Maintenance:Expanded-beam optical technology simplifies cleaning and field maintenance.
- Professional Audio Compatibility:Suitable for professional audio, stage, touring, rental, and broadcast systems.
- DiGiCo-Style Application:Designed for applications requiring installation on professional audio equipment and interface boxes.
Expanded-Beam Optical Technology
The connector uses a spherical expanded-beam optical structure to transmit optical signals without direct physical contact between the fiber end faces.
The optical beam is expanded before passing through the connector interface and then optically focused back into the receiving fiber. Because the optical beam is significantly larger than the fiber core, small amounts of dust or contamination have less influence on the transmitted optical power than with conventional physical-contact interfaces.
This type of expanded-beam technology is widely used in ruggedized fiber optic systems for touring, broadcast, military, industrial, and harsh-environment applications. Commercial expanded-beam systems are available in both 2-channel and 4-channel configurations.

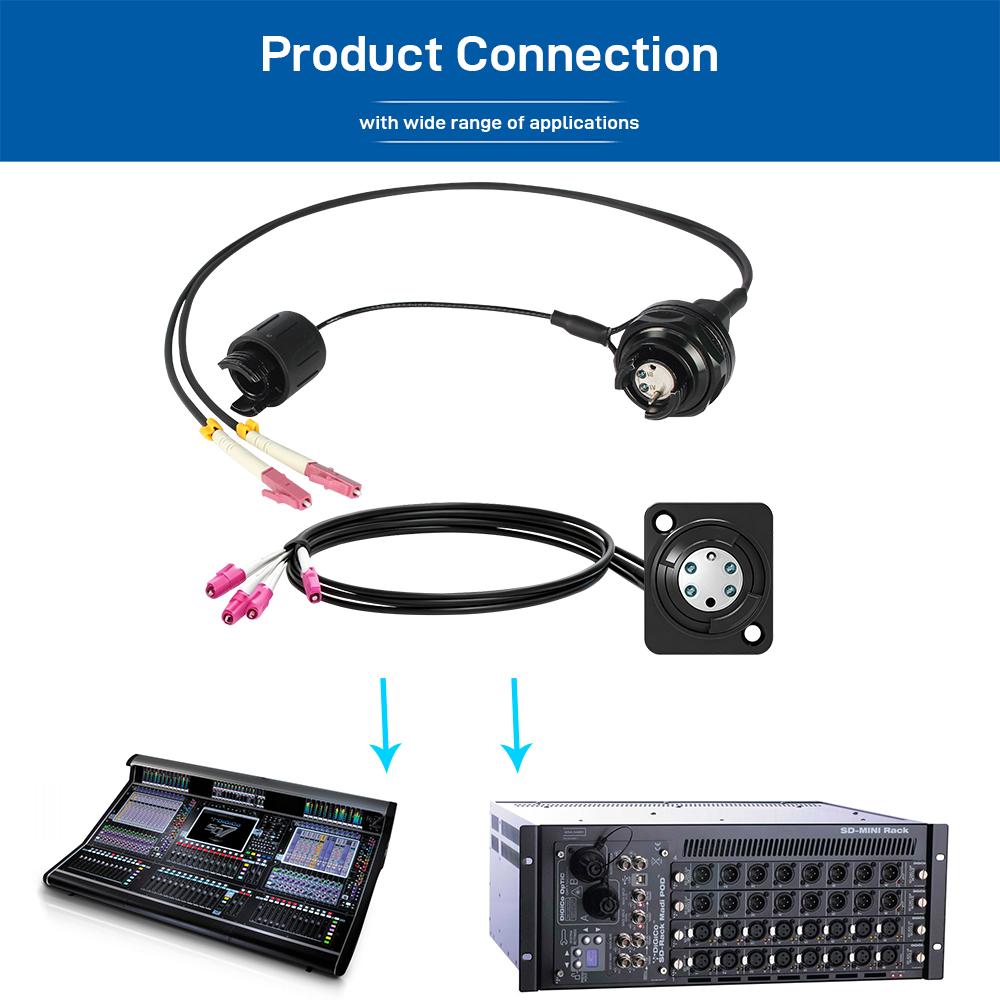

Applications
- Professional Audio Equipment
- Digital Audio Systems
- DiGiCo-Style Audio Interface Boxes
- Live Sound and Touring Systems
- Stage Production
- Broadcast and Outside Broadcast
- Rental AV Equipment
- LED Display Systems
- Portable Fiber Optic Systems
- Outdoor Events
- Industrial Fiber Optic Applications
