Product Overview

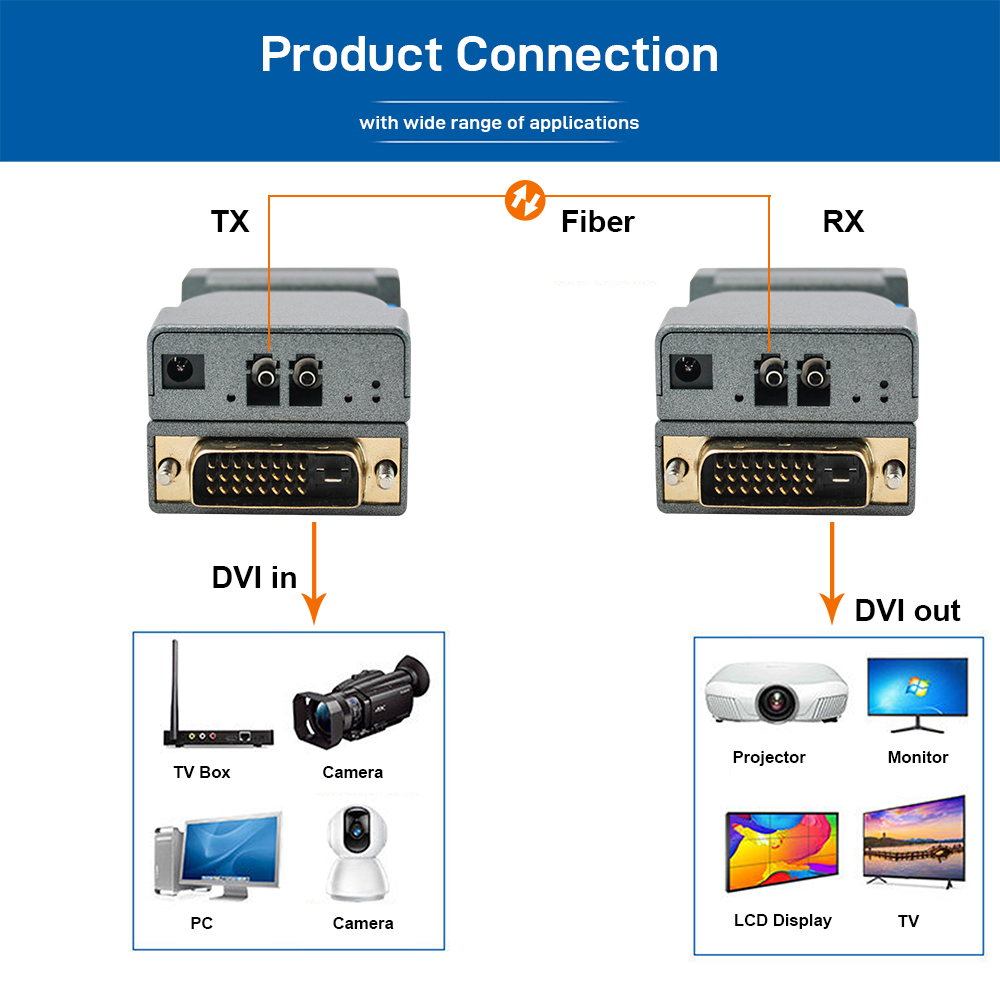

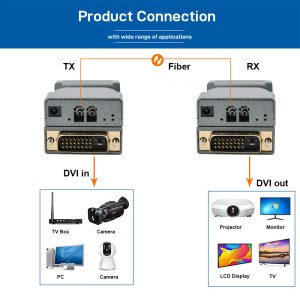

The ZH-THF1402D DVI/HDMI 4K Fiber Optic Extender is designed to transmit DVI/HDMI video signals over long distances using two-core LC fiber optic cable. It supports both multimode and single-mode fiber, providing up to 250m over OM3 multimode fiber or 750m over G.652D single-mode fiber.
The extender supports resolutions up to 4096×2160@30Hz, 3840×2160@30Hz, and 2560×1440@60Hz, making it suitable for professional AV systems, digital signage, control rooms, video walls, conference rooms, and other high-resolution display applications.
The built-in EDID manual learning function improves compatibility with different displays by allowing the transmitter to learn the display’s EDID information. The system also supports embedded HDMI audio transmission for HDMI signals without HDCP protection.

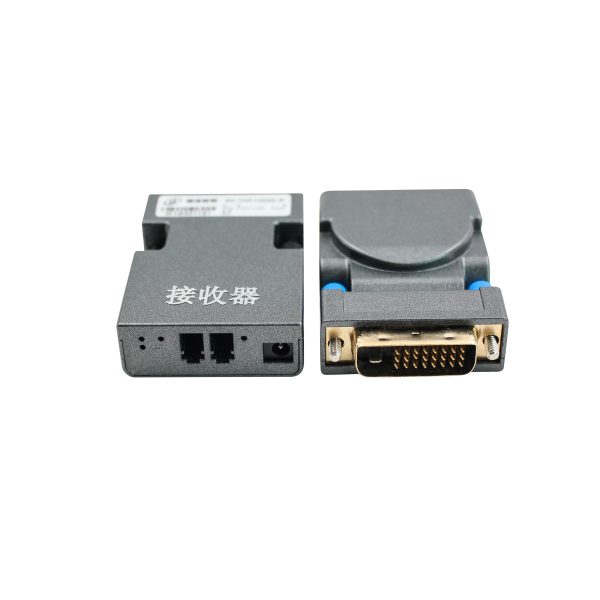

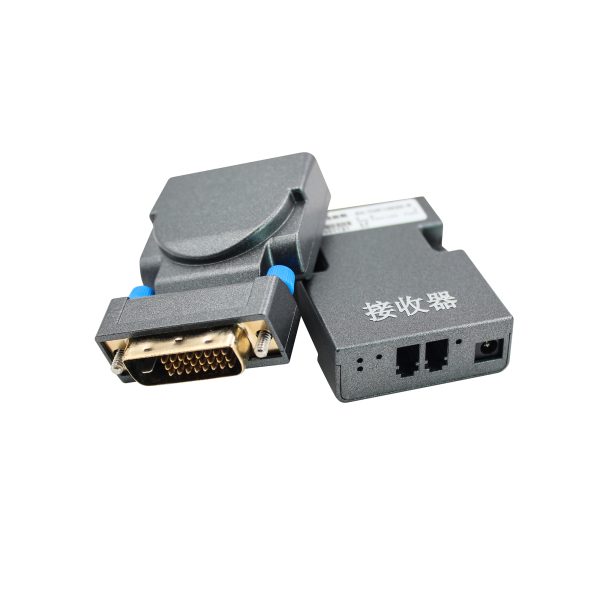

The transmitter and receiver feature a compact metal housing with front-panel optical interfaces, indicators, and EDID controls for convenient installation and operation. The DVI/HDMI interface can also provide +5V power, while external 5V power adapters are recommended for reliable operation.
Key Features
- 4K DVI/HDMI Fiber Extension:Supports high-resolution video transmission up to 4096×2160@30Hz.
- Dual LC Fiber Transmission:Uses two-core LC fiber optic connections for reliable long-distance transmission.
- Dual Fiber Compatibility:Supports both OM3 multimode and G.652D single-mode fiber.
- Long-Distance Transmission:Up to 250m over OM3 multimode fiber or 750m over G.652D single-mode fiber.
- EDID Manual Learning:Allows the transmitter to learn display EDID information for improved resolution and display compatibility.
- Default EDID Recovery:Supports restoration of the factory default EDID when required.
- Embedded HDMI Audio:Supports transmission of embedded HDMI audio with non-HDCP video signals.
- Wide Resolution Support:Supports 4096×2160@30Hz, 3840×2160@30Hz, 2560×1440@60Hz, and lower resolutions.
- Low Power Consumption:Typical operating current is 200–350mA.

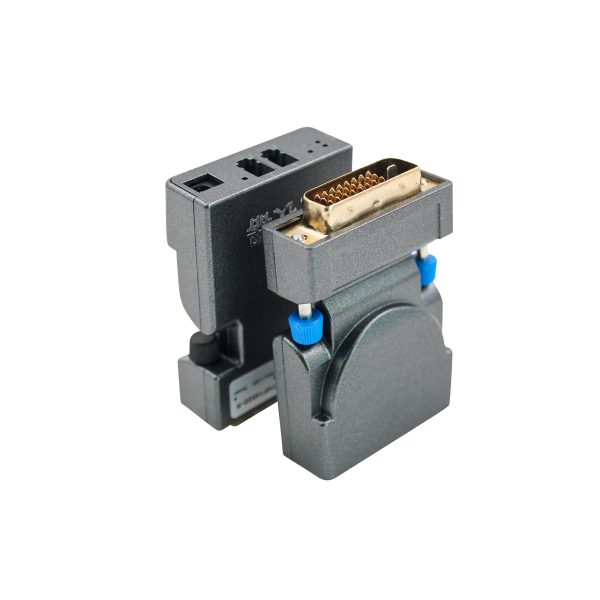

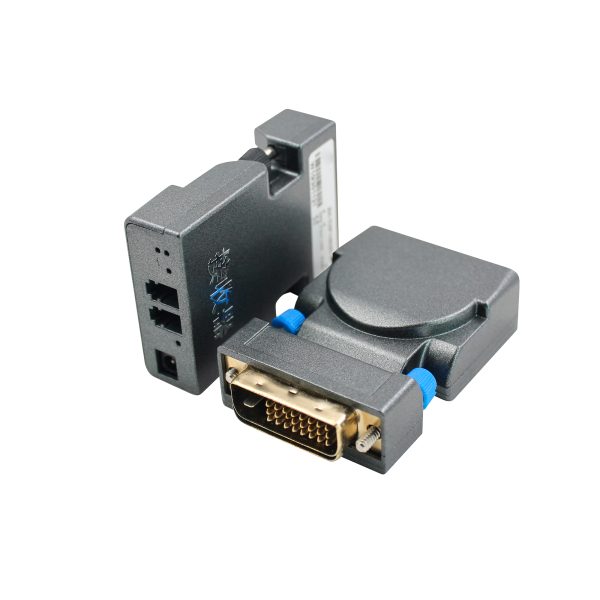

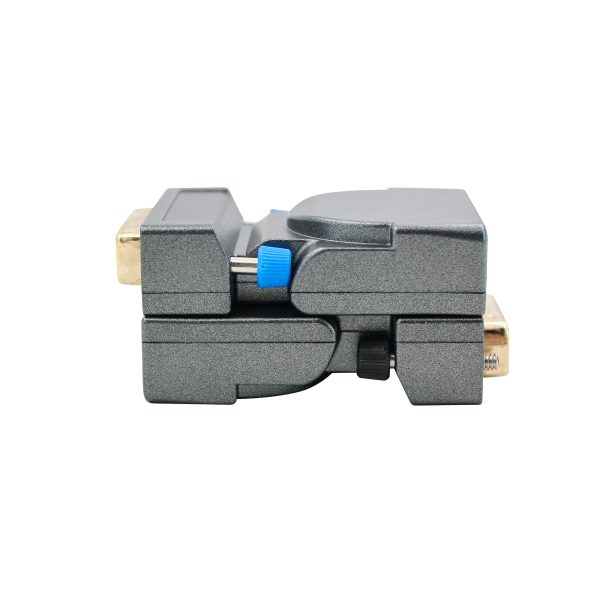

- Compact Metal Housing:Durable metal enclosure with detachable upper cover for convenient installation.
- DVI/HDMI Power Support:The DVI/HDMI interface can provide +5V power under suitable source/display conditions.

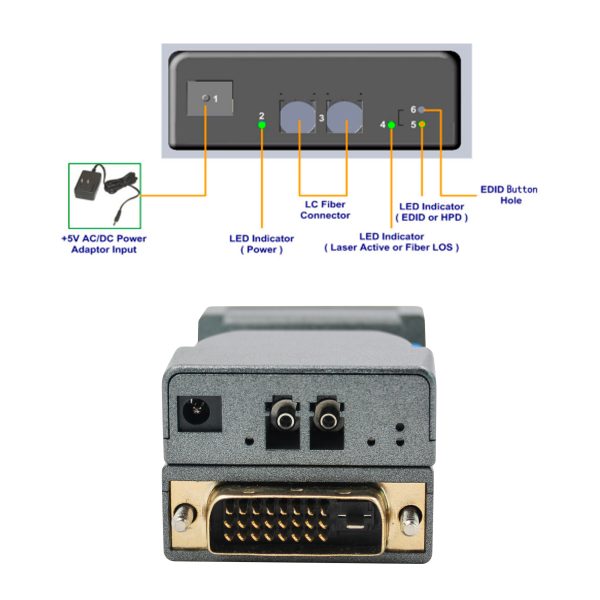

- Front-Panel Operation:Optical interfaces, LEDs, and EDID controls are integrated on the front panel for easy access.
- Status Indicators:LEDs indicate power, laser activity, fiber loss, EDID learning, and hot-plug detection status.
- ESD Protection:Provides ±15kV air discharge and ±8kV contact discharge protection.
- Software Upgrade Port:Hidden serial interface design allows convenient firmware upgrades.
Applications
- Professional AV Systems
- 4K Digital Signage
- Video Walls and Display Systems
- Conference Rooms
- Control Rooms
- Broadcast and Production Systems
- Large-Screen Display Systems
- Matrix and Centralized AV Systems
- Computer-to-Display Long-Distance Extension
- DVI/HDMI Fiber Optic Transmission
